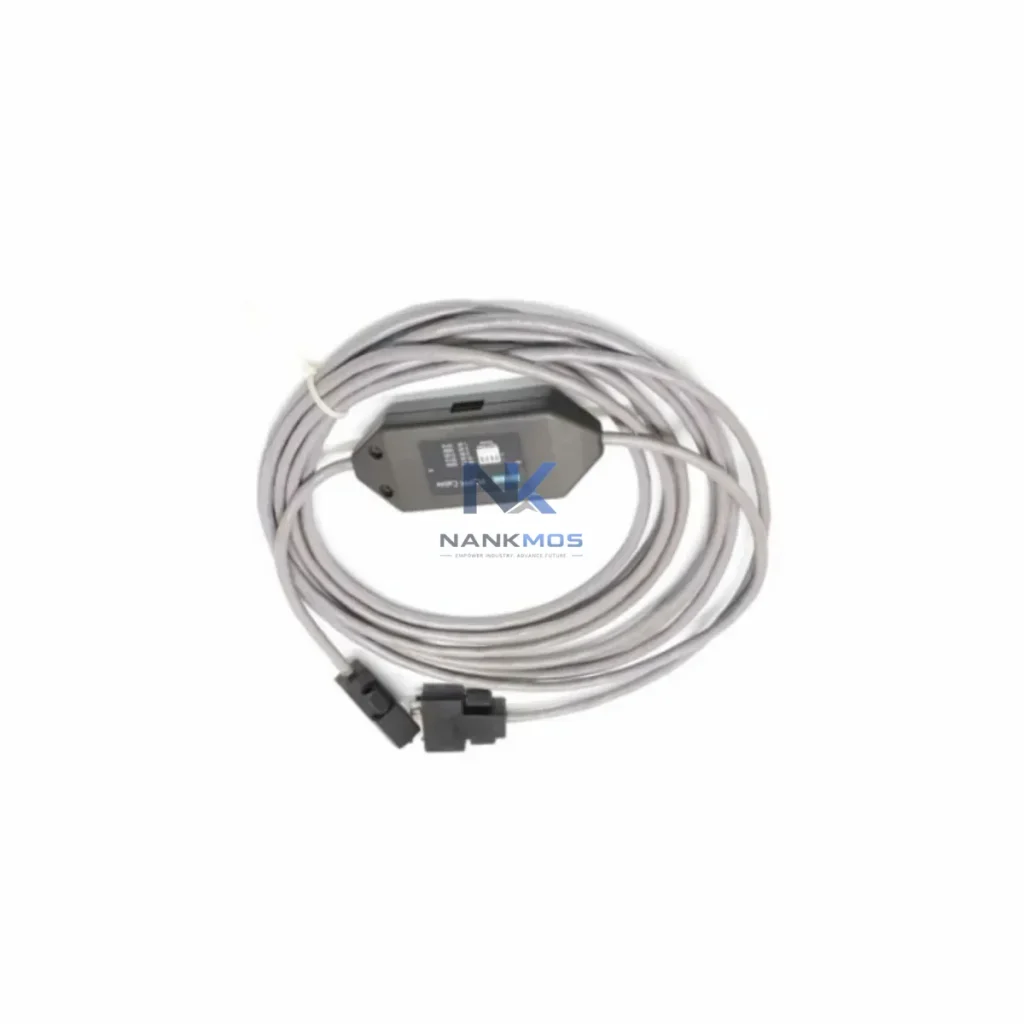

KUKA 00-176-028 C4 00-277-094 00-170-196

Product Details

00-176-028 C4 00-277-094 00-170-196 Product Description

The KUKA 00-176-028 SmartPAD Interface is a precision-engineered human-machine interface (HMI) component designed for seamless integration within the KR C4 robot controller ecosystem. As the primary operator interaction layer in KUKA's fourth-generation control architecture, this module bridges the HMI layer and the control layer, enabling real-time robot programming, motion supervision, diagnostic feedback, and process parameter adjustment directly from the teach pendant. Engineered for demanding industrial environments, the 00-176-028 delivers consistent signal integrity, ergonomic operability, and long-term serviceability across a wide range of automation deployments.

In modern industrial automation, no component operates in isolation. The SmartPAD interface is architecturally positioned at the intersection of operator input and controller execution, making it a critical node in the overall system hierarchy. Its role extends beyond simple command input — it serves as the diagnostic window into the KR C4 controller's runtime state, enabling engineers to monitor axis positions, I/O signal states, program execution flow, and fault conditions in real time. This contextual integration capability reduces commissioning time and accelerates fault resolution across the full automation lifecycle.

The KUKA 00-176-028 SmartPAD Interface achieves its full operational value when deployed within a complete KR C4 automation platform. At the control layer, the KR C4 compact and KR C4 mid-range controller serve as the computational core, executing KUKA Robot Language (KRL) programs and managing all axis interpolation, safety monitoring, and I/O coordination. The SmartPAD connects directly to the controller cabinet via the 00-277-094 SmartPAD cable assembly, ensuring low-latency, noise-immune signal transmission between the operator interface and the controller CPU.

At the I/O layer, the KR C4 platform integrates with KUKA KPS 600 power supply modules and KPP 600 servo power packs, which regulate the electrical supply to all drive axes. The SmartPAD's real-time display of axis torque, velocity, and position data is fed directly from these drive-level signals, giving operators immediate visibility into the mechanical execution layer without requiring separate diagnostic tools.

For communication-layer integration, the KR C4 architecture supports PROFINET IO, EtherNet/IP, and DeviceNet fieldbus protocols through optional communication modules. The SmartPAD interface reflects the live status of all active fieldbus connections, enabling engineers to verify PLC-to-robot handshake signals, monitor cyclic data exchange, and diagnose communication faults directly from the teach pendant. This eliminates the need for separate network analyzers during initial commissioning or fault investigation.

The 00-170-196 SmartPAD holder and docking station complements the 00-176-028 by providing a secure, ergonomic mounting solution within the control cabinet door or operator station. When docked, the SmartPAD transitions to panel-mount mode, maintaining full controller connectivity while freeing the operator's hands for other commissioning tasks. This docking integration is particularly valuable in high-density robot cell layouts where multiple KR C4 controllers share a common operator workstation.

For safety-layer compliance, the KR C4 platform incorporates KUKA SafeOperation and SafeRangeMonitoring software modules, which are configured and monitored directly through the SmartPAD interface. Safe speed limits, workspace boundaries, and axis angle restrictions are all parameterized via the teach pendant, ensuring that safety function configuration is integrated into the standard operator workflow rather than requiring separate safety PLC programming tools.

In redundant architecture deployments, the KR C4 platform supports dual-channel safety monitoring through the integrated safety controller, with all safety state information surfaced on the SmartPAD display. This allows maintenance engineers to verify safety circuit integrity, acknowledge faults, and reset protective stops without accessing the controller cabinet interior, significantly reducing mean time to recovery (MTTR) in production environments.

Automotive Body-in-White Manufacturing: In high-throughput automotive welding lines, the KUKA 00-176-028 SmartPAD is the primary tool for robot program selection, weld parameter adjustment, and fault acknowledgment. Operators use the teach pendant to switch between production programs, verify TCP (tool center point) calibration, and monitor weld gun force feedback — all without interrupting the production cycle on adjacent robot cells.

Petrochemical and Energy Sector Automation: In hazardous area robot deployments for inspection, valve actuation, or material handling in petrochemical facilities, the SmartPAD's IP54 protection rating and robust cable assembly ensure reliable operation in environments with airborne particulates, humidity, and chemical exposure. The real-time diagnostic display enables maintenance personnel to assess robot health and perform controlled shutdowns without entering restricted zones.

Semiconductor and Electronics Assembly: In cleanroom-compatible robot cells for wafer handling, PCB assembly, or precision dispensing, the KR C4 SmartPAD interface enables micron-level position verification and program fine-tuning directly at the robot. The touchscreen interface supports precise numerical input for position offsets and process parameters, reducing the risk of transcription errors that can occur when programming remotely via PC-based tools.

Metal Fabrication and Laser Processing: For robotic laser cutting, plasma cutting, or waterjet systems integrated with KR C4 controllers, the SmartPAD provides real-time monitoring of cutting speed, laser power feedback signals, and path deviation alerts. Operators can pause, adjust, and resume cutting programs without returning to the main control panel, improving process flexibility and reducing scrap rates.

Packaging and Palletizing Lines: In high-speed packaging and end-of-line palletizing applications, the SmartPAD's quick-access program selection and I/O monitoring capabilities allow line operators to adapt robot behavior to changing product formats or pallet configurations with minimal downtime. The integrated fault history log provides maintenance teams with actionable data for predictive maintenance scheduling.

Q1: Is the KUKA 00-176-028 SmartPAD compatible with all KR C4 controller variants, including the KR C4 compact and KR C4 mid-range? Yes. The 00-176-028 SmartPAD Interface is designed for universal compatibility across the KR C4 controller family, including the KR C4 compact, KR C4 mid-range, and KR C4 extended variants. The SmartPAD communicates with the controller via the dedicated SmartPAD bus interface, which is standardized across all KR C4 platform members. When replacing an existing SmartPAD, ensure the cable assembly (00-277-094) is also inspected for wear, as cable integrity directly affects communication reliability and safety function performance.

Q2: Can the 00-176-028 SmartPAD be used during live production without interrupting robot operation? Yes, in T1 (manual reduced speed) and AUT (automatic) operating modes, the SmartPAD can be used for monitoring, program selection, and I/O status review without interrupting the active production cycle. Program modification and position teaching require the controller to be placed in T1 or T2 mode with the enabling device engaged, as per KUKA safety protocols. The SmartPAD's mode selector key switch provides hardware-enforced mode separation, ensuring that operator interface actions cannot inadvertently trigger unintended robot motion during production.

Q3: What is covered under the 12-Month Warranty, and what is the global supply availability for the 00-176-028? The KUKA 00-176-028 SmartPAD Interface is supplied with a 12-Month Warranty covering manufacturing defects, electronic component failures, and display malfunctions under normal operating conditions. Each unit undergoes pre-shipment functional testing, including touchscreen calibration verification, keypad response testing, and communication link validation with a KR C4 controller. Global stock is maintained for rapid dispatch, with international shipping available to manufacturing facilities in Asia, Europe, the Americas, and the Middle East. For volume procurement, OEM integration projects, or urgent replacement requirements, contact our technical sales team for lead time confirmation and application support.
