Applied Materials 0100-09032, 0100-09033 0020-10758 030401-2

Product Details

0100-09032, 0100-09033 0020-10758 030401-2 NC-95-PP S6ASS5310/292 19436 Product Description

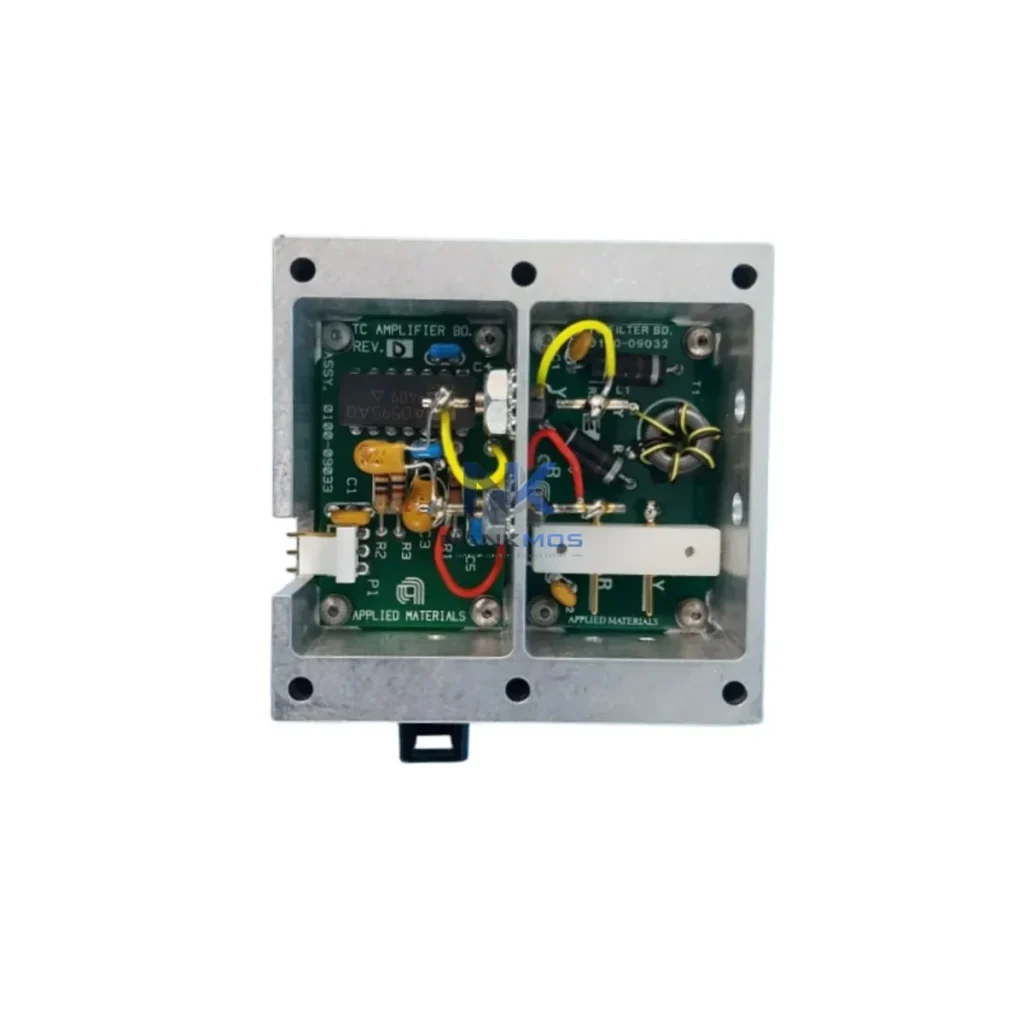

The AMAT 0100-09032 TC Filter Board is a precision signal conditioning PCB engineered for Applied Materials semiconductor process equipment. Designed to filter, isolate, and transmit thermocouple (TC) signals across high-noise manufacturing environments, this board forms a critical node in the factory data chain — bridging field-level temperature sensors with upstream PLC controllers, SCADA platforms, and process management systems. Whether deployed in CVD chambers, etch systems, or diffusion furnaces, the 0100-09032 ensures clean, stable signal delivery that underpins real-time process monitoring and closed-loop automation.

In a modern semiconductor fab, process data integrity begins at the sensor level. The AMAT 0100-09032 TC Filter Board sits at the front end of this data chain, receiving raw thermocouple signals from temperature probes embedded in process chambers and conditioning them before transmission to the equipment's main process controller. Without reliable TC signal filtering, temperature deviations go undetected, leading to yield loss and unplanned downtime.

Once the 0100-09032 delivers a clean analog signal, the Applied Materials process controller — such as those found in the Centura or Producer platform mainframes — converts this data into digital process variables. These variables are then passed upstream via RS-485 serial links or proprietary equipment buses to the fab's SCADA system, where operators monitor real-time temperature trends across multiple chambers simultaneously. Integration with HMI panels allows technicians on the floor to view live TC readings, set alarm thresholds, and trigger interlock responses when temperatures drift outside process windows.

The data flow continues to the fab's MES (Manufacturing Execution System), where temperature logs from the 0100-09032 signal chain are correlated with wafer lot records, enabling full process traceability. Complementary boards such as the AMAT 0100-09033 (a closely related TC filter variant) and the AMAT 0020-10758 power distribution board work in parallel within the same equipment chassis, ensuring that both signal integrity and power stability are maintained across the process module. The 030401-2 interface board further extends connectivity between the TC filter stage and the equipment's backplane communication bus.

For facilities running multi-chamber configurations, the TC filter board's output feeds into centralized data acquisition modules that aggregate temperature data from multiple process zones. Edge gateway devices installed at the equipment cluster level collect this aggregated data and push it to cloud-based or on-premise analytics platforms, enabling predictive maintenance models to flag TC signal drift — often an early indicator of thermocouple degradation or heater element wear — before it impacts production. The NC-95-PP and S6ASS5310/292 cross-reference assemblies serve as functional equivalents in legacy equipment lines, ensuring backward compatibility across older Applied Materials tool generations.

Industrial-grade power supplies and backplane regulators, such as those referenced under part 19436, provide the stable DC rail that the 0100-09032 requires for consistent analog performance. Any ripple or noise on the supply rail directly degrades TC signal quality, making power integrity a prerequisite for accurate temperature measurement. This interdependency underscores the importance of sourcing the complete signal chain — from TC probe through filter board, power board, and process controller — from verified, tested inventory.

Protocol Fragmentation: Semiconductor fabs often run mixed-generation equipment with incompatible signal standards. The AMAT 0100-09032 provides a standardized analog output that interfaces cleanly with both legacy RS-232 process controllers and modern RS-485 networked systems, eliminating signal translation bottlenecks at the chamber level.

Data Islands and Process Blind Spots: Without a functioning TC filter board, temperature data from individual process zones becomes unavailable to the SCADA layer, creating blind spots in process monitoring. Replacing a failed 0100-09032 with a verified, tested unit immediately restores full data visibility across the affected chamber, closing the gap in the fab's real-time monitoring coverage.

Remote Monitoring and Alarm Traceability: The clean signal output from the 0100-09032 enables accurate alarm threshold configuration in SCADA and HMI systems. When temperature excursions occur, the signal chain's integrity ensures that alarm timestamps and magnitude data are reliable — critical for root cause analysis and regulatory compliance reporting in semiconductor manufacturing environments.

Production Line Transparency and Scalability: As fabs expand capacity by adding process chambers, the modular design of Applied Materials equipment allows additional TC filter boards to be integrated without architectural changes to the control network. Each 0100-09032 added to the system extends the fab's temperature monitoring coverage proportionally, supporting transparent, scalable production line management.

Q1: What communication protocols does the AMAT 0100-09032 TC Filter Board support? The 0100-09032 operates as an analog signal conditioning board, filtering thermocouple inputs before they reach the process controller. The upstream process controller typically communicates via RS-232 or RS-485 serial protocols, and in modern Applied Materials platforms, via proprietary equipment bus architectures compatible with SEMI standards. The board itself does not require protocol configuration — it is a passive signal conditioning stage in the data chain.

Q2: How does this board contribute to network stability and real-time data accuracy in a fab environment? High-frequency electrical noise from RF generators, plasma sources, and power switching circuits is endemic in semiconductor process equipment. The 0100-09032's filtering circuitry attenuates this noise before it corrupts the TC signal, ensuring that the temperature data reaching the SCADA system accurately reflects actual chamber conditions. This directly supports stable closed-loop process control and reduces false alarm rates.

Q3: Can the AMAT 0100-09032 be integrated into remote diagnostics and predictive maintenance workflows? Yes. Because the 0100-09032 delivers a clean, consistent analog signal to the process controller, its output can be logged continuously by the equipment's data acquisition system. Trending analysis of TC signal quality over time — detectable as baseline drift or increased noise floor — can serve as an early warning indicator for thermocouple degradation or board-level component wear, enabling planned maintenance before unscheduled downtime occurs.

Q4: What warranty and pre-shipment testing does this unit include? All AMAT 0100-09032 TC Filter Boards supplied through our inventory carry a 12-Month Warranty from the date of shipment. Each unit undergoes functional verification and electrical testing prior to dispatch to confirm signal conditioning performance within OEM specifications. Verified stock is available for immediate quotation and expedited delivery to minimize equipment downtime.
