0150-10613 20360207 20704A-25352 Product Description

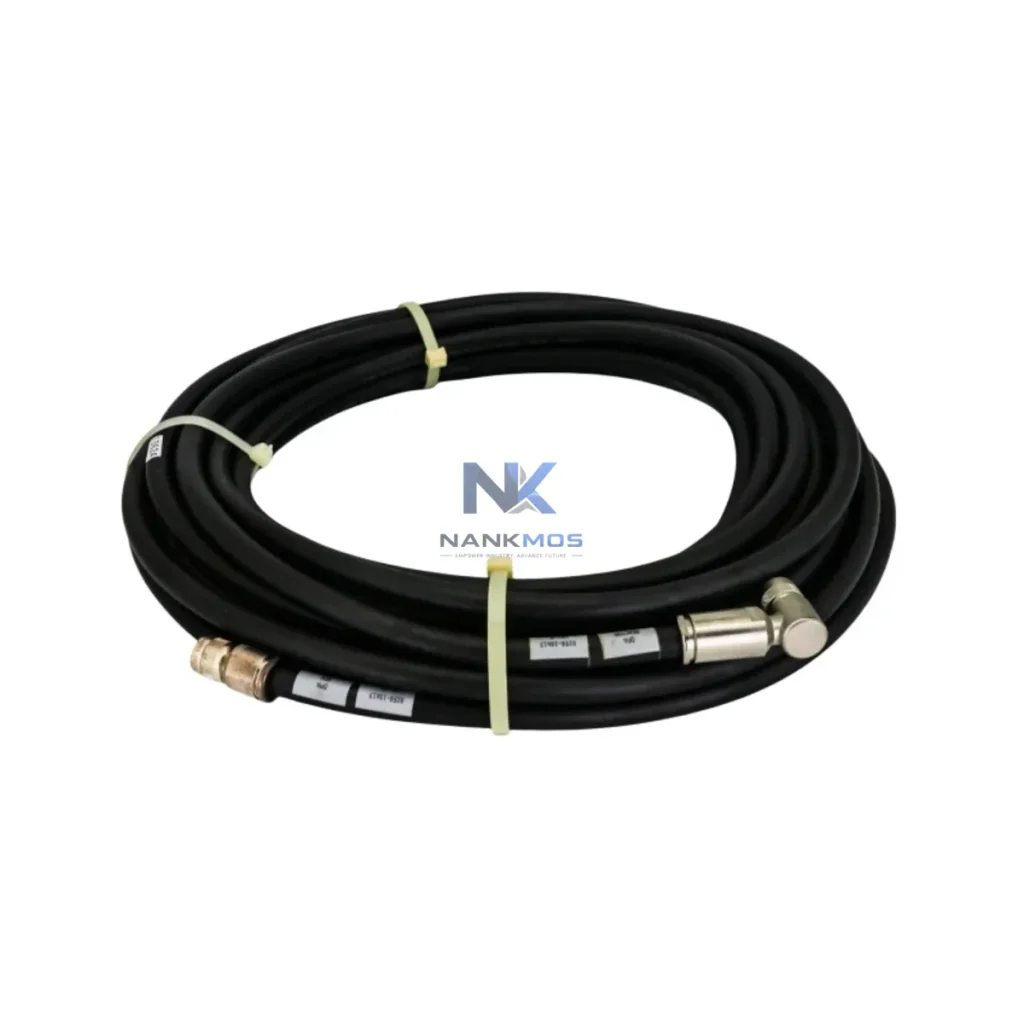

The Applied Materials AMAT 0150-10613 RF Cable Assembly is a precision-engineered interconnect solution designed for high-frequency RF power delivery in semiconductor fabrication environments. With cross-references to part numbers 20360207 and 20704A-25352, this cable assembly is purpose-built to minimize signal loss, reduce thermal load, and sustain stable RF energy transfer across plasma-enhanced CVD, PVD, and etch process chambers. In modern smart production lines where energy efficiency and process repeatability are paramount, the AMAT 0150-10613 plays a critical role in maintaining consistent RF power delivery from generator to match network to chamber — directly impacting yield, throughput, and energy consumption per wafer.

As semiconductor fabs push toward net-zero energy targets and higher equipment utilization rates, every component in the RF delivery chain must perform with minimal resistive loss and maximum thermal stability. The AMAT 0150-10613 RF Cable Assembly addresses these demands through its low-loss coaxial construction, precision-terminated connectors, and shielding architecture that suppresses EMI interference — protecting adjacent control systems and reducing re-work cycles caused by process drift.

In a fully integrated semiconductor process line, the AMAT 0150-10613 RF Cable Assembly does not operate in isolation — it is a critical link in a broader power-aware automation architecture. RF power originates from a dedicated RF generator (such as the Applied Materials RF Generator 0190-series), passes through an RF match network that dynamically tunes impedance to minimize reflected power, and is then delivered to the process chamber via this cable assembly. Any degradation in the cable — whether from connector wear, dielectric aging, or shielding failure — directly increases reflected power, forces the match network into extended tuning cycles, and elevates energy consumption per process run.

To support predictive maintenance and energy monitoring, the AMAT 0150-10613 is typically deployed alongside RF power monitoring modules that log forward and reflected power in real time. These modules feed data into the fab's SCADA system or Equipment Engineering System (EES), enabling engineers to detect cable degradation trends before they cause process excursions. Integration with the chamber's PLC-based interlock system ensures that abnormal RF reflection events trigger controlled shutdowns rather than uncontrolled arcing — protecting both the cable assembly and the chamber hardware.

On the chamber side, the RF cable interfaces with the electrostatic chuck (ESC) power feed and the plasma source assembly, both of which depend on stable, low-noise RF delivery for repeatable plasma ignition and sustained discharge. Instability in the RF cable — even at the sub-dB level — can manifest as plasma flickering, non-uniform deposition, or etch rate variation, all of which reduce yield and increase energy waste per good die. The Applied Materials 0190-series RF match controller and associated 0150-series interconnect cables are designed as a matched system, and substituting non-OEM cables in this chain frequently introduces impedance mismatches that degrade both energy efficiency and process repeatability.

Beyond the RF chain itself, the AMAT 0150-10613 supports the broader energy management strategy of the production line by reducing the frequency of RF-related process alarms. Each alarm event that triggers a chamber pump-down, vent, and re-qualification cycle consumes significant utility energy — vacuum pump power, chiller load, and purge gas — in addition to lost production time. By maintaining a low-loss, stable RF delivery path, this cable assembly directly reduces the rate of such events, contributing to measurable improvements in Overall Equipment Effectiveness (OEE) and energy consumption per wafer out.

Semiconductor fabs operate under intense pressure to reduce energy intensity (kWh per wafer) while simultaneously increasing throughput. The RF power delivery subsystem — including the generator, match network, cable assembly, and chamber electrode — is one of the highest-energy subsystems in a CVD or etch tool, often consuming 5–30 kW of RF power per chamber during active processing. Losses in this chain, whether from cable insertion loss, connector contact resistance, or impedance mismatch, translate directly into wasted electrical energy and increased thermal load on the tool's cooling system.

The AMAT 0150-10613 RF Cable Assembly is engineered to minimize these losses. Its precision-terminated connectors maintain consistent contact impedance over thousands of connect/disconnect cycles, while its low-loss dielectric construction reduces the conversion of RF energy into heat within the cable itself. This directly reduces the thermal load on the tool's chiller and cooling water system, which is itself a significant energy consumer in fab operations. A cable assembly that runs cooler also ages more slowly, extending its service life and reducing the frequency of replacement — a key factor in both energy efficiency and total cost of ownership.

From a production line rhythm (takt time) perspective, stable RF delivery enabled by the AMAT 0150-10613 reduces process variability, which in turn reduces the need for extended over-etch or over-deposition steps used to compensate for process drift. Tighter process windows mean shorter recipe times, higher throughput per tool, and lower energy consumption per wafer. When deployed as part of a preventive maintenance program — with scheduled inspection and replacement at defined intervals — this cable assembly supports the fab's transition from reactive maintenance to predictive and condition-based maintenance, further reducing unplanned downtime and the associated energy waste of emergency recovery cycles.

NANKMOS maintains ready inventory of the AMAT 0150-10613 and its cross-reference equivalents (20360207, 20704A-25352), with each unit subject to outgoing inspection and functional verification prior to shipment. All units are covered by a 12-month warranty from the date of shipment, providing fabs with the supply chain confidence needed to plan preventive replacement programs without the risk of carrying excessive safety stock.

Q1: How does the AMAT 0150-10613 contribute to energy savings in a semiconductor fab? By maintaining low insertion loss and stable impedance across the RF delivery chain, the AMAT 0150-10613 reduces reflected power, minimizes match network tuning cycles, and lowers the thermal load on the tool's cooling system. This translates to measurable reductions in RF generator energy consumption and chiller load per process run.

Q2: Is the AMAT 0150-10613 compatible with Applied Materials Centura and Endura platforms? Yes. The AMAT 0150-10613 is designed for use within Applied Materials process platforms including Centura, Endura, and Producer series tools. Cross-reference part numbers 20360207 and 20704A-25352 confirm compatibility across multiple tool generations. For specific chamber configurations, consult your tool's BOM or contact NANKMOS for application support.

Q3: What is the testing and inspection process before shipment? Each AMAT 0150-10613 unit shipped by NANKMOS undergoes outgoing inspection including visual examination of connectors and shielding, continuity verification, and where applicable, functional RF performance testing. This process ensures that every unit meets the performance standards required for semiconductor-grade RF power delivery before it reaches your facility.

Q4: What warranty coverage is provided, and what does it include? All AMAT 0150-10613 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. This warranty covers defects in materials and workmanship under normal operating conditions. NANKMOS maintains in-stock inventory to support rapid warranty replacement, minimizing tool downtime in the event of a covered failure.
