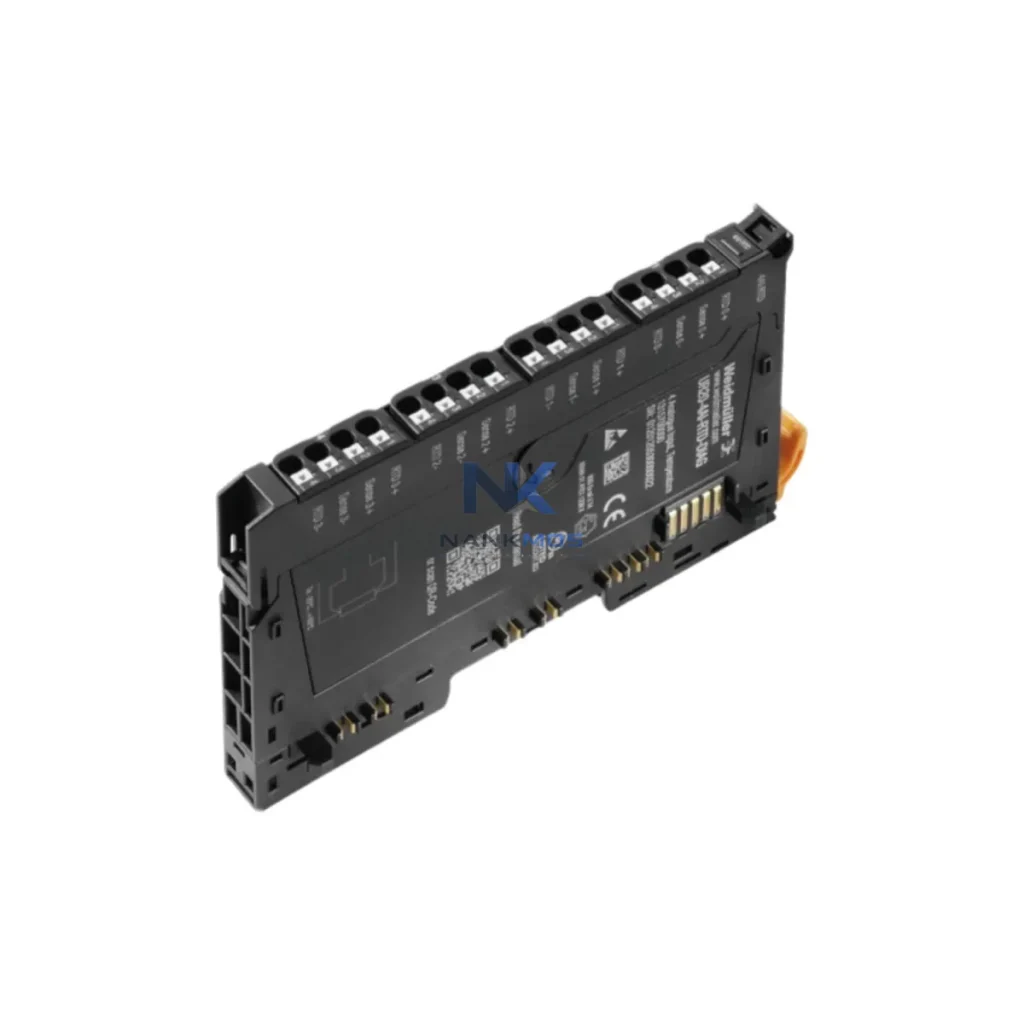

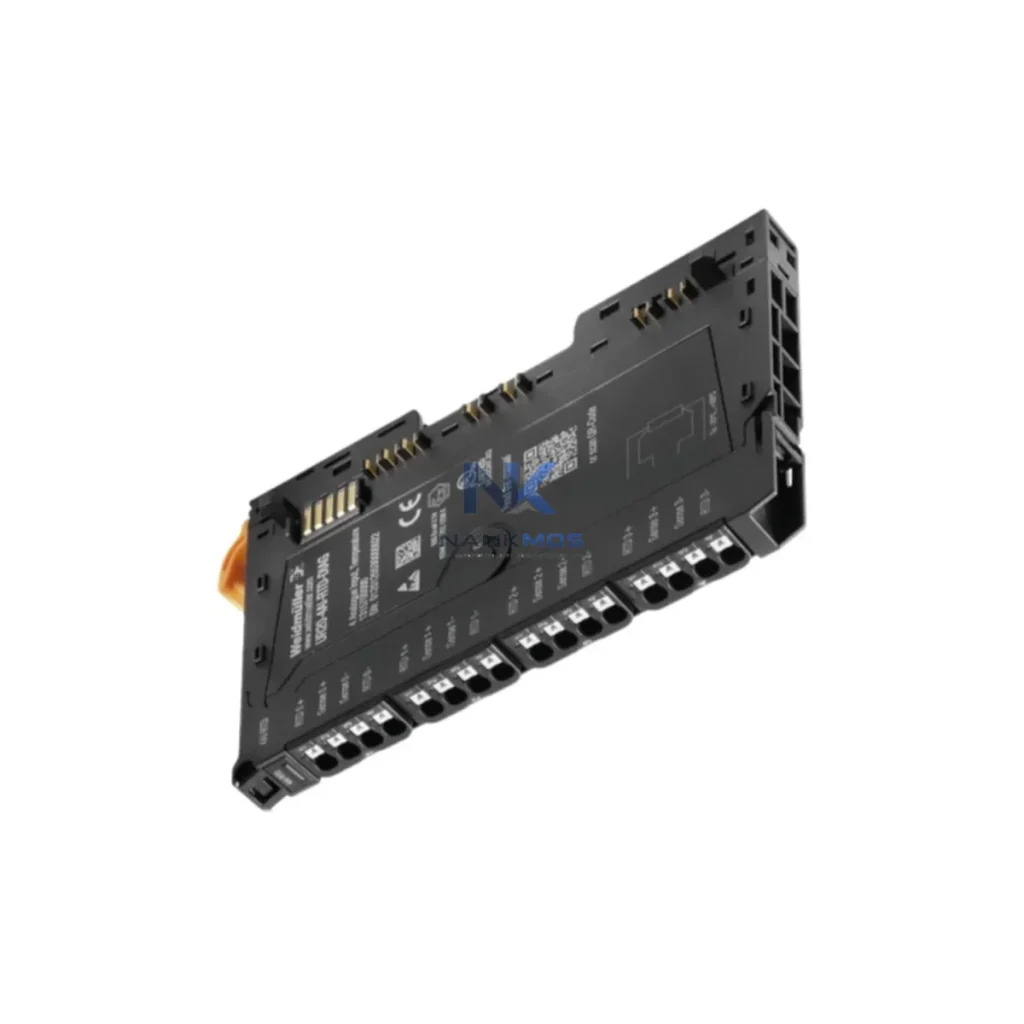

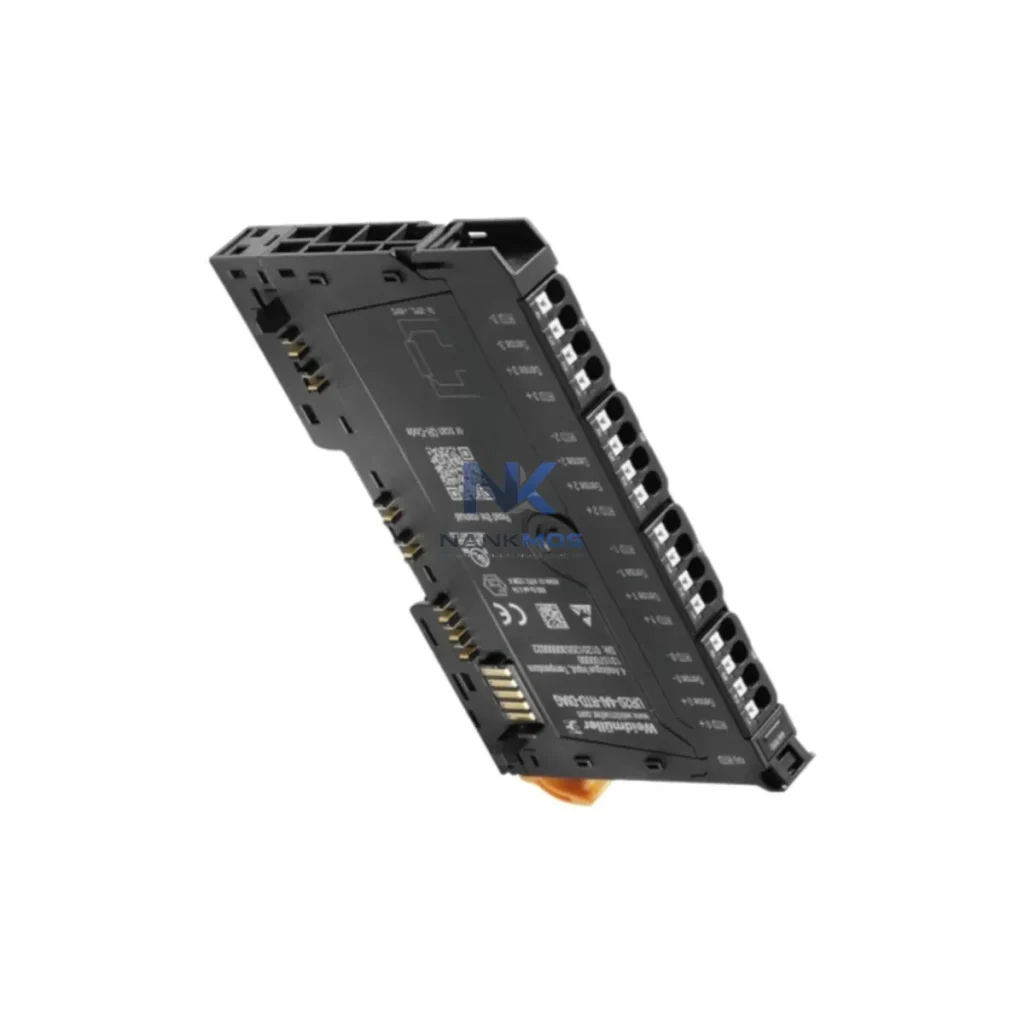

Weidmuller 1315700000 Remote I/O Module

Product Details

1315700000 Product Description

The Weidmuller 1315700000 is a high-performance remote I/O module engineered for the UR20 modular I/O platform — a scalable, DIN-rail-mounted architecture designed to serve as the distributed signal interface layer in modern industrial control systems. Built to Weidmuller's precision manufacturing standards in Germany, this module delivers deterministic signal acquisition, robust fieldbus connectivity, and seamless integration into multi-vendor PLC and DCS environments. Whether deployed in a centralized control cabinet or distributed across a process plant, the 1315700000 provides the structural I/O foundation that keeps automation architectures consistent, expandable, and maintainable over the long term.

In today's industrial automation landscape, remote I/O modules are no longer peripheral accessories — they are the connective tissue of the entire control hierarchy. The Weidmuller 1315700000 occupies a critical position in the I/O layer, bridging field-level sensors and actuators to the control layer with high signal fidelity, low latency, and deterministic scan cycles. Its modular architecture allows engineers to configure exactly the I/O mix required for each application zone, eliminating over-provisioning and reducing panel footprint without sacrificing expandability.

The UR20 platform to which the 1315700000 belongs is engineered for contextual integration — meaning it is designed not as a standalone device, but as a participant in a broader automation ecosystem. The module communicates upstream to PLCs and controllers via standard industrial protocols including PROFINET, EtherNet/IP, and Modbus TCP/IP, enabling direct integration with Siemens S7-1500 series controllers, Allen-Bradley ControlLogix and CompactLogix platforms, Schneider Electric Modicon M340 and M580 systems, and Beckhoff TwinCAT-based architectures. This protocol flexibility ensures that the 1315700000 can be deployed across heterogeneous control environments without requiring gateway translation layers, reducing system complexity and improving diagnostic transparency.

From a system architecture perspective, the 1315700000 functions as a node in the distributed I/O network, receiving configuration and cyclic data exchange commands from the fieldbus master while simultaneously managing local signal conditioning for connected field devices. Its modular slot-based design allows adjacent I/O modules — such as digital input modules, digital output modules, analog input modules, analog output modules, and specialty function modules — to share a common backplane bus, reducing wiring complexity and enabling centralized diagnostics from the engineering workstation. The UR20 backplane architecture supports hot-swap capability on select module types, allowing maintenance teams to replace individual I/O modules during planned maintenance windows without full system shutdown, a critical feature for high-availability process environments.

In the context of a complete automation platform, the 1315700000 works in close coordination with multiple system layers. At the power layer, the UR20 system relies on dedicated power feed modules and segment power modules to distribute 24 VDC across the I/O backplane, ensuring that each module receives stable, filtered power independent of field-side load variations. At the communication layer, the UR20 fieldbus coupler — available in PROFINET, EtherNet/IP, and Modbus TCP variants — serves as the protocol gateway between the Ethernet-based control network and the internal UR20 backplane bus, managing cyclic data exchange and acyclic parameter access. At the HMI layer, engineering and visualization software such as Weidmuller's u-control configuration tools or third-party SCADA platforms can access module-level diagnostics, channel status, and fault registers via the fieldbus interface, enabling operators to identify signal faults, channel overloads, or communication interruptions without physical inspection of the cabinet.

The 1315700000 is particularly well-suited for applications requiring high channel density in compact panel spaces. Its DIN-rail mounting profile and tool-free module insertion mechanism accelerate installation and commissioning, while the integrated status LEDs on each module provide immediate visual feedback on power status, communication health, and channel-level I/O state. For system integrators working under tight commissioning schedules, these features translate directly into reduced wiring verification time and faster loop check completion.

At the execution layer, the 1315700000 interfaces with a wide range of field devices including proximity sensors, photoelectric sensors, pressure transmitters, temperature sensors with 4–20 mA or 0–10 V outputs, solenoid valves, motor starters, and variable frequency drives. The module's signal conditioning circuitry provides input filtering and output short-circuit protection, ensuring that field-side wiring faults do not propagate into the control system or cause unplanned shutdowns. At the protection layer, the UR20 system supports redundant power feed configurations and module-level diagnostics that can trigger alarms in the PLC or DCS when a channel fault is detected, enabling predictive maintenance workflows and reducing unplanned downtime.

For long-term maintenance efficiency, the UR20 platform's modular architecture means that individual I/O modules can be replaced without rewiring — the field wiring connects to the module via Weidmuller's push-in or screw-clamp terminal technology, and module replacement requires only the physical swap of the electronics module while the terminal block remains in place. This design philosophy significantly reduces mean time to repair (MTTR) and allows maintenance personnel with standard electrical training to perform module replacements without specialized tooling or software reconfiguration in many cases.

All Weidmuller 1315700000 units supplied by NANKMOS are sourced from authorized distribution channels, verified for authenticity, and subjected to pre-shipment functional testing to confirm communication initialization, channel integrity, and power-on self-test completion. Each unit is covered by a 12-Month Warranty against manufacturing defects, with in-stock availability supporting immediate dispatch for urgent project requirements and MRO replenishment orders.

The Weidmuller 1315700000 achieves its full value when deployed as part of a coherent, multi-layer automation architecture. In a typical UR20-based distributed I/O station, the module operates alongside the Weidmuller UR20-FBC-PN-IRT PROFINET fieldbus coupler, which manages the Ethernet communication interface and coordinates cyclic data exchange with the upstream PLC. Power distribution across the backplane is handled by the Weidmuller UR20-PF-O-1DI-SIL power feed module and segment power modules, ensuring stable 24 VDC supply to all I/O modules in the station.

For digital signal acquisition, the 1315700000 works in conjunction with Weidmuller UR20-4DI-P digital input modules and Weidmuller UR20-4DO-P digital output modules, providing the discrete I/O channels required for motor control, valve actuation, and limit switch monitoring. Analog process variables — such as pressure, flow, temperature, and level — are handled by Weidmuller UR20-4AI-UI-16 analog input modules, which accept 4–20 mA and 0–10 V signals from field transmitters and convert them to engineering unit values for the PLC control program.

At the control layer, the UR20 station integrates with Siemens S7-1500 CPU 1515-2 PN controllers via PROFINET IRT, or with Allen-Bradley ControlLogix 1756-L85E controllers via EtherNet/IP, depending on the plant's standardized control platform. For Modbus TCP environments — common in water treatment and building automation applications — the UR20 station connects to Schneider Electric Modicon M340 BMX P34 2020 or similar controllers without requiring protocol conversion hardware.

In cabinet designs requiring signal isolation between field circuits and control circuits, Weidmuller WAS4 signal isolators and ACT20P signal conditioners are positioned between the field terminal strips and the UR20 I/O modules, protecting the control system from ground loops, voltage spikes, and common-mode interference. For applications requiring relay output isolation, Weidmuller RIDERSERIES relay modules provide the necessary galvanic separation between the UR20 digital outputs and high-current field loads such as motor contactors and solenoid valves.

At the network layer, managed industrial Ethernet switches — such as the Weidmuller IE-SW-VL08MT-8TX — provide the PROFINET or EtherNet/IP network infrastructure connecting the UR20 fieldbus couplers to the PLC and SCADA systems, with VLAN segmentation and port mirroring capabilities supporting network diagnostics and cybersecurity compliance requirements.

Power Generation & Utilities: In turbine control and generator protection systems, the Weidmuller 1315700000 provides the distributed I/O interface for monitoring vibration sensor outputs, temperature transmitters, and valve position feedback signals. Its PROFINET connectivity allows direct integration with the plant DCS, while its modular architecture supports incremental expansion as monitoring point counts increase during plant upgrades.

Petrochemical & Oil and Gas: In process control applications involving hazardous area boundaries, the UR20 I/O station — anchored by modules such as the 1315700000 — is installed in purged and pressurized control enclosures in the safe area, receiving signals from intrinsically safe field instruments via Zener barriers or galvanic isolators. The module's robust signal conditioning and diagnostic capabilities support SIL-rated control loop verification during functional safety assessments.

Water Treatment & Municipal Infrastructure: In SCADA-controlled water treatment plants, the 1315700000 serves as the remote I/O node for pump station monitoring, chemical dosing control, and flow measurement data acquisition. Its Modbus TCP compatibility allows integration with legacy SCADA systems without protocol gateway hardware, reducing integration cost and simplifying network architecture.

Mining & Minerals Processing: In conveyor control, crusher monitoring, and ore processing applications, the UR20 platform's modular I/O architecture allows control engineers to configure I/O stations matched precisely to each process zone's signal mix, reducing panel space requirements and simplifying cable routing in large-scale mining facilities.

Marine & Shipboard Automation: In vessel automation systems requiring DNV or ABS type approval, the UR20 platform's compact DIN-rail profile and wide operating temperature range make it suitable for engine room control panels, ballast water management systems, and cargo monitoring applications where panel space is constrained and environmental conditions are demanding.

Packaging & Discrete Manufacturing: In high-speed packaging lines and assembly systems, the 1315700000 provides the I/O interface for servo drive enable signals, conveyor speed references, reject gate actuators, and vision system trigger outputs, with deterministic PROFINET IRT communication ensuring synchronized I/O response times compatible with motion control cycle requirements.

Q1: Is the Weidmuller 1315700000 compatible with both Siemens PROFINET and Allen-Bradley EtherNet/IP control platforms? Yes. The UR20 platform supports multiple fieldbus coupler variants, allowing the same I/O module hardware — including the 1315700000 — to be used with PROFINET, EtherNet/IP, or Modbus TCP fieldbus couplers. This means that the I/O module investment is preserved even if the control platform changes during a plant modernization project. The fieldbus coupler is the only component that changes between protocol variants; all I/O modules, power feed modules, and terminal wiring remain identical.

Q2: What is the recommended approach for replacing a Weidmuller 1315700000 module in a live production environment? The UR20 platform is designed to support module replacement with minimal disruption. The field wiring connects to the terminal block, which remains in place during module replacement. The electronics module is removed and replaced without disturbing field wiring. After replacement, the fieldbus coupler automatically downloads the stored configuration to the new module during the next communication cycle, restoring normal operation. For applications requiring zero-downtime replacement, a spare module should be maintained in the local spare parts inventory. NANKMOS maintains in-stock availability of the 1315700000 to support urgent MRO replenishment requirements, with all units covered by a 12-Month Warranty.

Q3: How does the Weidmuller 1315700000 support long-term maintenance and diagnostic efficiency in large-scale control architectures? The UR20 platform provides module-level diagnostics accessible via the fieldbus interface, including channel-level fault status, power supply monitoring, and communication health indicators. These diagnostics are available to the PLC control program and can be surfaced in SCADA or HMI displays, enabling operators and maintenance technicians to identify faults remotely without physical cabinet inspection. The modular architecture also supports incremental expansion — additional I/O modules can be added to an existing UR20 station without rewiring the fieldbus connection or modifying the cabinet power distribution, reducing the engineering effort required for system expansions and upgrades over the facility's operational lifetime.
