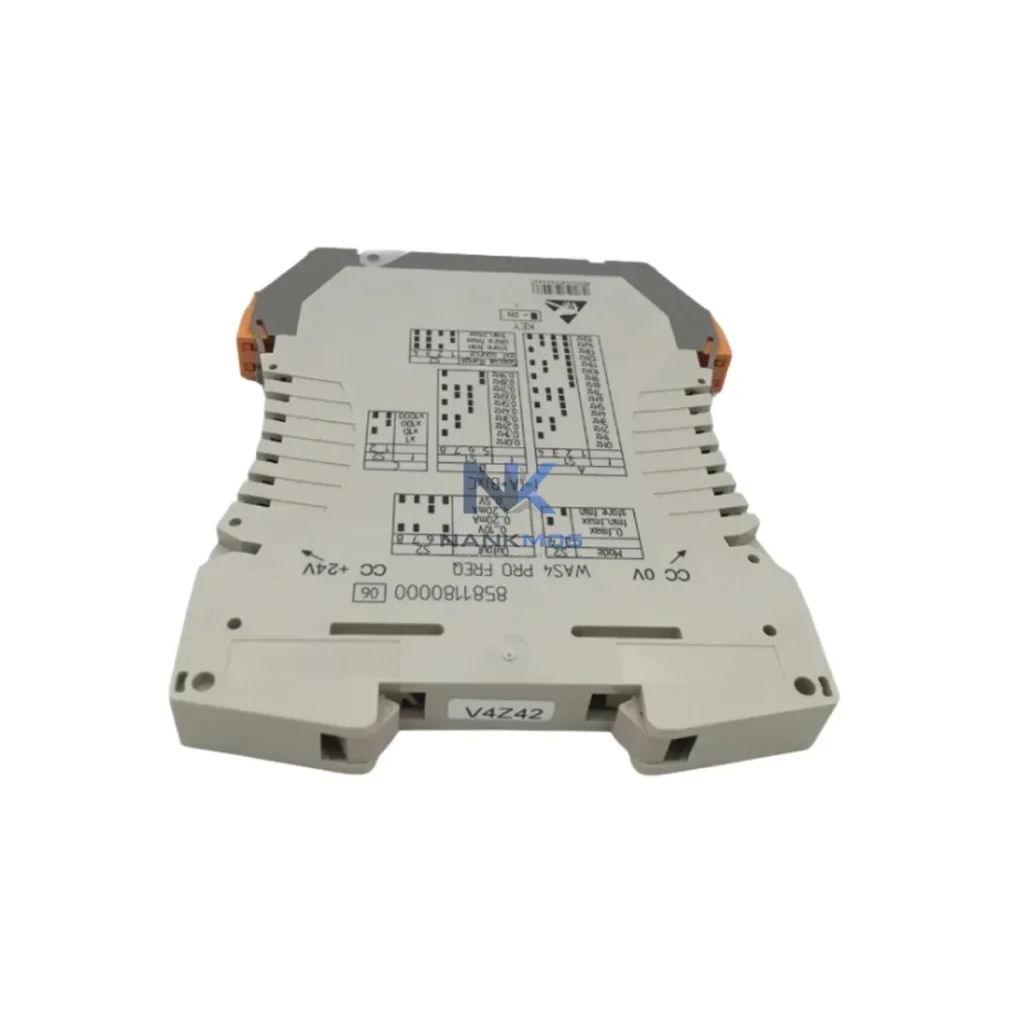

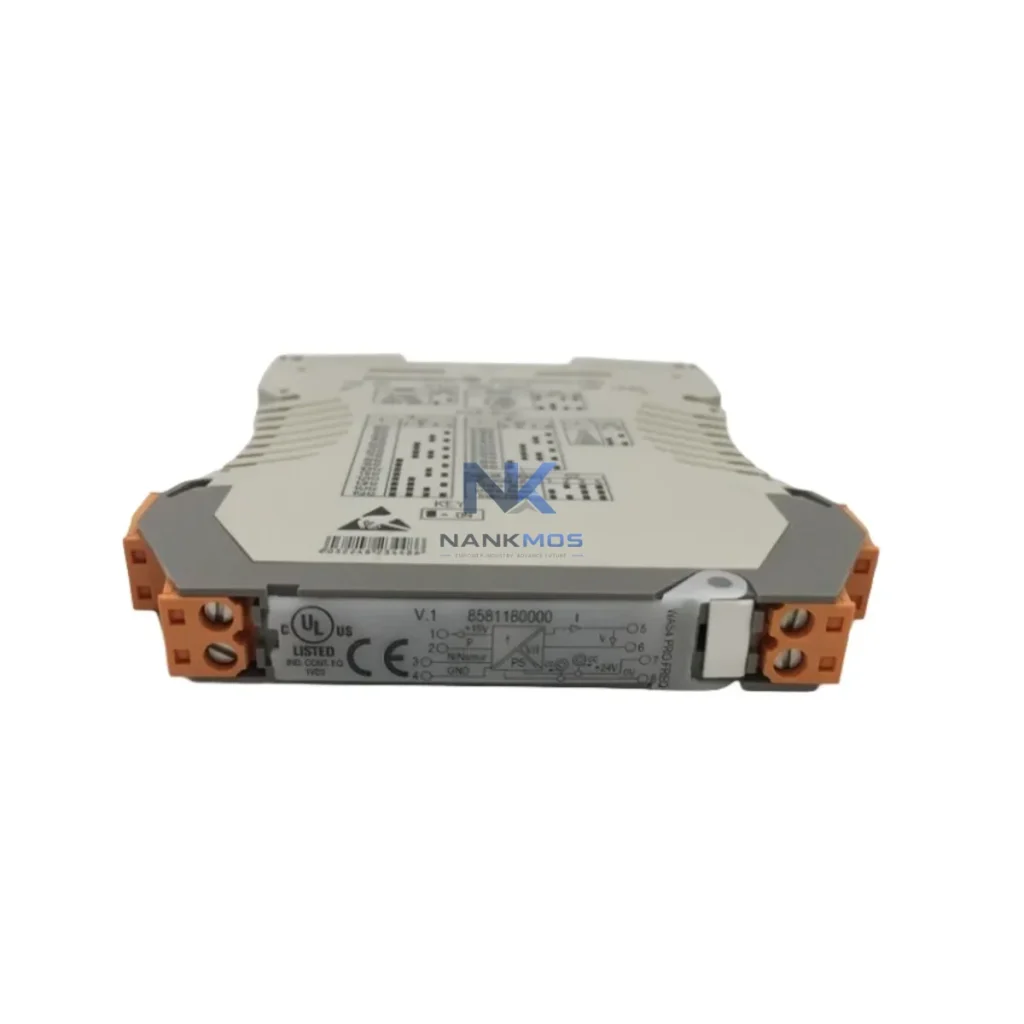

WEIDMULLER 8581180000 Signal Isolating Converter

Product Details

8581180000 Product Description

The Weidmuller 8581180000 ACT20X is a precision frequency signal isolating converter engineered for demanding industrial environments where accurate signal transmission, galvanic isolation, and seamless integration across automation networks are non-negotiable. Designed as a core component in smart factory data architectures, the ACT20X series bridges the gap between field-level sensors, rotating machinery, and upper-level control systems — enabling real-time data flow from the production floor to SCADA dashboards and MES platforms without signal degradation or ground loop interference.

In modern industrial facilities, frequency signals generated by flow meters, encoders, proximity switches, and variable-speed drives must be reliably conditioned and transmitted across long cable runs and electrically noisy environments. The 8581180000 performs this function with high accuracy, converting frequency inputs into isolated analog outputs (typically 4–20 mA or 0–10 V) that are directly compatible with PLC analog input modules, remote I/O stations, and DCS controllers. This makes it an indispensable link in any plant-wide data acquisition and control strategy.

The Weidmuller 8581180000 ACT20X occupies a critical position in the connected factory data chain. Consider a typical smart manufacturing scenario: a Weidmuller ACT20X-AO-UI-DI-S analog output module feeds conditioned signals downstream, while upstream, a flow meter or rotary encoder generates raw frequency pulses that the 8581180000 converts into a clean 4–20 mA signal. This conditioned output feeds directly into a Siemens S7-1500 PLC analog input card, where the engineering value is scaled and processed in real time.

From the PLC, process data travels via PROFINET to a plant-level Siemens SIMATIC WinCC SCADA system, where operators monitor flow rates, rotational speeds, and production throughput on live dashboards. Simultaneously, a Weidmuller u-mation edge gateway captures the same data stream and forwards it via MQTT or OPC-UA to a cloud-based MES or historian platform, enabling remote diagnostics and long-term trend analysis without interrupting the real-time control loop.

In drive-intensive applications, the 8581180000 works alongside ABB ACS880 variable frequency drives, receiving encoder feedback signals and converting them to analog references that the drive's speed controller can act upon. This closed-loop architecture ensures precise motor speed regulation across conveyor systems, pumps, compressors, and mixers. The galvanic isolation built into the ACT20X eliminates ground loop currents that would otherwise corrupt speed feedback signals in high-power drive environments.

For remote I/O architectures, the isolated analog output of the 8581180000 connects to a Weidmuller UR20 remote I/O analog input module mounted in a field junction box, transmitting process values back to the main control cabinet over PROFIBUS DP or EtherNet/IP. This distributed topology reduces wiring costs while maintaining signal integrity across distances exceeding 100 meters. Paired with a Weidmuller IE-SW-VL05M industrial Ethernet switch, the network backbone remains stable even under high electromagnetic interference from nearby motors and welding equipment.

At the HMI level, operators interact with process data through a Siemens TP1200 Comfort Panel connected to the same PROFINET segment. Alarm thresholds configured in the PLC trigger visual and audible alerts on the HMI when frequency values deviate from setpoints — for example, when a pump speed drops below the minimum threshold, indicating cavitation or mechanical wear. The 8581180000's high-accuracy conversion ensures that these alarm triggers are based on reliable, noise-free signal data rather than corrupted readings.

In power generation and utilities applications, the ACT20X 8581180000 integrates with Yokogawa CENTUM VP DCS systems, providing frequency-to-analog conversion for turbine speed monitoring, generator synchronization feedback, and cooling water flow measurement. The converter's wide input frequency range accommodates the diverse sensor types found in power plant environments, from magnetic pickup sensors on rotating shafts to optical encoders on precision positioning systems.

One of the most persistent challenges in industrial automation is the coexistence of legacy field devices — which output raw frequency or pulse signals — alongside modern digital control platforms that expect clean, isolated analog inputs. Without a reliable signal conditioning layer, frequency signals are susceptible to electromagnetic interference, ground potential differences, and cable capacitance effects that introduce measurement errors, false alarms, and unstable control loops.

The Weidmuller 8581180000 ACT20X directly addresses these data gaps. Its galvanic isolation barrier eliminates ground loop currents between field sensors and control system inputs, a common source of 50/60 Hz noise that corrupts analog readings. By converting frequency inputs to standardized 4–20 mA or 0–10 V outputs, it ensures that any PLC, DCS, or remote I/O system can accept the signal without custom configuration or signal conditioning at the receiving end.

For sites struggling with protocol fragmentation — where legacy PROFIBUS devices coexist with modern PROFINET or EtherNet/IP infrastructure — the ACT20X series provides a hardware-level normalization layer. Frequency signals from older sensors are converted to universal analog standards that any modern control platform can interpret, effectively bridging the protocol gap without requiring sensor replacement or costly network upgrades.

Remote monitoring and diagnostics are further enhanced by the ACT20X's stable, repeatable output characteristics. When integrated with edge gateways and cloud analytics platforms, the consistent analog output of the 8581180000 enables accurate baseline modeling and anomaly detection algorithms to identify equipment degradation trends before they result in unplanned downtime. Production line transparency improves as every frequency-generating device — from conveyor encoders to pump flow meters — becomes a visible, monitored data point in the plant's digital twin.

Alarm tracking and response times also improve significantly. Because the 8581180000 delivers a clean, isolated signal to the PLC, alarm setpoints can be tightened without triggering false positives caused by signal noise. This precision is especially valuable in pharmaceutical, food processing, and chemical plants where regulatory compliance requires documented evidence of process parameter adherence. System expansion is equally straightforward: additional ACT20X modules can be added to the DIN rail as new measurement points are commissioned, with no impact on existing signal channels.

Q1: What communication protocols is the Weidmuller 8581180000 ACT20X compatible with?The 8581180000 outputs a standard analog signal (4–20 mA or 0–10 V) that is universally compatible with PLC analog input modules supporting PROFINET, PROFIBUS, EtherNet/IP, Modbus RTU/TCP, and HART-enabled systems. It does not require a specific fieldbus protocol at the converter level — the analog output integrates directly into any control platform with analog I/O capability.

Q2: How does the ACT20X ensure network stability and signal integrity in high-EMI environments?The ACT20X 8581180000 features three-way galvanic isolation (input, output, and auxiliary power), which physically separates the signal path from ground potential differences and electromagnetic interference sources. This isolation is rated to withstand the high-EMI conditions typical of motor drive panels, welding stations, and high-voltage switchgear rooms, ensuring stable analog output even in the most electrically challenging industrial environments.

Q3: Can the 8581180000 support system expansion and integration with SCADA or remote diagnostic platforms?Yes. The standardized analog output of the 8581180000 is directly compatible with remote I/O systems, edge gateways, and SCADA data acquisition layers. As plant networks expand, additional ACT20X modules can be deployed without reconfiguring existing channels. When paired with OPC-UA or MQTT-capable edge gateways, the analog data can be forwarded to cloud-based diagnostic and visualization platforms for remote monitoring and predictive maintenance.

Q4: What quality assurance and warranty coverage is provided for the Weidmuller 8581180000?Every Weidmuller 8581180000 ACT20X unit supplied by NANKMOS undergoes pre-shipment functional testing to verify signal conversion accuracy, isolation integrity, and output linearity. All units are covered by a 12-month warranty against manufacturing defects. In-stock units are available for immediate dispatch, supporting urgent project timelines and minimizing procurement lead times for MRO and capital project requirements.
