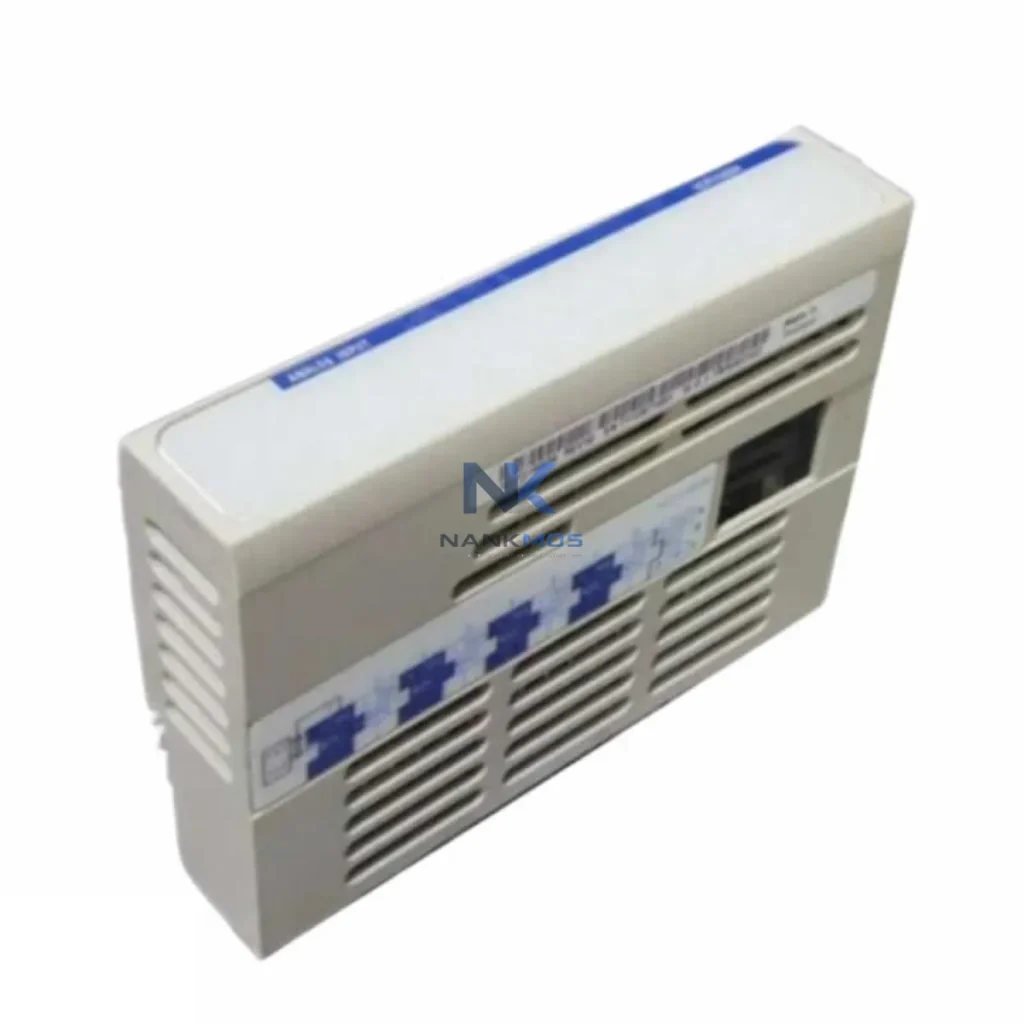

Westinghouse 1C31116G04 Analog Input Module

Product Details

1C31116G04 Product Description

The Westinghouse 1C31116G04 is a precision Analog Input Module engineered for the Ovation Distributed Control System (DCS), delivering reliable signal acquisition and real-time data transmission across complex industrial automation environments. Designed to interface directly with field instrumentation — including pressure transmitters, flow sensors, temperature probes, and level detectors — the 1C31116G04 converts analog process signals (4–20 mA and 1–5 V DC) into structured digital data streams that feed directly into the Ovation DCS controller network. This seamless signal-to-data conversion is the foundation of every smart factory data link, enabling operators to monitor, diagnose, and optimize production processes from a centralized SCADA or HMI platform.

In modern industrial connectivity architectures, the analog input module occupies a critical position between the physical process layer and the digital control layer. The 1C31116G04 ensures that every milliamp of process signal is accurately captured, conditioned, and transmitted — eliminating data gaps that can lead to unplanned downtime, missed alarms, or incorrect control decisions. Whether deployed in power generation, oil and gas processing, chemical manufacturing, or water treatment, this module provides the signal integrity and network stability that smart automation demands.

The 1C31116G04 sits at the entry point of the Ovation DCS data chain. Field instruments — such as Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure sensors, and Endress+Hauser Promag flow meters — output 4–20 mA signals that are wired directly into the 1C31116G04 input channels. The module performs high-resolution analog-to-digital conversion and places the resulting process values onto the Ovation I/O bus, where the Ovation OCR400 or OCR1100 DCS controller reads and processes them in real time.

From the controller, process data flows upward through the Ovation network infrastructure — typically an Ethernet-based plant LAN supported by industrial managed switches such as the Hirschmann RS20 or Westinghouse Ovation network switches — to the Ovation Operator Station (OWS) running the SCADA/HMI layer. Operators view live analog trends, set alarm thresholds, and initiate control actions from the OWS interface. Simultaneously, the data is archived in the Ovation historian for long-term trend analysis and regulatory reporting.

For facilities integrating remote I/O expansion, the 1C31116G04 works alongside Westinghouse Ovation Remote I/O controllers and distributed I/O racks, extending the analog input network to field junction boxes located hundreds of meters from the main control room. In multi-loop control architectures, the module's data feeds PID controllers, cascade loops, and ratio control strategies executed within the Ovation DCS. Where protocol conversion is required — for example, bridging legacy 4–20 mA field devices to PROFIBUS DP or HART digital networks — Ovation-compatible HART multiplexers or Pepperl+Fuchs FieldConnex gateways can be inserted upstream of the 1C31116G04 to enrich the data stream with device diagnostics and asset management information.

At the edge layer, Ovation Edge Controllers or third-party edge gateways such as the Moxa MGate series aggregate analog input data from multiple 1C31116G04 modules and publish it via OPC UA or MQTT to cloud-based MES and ERP platforms, completing the full IIoT data chain from sensor to enterprise system. This architecture supports real-time KPI dashboards, predictive maintenance analytics, and remote diagnostics — all anchored by the reliable signal acquisition of the 1C31116G04 at the field level.

Many industrial sites operate with fragmented instrumentation networks where legacy analog field devices cannot communicate directly with modern digital control systems. The Westinghouse 1C31116G04 addresses this challenge by providing a standardized, high-accuracy analog input interface that bridges the gap between conventional 4–20 mA field instruments and the Ovation DCS digital backbone.

Protocol Inconsistency: Sites running mixed analog and digital field devices often struggle with signal conditioning and protocol alignment. The 1C31116G04 accepts standard 4–20 mA and 1–5 V DC inputs, ensuring compatibility with the vast majority of installed field transmitters without requiring signal converters or additional conditioning hardware.

Data Silos: When analog signals are not properly digitized and integrated into the DCS network, process data remains isolated at the field level — invisible to SCADA, HMI, and historian systems. The 1C31116G04 eliminates this isolation by placing all acquired analog values directly onto the Ovation I/O bus, making them immediately available to every layer of the control and monitoring hierarchy.

Remote Monitoring Gaps: Without reliable analog input modules, remote monitoring of field instruments becomes unreliable or impossible. The 1C31116G04 ensures continuous, high-resolution data acquisition that supports remote diagnostics, alarm management, and process visualization from any connected Ovation Operator Station or remote access terminal.

Production Line Transparency: Real-time analog data from the 1C31116G04 feeds directly into Ovation trend displays, alarm summary pages, and process graphics, giving operators complete visibility into production line conditions. This transparency accelerates fault diagnosis, reduces mean time to repair (MTTR), and supports continuous process improvement initiatives.

System Scalability: As production capacity expands, additional 1C31116G04 modules can be added to existing Ovation I/O racks without disrupting the running system, providing a scalable path for analog input expansion that aligns with plant growth strategies.

Q1: What signal types does the Westinghouse 1C31116G04 support, and is it compatible with HART field devices? The 1C31116G04 is designed for standard 4–20 mA and 1–5 V DC analog input signals, which are the most widely used signal types in industrial process instrumentation. For HART digital communication over the 4–20 mA loop, a HART multiplexer or Ovation-compatible HART interface module can be added upstream to extract HART device diagnostics without replacing the 1C31116G04 hardware.

Q2: How does the 1C31116G04 contribute to network stability and low-latency data transmission in the Ovation DCS? The module is designed for deterministic, low-latency analog-to-digital conversion on the Ovation I/O bus. Its hardware architecture minimizes signal processing delay, ensuring that process values are updated in the DCS controller scan cycle with consistent timing — critical for tight PID control loops and fast-response alarm systems in power generation and chemical processing applications.

Q3: Can the 1C31116G04 be integrated with third-party SCADA systems or OPC UA data servers? Yes. Data acquired by the 1C31116G04 is processed by the Ovation DCS controller and made available to the Ovation OPC server, which publishes process values to any OPC DA or OPC UA-compatible SCADA, historian, or MES platform. This enables seamless integration with third-party systems such as OSIsoft PI, Wonderware InTouch, or Ignition SCADA without requiring additional hardware at the field level.

Q4: What quality assurance and warranty coverage is provided for the 1C31116G04? Every Westinghouse 1C31116G04 supplied by NANKMOS is tested before shipment to verify signal acquisition accuracy, channel isolation, and I/O bus communication integrity. All units are covered by a 12-month warranty from the date of delivery. In-stock inventory ensures rapid dispatch to support urgent project timelines and unplanned maintenance requirements.
