Phoenix Contact 2320157 DC/DC Converter

Product Details

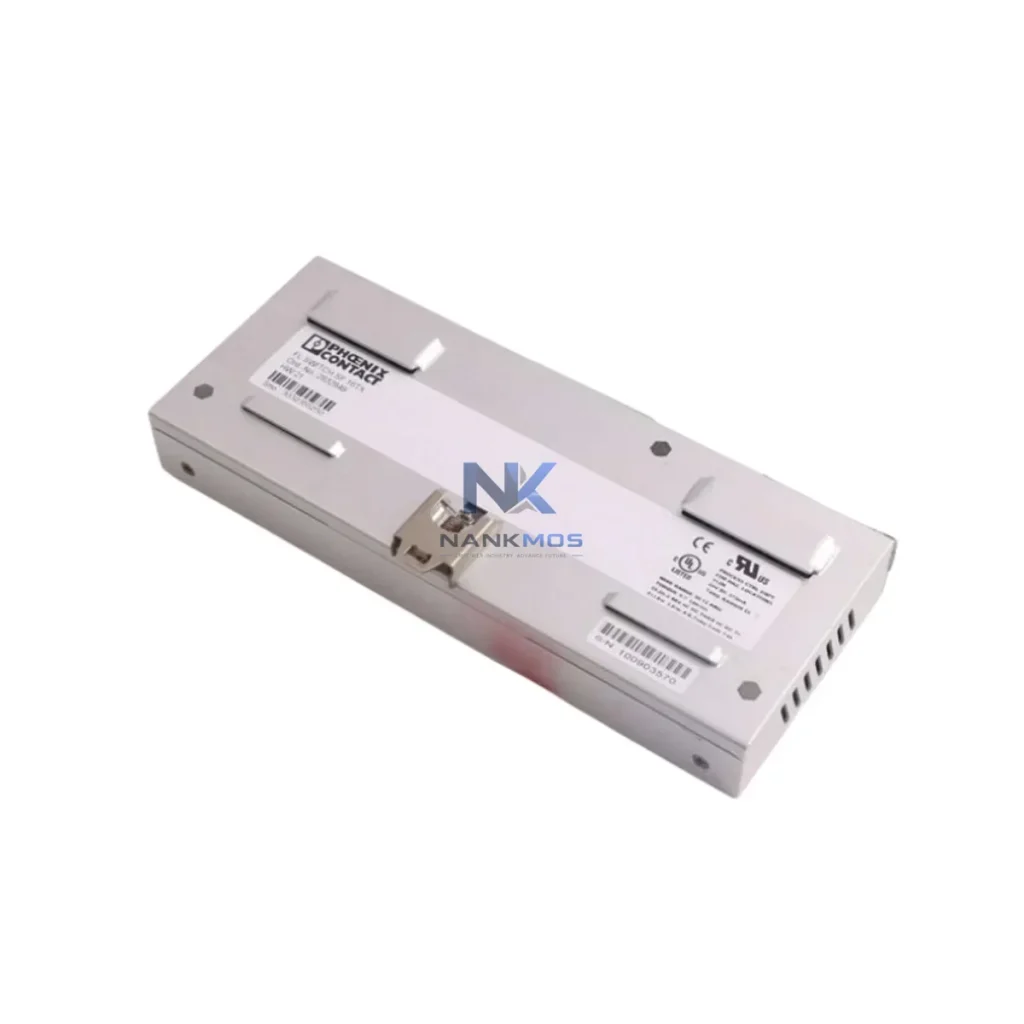

2320157 Product Description

The Phoenix Contact 2320157 MINI-PS DC/DC Converter is an industrial-grade power conversion module engineered for energy-efficient automation environments. Designed to deliver stable, regulated DC output from a wide-range DC input, this converter plays a central role in reducing unnecessary power dissipation across control panels, machine cabinets, and distributed automation architectures. With its compact DIN-rail form factor and robust thermal design, the 2320157 supports continuous operation in demanding industrial settings while contributing directly to measurable reductions in energy consumption and heat load.

As manufacturing facilities face increasing pressure to optimize energy usage and reduce carbon footprint, the MINI-PS series from Phoenix Contact provides a reliable foundation for power-aware automation strategy. The 2320157 is built to integrate seamlessly into modern smart production lines where every watt counts — from motor drive panels to sensor networks and communication infrastructure.

In a fully integrated smart production line, the Phoenix Contact 2320157 MINI-PS DC/DC Converter functions as a critical power conditioning node between the primary 24 VDC bus and downstream control loads. When paired with a Siemens SIMATIC S7-1200 or S7-1500 PLC, the 2320157 ensures that logic controllers receive clean, stable power free from upstream voltage fluctuations — a common source of spurious faults and unplanned downtime in high-cycle manufacturing environments.

For drive-intensive applications, the 2320157 works alongside Danfoss FC-302 or Siemens SINAMICS G120 variable frequency drives (VFDs) to maintain a stable auxiliary power rail for drive control boards and cooling fans. This separation of control power from motor power prevents drive-induced noise from propagating into the PLC or HMI power supply, reducing electromagnetic interference and improving overall system reliability.

In servo-driven axes, the 2320157 can supply isolated 24 VDC to Mitsubishi MR-J4 or Yaskawa Sigma-7 servo amplifier control circuits, ensuring that encoder feedback and safety relay logic remain unaffected by regenerative braking transients on the main DC bus. This is particularly valuable in multi-axis gantry systems and high-speed pick-and-place lines where power quality directly impacts positioning accuracy and cycle repeatability.

The converter also supports Phoenix Contact QUINT POWER or TRIO POWER primary-side power supplies in a cascaded architecture, where the MINI-PS 2320157 provides secondary-stage regulation for field devices such as Turck or Balluff inductive proximity sensors, Sick photoelectric barriers, and Pepperl+Fuchs ultrasonic distance sensors. By isolating sensor supply from the main 24 VDC rail, the 2320157 eliminates ground loops and reduces false triggering caused by load-induced voltage dips.

For communication infrastructure, the 2320157 provides dedicated power to PROFINET-capable managed switches, Moxa EDS series Ethernet switches, or Phoenix Contact FL SWITCH industrial Ethernet modules — ensuring that real-time communication between PLCs, SCADA systems, and remote I/O stations remains uninterrupted even during high-load switching events. Stable communication power is essential for maintaining OPC-UA data integrity in energy management systems and MES integration layers.

The Phoenix Contact 2320157 MINI-PS DC/DC Converter contributes to factory energy optimization at multiple levels. At the device level, its high conversion efficiency means that less input power is wasted as heat — directly reducing the thermal load on control enclosures and lowering the duty cycle of panel air conditioners or heat exchangers. In facilities with dozens of control panels, this aggregate reduction in cooling demand can represent a meaningful decrease in facility-wide energy consumption.

At the system level, the 2320157 supports predictive maintenance strategies by providing a stable, monitored power supply to condition monitoring modules and vibration sensors attached to motors, pumps, and compressors. When power quality to these sensors is consistent, the data they generate is more reliable — enabling earlier detection of bearing wear, imbalance, or cavitation before a failure event causes unplanned downtime and production loss.

In production line rhythm optimization, stable auxiliary power from the 2320157 ensures that PLC scan cycles, servo update rates, and HMI refresh intervals remain consistent. Voltage sags on the 24 VDC rail — even brief ones — can cause PLC watchdog resets or servo drive faults that interrupt the production cycle and require manual restart. By isolating and regulating the control power supply, the 2320157 helps maintain the deterministic timing that high-speed automated lines depend on.

For energy management system (EMS) integration, the 2320157 can power Phoenix Contact EMpro or similar power measurement modules that feed real-time consumption data to SCADA or building management systems. This closed-loop visibility allows production engineers to identify energy waste, benchmark machine efficiency, and implement demand-response strategies that reduce peak load charges.

All units supplied by NANKMOS are sourced from authorized distribution channels, subject to pre-shipment functional testing, and covered by a 12-Month Warranty. Stock is maintained for rapid dispatch to support maintenance, repair, and operations (MRO) requirements with minimal lead time.

Q1: How does the Phoenix Contact 2320157 MINI-PS contribute to energy savings in an automated production line?The 2320157 reduces energy waste through high-efficiency DC/DC conversion, which minimizes heat dissipation in control panels. Lower panel temperatures reduce cooling system load, and stable output voltage prevents control system faults that would otherwise cause energy-intensive restart cycles. Over a full production shift, these gains compound into measurable reductions in auxiliary energy consumption.

Q2: Is the 2320157 compatible with existing PLC and drive systems from major automation vendors?Yes. The MINI-PS 2320157 is designed for broad compatibility with standard 24 VDC industrial control architectures used by Siemens, Mitsubishi, Omron, Schneider Electric, and Rockwell Automation. It integrates into any DIN-rail panel where isolated or regulated DC auxiliary power is required, including PLC I/O power rails, servo drive control supplies, and communication module power inputs.

Q3: What is the recommended replacement or upgrade path if the 2320157 is being substituted in an existing installation?When replacing the 2320157, verify the input voltage range, output voltage, output current rating, and isolation class of the replacement unit against the original datasheet. Phoenix Contact MINI-PS series modules are designed with consistent footprints and terminal layouts to simplify like-for-like replacement. NANKMOS technical support can assist with cross-reference validation prior to order confirmation.

Q4: What pre-shipment testing and warranty coverage applies to units supplied by NANKMOS?Every Phoenix Contact 2320157 unit dispatched by NANKMOS undergoes pre-shipment functional verification to confirm output voltage regulation, input range acceptance, and isolation integrity. All units are covered by a 12-Month Warranty against manufacturing defects and operational failure under normal industrial use conditions. Warranty claims are processed directly through NANKMOS with prompt replacement or credit resolution.
