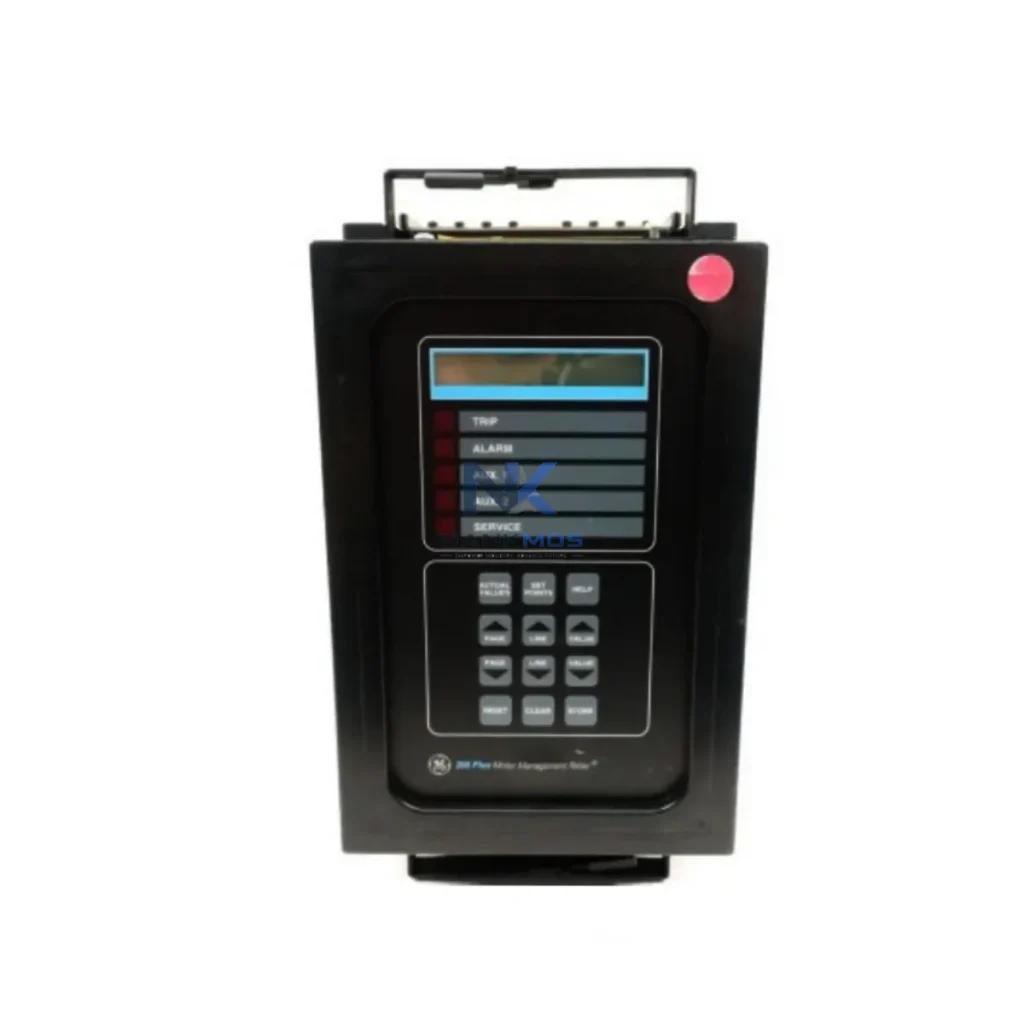

GE Multilin 269PLUS-100P-120 Motor Management Relay

Product Details

269PLUS-100P-120 Product Description

The GE Multilin 269PLUS-100P-120 is a field-proven motor management relay from the GE Multilin 269 Plus Series, engineered to deliver precise energy control, load protection, and operational visibility across demanding industrial production environments. Designed for integration into smart automation architectures, this relay actively monitors motor operating parameters — current, voltage, power factor, and thermal state — enabling facilities to reduce unnecessary energy consumption, minimize thermal stress, and extend equipment service life without sacrificing throughput or production pace.

In modern manufacturing and process facilities, unmanaged motor loads represent one of the largest sources of avoidable energy waste. The 269PLUS-100P-120 addresses this directly by providing continuous, real-time load management feedback that allows control systems to respond dynamically to changing production demands. Whether deployed in pump stations, compressor banks, conveyor systems, or HVAC-integrated production lines, this relay delivers the measurement accuracy and protection depth required to support energy management system (EMS) objectives and ISO 50001-aligned efficiency programs.

The 269PLUS-100P-120 is built to operate as an active node within a layered automation and energy management architecture. Its RS-485 Modbus RTU communication port enables direct integration with Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, and Schneider Electric Modicon M340 platforms, allowing the relay's real-time motor data — including running current, power factor, and accumulated energy — to be surfaced at the PLC level for closed-loop load management decisions.

When paired with a GE Multilin 750/760 feeder protection relay or a Schneider Electric PowerLogic PM8000 power monitoring module, the 269PLUS-100P-120 contributes granular motor-level energy data to a facility-wide power monitoring topology. This combination enables energy managers to identify high-consumption assets, benchmark motor efficiency against nameplate ratings, and flag degradation trends before they escalate into unplanned failures. The relay's thermistor input further supports integration with motor-mounted PTC sensors, providing direct winding temperature feedback that complements the thermal model built into the relay's overload algorithm.

At the drive level, the 269PLUS-100P-120 is commonly deployed alongside ABB ACS880 variable frequency drives and Danfoss FC302 drives in applications where soft-start and speed-controlled motor loads require independent protection and monitoring beyond what the drive's internal relay outputs provide. This dual-layer approach — drive control plus dedicated motor management relay — ensures that protection functions remain active even during drive bypass operation or maintenance switching, a critical requirement in continuous-process facilities where motor availability directly affects production throughput.

For HMI visualization, the relay's Modbus data map integrates cleanly with Weintek cMT series HMI panels and Siemens SIMATIC HMI TP700 Comfort displays, enabling operators to monitor motor status, energy consumption, and fault history from the production floor without requiring SCADA-level access. This decentralized visibility reduces response time to motor anomalies and supports shift-level energy accountability reporting.

In distributed I/O architectures, the 269PLUS-100P-120 complements Beckhoff EtherCAT I/O modules and Phoenix Contact Axioline F I/O systems by providing a dedicated motor protection layer that offloads protection logic from the main PLC scan cycle, improving overall system determinism and reducing the risk of protection gaps during high-load PLC processing periods.

Motor loads typically account for 60–70% of total electrical energy consumption in manufacturing facilities. Unprotected or poorly monitored motors run at suboptimal efficiency points, generate excess heat, and consume reactive power that inflates facility demand charges. The GE Multilin 269PLUS-100P-120 directly addresses these inefficiencies by providing continuous thermal modeling, load factor tracking, and power quality measurement that give energy and maintenance teams the data they need to make informed decisions about motor loading, scheduling, and replacement timing.

The relay's undercurrent detection function is particularly valuable in pump and fan applications, where a drop below the minimum load threshold indicates cavitation, belt breakage, or process flow loss — conditions that, if undetected, cause motors to run unloaded and waste energy while providing no useful work. By triggering an alarm or trip on undercurrent, the 269PLUS-100P-120 prevents extended no-load operation and supports production line pacing by ensuring that downstream processes are not starved of flow or pressure without operator awareness.

Phase imbalance and phase loss protection further contribute to energy efficiency by preventing the asymmetric current draw that occurs when one supply phase degrades. Even a 3.5% voltage imbalance can increase motor current by up to 25%, dramatically increasing copper losses and thermal stress. The 269PLUS-100P-120 detects and responds to these conditions before they cause winding damage, preserving motor efficiency and avoiding the energy penalty of operating a degraded motor at full load.

For predictive maintenance programs, the relay's accumulated start count, running hours, and thermal capacity used registers provide the operational history data needed to schedule maintenance interventions based on actual usage rather than fixed calendar intervals. This condition-based approach reduces unnecessary maintenance downtime, keeps production lines running at designed throughput, and avoids the energy inefficiency associated with motors that are serviced too infrequently and allowed to degrade before intervention.

All units are pre-shipment tested and supplied with a 12-month warranty, with in-stock availability supporting fast replacement cycles for critical motor assets. NANKMOS maintains ready inventory of the 269PLUS-100P-120 to minimize lead times for facilities operating under tight maintenance windows or emergency replacement requirements.

Q: How does the 269PLUS-100P-120 contribute to measurable energy savings on a production line? A: By continuously monitoring motor current, power factor, and thermal state, the relay enables control systems to detect and respond to inefficient operating conditions — including overloading, phase imbalance, and no-load running — that directly increase energy consumption. Facilities using motor management relays as part of an EMS program typically report measurable reductions in motor-related energy waste through earlier fault detection and more precise load management.

Q: Is the 269PLUS-100P-120 compatible with existing PLC and SCADA systems? A: Yes. The relay communicates via RS-485 Modbus RTU, which is natively supported by the majority of industrial PLC platforms (Siemens, Allen-Bradley, Schneider Electric, Mitsubishi) and SCADA systems (Ignition, WinCC, iFIX). Configuration is performed via the front-panel keypad or through GE Multilin's EnerVista software suite.

Q: Can this relay replace an existing 269 Plus Series unit without rewiring? A: The 269PLUS-100P-120 is a direct form-fit-function replacement for other 269 Plus Series variants with matching voltage and CT ratings. Terminal assignments and communication parameters are consistent across the series, minimizing rewiring and reconfiguration effort during replacement. Always verify CT ratio and control voltage compatibility before installation.

Q: What does the 12-month warranty cover, and how is stock availability managed? A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains in-stock inventory of the 269PLUS-100P-120 to support both planned procurement and emergency replacement scenarios. Units are tested prior to shipment to verify protection function operation and communication integrity.
