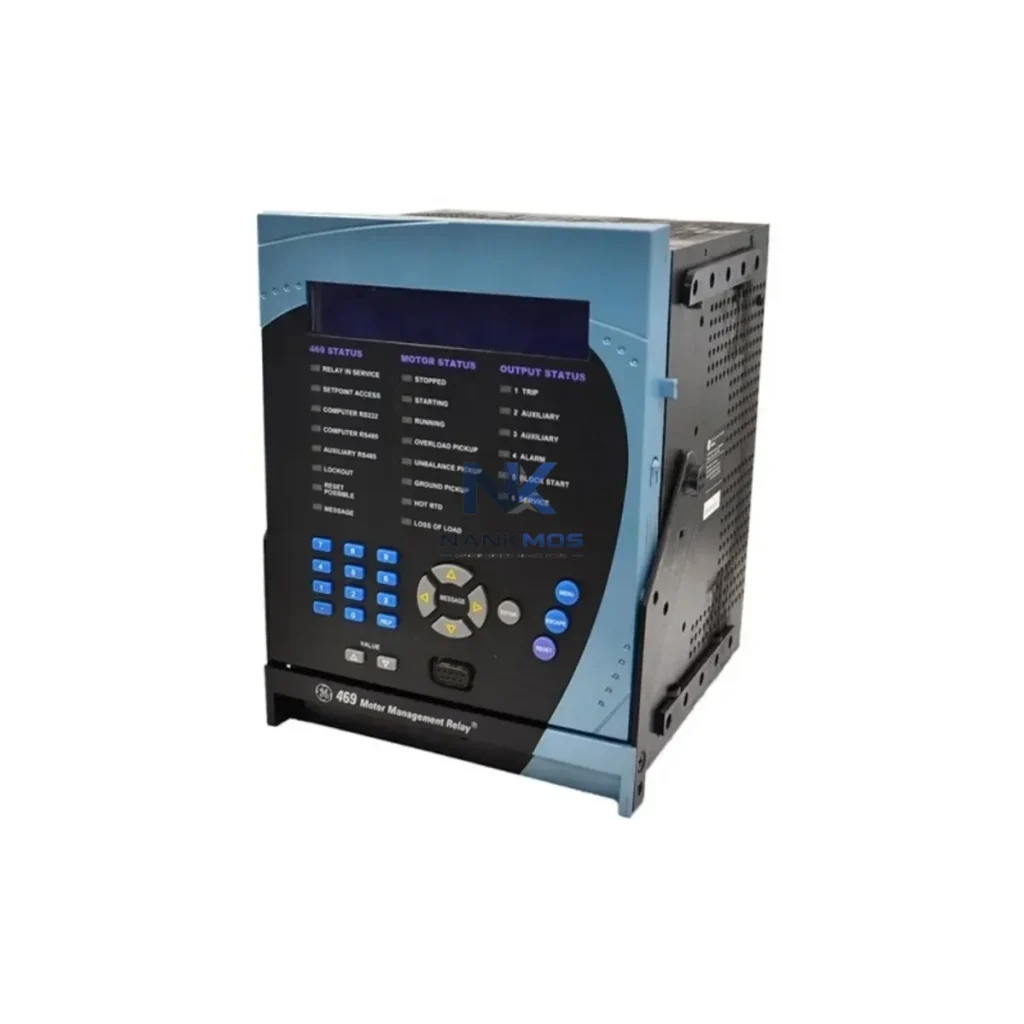

GE Multilin 469-P5-HI-A20-E Motor Protection Relay

Product Details

469-P5-HI-A20-E Product Description

The GE Multilin 469-P5-HI-A20-E is a high-performance motor protection relay engineered for energy-conscious industrial environments. Designed to safeguard medium-voltage motors in demanding applications — including petrochemical processing, semiconductor fabrication, energy generation, and heavy manufacturing — this relay delivers comprehensive protection while actively contributing to energy efficiency, load optimization, and production line stability. With its advanced metering capabilities, configurable protection elements, and seamless integration into modern automation architectures, the 469-P5-HI-A20-E is a cornerstone component for factories pursuing smart energy management and zero-unplanned-downtime objectives.

In modern smart factories, energy efficiency is not a single-device achievement — it is a system-level discipline. The GE Multilin 469-P5-HI-A20-E is built to operate as an active participant in a layered automation architecture, exchanging real-time data with upstream and downstream components to enable coordinated energy control.

At the control layer, the 469 relay communicates via Modbus RTU over RS-485 with PLCs such as the GE PACSystems RX3i or Siemens S7-300/400 series, delivering live motor status, energy consumption data, and fault diagnostics directly into the control program. This allows the PLC to execute load-shedding logic, staggered motor start sequences, and demand-response routines that reduce peak energy draw without interrupting production throughput.

When paired with a variable frequency drive (VFD) — such as the ABB ACS880 or Siemens SINAMICS G120 — the 469-P5-HI-A20-E provides the protection envelope that allows the drive to operate motors at reduced speed during low-demand periods. The relay monitors undercurrent conditions that indicate the motor is running unloaded, triggering speed reduction commands through the PLC to eliminate unnecessary energy consumption. This VFD-relay coordination is particularly effective in pump and fan applications where affinity laws yield cubic reductions in power at reduced speeds.

For servo-driven axes in precision manufacturing, the relay's ground fault and phase-unbalance detection protects servo drive input stages — such as those found in Fanuc αi series or Mitsubishi MR-J4 servo amplifiers — from upstream power quality issues that degrade drive efficiency and increase thermal losses. By catching these anomalies early, the 469 prevents the cascading energy waste that occurs when drives compensate for poor power quality through increased switching frequency.

Integration with power monitoring modules such as the Schneider Electric PowerLogic ION7650 or Siemens SENTRON PAC3200 allows the 469's per-motor energy data to be aggregated into a plant-wide energy management system (EMS). This aggregation enables energy engineers to identify which motors contribute most to peak demand charges, prioritize efficiency upgrades, and validate the ROI of motor replacement or VFD retrofit projects.

At the field level, RTD (resistance temperature detector) inputs on the 469-P5-HI-A20-E connect directly to motor winding and bearing temperature sensors, providing thermal protection that is far more accurate than current-based thermal models alone. This precision thermal management reduces the safety margins that engineers would otherwise build into motor sizing, allowing smaller, more efficient motors to be specified with confidence — directly reducing installed power and ongoing energy costs.

The relay's digital and analog I/O interface with distributed I/O modules — such as the GE Multilin D60 or Rockwell 1756-IB16 ControlLogix input cards — to relay motor run/stop status, fault codes, and energy alarms to the plant SCADA system. Operators viewing the HMI (e.g., Siemens SIMATIC TP1200 Comfort or Rockwell PanelView Plus 7) receive actionable energy dashboards without requiring additional instrumentation, reducing both capital cost and integration complexity.

Production line energy optimization requires more than protecting motors from fault conditions — it demands continuous, intelligent management of how energy flows through every driven load on the line. The GE Multilin 469-P5-HI-A20-E addresses this requirement through several interconnected mechanisms.

Thermal Load Reduction: The relay's RTD-based thermal model continuously tracks winding temperature and adjusts the thermal capacity used (TCU) calculation in real time. When motors are operating below thermal limits, the relay permits higher short-term overloads without tripping — enabling production bursts without energy-wasting oversizing. Conversely, when thermal margins are tight, the relay signals the PLC to reduce conveyor speed or defer non-critical loads, preventing thermal trips that cause costly unplanned downtime and the energy-intensive restart sequences that follow.

Undercurrent and No-Load Detection: In conveyor, pump, and compressor applications, the 469's undercurrent element detects when a motor is running without load — a common source of wasted energy in batch manufacturing. Upon detection, the relay can trigger an automatic stop or speed reduction via the VFD, eliminating idle-run losses that can account for 15–30% of a motor's annual energy consumption in intermittent-duty applications.

Demand Management and Load Scheduling: By exposing real-time kW and kWh data over Modbus to the plant PLC or SCADA system, the 469-P5-HI-A20-E enables demand management algorithms that stagger motor starts, sequence loads by priority, and shed non-critical motors during peak tariff periods. In facilities with time-of-use electricity pricing, this capability directly reduces energy costs without capital investment in new equipment.

Predictive Maintenance and Uptime: The relay logs motor start count, running hours, number of emergency stops, and thermal history — data that feeds predictive maintenance models in the SCADA or EMS. By identifying motors approaching end-of-life before they fail, maintenance teams can schedule replacements during planned shutdowns, avoiding the energy and productivity losses associated with emergency repairs and uncontrolled restarts.

Production Line Rhythm Stability: Unplanned motor trips disrupt production rhythm, causing upstream buffers to overflow and downstream stations to starve — both of which waste energy through idle running and restart transients. The 469's comprehensive protection suite (overload, stall, jam, phase loss, ground fault) minimizes nuisance trips while catching genuine faults early, maintaining the steady production cadence that maximizes output per kWh consumed.

Every unit is sourced from verified supply channels, undergoes pre-shipment functional testing, and is backed by a 12-month warranty. In-stock inventory ensures rapid dispatch to minimize production downtime for replacement or new installation projects.

Q1: How does the 469-P5-HI-A20-E contribute to measurable energy savings on a production line? The relay contributes through multiple mechanisms: undercurrent detection eliminates idle-run losses, RTD-based thermal management allows right-sized motor selection, and Modbus-connected energy metering feeds demand management algorithms in the PLC or SCADA. Facilities typically report 10–25% reduction in motor-related energy costs after implementing relay-driven load management strategies.

Q2: Is the 469-P5-HI-A20-E compatible with existing PLC and SCADA systems? Yes. The relay communicates via Modbus RTU over RS-485, which is natively supported by virtually all industrial PLCs and SCADA platforms, including GE PACSystems, Siemens S7, Rockwell ControlLogix, and Schneider Electric Modicon. Optional communication cards add DeviceNet and Profibus DP support for legacy automation environments.

Q3: Can this relay replace an older GE Multilin 369 or 469 variant without rewiring? The 469-P5-HI-A20-E is designed within the GE Multilin 469 platform family and shares the same physical footprint and terminal layout as earlier 469 variants. In most cases, direct replacement is possible with firmware reconfiguration only. For 369-to-469 upgrades, terminal adapter kits are available. Always verify CT ratios, auxiliary voltage, and communication settings before commissioning.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? Every 469-P5-HI-A20-E unit undergoes functional verification of protection elements, communication ports, analog I/O, and RTD inputs prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Expedited replacement stock is maintained to minimize any warranty-related downtime impact.
