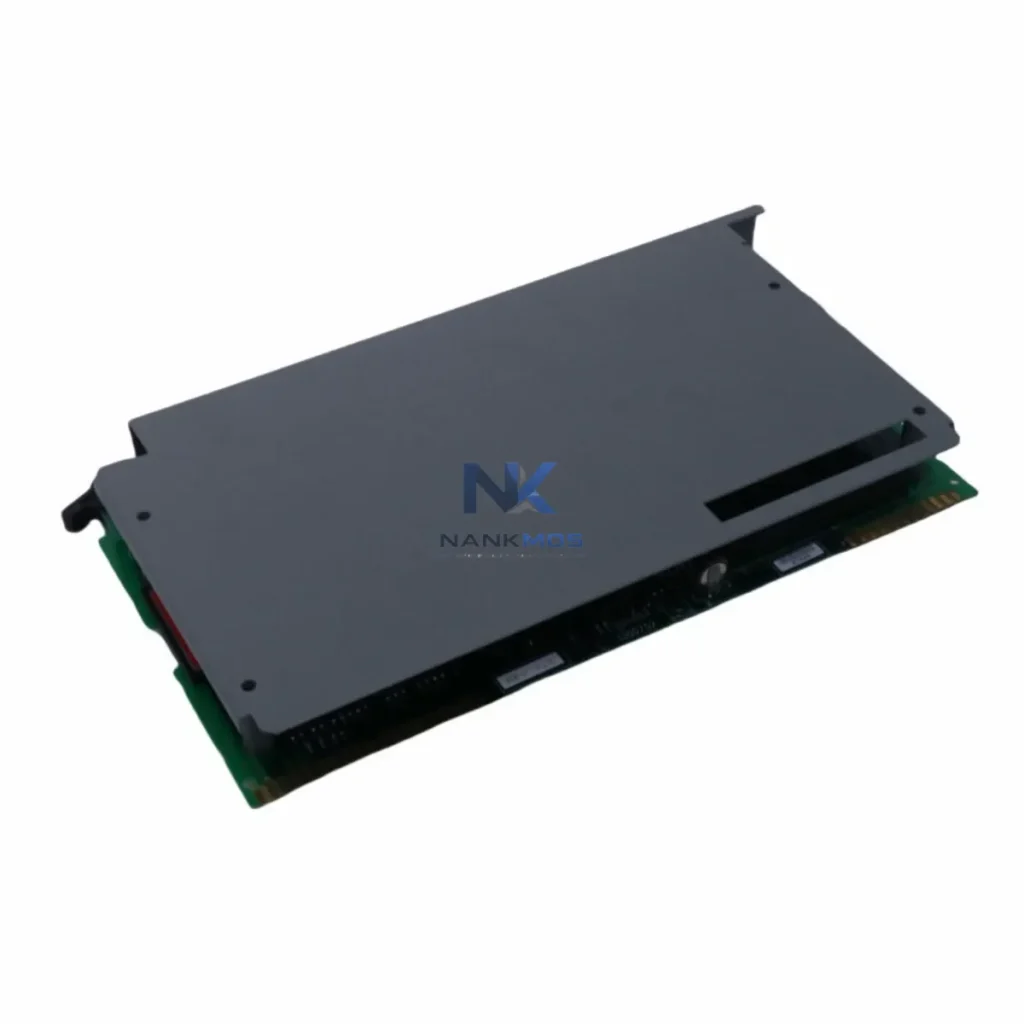

3100-INUSA Product Description

The ProSoft 3100-INUSA is a purpose-engineered communication module designed to operate as a seamless node within the ProSoft 3100 Series modular control architecture. Rather than functioning as a standalone peripheral, the 3100-INUSA is conceived as a structural element of a layered industrial automation platform — one that bridges the control layer, I/O layer, and communication layer into a unified, diagnostically coherent system. Whether deployed in discrete manufacturing, process control, power distribution, or water treatment infrastructure, this module delivers the signal stability, protocol flexibility, and long-term maintainability that modern industrial environments demand.

The 3100-INUSA achieves its full operational value when integrated within a coherent automation platform rather than deployed in isolation. In a typical SLC 500-based control cabinet, the module occupies a slot in the Allen-Bradley SLC 500 chassis alongside the SLC 5/05 processor, sharing the backplane bus for deterministic data exchange. The processor's ladder logic program maps the 3100-INUSA's input and output image registers directly, enabling real-time protocol translation without additional middleware or external converters.

At the I/O layer, the 3100-INUSA works in concert with SLC 500 analog input modules (such as the 1746-NI4 or 1746-NI8) and digital I/O modules (1746-IB16, 1746-OB16) to consolidate field signals from sensors, transmitters, and actuators into a single coherent data stream. This architecture eliminates signal conversion bottlenecks and reduces wiring complexity across the control cabinet.

For communication layer integration, the 3100-INUSA serves as a gateway between the SLC 500 backplane and external Modbus RTU networks, enabling connectivity to Modbus-compatible field devices such as variable frequency drives (VFDs), intelligent motor controllers, flow meters, and remote I/O panels. In installations where legacy DF1 or DH-485 networks are still active, the module provides backward-compatible protocol bridging, protecting existing infrastructure investments while enabling incremental modernization.

At the power layer, the system relies on the Allen-Bradley 1746-P4 or 1746-P7 power supply modules to deliver stable 5 VDC and 24 VDC backplane power. Proper power budget calculation — accounting for the 3100-INUSA's backplane current draw alongside co-installed I/O modules — is essential for system reliability, particularly in high-density chassis configurations.

HMI integration is typically achieved through PanelView Plus terminals or third-party SCADA platforms communicating via Ethernet/IP or serial DF1 to the SLC 5/05 processor, with the 3100-INUSA's translated data appearing transparently in the HMI tag database. This layered approach ensures that operators receive accurate, real-time field data without requiring custom protocol drivers at the HMI level.

For redundancy-critical applications, engineers may deploy a secondary ProSoft MVI46-MCM or similar communication module in a parallel chassis to provide hot-standby communication capability. Combined with ProSoft 3150-MCM multi-channel Modbus modules in adjacent racks, the architecture supports N+1 redundancy for communication-intensive process control environments.

Signal isolation requirements in high-noise industrial environments — common in steel mills, mining operations, and petrochemical plants — are addressed by pairing the 3100-INUSA with DIN-rail-mounted signal isolators and surge protectors on RS-232/RS-485 serial lines. This protects the module's communication ports from ground loops, transient voltages, and EMI-induced data corruption, extending mean time between failures (MTBF) in demanding field conditions.

Discrete Manufacturing: In automotive assembly and packaging lines, the 3100-INUSA enables the SLC 500 controller to communicate with Modbus-based servo drives, barcode readers, and vision systems, consolidating production data for MES integration and OEE reporting.

Power Distribution & Utilities: Substations and power distribution panels use the 3100-INUSA to interface SLC 500 controllers with protective relays, energy meters, and RTUs over Modbus RTU, enabling centralized SCADA monitoring of grid-connected assets.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the module to bridge SLC 500 PLCs with Modbus-enabled pump controllers, flow transmitters, and chlorination systems, supporting remote monitoring and regulatory compliance reporting.

Petrochemical & Refining: In hazardous area control rooms, the 3100-INUSA facilitates communication between SLC 500 safety-rated controllers and field instruments in Zone 2 / Division 2 environments, with appropriate IS barriers installed on serial communication lines.

Mining & Metallurgy: Conveyor control systems, crusher automation, and smelter process control benefit from the module's robust serial communication capability, maintaining data integrity in high-vibration, high-temperature environments.

Marine & Offshore: Vessel automation systems use the 3100-INUSA to integrate SLC 500 controllers with engine management systems, ballast control panels, and navigation instruments over Modbus serial networks, meeting DNV and ABS classification requirements.

Q1: Is the ProSoft 3100-INUSA compatible with all SLC 500 chassis configurations, and can it coexist with other ProSoft communication modules in the same rack? The 3100-INUSA is designed for installation in any standard Allen-Bradley SLC 500 modular chassis (4-slot, 7-slot, 10-slot, or 13-slot). It can coexist with other ProSoft MVI46-series modules in the same rack, provided the total backplane current budget is not exceeded. Each module's current draw must be summed against the installed power supply's rated output. NANKMOS recommends reviewing the chassis power budget calculation prior to deployment and can provide application engineering support upon request.

Q2: What commissioning steps are required to verify communication integrity after installation, and how does the module support long-term diagnostic monitoring? After physical installation, the 3100-INUSA requires configuration via ProSoft Configuration Builder (PCB) software, where Modbus node addresses, baud rates, parity settings, and register mapping are defined. Communication integrity is verified using the module's onboard LED status indicators (TX/RX activity, error flags) and the diagnostic data registers mapped into the SLC 500's data file. For long-term monitoring, SCADA systems can poll these diagnostic registers to detect communication timeouts, CRC errors, and port fault conditions without requiring physical access to the control cabinet.

Q3: What does NANKMOS's 12-Month Warranty cover, and what is the typical lead time for in-stock units? All ProSoft 3100-INUSA units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes a pre-shipment functional test to verify communication port integrity, backplane interface operation, and firmware version. In-stock units typically ship within 3–5 business days. For urgent requirements, expedited shipping arrangements can be made. Contact NANKMOS at [email protected] or +86 18359268345 for availability confirmation and lead time quotation.
