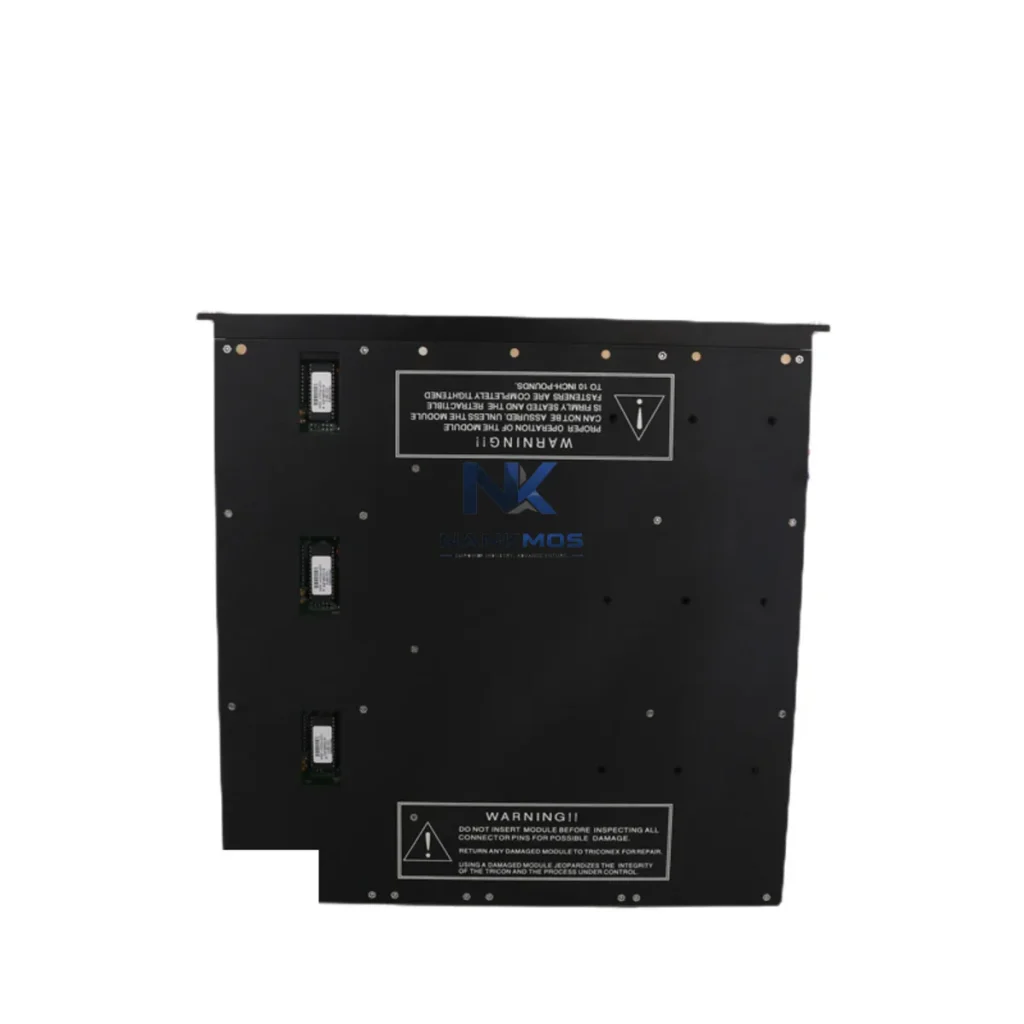

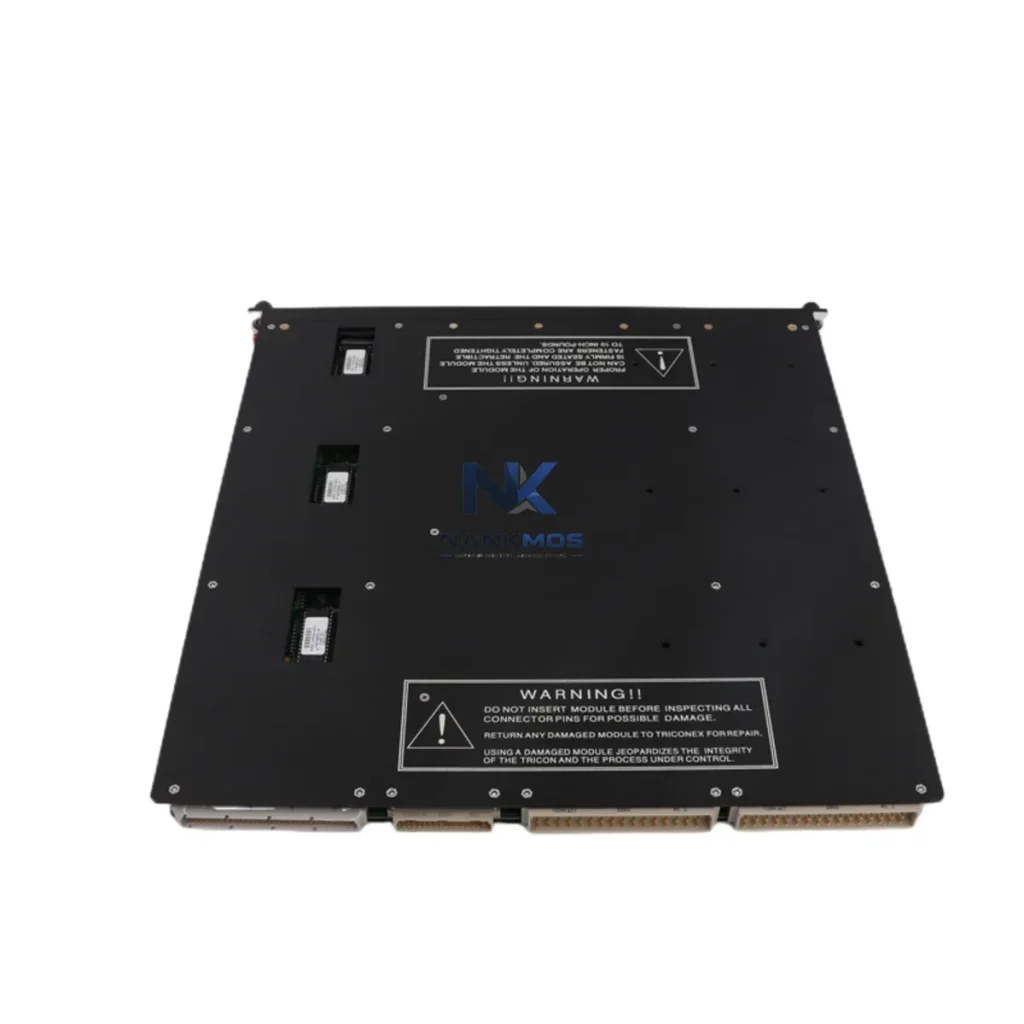

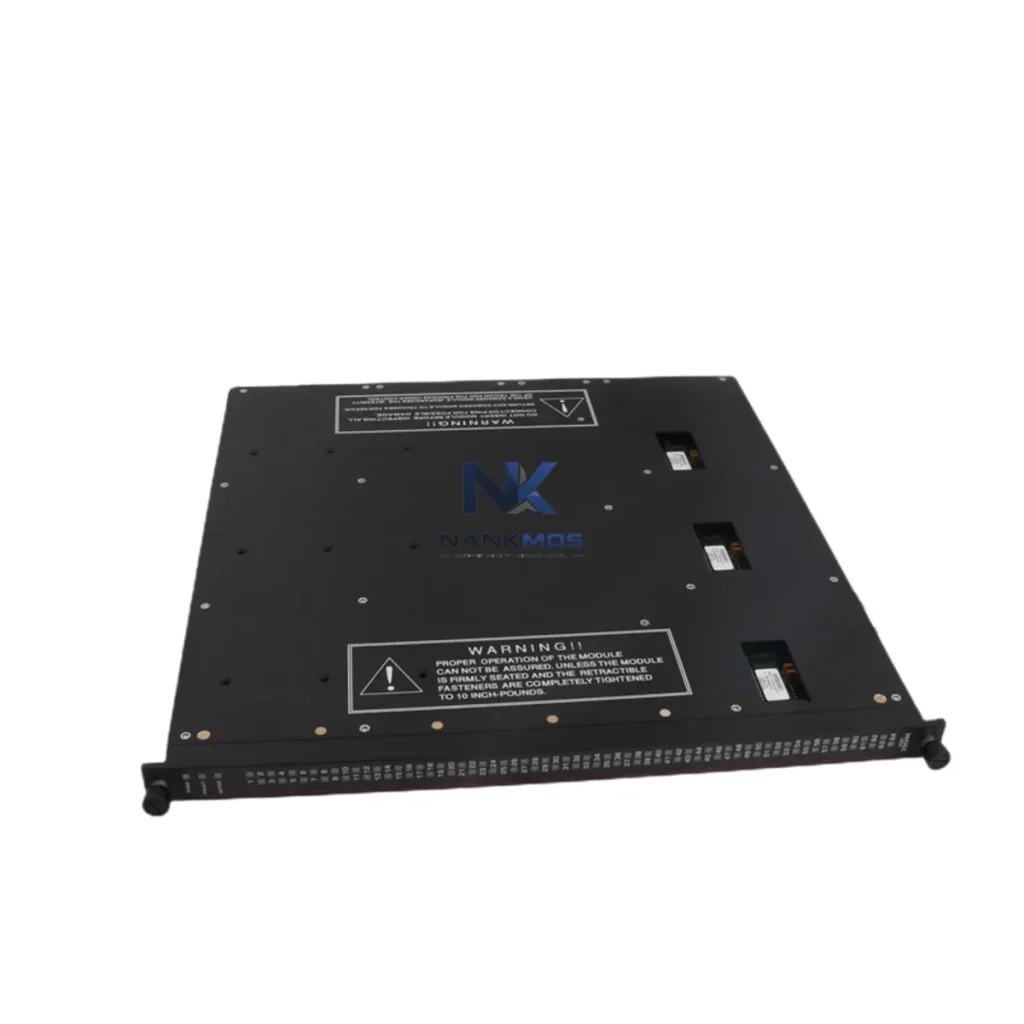

TRICONEX 3511 Pulse Input Module

Product Details

3511 Product Description

The TRICONEX 3511 is a dedicated Pulse Input Module engineered for deployment within the TRICONEX 3500 Series Triple Modular Redundant (TMR) Safety Instrumented System. Designed to acquire high-integrity pulse signals from field instrumentation — including turbine flow meters, magnetic pickups, and rotary encoders — the 3511 delivers fault-tolerant signal conditioning at the I/O layer of safety-critical control architectures. Its role extends beyond simple signal acquisition: the module participates in the TMR voting logic that underpins SIL 3 process safety, ensuring that no single-point hardware failure can compromise measurement integrity or trigger a spurious trip.

In modern industrial control architecture, the I/O layer is the foundation upon which all higher-level control decisions rest. The TRICONEX 3511 is purpose-built to serve this role with deterministic performance, supporting continuous self-diagnostics, channel-level fault isolation, and seamless integration with the 3500 Series main chassis backplane. Whether deployed in oil and gas separation trains, compressor control panels, turbine protection systems, or chemical reactor safety loops, the 3511 provides the signal fidelity and architectural consistency that safety engineers demand across the full project lifecycle — from commissioning through long-term maintenance.

The TRICONEX 3511 does not operate in isolation — its value is fully realized when integrated within the complete TRICONEX 3500 Series control platform. At the processing layer, the TRICONEX 3008 Main Processor Module and TRICONEX 3009 Enhanced Main Processor execute the TMR voting algorithms that consume the 3511's pulse data, translating raw field signals into safety-validated process variables. The processor modules communicate with I/O modules across the chassis backplane, maintaining microsecond-level synchronization across all three redundant legs.

Power integrity is maintained by the TRICONEX 3700A Power Module, which provides regulated, redundant DC power to all chassis slots — including the 3511 — ensuring that power supply faults do not propagate to I/O signal quality. For installations requiring expanded I/O capacity, the TRICONEX 3504 Analog Input Module and TRICONEX 3601 Digital Output Module are commonly co-deployed alongside the 3511, covering the full signal spectrum from analog process variables to discrete actuator commands within a single chassis or multi-chassis configuration.

Communication between the 3500 Series safety system and the plant DCS or SCADA layer is typically handled by the TRICONEX 4351B Modbus Plus Network Interface Module or the TRICONEX 4119A Hiway Gateway, enabling the safety controller to share process data with supervisory systems without compromising the integrity of the safety network. For sites running Emerson DeltaV or Honeywell Experion as the primary DCS, the TRICONEX system interfaces via dedicated gateway modules, maintaining clear separation between the safety instrumented system (SIS) and the basic process control system (BPCS) in accordance with IEC 61511 architectural requirements.

At the field termination layer, TRICONEX 3991 Termination Assemblies provide marshalled wiring panels that connect field cables to the 3511's input channels without requiring module removal during maintenance — a critical feature for live-maintenance environments in continuous-process industries. For installations requiring signal conditioning upstream of the 3511, passive signal isolators and surge protection barriers are commonly integrated at the marshalling cabinet level, protecting the module's input circuitry from field-induced transients in electrically noisy environments such as compressor stations and substation control rooms.

The complete architecture — processor, power, I/O, communication, and termination — forms a cohesive, validated safety platform. Specifying the TRICONEX 3511 as part of this integrated stack ensures that pulse measurement performance is consistent with the system's overall SIL 3 rating, simplifies spare-parts management, and reduces engineering risk during both initial commissioning and long-term lifecycle maintenance.

Oil & Gas — Compressor and Turbine Protection: The TRICONEX 3511 is widely deployed in gas turbine and centrifugal compressor protection systems, where accurate pulse-based speed measurement is essential for overspeed trip logic. In these applications, the module acquires signals from magnetic pickup sensors mounted on the turbine shaft, feeding real-time speed data to the TMR processor for continuous comparison against trip setpoints. The 2oo3 voting architecture ensures that a single sensor or channel fault does not cause a spurious shutdown, maintaining production continuity while preserving safety integrity.

Petrochemical — Reactor and Distillation Column Safety: In petrochemical plants, the 3511 supports flow measurement safety loops where turbine flow meters provide pulse outputs proportional to volumetric flow rate. These signals are used in high-integrity interlock logic for feed control, emergency shutdown, and pressure relief management. The module's channel isolation and continuous diagnostics allow maintenance teams to verify signal health without interrupting the safety function — a requirement in facilities operating under OSHA PSM and IEC 61511 compliance frameworks.

Power Generation — Steam Turbine and Generator Protection: Power plant safety systems rely on the TRICONEX 3511 for turbine speed and vibration pulse acquisition in steam and gas turbine generator sets. The module's high-frequency input capability supports proximity probe and eddy-current sensor signals used in vibration monitoring and overspeed protection, integrating with the broader TRICONEX platform to provide a unified safety and control solution across the turbine control panel.

Water & Wastewater — Pump and Flow Monitoring: Municipal water treatment and wastewater facilities use the 3511 in pump protection and flow measurement applications, where electromagnetic flow meters and turbine meters provide pulse outputs for totalizing and rate-of-flow calculations. The module's robust isolation and diagnostic capabilities reduce maintenance burden in facilities with limited instrumentation staff, supporting long-term reliable operation with minimal intervention.

Mining and Minerals Processing — Conveyor and Mill Drive Monitoring: In mining applications, the TRICONEX 3511 acquires speed pulses from conveyor belt encoders and mill drive tachometers, supporting interlock logic that prevents equipment damage from underspeed or overspeed conditions. The module's hot-swap capability allows replacement during planned maintenance windows without requiring a full system shutdown, reducing downtime in continuous mining operations.

Q1: Is the TRICONEX 3511 compatible with both the 3500 Series standard chassis and the enhanced chassis configurations? Yes. The 3511 is designed for the TRICONEX 3500 Series backplane and is compatible with standard and enhanced chassis configurations, including multi-chassis expansions using the TRICONEX 3502 Expansion Chassis. Slot assignment and channel configuration are managed through the TriStation 1131 programming environment, which provides module-level diagnostics and configuration validation prior to deployment. Always verify chassis firmware revision compatibility with the 3511 module revision using the TRICONEX compatibility matrix before installation.

Q2: How does the 3511 maintain SIL 3 integrity in a mixed I/O chassis alongside analog and digital modules? The TRICONEX 3500 Series backplane architecture provides electrical isolation between module slots, ensuring that signal integrity on the 3511's pulse input channels is not affected by adjacent analog or digital I/O modules. The TMR processor independently reads all three legs of the 3511's redundant signal paths and applies 2oo3 voting logic before passing the validated value to the application program. This architecture ensures that the SIL 3 rating of the overall safety function is maintained regardless of the I/O mix within the chassis, provided that all modules are within their certified revision ranges.

Q3: What warranty and supply assurance does NANKMOS provide for the TRICONEX 3511? NANKMOS supplies the TRICONEX 3511 with a 12-Month Warranty covering hardware defects and functional performance. All units undergo pre-shipment functional testing and are shipped with full traceability documentation. NANKMOS maintains inventory of the 3511 and related 3500 Series modules to support urgent replacement requirements, with worldwide shipping available to minimize system downtime. For contextual integration support — including chassis compatibility verification, TriStation configuration guidance, and spare-parts planning — contact NANKMOS at [email protected] or +86 18359268345.
