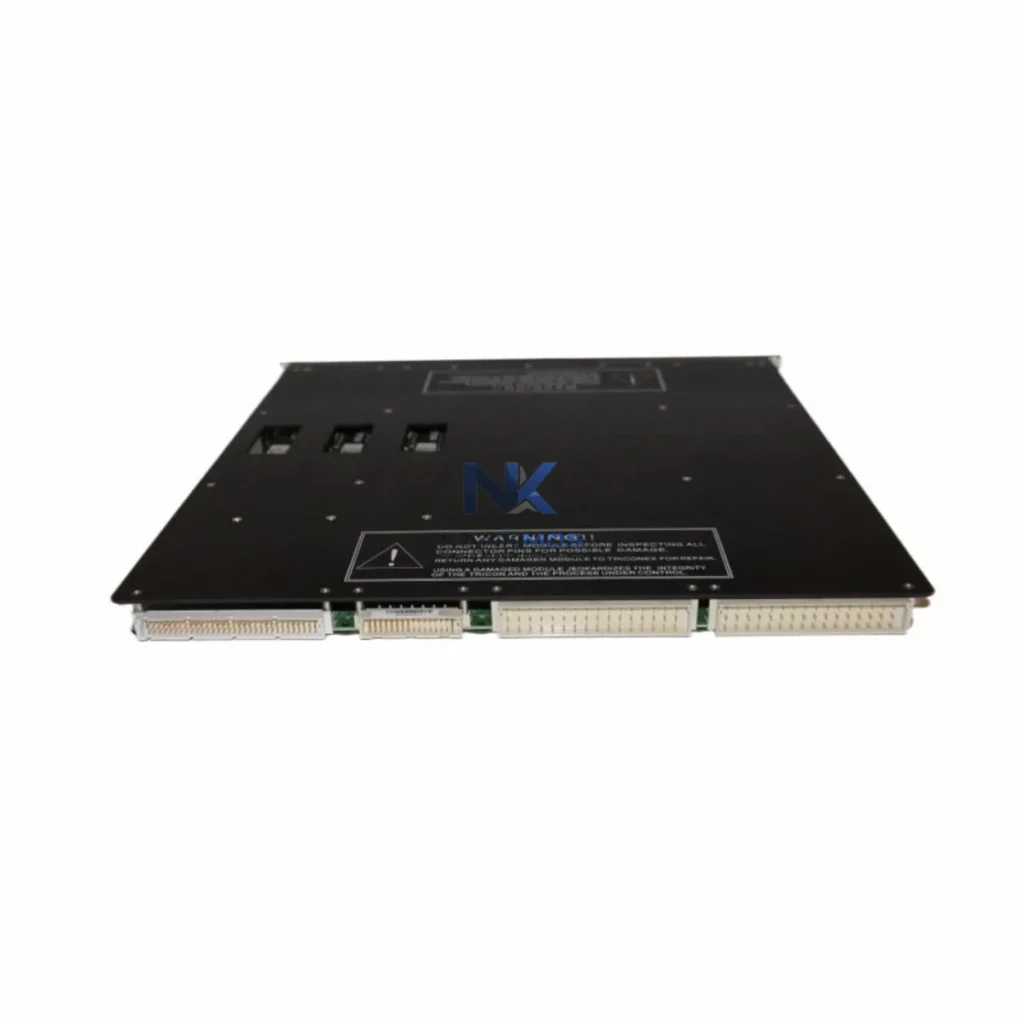

Triconex 3004 Safety Communication Module

Product Details

3004 Product Description

The Triconex 3004 is a high-integrity industrial network interface module engineered for Tricon Triple Modular Redundant (TMR) safety systems. Designed to bridge field-level instrumentation with upper-layer control and supervisory networks, the 3004 serves as a critical data conduit in safety-critical automation environments — including oil and gas processing, chemical plants, power generation facilities, and advanced smart manufacturing sites. Its architecture supports seamless protocol translation, deterministic data transmission, and continuous fault-tolerant operation, making it an indispensable component in any plant-wide industrial communication strategy.

In modern smart factories, data integrity and network continuity are non-negotiable. The Triconex 3004 addresses both requirements by enabling structured, real-time data exchange between the Tricon safety controller and distributed automation layers — from field sensors and remote I/O modules to SCADA servers, HMI terminals, and edge computing gateways. Whether deployed in a greenfield automation project or integrated into an existing DCS/SIS architecture, the 3004 delivers the communication reliability that safety-instrumented systems demand.

The Triconex 3004 sits at the intersection of field instrumentation and supervisory control, enabling a complete, uninterrupted data chain across the automation hierarchy. At the field level, process sensors — including pressure transmitters, temperature sensors, and flow meters — feed real-time signals into the Tricon TMR controller via hardwired I/O or remote I/O modules such as the Triconex 3703E digital output module and Triconex 3805E analog input module. These signals are processed by the Tricon main processor — typically a Triconex 3008 or Triconex 3006 main processor module — which executes the safety logic and generates control outputs.

The 3004 network interface module then packages this processed data and transmits it upstream to the plant's SCADA layer. Integration with platforms such as Wonderware System Platform, Ignition SCADA by Inductive Automation, or Emerson DeltaV is achieved through standardized Modbus TCP/IP or OPC UA communication paths, ensuring that operators at the control room HMI — such as a Siemens SIMATIC HMI TP1500 or equivalent industrial panel — receive live process data with minimal latency.

For plants deploying edge computing architectures, the 3004 can interface with industrial edge gateways — such as the Moxa MGate MB3480 or similar Modbus-to-Ethernet protocol converters — to push real-time data to cloud-based analytics platforms or MES systems. This enables predictive maintenance workflows, energy consumption monitoring, and production KPI dashboards without disrupting the integrity of the safety-instrumented system.

Industrial Ethernet switches — such as managed switches from the Hirschmann MICE or Moxa EDS-400 series — provide the network backbone that connects the Tricon system to the plant LAN, ensuring deterministic packet delivery and VLAN segmentation between the safety network and the business network. Power continuity for the entire communication chain is maintained by redundant industrial power supplies, such as the Phoenix Contact QUINT-PS series, which deliver stable 24 VDC to all network-connected modules.

Variable frequency drives (VFDs) integrated into the production line — such as ABB ACS880 or Schneider Electric Altivar series drives — can also be monitored through the SCADA layer connected via the 3004, enabling closed-loop speed control feedback and drive fault alarming to be captured within the same supervisory environment. This unified data architecture eliminates information silos and gives plant engineers a single-pane-of-glass view of both safety and process performance.

Many industrial facilities face persistent challenges when attempting to modernize legacy safety systems: protocol fragmentation, data silos between the SIS and DCS layers, limited remote visibility into safety controller status, and the inability to perform non-intrusive diagnostics without interrupting production. The Triconex 3004 directly addresses these pain points.

Protocol Unification: Legacy Tricon systems often communicate via proprietary TriStation protocols that are incompatible with modern SCADA and MES platforms. The 3004 provides the translation layer that converts Tricon-native data into Modbus or OPC-compatible formats, enabling seamless integration with contemporary supervisory systems without requiring controller replacement.

Eliminating Data Silos: By establishing a structured network path from the Tricon TMR controller to the plant SCADA, the 3004 ensures that safety system data — including trip logs, alarm histories, and I/O status — is available to operations teams in real time, rather than being locked within the safety controller's local memory.

Remote Monitoring and Diagnostics: Plant engineers can use the 3004's network connectivity to perform remote health checks on the Tricon system, review fault logs, and monitor redundancy status across all three TMR channels — without requiring physical access to the controller cabinet. This capability is especially valuable for unmanned remote stations, offshore platforms, and geographically distributed pipeline monitoring systems.

Production Line Transparency: With the 3004 feeding live data to SCADA dashboards, production managers gain full visibility into safety system status, enabling proactive maintenance scheduling and reducing unplanned shutdowns. Alarm tracking and event logging become centralized, simplifying regulatory compliance reporting and root-cause analysis after incidents.

System Scalability: As plant automation requirements evolve, the 3004's standard communication interfaces allow additional I/O modules, remote stations, and supervisory nodes to be added to the network without architectural redesign, protecting the long-term investment in the Tricon safety platform.

Q1: What communication protocols does the Triconex 3004 support for SCADA integration?The Triconex 3004 supports Modbus RTU and Modbus TCP/IP as primary industrial communication protocols, enabling direct integration with most SCADA platforms including Wonderware, Ignition, and Emerson DeltaV. For OPC UA connectivity, a compatible protocol gateway module is recommended to bridge the Tricon network to OPC-compliant supervisory systems.

Q2: Is the Triconex 3004 compatible with both legacy and modern Tricon TMR system configurations?Yes. The 3004 is designed for use within the Tricon TMR backplane architecture and is compatible with a range of Tricon main processor modules, including the 3006 and 3008 series. It maintains backward compatibility with established Tricon system configurations while supporting integration with contemporary network infrastructure.

Q3: How does the 3004 support remote diagnostics without interrupting safety system operation?The Triconex 3004 enables non-intrusive network-based diagnostics by exposing controller status, I/O health, and redundancy channel data over the plant network. Authorized personnel can access this information via SCADA or dedicated diagnostic tools without issuing commands that would affect the safety logic execution, ensuring continuous SIS availability during diagnostic sessions.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the Triconex 3004?All Triconex 3004 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm communication interface integrity and module identification. Units are shipped in anti-static protective packaging with full traceability documentation. For volume orders or urgent requirements, please contact our team directly for lead time confirmation and stock availability.
