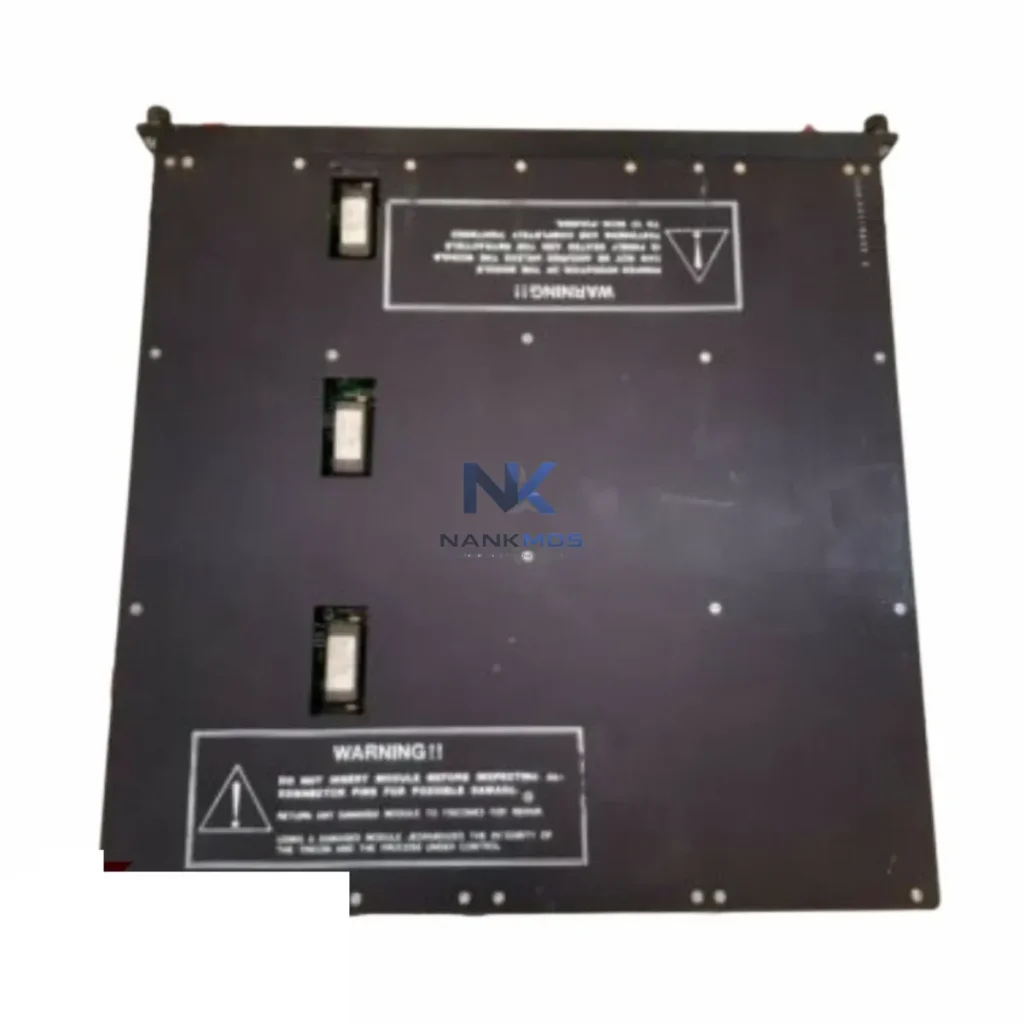

Triconex 3703E Analog Input Module

Product Details

3703E Product Description

In modern smart factory architectures, the integrity of field-level signal acquisition directly determines the reliability of every upstream decision — from PLC logic execution to SCADA alarm management and MES production reporting. The Triconex 3703E isolated analog input module is engineered to serve as a precision data entry point within Triple Modular Redundancy (TMR) safety systems, capturing process variables from field transmitters, pressure sensors, temperature loops, and flow instruments, then delivering clean, validated signals into the Triconex TMR controller backplane for real-time processing and network-wide distribution.

Deployed across oil and gas, petrochemical, power generation, and advanced manufacturing facilities, the 3703E supports the full data chain from sensor to cloud: signal conditioning at the field terminal, protocol-level handshake with the Triconex MP3008 main processor, Modbus RTU/TCP and OPC-UA publication to SCADA platforms such as Wonderware System Platform or Ignition SCADA, and onward integration with historian databases and digital twin environments. This end-to-end connectivity transforms isolated field readings into actionable plant intelligence.

The 3703E sits at the origin of a layered industrial data architecture. Field instruments — including Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure sensors, and thermocouple assemblies — feed 4–20 mA or 1–5 V DC signals into the 3703E terminal block. The module performs signal conditioning, range checking, and channel-level diagnostics before passing validated values across the TMR backplane to the Triconex MP3008 main processor, which executes the safety application logic and manages the voting mechanism across all three redundant channels.

From the MP3008, process data is published via the Triconex Communication Module (TCM) over Modbus TCP/IP to the plant DCS or SCADA layer. Integration with Ignition SCADA or Wonderware System Platform enables real-time tag subscription, alarm management, and trend visualization on operator HMI screens. Simultaneously, OPC-UA server functionality allows the Triconex TSAA (Triconex System Access Application) to expose live process values to MES platforms, digital twin engines, and cloud-based analytics services without compromising the safety network boundary.

For facilities running hybrid architectures, the 3703E data stream can be bridged through an industrial protocol gateway — such as a Moxa MGate MB3480 or ProSoft Technology MVI56E-MNET — to connect legacy Modbus RTU field devices with modern Ethernet-based control networks. Edge computing nodes, including Advantech WISE-5231 or similar IIoT gateways, can subscribe to the OPC-UA feed for local pre-processing, anomaly detection, and bandwidth-optimized uplink to cloud SCADA or CMMS platforms.

On the power and infrastructure side, the TMR chassis housing the 3703E is typically supported by Triconex Power Supply Modules operating in redundant pairs, ensuring uninterrupted module operation even during single-supply failures. Industrial managed switches — such as the Hirschmann MACH 100 or Cisco IE-3400 series — provide the ring-topology Ethernet backbone that carries Modbus TCP and OPC-UA traffic between the safety controller, SCADA servers, and remote I/O panels, with VLAN segmentation isolating safety traffic from general plant networks.

Many industrial facilities face persistent data integration challenges: field devices speaking legacy Modbus RTU cannot natively communicate with modern OPC-UA SCADA platforms; safety system data remains siloed from production MES and ERP layers; remote monitoring of SIL-rated equipment requires certified diagnostic pathways that standard IT networks cannot provide.

The Triconex 3703E addresses these gaps directly. Its galvanic channel isolation eliminates ground-loop interference that corrupts analog readings in electrically noisy environments — a common source of spurious alarms and unplanned shutdowns. The module's online diagnostic capability allows maintenance engineers to interrogate channel health, verify calibration drift, and confirm signal integrity without taking the safety system offline, supporting continuous production transparency and reducing mean time to repair (MTTR).

Protocol unification is achieved through the Triconex communication stack: Modbus RTU at the field level, Modbus TCP/IP at the control network layer, and OPC-UA at the SCADA/MES integration layer — all managed through a single, certified safety controller. This eliminates the need for external protocol converters between the safety layer and the supervisory layer, reducing network complexity, latency, and potential failure points. Alarm tracking is centralized: fault events generated by the 3703E are propagated through the TMR processor to the SCADA alarm server with full timestamp, channel ID, and diagnostic code, enabling root-cause analysis and regulatory audit trails.

For system expansion, the modular TMR chassis architecture allows additional 3703E modules to be added as new measurement loops are commissioned, without disrupting existing safety logic or network configuration — a critical advantage for phased plant expansions and brownfield upgrades.

Q1: What communication protocols does the Triconex 3703E support for SCADA integration?The 3703E interfaces with the Triconex TMR processor, which publishes data via Modbus RTU, Modbus TCP/IP, and OPC-UA. This enables direct integration with leading SCADA platforms including Ignition, Wonderware, FactoryTalk, and Siemens WinCC without requiring external protocol converters.

Q2: How does the 3703E support remote diagnostics and predictive maintenance?The module provides online channel diagnostics accessible through the TriStation programming environment and the Triconex System Access Application (TSAA). Fault codes, signal range violations, and channel health status are continuously monitored and can be forwarded to SCADA alarm servers or CMMS platforms for predictive maintenance workflows.

Q3: Is the Triconex 3703E compatible with IEC 61511 SIL 3 safety loop requirements?Yes. The 3703E is designed for use within Triconex TMR safety systems certified to SIL 3 per IEC 61511 and IEC 61508. Channel-to-channel and channel-to-bus galvanic isolation, combined with the TMR voting architecture, ensures that single-channel faults do not compromise safety function execution.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 3703E?Every Triconex 3703E unit supplied by NANKMOS carries a 12-month warranty and undergoes functional testing prior to shipment to verify analog input accuracy, channel isolation integrity, and backplane communication. In-stock units are available for immediate dispatch to support urgent project timelines.
