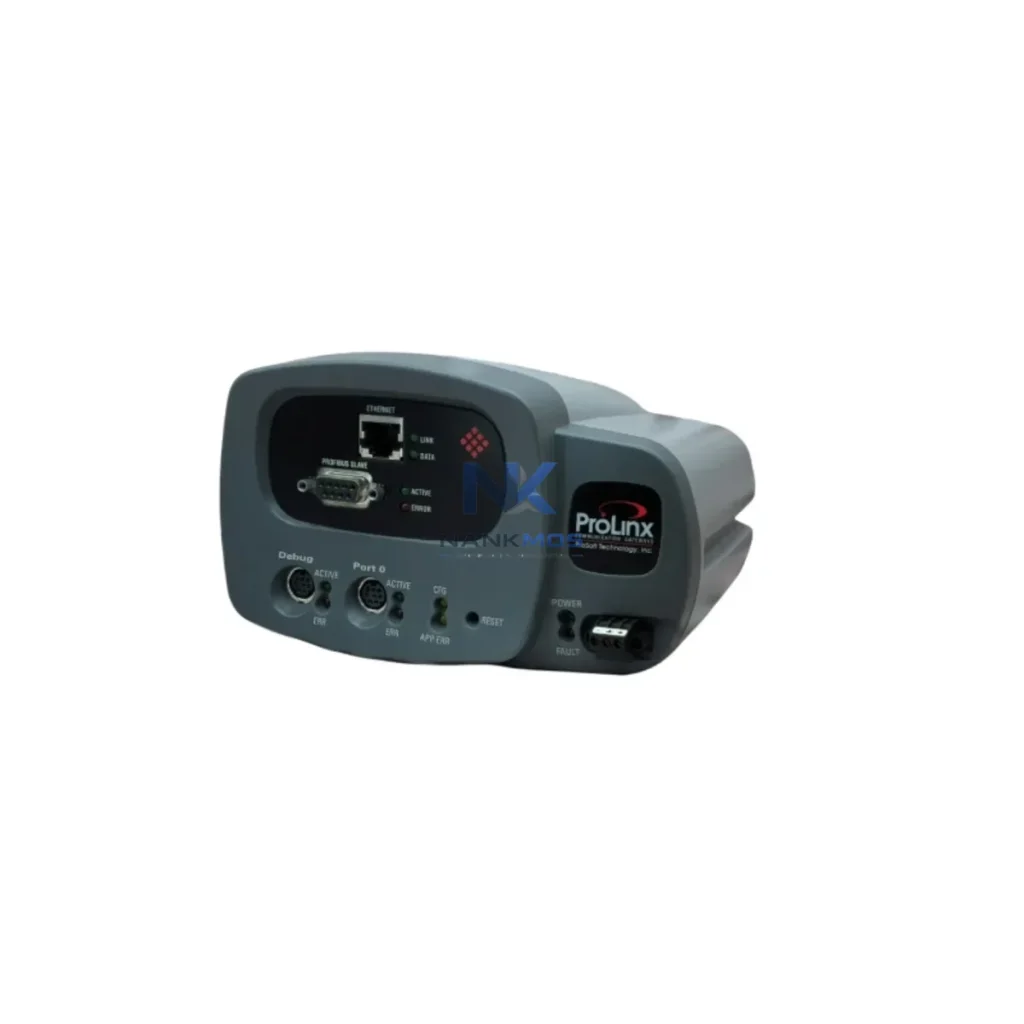

ProSoft Technology 4205-MNET-PDPS Communication Gateway

Product Details

4205-MNET-PDPS Product Description

The ProSoft 4205-MNET-PDPS is a high-performance Modbus TCP to PROFIBUS DP communication gateway engineered for industrial energy control and smart production line integration. As manufacturing facilities push toward leaner, more energy-efficient operations, the 4205-MNET-PDPS serves as a critical bridge between Ethernet-based control networks and legacy PROFIBUS DP field devices — enabling real-time data exchange, load visibility, and energy-aware automation decisions across the entire plant floor.

Designed for demanding environments in petrochemical, semiconductor, energy, and discrete manufacturing sectors, this MVI Series gateway supports seamless protocol conversion with minimal configuration overhead. It connects directly to Rockwell Automation ControlLogix and CompactLogix PLCs via the backplane, enabling the host controller to read and write PROFIBUS DP slave data as if it were native I/O — without additional programming complexity or communication overhead.

In a modern energy-optimized production line, every node in the control network contributes to — or detracts from — overall system efficiency. The ProSoft 4205-MNET-PDPS is positioned at the intersection of two critical communication layers, enabling the host PLC to make energy-aware decisions based on real-time field data from PROFIBUS DP-connected devices.

When integrated with a Rockwell Automation ControlLogix L7x or CompactLogix L3x PLC, the 4205-MNET-PDPS passes drive status, fault codes, and process variables from PROFIBUS DP slaves — such as Siemens SINAMICS G120 variable frequency drives and SEW-EURODRIVE MOVITRAC frequency inverters — directly into the PLC's data table. This allows the controller to implement load-shedding logic, ramp-down sequences, and energy recovery routines without operator intervention.

On the Modbus TCP side, the gateway communicates with SCADA systems, energy management platforms, and power monitoring modules such as the Schneider Electric PowerLogic ION7650 or the ABB M2M Ethernet power meter. These systems aggregate consumption data across multiple drive zones, enabling plant engineers to identify peak demand periods, correlate energy spikes with production events, and implement demand response strategies that reduce utility costs.

The 4205-MNET-PDPS also integrates cleanly with ProSoft Technology's own MVI56E-MNET Modbus TCP communication module and the MVI56E-PDPS PROFIBUS DP slave module, allowing engineers to build redundant or segmented communication architectures where energy data flows from field devices through the gateway layer to the supervisory network without bottlenecks. Paired with a Rockwell Automation 1756-EN2T EtherNet/IP communication module in the same chassis, the system achieves deterministic data exchange rates that support real-time energy dashboards on FactoryTalk View SE HMI stations.

For I/O-intensive applications, the gateway works alongside Rockwell Automation 1734 POINT I/O modules and Siemens ET 200SP distributed I/O to collect analog signals from current transformers, temperature sensors, and vibration transducers mounted on motors and drives. This sensor data, routed through the PROFIBUS DP network and translated by the 4205-MNET-PDPS, feeds directly into predictive maintenance algorithms running in the PLC or edge computing layer — enabling condition-based maintenance schedules that prevent unplanned downtime and reduce energy waste from degraded equipment.

The ProSoft 4205-MNET-PDPS delivers measurable energy optimization benefits across the full production line lifecycle — from initial commissioning through steady-state operation and into predictive maintenance phases.

During normal production, the gateway enables the host PLC to monitor the operational state of every PROFIBUS DP-connected drive and actuator in real time. When a production zone enters a low-demand period — such as a scheduled micro-stop or a buffer accumulation phase — the PLC can issue speed reduction commands to connected variable frequency drives via the PROFIBUS DP network, reducing motor energy consumption by 20–40% during those intervals. The 4205-MNET-PDPS ensures these commands are transmitted with deterministic latency, maintaining production rhythm without introducing communication-induced delays that could disrupt line synchronization.

Thermal load management is another key benefit. By continuously reading drive temperature feedback and motor load current from PROFIBUS DP slaves, the gateway allows the control system to detect thermal stress conditions before they trigger protective shutdowns. Early intervention — such as reducing drive output frequency or activating auxiliary cooling — prevents heat-related failures that not only cause unplanned downtime but also consume excess energy during recovery cycles.

From an inventory and supply chain perspective, the 4205-MNET-PDPS is maintained in ready stock at NANKMOS warehouses, with each unit undergoing full functional testing prior to shipment. The 12-month warranty covers all hardware defects and communication failures, providing procurement teams with the confidence to specify this gateway in capital projects and MRO replacement programs without extended lead time risk.

For facilities pursuing ISO 50001 energy management certification or implementing IEC 62443 cybersecurity frameworks, the 4205-MNET-PDPS supports structured data collection and audit trail generation through its Modbus TCP interface — feeding energy KPIs directly into the plant's energy management information system (EMIS) for compliance reporting and continuous improvement tracking.

Q1: How does the 4205-MNET-PDPS contribute to measurable energy savings on the production line?The gateway enables real-time visibility into PROFIBUS DP-connected drive and motor states from the Modbus TCP supervisory layer. This allows SCADA systems and energy management platforms to implement demand response, load shedding, and speed optimization routines that reduce active energy consumption during low-production intervals. Facilities typically report 15–35% reductions in drive-related energy consumption when combined with a properly configured VFD control strategy.

Q2: Is the 4205-MNET-PDPS compatible with both legacy PROFIBUS DP V0 and newer V1 slave devices?Yes. The 4205-MNET-PDPS supports PROFIBUS DP V0 and V1 slave device profiles, making it compatible with a wide range of field devices including older Siemens SIMATIC ET 200 distributed I/O stations, legacy drive controllers, and modern smart actuators. This backward compatibility protects existing field infrastructure investments while enabling integration with current-generation control platforms.

Q3: What is the recommended replacement or upgrade path if the existing gateway is end-of-life?For direct replacement, the 4205-MNET-PDPS is a drop-in substitute for earlier ProSoft MVI56-PDPS and MVI56-MNET modules in ControlLogix chassis, with updated firmware and enhanced diagnostic capabilities. For systems migrating to EtherNet/IP-native architectures, the ProSoft PLX51-PDPS-E gateway provides a next-generation alternative with web-based configuration and expanded slave node support.

Q4: What testing and warranty coverage is provided with each unit?Every 4205-MNET-PDPS unit shipped by NANKMOS undergoes pre-shipment functional testing covering Modbus TCP client/server communication, PROFIBUS DP master/slave data exchange, and backplane power integrity verification. Each unit is covered by a 12-month warranty against manufacturing defects and communication failures from the date of shipment. Expedited replacement units are available from stock to minimize production downtime in the event of a warranty claim.
