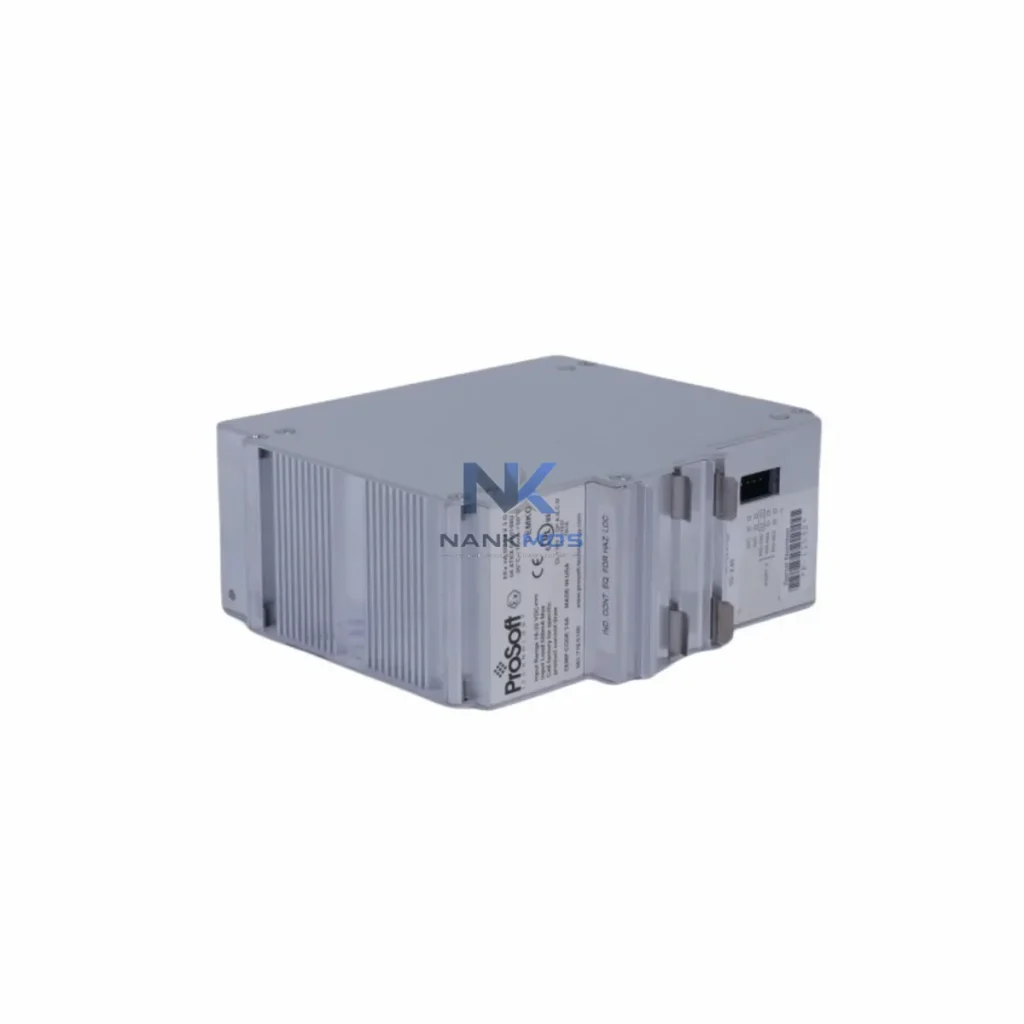

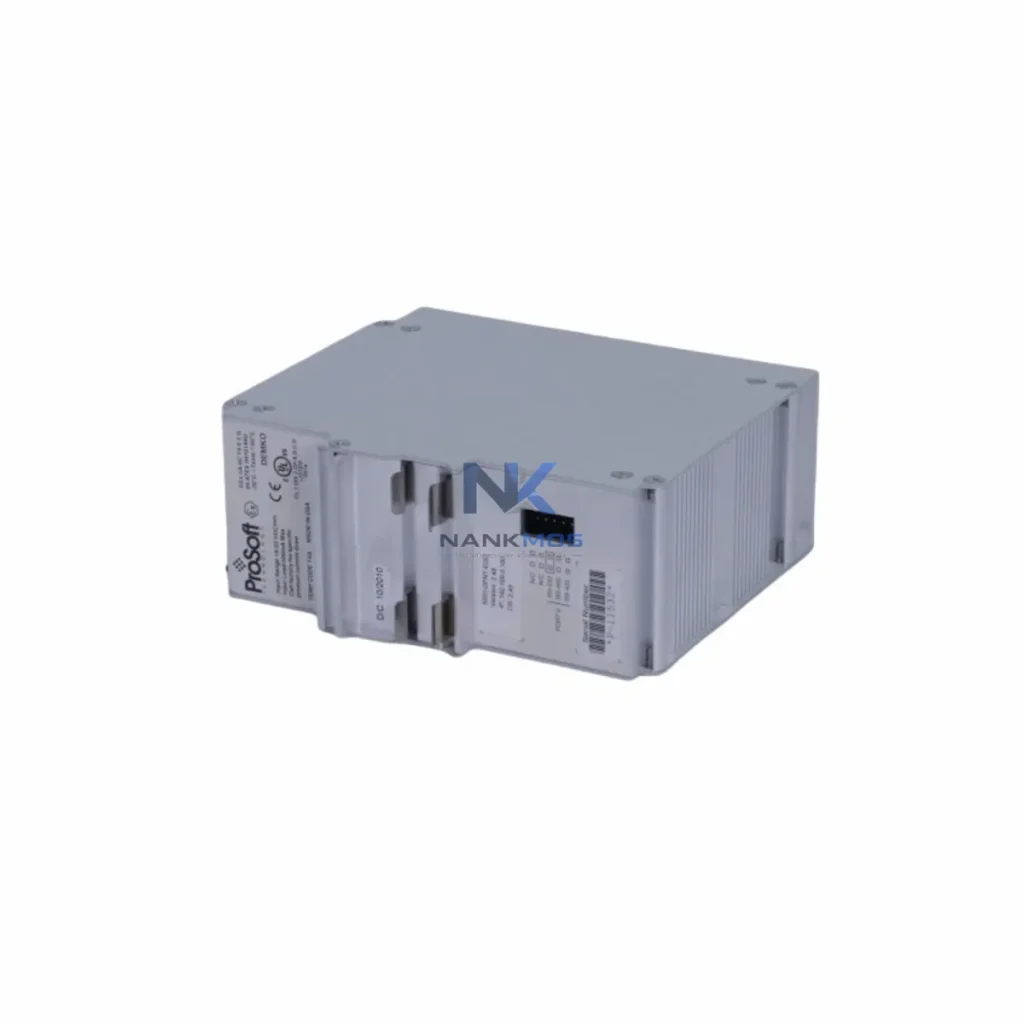

ProSoft Technology 5201-DFNT-EGD

Product Details

5201-DFNT-EGD Product Description

In modern smart manufacturing, seamless data flow between field devices and supervisory systems is no longer optional — it is the backbone of operational efficiency. The ProSoft 5201-DFNT-EGD is an industrial communication gateway engineered to bridge EtherNet/IP and Ethernet Global Data (EGD) protocols, enabling real-time data exchange across heterogeneous automation networks. Designed for demanding industrial environments, this module eliminates protocol barriers that create data silos, ensuring that every signal from the plant floor reaches the control room without delay or distortion.

The ProSoft 5201-DFNT-EGD sits at the intersection of two critical industrial network architectures, making it an indispensable component in any smart factory data chain. Consider a typical deployment: field-level sensors and actuators transmit process data — temperature, pressure, flow rate, motor speed — upward through a distributed I/O network. These signals are aggregated by a GE Fanuc PACSystems RX3i or GE 90-30 PLC using the EGD protocol, a high-speed, deterministic broadcast mechanism optimized for real-time control loops.

The 5201-DFNT-EGD receives this EGD data stream and translates it into EtherNet/IP format, making it immediately consumable by Allen-Bradley ControlLogix L7x or CompactLogix 5380 controllers operating within a Rockwell Automation environment. This cross-platform protocol conversion is executed at the module level, offloading the translation burden from the main CPU and preserving scan cycle integrity across both control platforms.

Moving up the data hierarchy, the converted EtherNet/IP data is routed through an industrial managed Ethernet switch — such as a Hirschmann MACH series or Cisco IE-3400 — to a SCADA server running Wonderware System Platform or iFIX. Here, the data populates real-time dashboards, trend historians, and alarm management systems. Operators at HMI stations — whether running Rockwell FactoryTalk View SE or GE iFIX HMI — gain unified visibility across both EtherNet/IP and EGD device networks without requiring separate communication drivers or middleware layers.

For remote diagnostic scenarios, the 5201-DFNT-EGD supports integration with ProSoft Connect remote access solutions and edge computing platforms such as the ProSoft ICX35-HWC industrial cellular gateway. This enables plant engineers to monitor communication health, review diagnostic counters, and troubleshoot protocol mapping errors from any location — reducing mean time to repair (MTTR) and minimizing unplanned downtime. Paired with a ProSoft PLX51-EIP-SIE or similar EtherNet/IP scanner module, the system can extend data acquisition to additional field segments without architectural redesign.

Variable frequency drives (VFDs) and servo controllers connected via EGD — such as those in GE's drive product line — also benefit from this gateway's bidirectional data path. Speed references, torque feedback, fault codes, and energy consumption data are all surfaced through the EtherNet/IP network, enabling integration with MES (Manufacturing Execution Systems) and ERP platforms for production reporting and OEE (Overall Equipment Effectiveness) calculation. The result is a fully transparent data pipeline from motor shaft to enterprise dashboard.

Many industrial facilities operate mixed-vendor environments where GE Fanuc controllers and Rockwell Automation PLCs coexist — a legacy of incremental capital investment over decades. Without a dedicated protocol gateway like the 5201-DFNT-EGD, these systems operate as isolated data islands. Process values captured by GE PACSystems controllers remain invisible to ControlLogix-based supervisory layers, and vice versa. Alarm events generated on one network cannot trigger responses on the other, creating blind spots in safety and quality monitoring.

The 5201-DFNT-EGD resolves this by providing deterministic, low-latency protocol conversion that preserves data integrity across network boundaries. EGD exchanges — which operate on a scheduled, producer-consumer model — are mapped to EtherNet/IP implicit (I/O) messages with configurable RPI (Requested Packet Interval) rates, ensuring that time-critical process data arrives at the ControlLogix backplane within defined cycle windows. This eliminates the communication jitter that can cause false alarms or missed fault conditions in high-speed production lines.

For system expansion, the module's configuration is managed entirely through ProSoft Configuration Builder, allowing engineers to add new EGD exchanges or EtherNet/IP connections without modifying PLC ladder logic. This modularity supports phased smart factory upgrades — new production cells, additional sensor networks, or expanded SCADA coverage — without disrupting existing operations. Every unit undergoes pre-shipment functional testing, and all modules are backed by a 12-month warranty with documented test records available upon request.

Q1: What is the typical communication latency of the 5201-DFNT-EGD between EGD and EtherNet/IP networks?The 5201-DFNT-EGD is designed for deterministic, low-latency data exchange. EGD exchange intervals can be configured as low as 1 ms, and EtherNet/IP RPI rates are adjustable to match application requirements. In typical smart factory deployments, end-to-end latency between EGD producer and EtherNet/IP consumer is well within single-digit millisecond ranges, suitable for real-time control and monitoring applications.

Q2: Is the 5201-DFNT-EGD compatible with both GE Fanuc Series 90 and PACSystems controllers?Yes. The module supports EGD protocol as implemented across GE Fanuc Series 90-30, 90-70, and PACSystems RX3i/RX7i platforms. EGD exchange configuration (producer/consumer IDs, exchange IDs, data offsets) is handled through ProSoft Configuration Builder, providing flexibility across GE controller generations without firmware modifications.

Q3: How does the module maintain network stability in high-traffic industrial Ethernet environments?The 5201-DFNT-EGD operates as a dedicated protocol converter with its own processing resources, isolating EGD and EtherNet/IP traffic handling from the host PLC CPU. This architecture prevents network congestion on either side from impacting the other. For additional network resilience, deployment behind a managed industrial switch with VLAN segmentation and QoS prioritization is recommended.

Q4: What does the 12-month warranty cover, and is pre-shipment testing documented?All ProSoft 5201-DFNT-EGD units supplied through NANKMOS are covered by a 12-month warranty against manufacturing defects and communication failures. Each unit undergoes pre-shipment functional verification, including protocol handshake testing and data exchange validation. Test documentation is available upon request. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
