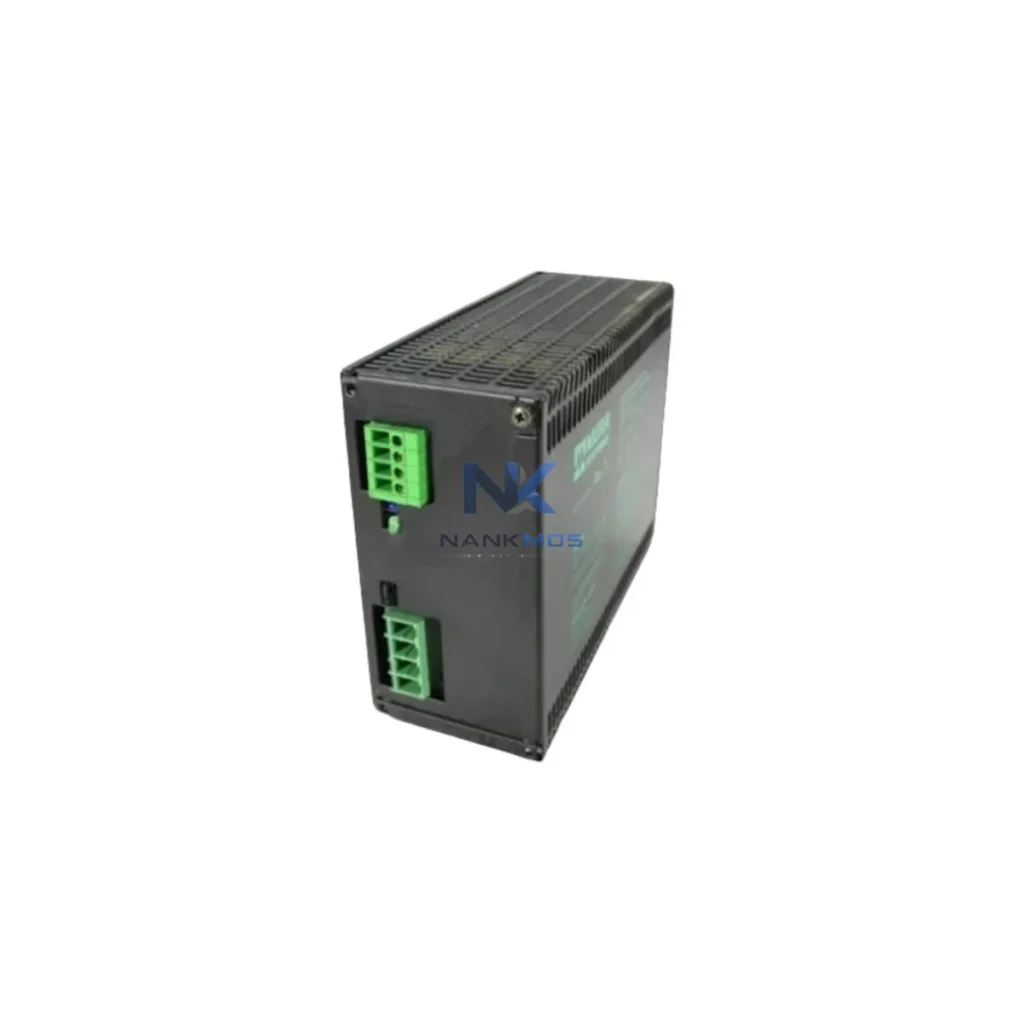

Murr Elektronik 857781 Industrial Network Interface

Product Details

857781 Product Description

The Murr Elektronik 857781 is a network-linked power interface engineered for the MPS Series modular power architecture, purpose-built to serve as a reliable backbone in smart factory data flow environments. In modern industrial automation, the integrity of power delivery and network communication are inseparable — the 857781 bridges both domains, enabling seamless data exchange between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and edge gateways across the production floor.

Designed and manufactured in Germany to Murr Elektronik's exacting standards, the 857781 supports DIN-rail installation and integrates directly into 24VDC control cabinet architectures. Its modular design within the MPS Series ecosystem allows engineers to scale power distribution while maintaining full network visibility — a critical requirement for Industry 4.0 deployments where every node must be monitored, diagnosed, and managed in real time.

In a fully connected smart factory, the 857781 operates at the intersection of power management and network intelligence. The data flow begins at the field level, where sensors — such as Murr Elektronik's IO-Link-compatible proximity and pressure sensors — transmit process values upward through the network stack. These signals are collected by remote I/O modules, including units from the Murr Elektronik Impact67 or Cube67 distributed I/O families, which aggregate field data and relay it via PROFINET or EtherNet/IP to the central PLC controller.

The 857781 integrates into this architecture by providing the MPS Series power rail with network-accessible diagnostic data — output voltage status, load current, fault conditions, and module health — all visible to the controlling PLC without additional wiring. Siemens S7-1500 or S7-1200 PLCs, for example, can poll the 857781's status registers directly over PROFINET, enabling the automation program to respond to power anomalies before they cascade into production stoppages.

From the PLC, data flows upward to the SCADA layer. Systems such as Siemens WinCC, Ignition SCADA, or Wonderware can subscribe to power rail telemetry from the 857781, displaying real-time load curves, alarm histories, and energy consumption trends on operator HMI panels. Murr Elektronik's own MICO Pro intelligent current distribution modules complement the 857781 in this architecture, providing channel-level current monitoring and selective shutdown capabilities that further enrich the SCADA data model.

At the edge, industrial gateways — such as those from the Murr Elektronik Vario-X platform or third-party edge computing devices — can aggregate 857781 diagnostic data alongside signals from variable frequency drives (VFDs), servo amplifiers, and motion controllers, forwarding consolidated datasets to cloud-based MES or ERP platforms via MQTT or OPC-UA. This end-to-end visibility, from the 24VDC power rail to the enterprise dashboard, is the defining characteristic of a truly transparent smart factory.

Industrial Ethernet switches with managed VLAN and QoS capabilities — such as those from the Hirschmann or Murr Elektronik switch portfolio — ensure that the real-time PROFINET traffic carrying 857781 diagnostics is prioritized over bulk data transfers, maintaining sub-millisecond cycle times required by motion-critical applications. The result is a deterministic, low-latency data backbone that supports both safety-critical control and high-bandwidth analytics simultaneously.

Many industrial sites still operate with fragmented power infrastructure — legacy 24VDC rails with no network visibility, no fault logging, and no remote diagnostic capability. When a power module fails silently, the first indication is often a stopped production line rather than a proactive alarm. The Murr Elektronik 857781 directly addresses this gap by bringing the MPS Series power rail into the networked automation architecture.

Protocol Fragmentation: Sites running mixed PROFIBUS and PROFINET environments can use the 857781 alongside protocol gateways to bridge legacy field devices into the modern Ethernet backbone, eliminating data silos between old and new equipment generations.

Remote Monitoring and Diagnostics: Maintenance engineers can access 857781 power rail status from any SCADA workstation or mobile HMI, reducing the need for physical cabinet inspections and enabling predictive maintenance scheduling based on load trend analysis.

Production Line Transparency: By integrating power rail health data into the SCADA historian, quality engineers gain a complete picture of energy consumption correlated with production output — a key input for OEE (Overall Equipment Effectiveness) calculations and continuous improvement programs.

Alarm Tracking and Response: The 857781's network-accessible fault flags can be mapped directly to PLC alarm management systems, ensuring that every power anomaly is logged with a timestamp, acknowledged by an operator, and included in the shift report — closing the loop on alarm management compliance.

System Expansion: The modular MPS Series architecture means additional 857781 units can be added to expanding control panels without redesigning the network topology. New modules are detected automatically by the PROFINET controller, reducing commissioning time for plant extensions.

Q1: What communication protocols does the Murr Elektronik 857781 support?The 857781 is designed for integration within PROFINET and EtherNet/IP network environments as part of the MPS Series modular power architecture. It provides network-accessible diagnostic data — including voltage, current, and fault status — readable by any PROFINET-compatible PLC or SCADA system. IO-Link readiness within the broader MPS ecosystem further extends protocol flexibility for field-level device integration.

Q2: Can the 857781 be used with third-party PLCs and SCADA systems?Yes. Because the 857781 communicates over standard industrial Ethernet protocols, it is compatible with any PLC or SCADA platform that supports PROFINET or EtherNet/IP — including Siemens, Allen-Bradley, Mitsubishi, and Omron controllers, as well as SCADA platforms such as Ignition, WinCC, and iFIX. No proprietary software is required for basic diagnostic integration.

Q3: How does the 857781 support remote diagnostics and predictive maintenance?The 857781 exposes real-time power rail parameters — output voltage, load current, and fault conditions — over the industrial network. These values can be logged by the SCADA historian, trended over time, and used to detect early signs of overload or degradation before a failure occurs. Combined with Murr Elektronik MICO Pro current monitoring modules, a complete predictive maintenance data model for the 24VDC distribution system can be built without additional hardware.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 857781?Every Murr Elektronik 857781 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm output parameters and network interface integrity. In-stock units are available for same-week shipment to minimize production downtime. For volume orders or urgent requirements, contact our team directly at [email protected] or +86 18359268345.
