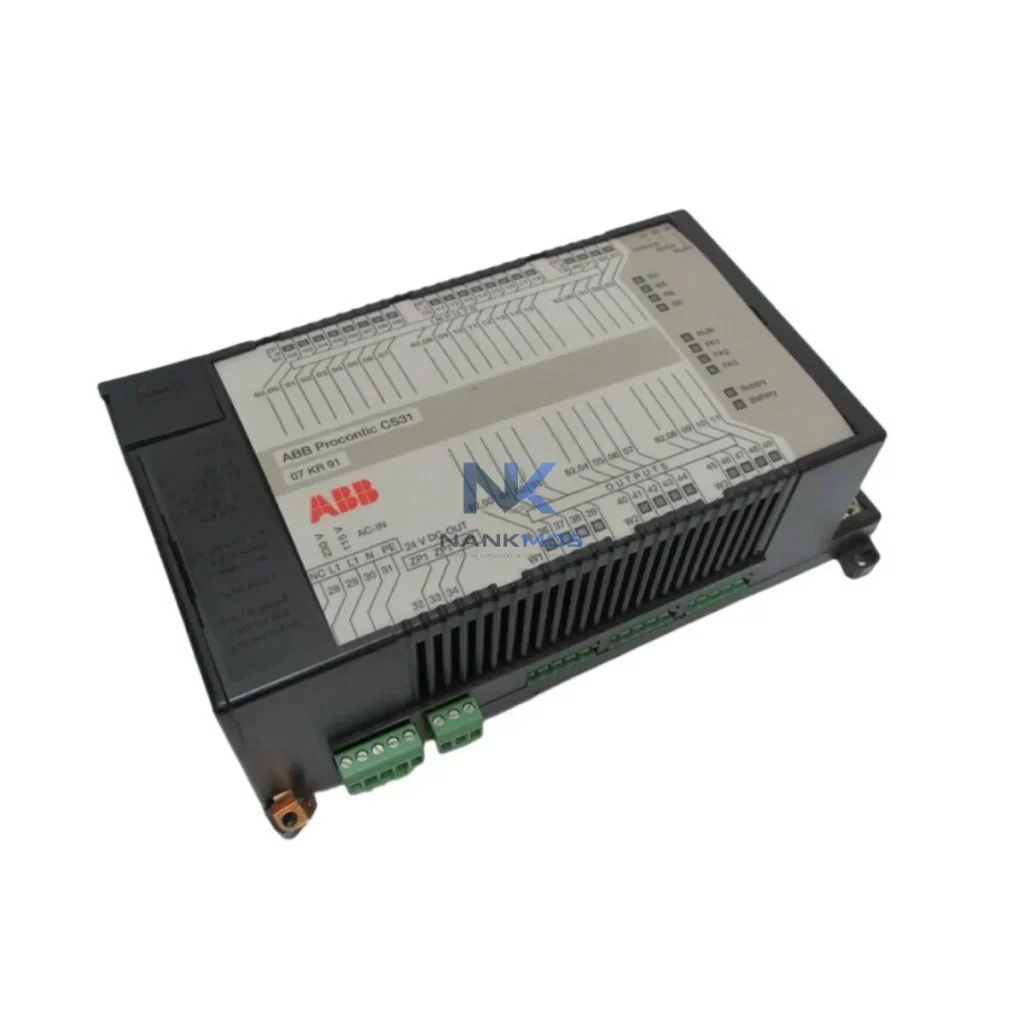

ABB 07KR91 GJR5250000R0101 Communication Gateway

Product Details

07KR91 GJR5250000R0101 Product Description

The ABB 07KR91 (GJR5250000R0101) is a field-proven CS31 communication gateway from ABB's Procontic series, engineered to bridge the data gap between distributed field devices and higher-level control and supervisory systems in smart factory environments. As industrial sites evolve toward fully connected production architectures, the 07KR91 serves as a critical node in the automation data chain — enabling seamless signal flow from sensors and actuators on the shop floor all the way to SCADA dashboards, MES platforms, and cloud-based analytics engines.

Designed for demanding industrial environments, this gateway supports the ABB CS31 serial bus protocol, which is widely deployed across ABB Procontic PLC families including the 07KT98 and 07KT97 CPU modules. The CS31 bus allows up to 31 remote I/O nodes to be connected over a single twisted-pair cable, dramatically reducing wiring complexity while maintaining deterministic, real-time data exchange across the automation network. The 07KR91 acts as the master or slave interface unit that coordinates this bus communication, ensuring that every I/O signal — whether from a proximity sensor, pressure transmitter, or motor feedback encoder — is accurately captured, time-stamped, and forwarded to the control layer without latency or data loss.

In a typical smart factory data flow, the 07KR91 sits between the field device layer and the PLC controller layer. Sensors and actuators connected to ABB remote I/O modules such as the 07CS61 or 07CS91 transmit their process values over the CS31 bus to the gateway. The gateway then relays this structured data to the ABB Procontic PLC CPU, where it is processed by the control program and used to drive outputs, trigger alarms, or update HMI displays. Simultaneously, the same data stream is made available to SCADA systems — such as those running on ABB's System 800xA or third-party platforms like Wonderware and Ignition — enabling real-time process visualization, trend logging, and remote operator intervention.

The 07KR91 is particularly valuable in retrofit and system expansion scenarios. When an existing Procontic installation needs to incorporate additional remote I/O points — perhaps to monitor a new conveyor segment, integrate a variable frequency drive feedback signal, or add a smart energy meter to the power distribution panel — the gateway provides a plug-and-play extension path without requiring a full PLC replacement. This makes it an economical and low-risk choice for plant engineers managing phased automation upgrades.

From a remote diagnostics perspective, the 07KR91 supports bus fault detection and node status reporting, which are essential capabilities for minimizing unplanned downtime. When a CS31 node goes offline — due to a cable fault, power interruption, or device failure — the gateway immediately flags the error condition to the PLC CPU, which can then trigger an alarm on the HMI panel or dispatch a notification through the SCADA alarm management system. Maintenance teams equipped with remote access tools can diagnose the fault from the control room or even off-site, reducing mean time to repair and keeping production lines running at optimal efficiency.

Integration with edge computing platforms is another growing application for the 07KR91. As factories deploy edge gateways — such as ABB's Edge Connect or third-party devices running on IEC 62443-compliant architectures — the CS31 data collected by the 07KR91 can be forwarded to edge processors for local analytics, anomaly detection, and predictive maintenance algorithms. This positions the gateway as a foundational component in IIoT-enabled production environments where data from every field device must be continuously harvested, contextualized, and acted upon in near real time.

For system integrators building multi-vendor automation architectures, the 07KR91 pairs naturally with industrial Ethernet switches that support PROFINET or Modbus TCP uplinks, allowing CS31 field data to be aggregated and transmitted over standard plant network infrastructure. Combined with ABB's AC500 or AC31 PLC families, the gateway enables a unified control topology that spans legacy serial bus segments and modern Ethernet-based control networks — a hybrid approach that is increasingly common in brownfield industrial sites undergoing digital transformation.

In a fully connected smart factory deployment, the ABB 07KR91 GJR5250000R0101 operates at the intersection of field-level sensing and plant-level intelligence. The data flow begins at the sensor layer, where devices such as inductive proximity switches, thermocouple transmitters, and pressure transducers feed their signals into ABB remote I/O modules — for example, the 07CS61 digital I/O module or the 07CS91 analog input module — which are distributed across the production floor and connected to the CS31 bus managed by the 07KR91 gateway.

The gateway collects all I/O data from these distributed nodes on a cyclic scan basis and delivers it to the ABB Procontic CPU module — such as the 07KT98 — where the PLC control program executes logic, computes setpoints, and generates output commands. These commands travel back down the CS31 bus to actuators: motor starters, solenoid valves, and variable frequency drives that regulate conveyor speeds, pump flows, and compressor pressures across the production line.

At the supervisory layer, the PLC communicates with an HMI panel — such as an ABB CP600 or a third-party panel running on Modbus RTU — providing operators with real-time process visualization. Simultaneously, a SCADA server aggregates data from multiple PLCs across the plant, including those connected via the 07KR91, to build a plant-wide operational picture. Alarm events detected at the CS31 bus level — node dropouts, communication timeouts, or I/O range violations — are escalated through the SCADA alarm management system, triggering notifications to shift supervisors and maintenance engineers.

For plants integrating energy management, the 07KR91 can support data collection from smart power meters and energy monitoring modules connected as CS31 nodes, feeding consumption data into the SCADA historian for energy KPI dashboards and ISO 50001 compliance reporting. Edge gateways deployed alongside the Procontic PLC can further process this data stream for predictive analytics, feeding machine learning models that anticipate equipment wear and schedule preventive maintenance before failures occur.

Many industrial sites operating ABB Procontic systems face a common set of connectivity challenges: protocol fragmentation between legacy CS31 field buses and modern Ethernet-based control networks, data silos that prevent SCADA systems from accessing real-time I/O status, and limited remote diagnostic visibility that forces maintenance teams to physically inspect field panels to identify faults.

The ABB 07KR91 GJR5250000R0101 directly addresses these challenges. By serving as the CS31 bus master, it consolidates data from up to 31 remote I/O nodes into a single, structured data stream that the PLC CPU can process and forward to any connected supervisory system. This eliminates the data island problem — every sensor reading, actuator state, and diagnostic flag is visible at the SCADA level, enabling true production line transparency.

For remote monitoring, the 07KR91's bus fault detection capability means that communication errors are surfaced immediately rather than discovered during the next manual inspection round. Integrated with a SCADA alarm management workflow, this translates to faster fault response, reduced unplanned downtime, and lower maintenance labor costs. For plants pursuing Industry 4.0 maturity, the gateway provides the foundational connectivity layer that makes real-time OEE tracking, digital twin synchronization, and remote expert diagnostics possible without replacing the existing Procontic PLC infrastructure.

System expansion is equally straightforward: adding new remote I/O nodes to an existing CS31 bus managed by the 07KR91 requires only cable extension and node address configuration — no PLC CPU replacement, no new communication cards, and no software platform migration. This makes the gateway a cost-effective enabler of incremental automation upgrades aligned with production growth.

Q: What is the maximum number of remote I/O nodes supported by the ABB 07KR91 on a CS31 bus?A: The CS31 bus architecture supports up to 31 remote I/O nodes per bus segment. The 07KR91 acts as the bus master, coordinating cyclic data exchange with all connected nodes. For larger installations, multiple CS31 bus segments can be managed by separate gateway modules within the same Procontic PLC system.

Q: Is the 07KR91 GJR5250000R0101 compatible with ABB AC500 and AC31 PLC families?A: The 07KR91 is designed for the ABB Procontic (AC31) PLC platform and is fully compatible with CPU modules such as the 07KT97 and 07KT98. Compatibility with the AC500 series depends on the specific communication interface configuration; system integrators should verify bus protocol support with ABB documentation or contact our technical team for application-specific guidance.

Q: How does the 07KR91 support remote diagnostics and network stability monitoring?A: The gateway continuously monitors CS31 bus communication status and reports node health to the PLC CPU. Any communication fault — including node dropout, cable break, or address conflict — is flagged as a diagnostic event that can be mapped to a SCADA alarm or HMI indicator. This enables remote maintenance teams to identify and localize faults without on-site inspection, reducing mean time to repair and supporting continuous production uptime.

Q: What warranty and stock availability does NANKMOS provide for the ABB 07KR91?A: Every ABB 07KR91 GJR5250000R0101 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment. Units are pre-tested prior to dispatch to verify communication functionality and I/O integrity. Stock is maintained in our verified inventory and available for immediate shipment to support urgent replacement and system expansion requirements globally.
