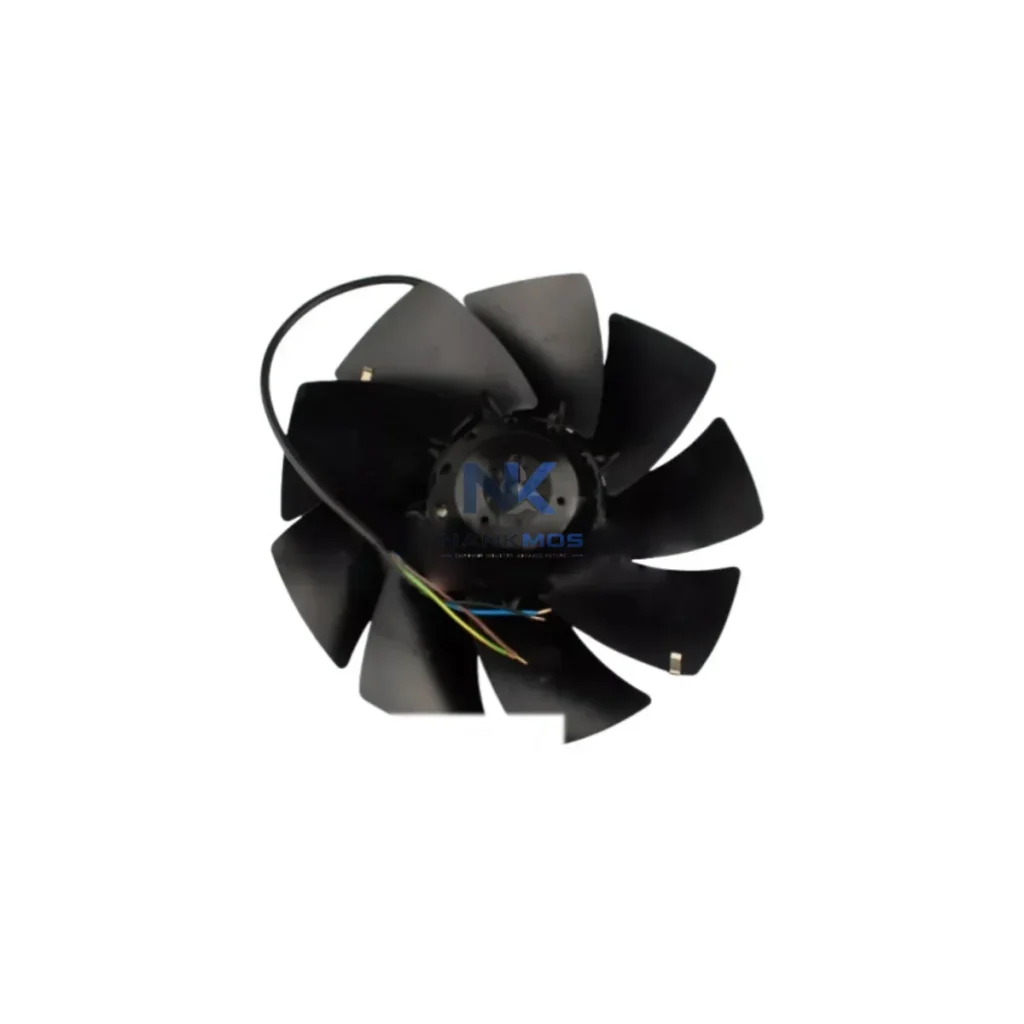

EBM-Papst A4E350-AQ02-11 EC Fan Module

Product Details

A4E350-AQ02-11 Product Description

The EBM-Papst A4E350-AQ02-11 is a high-efficiency EC (electronically commutated) fan module engineered for seamless contextual integration within layered industrial control architectures. Designed to operate as a precision thermal management component across control cabinets, drive enclosures, and process automation panels, this unit delivers consistent airflow performance while maintaining full compatibility with modern automation platforms. Its brushless DC motor technology, combined with integrated speed control via 0–10 V or PWM signal inputs, enables direct coordination with PLC output modules, building management controllers, and SCADA-linked I/O systems — making it a structurally coherent element of any well-engineered control architecture.

Unlike conventional AC fans, the A4E350-AQ02-11 supports variable-speed operation that responds dynamically to thermal load signals from temperature sensors or controller analog outputs. This capability reduces energy consumption by up to 50% under partial-load conditions and extends the operational lifespan of co-installed components including servo drives, frequency inverters, power supply units, and communication gateway modules. The fan's EC motor platform is fully compatible with EBM-Papst's GreenTech EC ecosystem, enabling coordinated deployment across multi-fan arrays with centralized speed management from a single controller node.

In control cabinet design, the A4E350-AQ02-11 integrates at the thermal management layer, working in concert with components such as Siemens SIMATIC S7-1500 CPUs, Phoenix Contact QUINT power supplies, Wago 750-series I/O modules, Moxa NPort serial device servers, and Pilz PNOZ safety relays. Its 350 mm impeller diameter and optimized blade geometry deliver high static pressure performance suitable for densely populated enclosures where airflow resistance from cable trays, DIN rail assemblies, and heat sink arrays must be overcome without acoustic penalty. The unit's IP54-rated motor housing ensures reliable operation in environments with moderate dust and moisture exposure, consistent with IEC 60529 requirements for industrial panel installations.

From a system architecture perspective, the A4E350-AQ02-11 occupies the thermal protection layer — a critical but often underspecified tier in control system design. Inadequate thermal management directly degrades the MTBF of adjacent components including Beckhoff EtherCAT I/O terminals, Allen-Bradley 1756 ControlLogix I/O modules, Schneider Electric Altivar drives, and Hirschmann industrial Ethernet switches. By maintaining enclosure temperatures within the rated operating range of these components, the A4E350-AQ02-11 contributes directly to system uptime, diagnostic accuracy, and long-term maintenance efficiency. Its low-vibration operation also reduces mechanical stress on terminal blocks, connector housings, and PCB-mounted components within the same enclosure.

The fan module supports modular deployment strategies. In redundant cooling architectures, two or more A4E350-AQ02-11 units can be configured in parallel with automatic failover logic managed by the host PLC or a dedicated fan controller. Speed feedback via tachometer output enables real-time monitoring through the controller's analog input channels, supporting predictive maintenance workflows and integration with condition monitoring platforms such as Emerson AMS Device Manager or Siemens SIMATIC PDM. This feedback loop closes the diagnostic chain between the thermal management layer and the supervisory control layer, enabling proactive intervention before thermal events impact production continuity.

All units supplied by NANKMOS are pre-shipment tested against EBM-Papst factory specifications, including no-load current draw, locked-rotor protection response, speed control linearity, and bearing noise signature. Each unit is covered by a 12-Month Warranty from the date of shipment, with in-stock availability supporting rapid deployment for both planned capital projects and emergency replacement scenarios. Global logistics coverage ensures delivery to power generation facilities, petrochemical complexes, water treatment plants, mining operations, and marine propulsion control rooms with minimal lead time.

The A4E350-AQ02-11 achieves its highest system value when deployed as part of a fully integrated automation platform rather than as a standalone component. In a typical control cabinet serving a continuous process line, the fan module operates alongside a Siemens SIMATIC S7-1500 CPU at the control layer, receiving thermal load signals via analog output modules such as the SM 532 AO. Phoenix Contact QUINT 4 power supply units at the power layer generate heat loads that the A4E350-AQ02-11 must dissipate to maintain voltage regulation stability. Wago 750-352 PROFINET I/O couplers and associated 750-series digital and analog I/O modules contribute additional thermal density that must be managed within the enclosure's thermal budget.

At the communication layer, Moxa EDS-510A industrial managed Ethernet switches and Anybus X-gateway protocol converters generate localized heat that benefits from directed airflow from the A4E350-AQ02-11's high static pressure output. Schneider Electric Altivar Process ATV630 variable frequency drives, when mounted within the same enclosure or in an adjacent drive cabinet, require coordinated cooling to maintain their rated output current without derating. The fan's tachometer feedback integrates with the host PLC's high-speed counter inputs, enabling the control program to log fan speed trends and trigger maintenance alerts when speed deviation exceeds defined thresholds — a capability directly supported by Beckhoff TwinCAT 3 runtime environments and Rockwell Studio 5000 Logix Designer.

For redundant cooling architectures, two A4E350-AQ02-11 units can be wired to separate analog output channels with a PLC-managed failover routine that activates the standby unit upon detection of tachometer signal loss from the primary fan. This pattern is commonly implemented in Allen-Bradley 1756 ControlLogix systems using Function Block Diagram (FBD) logic and is equally applicable to Mitsubishi MELSEC iQ-R platforms. The result is a thermally resilient control architecture that maintains enclosure temperature within specification even during single-fan failure events, protecting the full complement of installed automation hardware.

Power Generation: In gas turbine and steam turbine control rooms, the A4E350-AQ02-11 maintains thermal stability within Mark VIe or Ovation DCS enclosures, where I/O module density and continuous duty cycles create sustained heat loads. Its variable-speed capability reduces acoustic output during low-load periods without compromising thermal protection margins.

Petrochemical & Oil and Gas: Control cabinets in hazardous area boundaries (Zone 2 / Class I Div 2 purged enclosures) rely on precise thermal management to maintain positive pressure integrity. The A4E350-AQ02-11's IP54 rating and stable speed control support purge-and-pressurization system designs compliant with IEC 60079-2.

Water Treatment & Utilities: SCADA-integrated pump station control panels operating in outdoor or semi-outdoor enclosures benefit from the fan's wide ambient temperature range (-20°C to +60°C) and corrosion-resistant motor housing, ensuring reliable operation across seasonal temperature extremes without manual speed adjustment.

Mining & Metallurgy: High-dust environments in mineral processing plants demand IP54 or higher motor protection. The A4E350-AQ02-11's sealed motor housing prevents particulate ingress while maintaining the airflow rates required to cool high-current motor drive panels and protection relay cabinets.

Marine Propulsion Control: Shipboard automation panels subject to vibration, humidity, and salt-laden air require fan modules with robust bearing designs and corrosion-resistant construction. The A4E350-AQ02-11's EC motor platform meets DNV and IEC 60092 environmental requirements for marine electrical installations.

Packaging & Discrete Manufacturing: High-speed packaging lines with servo-driven axes generate significant heat in motion control cabinets. The A4E350-AQ02-11's PWM speed control input allows direct integration with servo drive thermal management outputs, creating a closed-loop cooling response that tracks actual drive loading in real time.

Q1: How does the A4E350-AQ02-11 integrate with a PLC analog output for speed control, and what signal conditioning is required? The A4E350-AQ02-11 accepts a 0–10 V DC analog control signal directly from a PLC analog output module (e.g., Siemens SM 532, Wago 750-556, or equivalent). No additional signal conditioning is required for standard 0–10 V outputs with a source impedance below 1 kΩ. For PWM control, the signal frequency should be within the range specified in the EBM-Papst datasheet (typically 1–10 kHz). The tachometer output (open-collector, typically 2 pulses per revolution) connects to a PLC high-speed counter input for speed monitoring. Shielded cable is recommended for both control and feedback wiring to prevent interference from adjacent VFD switching noise.

Q2: Can the A4E350-AQ02-11 be used in a redundant cooling configuration, and how is automatic failover implemented? Yes. Two units can be installed in a parallel airflow configuration with independent power feeds and separate analog control channels from the host PLC. The PLC monitors tachometer feedback from both fans continuously. Upon detection of a tachometer signal loss or speed below a defined threshold on the primary fan, the control program activates the secondary fan's analog output channel to full speed. This failover logic is implementable in any IEC 61131-3 compliant PLC environment using standard Function Block or Structured Text programming. The switchover time is determined by the PLC scan cycle and analog output update rate, typically achieving failover within 100–500 ms.

Q3: What is the warranty coverage and supply assurance for the A4E350-AQ02-11, and how are replacement units sourced for long-term maintenance programs? All A4E350-AQ02-11 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, motor winding failures, bearing degradation, and control circuit malfunctions under normal operating conditions. Units are pre-shipment tested for speed control response, tachometer output integrity, and no-load current draw before dispatch. For long-term maintenance programs, NANKMOS maintains in-stock inventory to support both planned replacement cycles and emergency procurement. Global shipping is available to support facilities in Asia-Pacific, Europe, the Middle East, and the Americas. Customers are encouraged to maintain a minimum of one spare unit per critical cooling application to eliminate single-point-of-failure risk in continuous-process environments.
