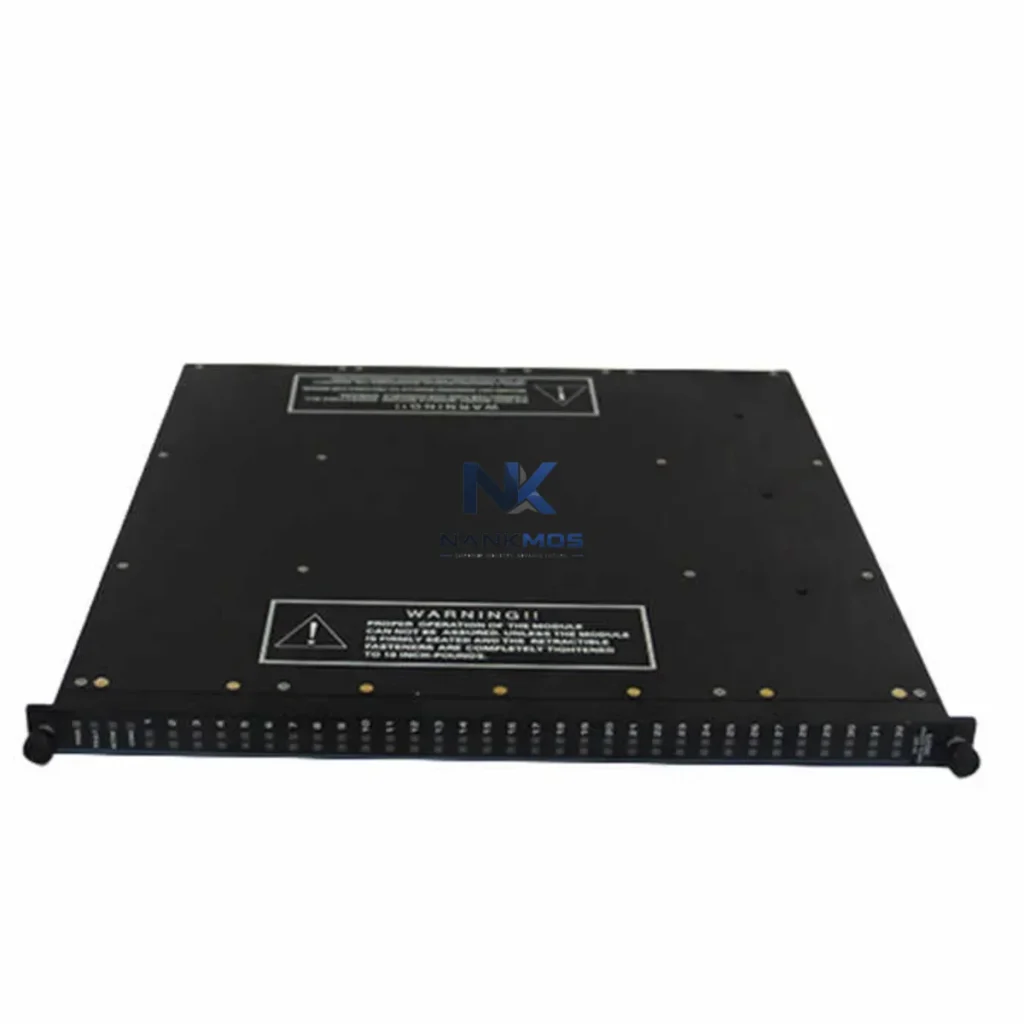

Triconex (Schneider Electric) AI3281E Analog Input Module

AI3281E Product Description

The Triconex AI3281E is a system-matched analog input module engineered for the Triconex Tricon Triple Modular Redundant (TMR) safety architecture. Rather than functioning as an isolated I/O card, the AI3281E is a coordinated node within a layered control system, translating field-level analog signals into validated, voted data streams that the control layer can act on with high integrity. Within a Safety Instrumented System (SIS), this module sits at the intersection of the I/O layer and the protection layer, ensuring that pressure, temperature, flow, and level measurements from the field reach the processing layer with the redundancy and diagnostic transparency that safety-critical operations demand.

In a complete Tricon architecture, the AI3281E works in concert with the control layer, the communication layer, the power layer, the HMI layer, the actuation layer, the protection layer, and the maintenance layer. Its triplicated signal conditioning improves system consistency by delivering three independent measurement paths that are compared and voted, eliminating single points of failure in the analog signal chain. This structure directly enhances signal stability, redundancy capability, and diagnostic efficiency, while its hot-swap support and standardized backplane interface enable modular deployment and long-term maintenance efficiency across expanding control cabinets.

The AI3281E reaches its full value when integrated with a complete Triconex platform. It pairs naturally with a Tricon Main Processor at the control layer, which executes the safety logic and orchestrates the 2oo3 voting of the analog data. Digital and analog output modules such as the DO3401 and AO3241 extend the actuation layer, driving valves and final control elements based on the validated inputs. Communication gateways and network modules like the TCM (Tricon Communication Module) bridge the safety system to distributed control systems and HMI stations, while high-density chassis and backplanes provide the mechanical and electrical foundation for module expansion.

Around this core, terminal modules and field termination assemblies organize wiring for the analog channels, signal isolators condition and protect incoming measurements, and redundant power supply modules sustain the power layer against single-source failure. Where the architecture interfaces with balance-of-plant equipment, industrial ethernet switches and remote I/O nodes carry diagnostic and process data to engineering workstations. This coordinated set of components — main processors, power supplies, I/O modules, communication gateways, HMI stations, terminal modules, backplanes, signal isolators, and industrial switches — allows the AI3281E to contribute to a consistent, scalable, and diagnosable control platform rather than a collection of standalone cards.

Because the AI3281E is built for safety-instrumented and process control duty, it is deployed across demanding industrial sectors. In power generation, it monitors turbine and boiler analog parameters within emergency shutdown systems. In petrochemical and refining plants, it feeds burner management and high-integrity pressure protection systems with redundant analog measurements. Water and wastewater treatment facilities rely on it for level and flow monitoring in continuous process control, while mining and metallurgy operations use it in furnace, conveyor, and process safety architectures. Marine and offshore platforms benefit from its redundancy in fire-and-gas and shutdown systems, and packaging and general manufacturing lines integrate it where analog process consistency and long-term maintainability are essential.

Q1: Is the AI3281E compatible with existing Tricon chassis and processors?Yes. The AI3281E is designed for the Tricon backplane and integrates with Tricon Main Processors and TriStation configuration, allowing it to slot into existing TMR architectures for straightforward expansion.

Q2: How does the module support installation, commissioning, and long-term maintenance?Its hot-swap capability and standardized backplane interface allow field replacement without shutting down the safety system, and onboard diagnostics streamline commissioning and reduce maintenance downtime over the module's service life.

Q3: What are the stock, testing, and warranty terms?Units are held as tested stock and undergo pre-shipment verification before dispatch, are available for ready shipment, and are backed by a 12-Month Warranty for engineering confidence.
