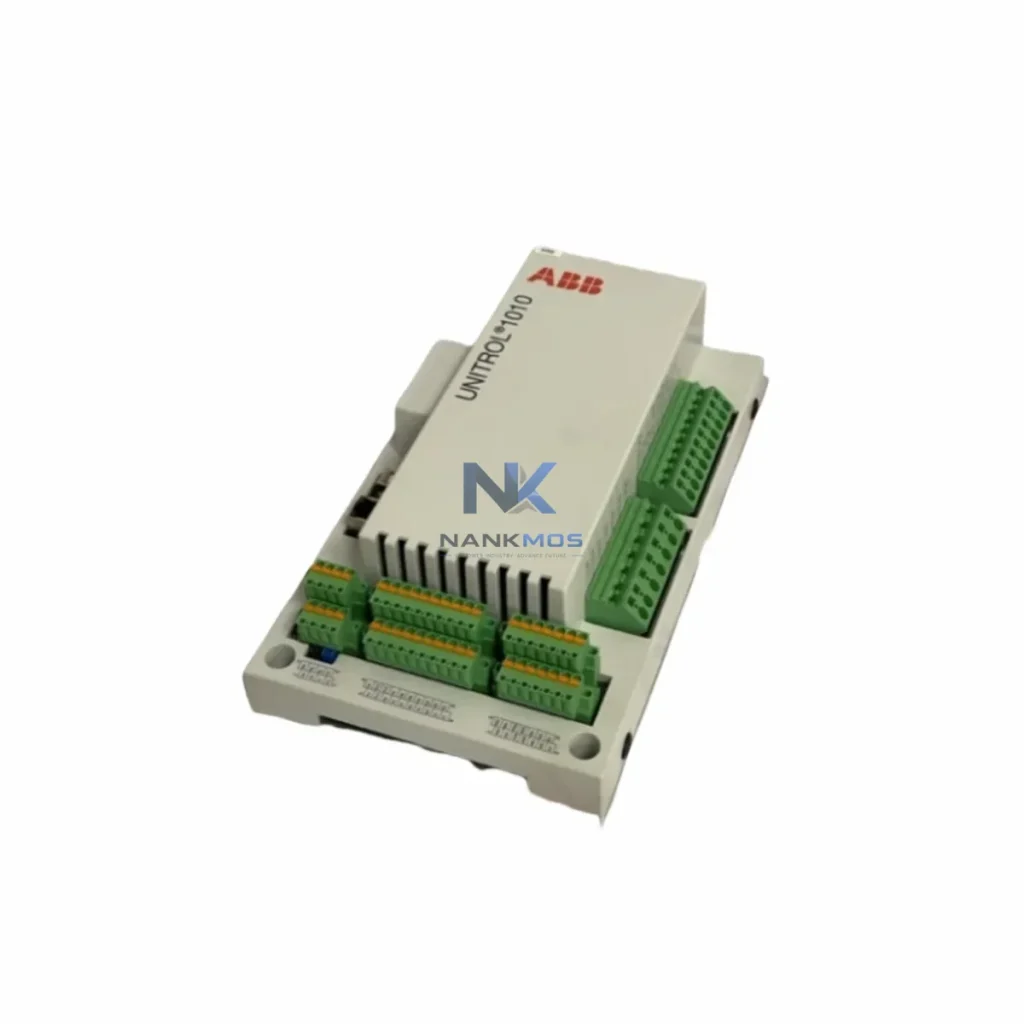

0121A-Z,V1 3BHE035301R1002 Product Description

The ABB 3BHE035301R1002 is not a standalone component — it is a precision control node within the Unitrol 1000 excitation system, engineered to operate in tight coordination with the broader generator and power plant control architecture. Understanding its role requires examining how it interacts across multiple system layers.

At the control layer, the 3BHE035301R1002 AVR module interfaces directly with the generator excitation cubicle, receiving voltage and current measurement signals from instrument transformers and issuing field current reference commands to the thyristor power converter. In dual-channel configurations, a second AVR channel — typically another Unitrol 1000 AVR board — operates in hot standby, with automatic bumpless transfer ensuring continuity of excitation control during channel faults. This redundancy architecture is critical for power plant applications where generator trip events carry significant operational and financial consequences.

At the I/O layer, the module integrates with the plant's digital and analog signal infrastructure. Digital inputs receive interlock signals from the generator protection relay — such as the ABB REG670 or REG216 generator protection IED — while relay outputs drive field breaker trip coils, excitation on/off contactors, and alarm annunciators. Analog inputs connect to the PT and CT secondary circuits, providing the real-time voltage and current measurements that underpin AVR closed-loop control. The analog output channel provides the field current setpoint to the thyristor firing control board, such as the ABB 3BHE022852R0101 or equivalent thyristor gate driver module.

At the communication layer, the Unitrol 1000 system supports PROFIBUS DP and Modbus RTU connectivity, enabling the AVR module to exchange setpoints, mode commands, and diagnostic data with the plant DCS or SCADA system. In ABB-centric power plant architectures, this communication path typically connects to an ABB AC800M controller or Symphony Plus DCS, where the excitation system appears as a fieldbus node alongside turbine governor controllers, transformer protection relays, and plant-level energy management systems. The PROFIBUS interface allows remote AVR mode switching (AVR/FCR/VAR/PF), setpoint adjustment, and real-time status monitoring without requiring local panel intervention.

At the power supply layer, the Unitrol 1000 cubicle requires a stable auxiliary AC supply — typically 110 V or 220 V AC — for the control electronics, while the main excitation power is derived from the generator's own terminals or a dedicated excitation transformer. The 3BHE035301R1002 module's internal power supply section conditions the auxiliary input to provide regulated DC rails for the control logic, measurement circuits, and communication interfaces. Proper auxiliary supply redundancy — using dual AC feeds with automatic transfer — is recommended for critical generator applications.

At the HMI layer, the Unitrol 1000 system is typically commissioned and monitored via the ABB Unitrol 1000 local control panel, which provides a dedicated operator interface for excitation setpoint adjustment, mode selection, and fault diagnostics. In larger installations, the HMI function is extended to the plant DCS operator workstation, where the excitation system data is integrated into the overall generator control display. The 3BHE035301R1002 module's diagnostic registers — accessible via PROFIBUS or Modbus — feed real-time excitation current, voltage error, limiter status, and fault codes directly to the DCS historian for trend analysis and predictive maintenance.

At the protection layer, the AVR module's built-in limiters — over-excitation limiter (OEL), under-excitation limiter (UEL), and V/Hz limiter — work in coordination with the external generator protection relay to prevent rotor winding damage, loss-of-synchronism events, and transformer core saturation. These protection functions are parameterized during commissioning using ABB's Unitrol 1000 configuration software, with settings coordinated against the generator's capability curve and the network protection philosophy. The 3BHE035301R1002 module stores all configuration parameters in non-volatile memory, ensuring that settings are retained through power cycles and module replacements without requiring full recommissioning.

At the maintenance layer, the modular design of the Unitrol 1000 platform allows the 3BHE035301R1002 AVR board to be replaced without disturbing the thyristor power stage, measurement transformers, or cubicle wiring. The replacement procedure involves transferring the configuration file from the outgoing module — or reloading from the plant's configuration backup — and performing a functional verification test before returning the excitation system to service. NANKMOS maintains verified stock of the 3BHE035301R1002 with each unit pre-shipment tested under simulated excitation load conditions, supporting rapid replacement logistics for planned outages and emergency maintenance scenarios.

The ABB 3BHE035301R1002 AVR module serves as a critical excitation control component across a wide range of power generation and industrial drive applications:

Thermal and Combined-Cycle Power Plants: In gas turbine and steam turbine generator sets, the Unitrol 1000 AVR provides precise terminal voltage regulation and reactive power control, supporting grid code compliance for voltage and reactive power dispatch. The module's fast response characteristics — with AVR bandwidth optimized for generator rotor time constants — ensure stable voltage recovery following network disturbances and load rejection events.

Hydroelectric Power Stations: Hydro generators operating in isolated or weak grid conditions benefit from the Unitrol 1000's power system stabilizer (PSS) function, which damps electromechanical oscillations by modulating the excitation reference in response to rotor speed or power deviations. The 3BHE035301R1002 module supports PSS parameterization for both single-machine and multi-machine grid configurations.

Industrial Cogeneration and Captive Power: In petrochemical, cement, and steel plant cogeneration systems, the AVR module enables seamless transition between grid-connected and islanded operation modes, with automatic voltage and frequency control during islanding events. The PROFIBUS interface allows the plant DCS to command mode transitions and monitor excitation status in real time.

Marine and Offshore Power Systems: Shipboard generator excitation systems demand compact, vibration-resistant control modules with fast fault response. The Unitrol 1000 platform's modular architecture and the 3BHE035301R1002's non-volatile parameter storage make it well-suited for marine generator applications where maintenance access is limited and configuration integrity must be preserved through vessel motion and power interruptions.

Mining and Mineral Processing: Large synchronous motors driving ball mills, crushers, and compressors in mining applications use excitation control systems similar in architecture to generator AVRs. The Unitrol 1000 platform's reactive power control capability supports power factor correction at the motor terminals, reducing reactive power demand charges and improving motor efficiency under variable load conditions.

Q1: Is the ABB 3BHE035301R1002 compatible with both single-channel and dual-channel Unitrol 1000 excitation systems? Yes. The 3BHE035301R1002 AVR module is designed for use in both single-channel and dual-channel Unitrol 1000 configurations. In dual-channel systems, two AVR modules operate in master/standby mode with automatic bumpless transfer. The channel role (master or standby) is configured via hardware jumpers or software parameters during commissioning. NANKMOS supplies matched pairs of 3BHE035301R1002 modules for dual-channel replacement projects, with each unit pre-tested and configuration-verified. 12-Month Warranty applies to all supplied units.

Q2: What commissioning tools and software are required to configure the 3BHE035301R1002 after installation? Configuration of the 3BHE035301R1002 requires ABB's Unitrol 1000 configuration software, connected to the module via the front-panel RS-232 service port or the PROFIBUS interface. The configuration file from the outgoing module — or a backup from the plant's documentation system — is loaded into the replacement module, followed by parameter verification and a functional test sequence covering AVR mode, FCR mode, limiter activation, and communication link integrity. NANKMOS provides pre-shipment test reports for each 3BHE035301R1002 unit, documenting the functional verification results and confirming readiness for site installation.

Q3: What is the lead time and warranty coverage for the ABB 3BHE035301R1002 supplied by NANKMOS? NANKMOS maintains verified stock of the ABB 3BHE035301R1002 for immediate dispatch. Standard lead time is 3–7 business days for international shipments, with expedited options available for emergency maintenance scenarios. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing under simulated excitation load is performed on every unit, with test documentation provided upon request. For large-quantity orders or long-term supply agreements, contact NANKMOS for dedicated inventory reservation and framework pricing.
