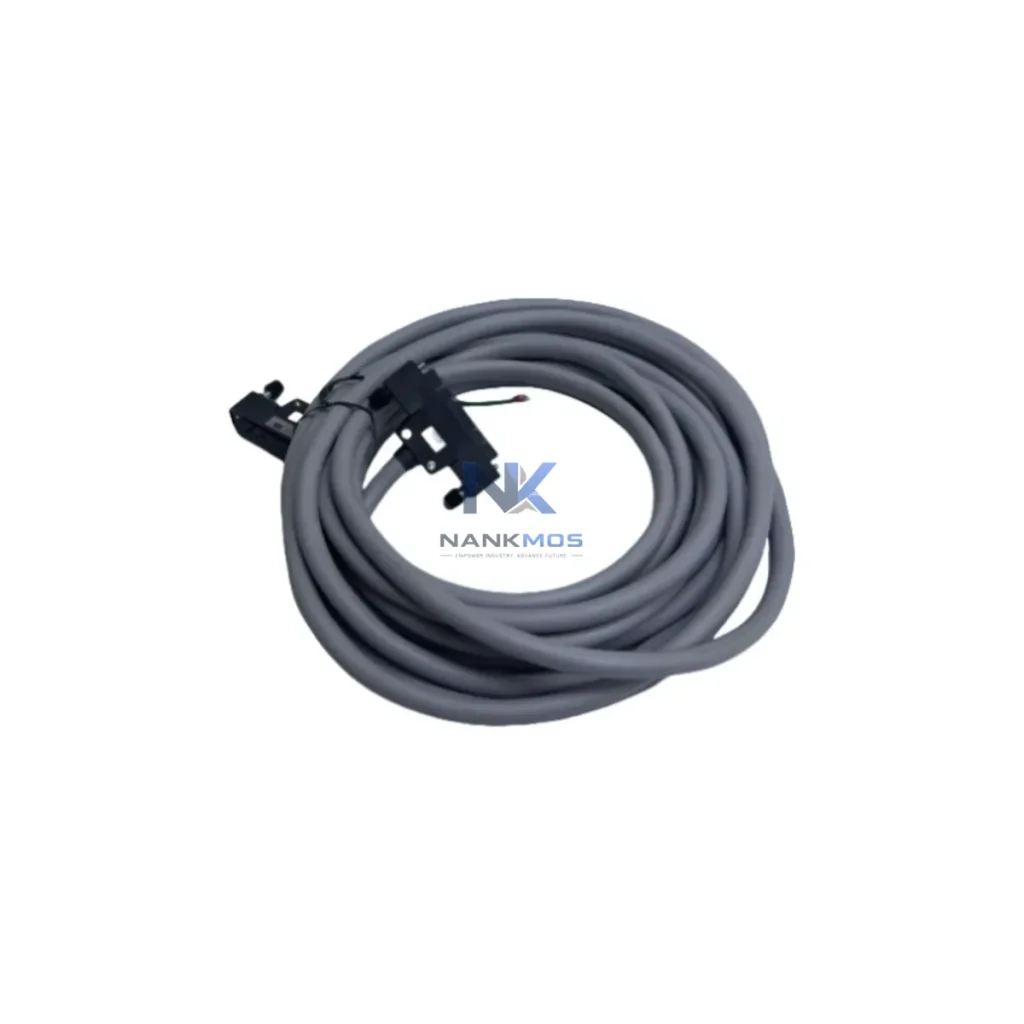

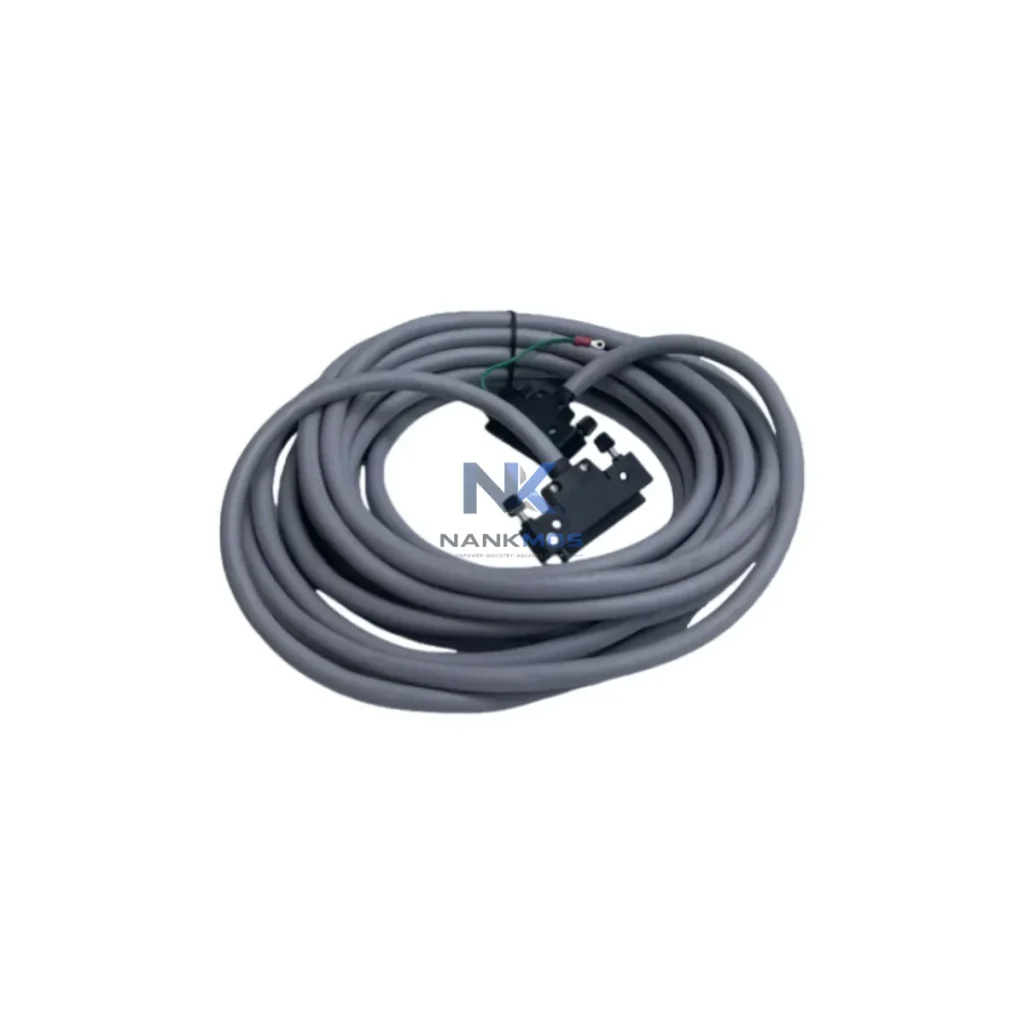

YOKOGAWA AKB331 Signal Cable

Product Details

AKB331 Product Description

The Yokogawa AKB331 is a factory-engineered signal cable purpose-built for the AKB Series distributed control system (DCS) architecture. Designed to maintain signal integrity across the full span of a CENTUM VP or CENTUM CS 3000 control hierarchy, the AKB331 delivers reliable, low-noise interconnection between field instruments, I/O modules, and the central controller backbone. Its system-matched construction ensures plug-and-play compatibility within Yokogawa's modular automation platform, reducing commissioning time and eliminating the risk of impedance mismatch or connector incompatibility that can compromise loop accuracy in high-density process environments.

In modern industrial automation, signal cable selection is not a peripheral decision — it is a core architectural choice. The AKB331 is engineered to support the layered control model that underpins Yokogawa's DCS philosophy: from the field device layer through the I/O marshalling layer, the controller layer, and up to the supervisory HMI and historian layer. Each segment of this hierarchy depends on consistent, low-attenuation signal transmission, and the AKB331 is rated to meet those demands across the full operating envelope of a process plant.

When deployed alongside the Yokogawa AFV10D field control station or the PFCS/SFCS processor modules, the AKB331 ensures that analog and digital signals from transmitters, positioners, and actuators arrive at the I/O bus without degradation. In redundant controller configurations — such as those using dual PFCS modules with the RM-series redundancy manager — the AKB331 supports symmetric wiring layouts that preserve failover symmetry and simplify fault isolation during maintenance windows. This is particularly critical in power generation and petrochemical applications where unplanned downtime carries significant operational cost.

The AKB331 is also compatible with Yokogawa's AKB332 and AKB333 cable variants, allowing system integrators to build tiered wiring harnesses that match cable length and shielding grade to the specific noise environment of each control zone. In high-EMI areas — such as motor control centers, variable frequency drive (VFD) enclosures, or high-voltage switchgear rooms — the AKB331's shielded construction provides the grounding continuity required to suppress common-mode interference and protect 4–20 mA analog loops from signal corruption. This makes it a natural complement to Yokogawa's AAI141 and AAI143 analog input modules, which are sensitive to loop resistance and capacitance variations.

From a communication layer perspective, the AKB331 supports the physical wiring infrastructure that underpins Yokogawa's Vnet/IP and ESB bus architectures. While the cable itself operates at the physical signal level, its dimensional and electrical characteristics are matched to the connector pinouts and cable routing standards defined in Yokogawa's engineering design guides, ensuring that installations comply with the system's EMC and signal integrity specifications. This is especially important in large-scale DCS expansions where multiple AKB-series cables are routed in parallel through cable trays, and crosstalk management becomes a system-level concern.

For HMI and SCADA integration, the AKB331 forms part of the wiring chain that connects field sensors to the Yokogawa FAST/TOOLS or Exaquantum historian, passing through the I/O modules and the Vnet/IP network. Maintaining signal fidelity at the cable level is a prerequisite for accurate data acquisition, alarm management, and advanced process control (APC) functions. In water treatment and municipal utility applications, where regulatory compliance depends on accurate flow and level measurement, the AKB331's consistent electrical performance supports the data quality requirements of SCADA reporting systems.

The AKB331 is pre-shipment tested to Yokogawa factory standards, covering continuity, insulation resistance, and shield integrity. Each unit ships with a 12-Month Warranty covering manufacturing defects and electrical performance. In-stock availability supports rapid deployment for both greenfield projects and brownfield retrofits, with global logistics capability to serve oil and gas, mining, marine propulsion, and packaging line applications.

The AKB331 is designed to operate as a structural wiring component within Yokogawa's integrated automation platform. In a typical CENTUM VP architecture, the cable connects field instruments — such as EJX910A multivariable transmitters or YTA710 temperature transmitters — to AAI141 or AAI143 analog input modules mounted on the AFV10D field control station. The AFV10D communicates upstream via the ESB bus to the PFCS or SFCS processor, which in turn connects to the Vnet/IP network for supervisory access from the HIS (Human Interface Station) running FAST/TOOLS.

In redundant configurations, the AKB331 supports symmetric wiring to dual I/O modules paired with the RM-series redundancy manager, ensuring that a single cable fault does not interrupt process monitoring. For digital output loops, the cable interfaces with ADO55B or ADO15B digital output modules driving solenoid valves, motor starters, or relay panels. In communication-intensive architectures, the AKB331 wiring infrastructure supports the physical layer beneath Yokogawa's FIO (Field I/O) bus, enabling distributed I/O expansion without compromising signal quality across extended cable runs.

System integrators working with Yokogawa's ProSafe-RS safety instrumented system (SIS) will find the AKB331 compatible with the wiring standards required for SIL-rated loops, where cable resistance, capacitance, and shielding continuity are subject to functional safety verification. The cable's factory-tested shield integrity supports the grounding schemes required by IEC 61511 for SIS field wiring, making it suitable for emergency shutdown (ESD) and fire and gas (F&G) system wiring harnesses.

In power generation applications, the AKB331 is deployed in turbine control panels and boiler management systems where CENTUM VP manages steam flow, combustion air, and feedwater control loops. Signal integrity across the AKB331 wiring harness is critical for maintaining PID loop stability in high-temperature, high-vibration environments adjacent to rotating machinery.

In petrochemical and refinery applications, the AKB331 supports the dense I/O wiring required for distillation column control, reactor temperature profiling, and compressor surge control. Its shielded construction is essential in areas where variable speed drives and high-current motor feeders generate significant electromagnetic interference that can corrupt 4–20 mA analog signals.

In water treatment and municipal utility applications, the AKB331 connects flow transmitters, level sensors, and pH analyzers to CENTUM VP I/O modules in remote pump stations and treatment plant control rooms. Its consistent electrical characteristics support accurate measurement across long cable runs typical of distributed water infrastructure.

In mining and minerals processing, the AKB331 is used in conveyor control systems, crusher monitoring panels, and flotation cell automation where robust, shielded wiring is required to maintain signal quality in dusty, high-vibration environments. In marine propulsion and offshore applications, the cable's compact form factor and shielded design support installation in space-constrained machinery control rooms and integrated bridge systems.

Q1: Is the AKB331 compatible with both CENTUM VP and CENTUM CS 3000 DCS platforms?Yes. The AKB331 is engineered to the AKB Series connector and wiring standards shared across Yokogawa's CENTUM VP and CENTUM CS 3000 platforms. Its electrical characteristics — including conductor resistance, insulation capacitance, and shield coverage — are matched to the I/O module input specifications of both platforms, ensuring reliable signal transmission without requiring cable adapters or impedance matching networks. For mixed-platform installations during system migration, the AKB331 supports consistent wiring practices across both generations of Yokogawa DCS hardware.

Q2: How does the AKB331 support long-term maintenance efficiency in large DCS installations?The AKB331's system-matched design simplifies spare parts management by providing a single cable type that covers the majority of field-to-I/O wiring requirements in AKB Series architectures. Its factory-tested continuity and shield integrity documentation supports as-built record keeping and simplifies fault diagnosis during maintenance shutdowns. The 12-Month Warranty covers manufacturing defects and electrical performance, and in-stock availability ensures rapid replacement without extended lead times that could delay maintenance turnaround.

Q3: What installation and commissioning best practices apply to the AKB331 in high-EMI environments?In high-EMI environments — such as those containing VFDs, large motor starters, or high-voltage switchgear — the AKB331 should be routed in dedicated signal cable trays separated from power cables by a minimum distance per IEC 61000-5-2 guidelines. Shield drain wires should be terminated at a single point (typically the control panel end) to prevent ground loop currents. Cable bending radius should be maintained above the manufacturer's minimum to preserve shield continuity. Pre-commissioning insulation resistance testing and loop resistance verification against the I/O module's input specifications are recommended before energizing the control system.
