Kontron AM4140 AM4140-SA-1.5(E)O-4-FR AMC Processor Module

Product Details

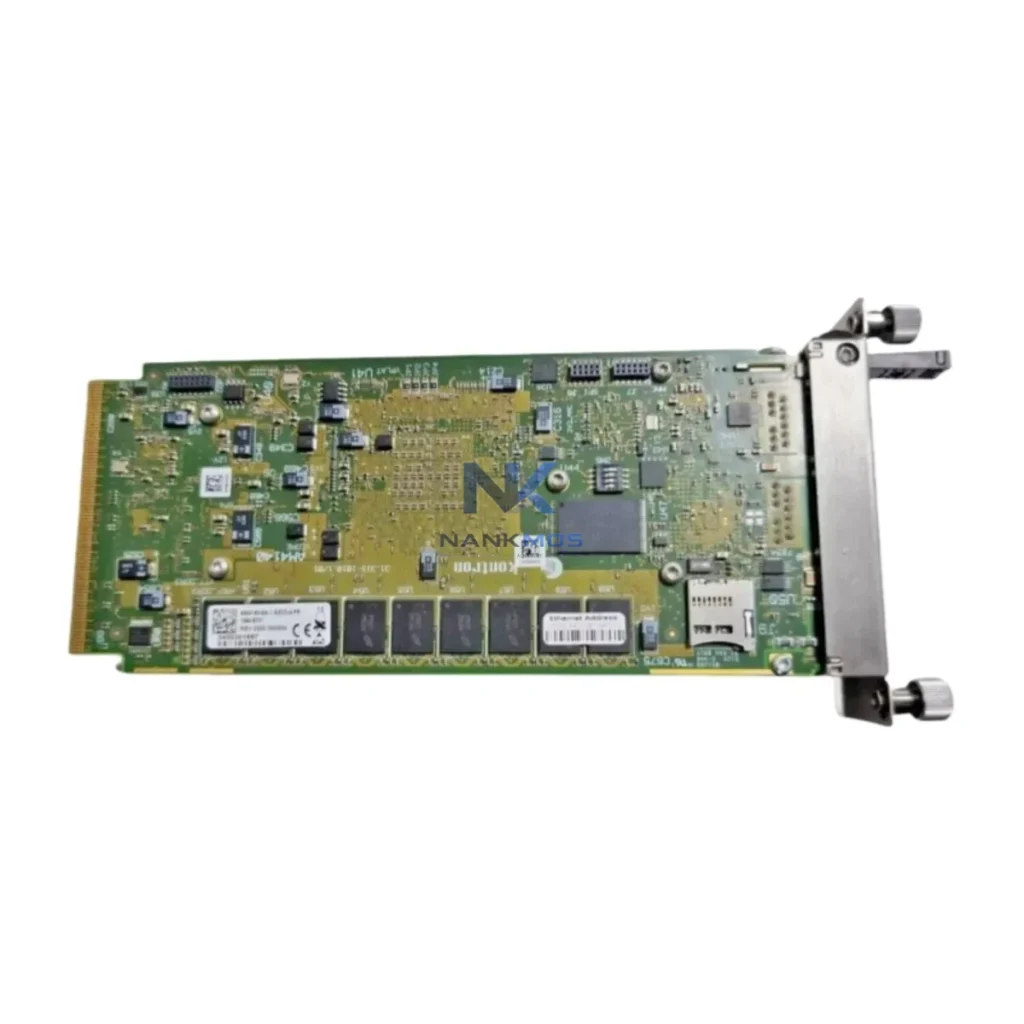

AM4140 AM4140-SA-1.5(E)O-4-FR Product Description

The Kontron AM4140-SA-1.5(E)O-4-FR is a high-performance Advanced Mezzanine Card (AMC) processor module engineered for deployment within MicroTCA (MTCA) and ATCA (AdvancedTCA) control architectures. Designed to serve as the computational core of modular embedded platforms, this module delivers deterministic processing performance, robust I/O integration, and seamless contextual integration across layered industrial and telecom-grade control systems. Whether deployed in power generation control rooms, petrochemical SCADA platforms, or advanced manufacturing automation cells, the AM4140-SA-1.5(E)O-4-FR provides the processing backbone that unifies control, communication, and diagnostic functions within a single, standards-compliant form factor.

Built to the AMC.0 R2.0 specification, this module integrates natively into MicroTCA chassis environments, enabling hot-swap capability, redundant fabric switching, and centralized shelf management through the IPMI-based MCH (MicroTCA Carrier Hub). Its architecture supports multi-slot fabric connectivity, allowing system designers to scale processing capacity without redesigning the backplane or disrupting live control operations. The AM4140-SA-1.5(E)O-4-FR is pre-shipment tested, in-stock, and backed by a 12-Month Warranty, ensuring deployment confidence for mission-critical applications.

The AM4140-SA-1.5(E)O-4-FR is not a standalone compute node — it is a system-integrated processor module that derives its full value from the surrounding MicroTCA or ATCA platform architecture. In a typical MicroTCA shelf deployment, this module operates alongside the Kontron AM4010 MicroTCA Carrier Hub (MCH), which provides centralized fabric switching, clock distribution, and IPMI-based shelf management. The MCH coordinates communication between all AMC modules in the chassis, ensuring deterministic data routing across the control fabric.

On the I/O layer, the AM4140-SA-1.5(E)O-4-FR interfaces with AMC I/O modules such as the Kontron AM4520 (serial/digital I/O AMC) or third-party AMC-based analog input cards, enabling direct acquisition of process signals from field instruments including pressure transmitters, flow meters, and temperature sensors. These signals are processed locally on the AM4140 and forwarded via GbE fabric to upstream SCADA or DCS platforms.

For communication layer integration, the module supports Gigabit Ethernet uplinks to industrial switches such as the Hirschmann RS20 or Cisco IE-3000 series, enabling seamless connectivity to Modbus/TCP, PROFINET, or OPC-UA networks. This allows the AM4140-SA-1.5(E)O-4-FR to serve as a protocol gateway or edge processing node within a broader IIoT or Industry 4.0 architecture, bridging legacy field bus signals with modern Ethernet-based control networks.

Power layer stability is ensured through the MicroTCA shelf's redundant power modules — typically dual Kontron or Elma PM modules — which supply regulated 12V to all AMC slots with N+1 redundancy. This eliminates single points of failure at the power distribution level, a critical requirement for continuous process industries such as oil and gas, water treatment, and power generation.

At the HMI layer, operator workstations running Wonderware InTouch, Siemens WinCC, or Ignition SCADA connect to the AM4140-SA-1.5(E)O-4-FR via the GbE fabric, receiving real-time process data and alarm states. The module's IPMI management interface also enables remote health monitoring, allowing maintenance engineers to check CPU temperature, power consumption, and module status without physical access to the control cabinet.

For redundancy-critical applications, the AM4140-SA-1.5(E)O-4-FR can be paired with a second identical module in a dual-AMC slot configuration, with failover managed by the MCH's fabric switching logic. This active-standby or active-active redundancy model is commonly deployed in turbine control systems, substation automation, and offshore platform control rooms where unplanned downtime carries significant operational and safety consequences.

Power Generation & Substation Automation: In power plant control rooms, the AM4140-SA-1.5(E)O-4-FR serves as the primary processing node within MicroTCA-based protection and control systems. It interfaces with IEC 61850-compliant IEDs (Intelligent Electronic Devices) via GbE, processing GOOSE messages and sampled values for real-time protection logic. Its hot-swap capability ensures that module replacement during scheduled maintenance does not interrupt substation operations.

Petrochemical & Oil and Gas Process Control: In refinery and upstream production environments, the module integrates into ATCA-based DCS platforms, processing analog signals from pressure, temperature, and flow transmitters across multiple process units. Its deterministic processing architecture supports PID loop execution and alarm management functions that require sub-100ms response times.

Water Treatment & Municipal Infrastructure: Municipal SCADA systems for water treatment plants deploy the AM4140-SA-1.5(E)O-4-FR as the edge computing node within remote pump station control panels. The module's low-power processor variant (1.5 GHz) reduces thermal load in sealed enclosures, while its IPMI management interface enables remote diagnostics over cellular or fiber backhaul networks.

Mining & Metallurgy: In mining automation systems, the module provides the processing backbone for conveyor control, crusher monitoring, and ventilation management applications. Its industrial temperature rating and vibration-tolerant AMC form factor make it suitable for deployment in surface and underground control rooms subject to harsh environmental conditions.

Marine Propulsion & Vessel Automation: Shipboard automation systems deploy the AM4140-SA-1.5(E)O-4-FR within MicroTCA-based integrated bridge and engine room management platforms. The module's compact form factor and hot-swap capability are particularly valued in space-constrained marine control cabinets where field replacement must be completed rapidly during port calls.

Q1: Is the AM4140-SA-1.5(E)O-4-FR compatible with third-party MicroTCA chassis and MCH modules from vendors other than Kontron? Yes. The AM4140-SA-1.5(E)O-4-FR is fully compliant with the AMC.0 R2.0 and PICMG MicroTCA.0 specifications, ensuring interoperability with MicroTCA chassis and MCH modules from vendors including Elma Electronic, Pentair (Schroff), and NAT (N.A.T. GmbH). Fabric connectivity (PCIe/GbE) and IPMI management functions operate according to open standards, allowing mixed-vendor shelf configurations. Pre-integration testing in your specific chassis configuration is recommended for production deployments.

Q2: What is the recommended maintenance and replacement strategy for the AM4140-SA-1.5(E)O-4-FR in a 24/7 continuous process environment? For continuous process applications, we recommend deploying the AM4140-SA-1.5(E)O-4-FR in a redundant dual-module configuration managed by the MCH's fabric switching logic. Under this architecture, the standby module can be hot-swapped without interrupting active control functions. Scheduled preventive maintenance should include IPMI health log review every 6 months, firmware version verification, and thermal inspection of the AMC slot. All units supplied by NANKMOS are pre-shipment tested and covered by a 12-Month Warranty, with replacement units available from in-stock inventory to minimize mean time to repair (MTTR).

Q3: How does the AM4140-SA-1.5(E)O-4-FR support long-term supply assurance for multi-year industrial projects? NANKMOS maintains in-stock inventory of the AM4140-SA-1.5(E)O-4-FR to support both initial project deployment and long-term spare parts programs. Each unit is individually pre-shipment tested against Kontron factory specifications before dispatch. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. For multi-year projects requiring guaranteed supply continuity, NANKMOS offers volume reservation agreements. Contact [email protected] or +86 18359268345 to discuss project-specific supply requirements.
