Kontron AM4140 AMC Processor Module

Product Details

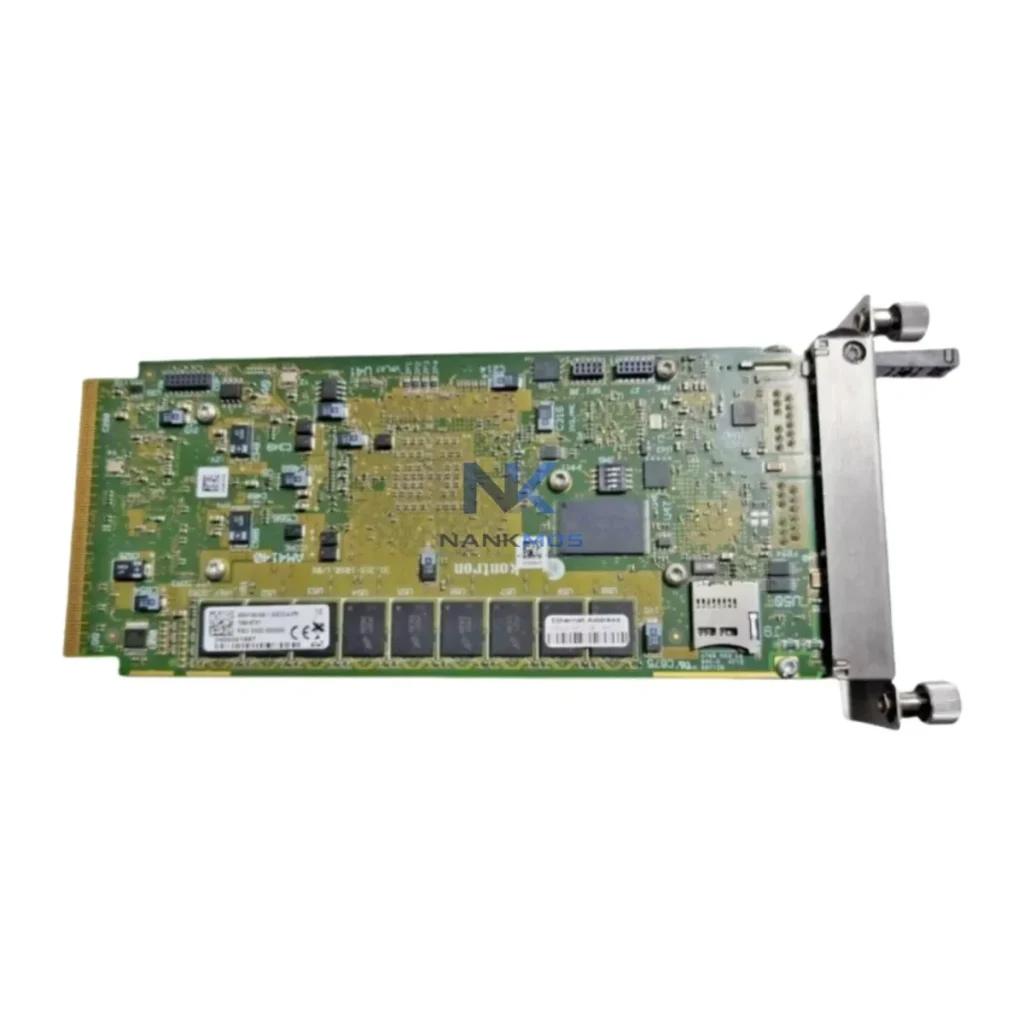

AM4140 Product Description

The Kontron AM4140 is a high-performance AdvancedMC (AMC) processor module engineered for deployment within MicroTCA (MTCA) chassis environments. Designed to serve as the computational core of modular control architectures, the AM4140 delivers deterministic processing, robust I/O connectivity, and seamless contextual integration across layered industrial automation platforms. Whether deployed in telecommunications infrastructure, defense electronics, industrial control systems, or process automation environments, the AM4140 provides the processing backbone that enables system-wide coherence, scalability, and long-term operational reliability.

As a MicroTCA-compliant AMC module, the AM4140 adheres to the PICMG AMC.0 specification, ensuring mechanical and electrical compatibility with standard MTCA.0 chassis and backplanes. Its architecture supports hot-swap capability, enabling live insertion and extraction without system downtime — a critical feature for high-availability control environments where continuous operation is non-negotiable. The module integrates directly with MicroTCA Carrier Hubs (MCH) such as the Kontron AM4904 or NAT-MCH series, enabling centralized fabric switching, clock distribution, and system management across all installed AMC slots.

From a control architecture perspective, the AM4140 occupies the processing layer of a fully integrated MTCA system. It interfaces upward with system management software and SCADA platforms via standard Ethernet or IPMI-based management channels, and downward with I/O and signal conditioning modules installed in adjacent AMC slots. This layered integration model supports modular expansion: additional AMC modules — such as the Kontron AM4010 FPGA I/O module, AM4212 digital I/O carrier, or third-party AMC-based serial communication modules — can be added to the same chassis without architectural redesign, preserving investment and reducing commissioning time.

Signal integrity is maintained through the chassis backplane fabric, which routes high-speed data between the AM4140 and co-installed modules using PCIe, Gigabit Ethernet, or SRIO fabric lanes depending on chassis configuration. This eliminates external cabling between processing and I/O layers, reducing electromagnetic interference, improving signal determinism, and simplifying cabinet layout. In process control applications — such as power generation turbine monitoring, petrochemical reactor management, or water treatment SCADA integration — this architecture ensures that sensor data from field instruments reaches the processing layer with minimal latency and maximum fidelity.

The AM4140 supports redundant configurations when paired with a dual-MCH chassis such as the Kontron MTCA.0 chassis or equivalent platforms from Elma Electronic or Pixus Technologies. In redundant deployments, a secondary AM4140 or compatible AMC processor module operates in standby mode, with automatic failover managed by the MCH's system management controller. This redundancy model is essential for safety-critical applications in nuclear power instrumentation, offshore oil and gas control systems, and railway signaling infrastructure, where single points of failure are architecturally unacceptable.

Communication layer integration is handled through the AM4140's onboard Ethernet ports and optional mezzanine interfaces, which support connectivity to industrial Ethernet networks running PROFINET, EtherNet/IP, or Modbus TCP protocols. When combined with an AMC-based protocol gateway module — such as those supporting OPC-UA or DNP3 — the AM4140 enables seamless data exchange between the MTCA control platform and plant-level DCS or SCADA systems. This contextual integration capability ensures that the AM4140 does not operate as an isolated compute node, but as an active participant in the broader automation data fabric.

For HMI layer connectivity, the AM4140's processing resources support real-time data aggregation and forwarding to operator workstations running Wonderware, FactoryTalk, or Ignition SCADA platforms. Engineering teams can configure data acquisition pipelines that pull process variables from field I/O modules, process them locally on the AM4140, and publish structured datasets to HMI clients via OPC-DA or OPC-UA server interfaces. This architecture reduces network load on the plant backbone and improves HMI refresh rates in high-tag-count environments.

Installation and commissioning of the AM4140 follows standard AMC hot-swap procedures. The module is inserted into any full-size AMC slot in a compliant MTCA chassis, where it is automatically recognized by the MCH's Intelligent Platform Management Interface (IPMI) subsystem. Firmware configuration is performed via the chassis management network, eliminating the need for direct physical access during initial setup. This remote commissioning capability is particularly valuable in geographically distributed installations — such as substation automation systems or offshore platform control rooms — where on-site engineering access is limited.

Long-term maintenance efficiency is supported by the AM4140's IPMI-based health monitoring, which provides continuous telemetry on module temperature, voltage rails, and processor utilization. Maintenance teams can access this data through the MCH management interface or via SNMP traps forwarded to a central network management system. Predictive maintenance workflows can be built around this telemetry, enabling proactive module replacement before failures occur and reducing unplanned downtime in continuous-process industries.

All Kontron AM4140 modules supplied by NANKMOS are sourced from verified distribution channels, pre-shipment tested against Kontron factory acceptance criteria, and covered by a comprehensive 12-Month Warranty. In-stock units are available for immediate dispatch, supporting urgent project timelines and emergency replacement scenarios. NANKMOS maintains buffer inventory of the AM4140 and associated MicroTCA ecosystem components — including MCH modules, chassis power modules, and AMC I/O carriers — to support complete system builds without extended lead times.

The AM4140 achieves its full architectural value when deployed as part of a complete MicroTCA automation platform. A typical system build begins with a MTCA.0-compliant chassis — such as the Kontron MTCA.0 6U chassis or an Elma 12-slot MTCA shelf — populated with a dual-redundant MCH pair (e.g., Kontron AM4904 or NAT-MCH-PHYS) for fabric switching and system management. The AM4140 occupies the primary processor slot, while adjacent slots are populated with application-specific AMC modules.

For I/O layer integration, the Kontron AM4010 FPGA-based I/O module or AM4212 digital I/O carrier provides deterministic signal acquisition from field instruments, including 4–20 mA analog sensors, RTD temperature transmitters, and discrete digital inputs from limit switches or proximity detectors. Signal conditioning and isolation are handled at the I/O module level, ensuring that the AM4140's processing resources receive clean, calibrated data streams without ground loop interference.

Communication layer expansion is achieved through AMC-based protocol gateway modules that translate between the AM4140's native Ethernet fabric and plant-floor fieldbus networks. Modules supporting PROFIBUS DP, PROFINET IO, EtherNet/IP, or Modbus RTU/TCP enable the MTCA platform to interface with legacy PLCs, variable frequency drives (VFDs), and intelligent electronic devices (IEDs) already installed in the control architecture. This gateway approach preserves existing field infrastructure investment while enabling the AM4140 to serve as a modern, high-performance processing hub.

Power layer reliability is ensured through redundant AMC power modules installed in the chassis power slots, providing N+1 power redundancy with automatic load sharing and failover. Combined with the AM4140's IPMI-based power monitoring, the system can detect and report power anomalies before they impact processing continuity. For applications requiring UPS integration, the chassis management controller can interface with external UPS systems via SNMP or dry-contact signals, enabling graceful shutdown sequences during extended power outages.

The Kontron AM4140 is deployed across a broad spectrum of industrial control applications where modular architecture, processing determinism, and long-term maintainability are primary engineering requirements.

In power generation environments — including gas turbine control systems, hydroelectric plant automation, and nuclear instrumentation — the AM4140 provides the processing core for data acquisition systems that monitor vibration, temperature, pressure, and flow parameters across rotating and static plant equipment. Its hot-swap capability ensures that processor maintenance can be performed during scheduled outages without full system shutdown.

In petrochemical and oil & gas facilities, the AM4140 supports process control architectures where multiple control loops — including PID controllers for reactor temperature, pressure relief valve management, and compressor surge control — must execute simultaneously with deterministic timing. The module's integration with OPC-UA gateway modules enables real-time data publication to plant historians and MES systems, supporting production optimization and regulatory compliance reporting.

In water treatment and municipal infrastructure applications, the AM4140 serves as the processing hub for SCADA-connected remote terminal units (RTUs) that monitor pump stations, chemical dosing systems, and distribution network pressure zones. Its compact MicroTCA form factor reduces panel space requirements compared to traditional rack-mount server platforms, while its industrial temperature rating ensures reliable operation in outdoor or semi-conditioned enclosures.

In mining and metallurgical operations, the AM4140 supports conveyor control systems, crusher automation, and flotation cell management applications where high-vibration environments and extended operating cycles demand robust, maintainable hardware platforms. The module's IPMI health monitoring enables remote diagnostics from surface control rooms, reducing the need for underground maintenance interventions.

In marine and offshore applications, the AM4140's compliance with standard AMC specifications and its support for redundant chassis configurations make it suitable for vessel automation systems, dynamic positioning controllers, and offshore platform process control architectures where space constraints and reliability requirements are equally demanding.

Q1: Is the Kontron AM4140 compatible with third-party MicroTCA chassis from vendors other than Kontron? Yes. The AM4140 complies with the PICMG AMC.0 and MTCA.0 specifications, ensuring mechanical, electrical, and management compatibility with any standards-compliant MicroTCA chassis. Validated third-party chassis vendors include Elma Electronic, Pixus Technologies, and NAT (N.A.T. GmbH). Prior to deployment, NANKMOS recommends confirming chassis slot configuration, MCH fabric support, and power budget allocation to ensure full system compatibility.

Q2: How is the AM4140 managed within a redundant MicroTCA architecture, and what happens during a processor failover event? In a dual-processor redundant configuration, the AM4140 operates as the active processor while a secondary AMC processor module operates in standby. The MicroTCA Carrier Hub (MCH) manages failover through its IPMI-based system management controller, which continuously monitors the health of both processor modules. Upon detection of a processor fault — indicated by IPMI sensor threshold violations or loss of heartbeat — the MCH initiates an automatic failover sequence, activating the standby processor and re-establishing fabric connections within the chassis. Failover time is typically sub-second, minimizing process disruption in continuous-operation environments.

Q3: What warranty and supply assurance does NANKMOS provide for the Kontron AM4140, and how are replacement units handled for critical installations? All Kontron AM4140 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing against Kontron factory acceptance criteria before dispatch. NANKMOS maintains in-stock inventory of the AM4140 and key MicroTCA ecosystem components to support both new project builds and emergency replacement requirements. For critical installations requiring guaranteed response times, NANKMOS offers priority dispatch arrangements. Contact [email protected] or +86 18359268345 to discuss supply assurance agreements and volume procurement terms.
