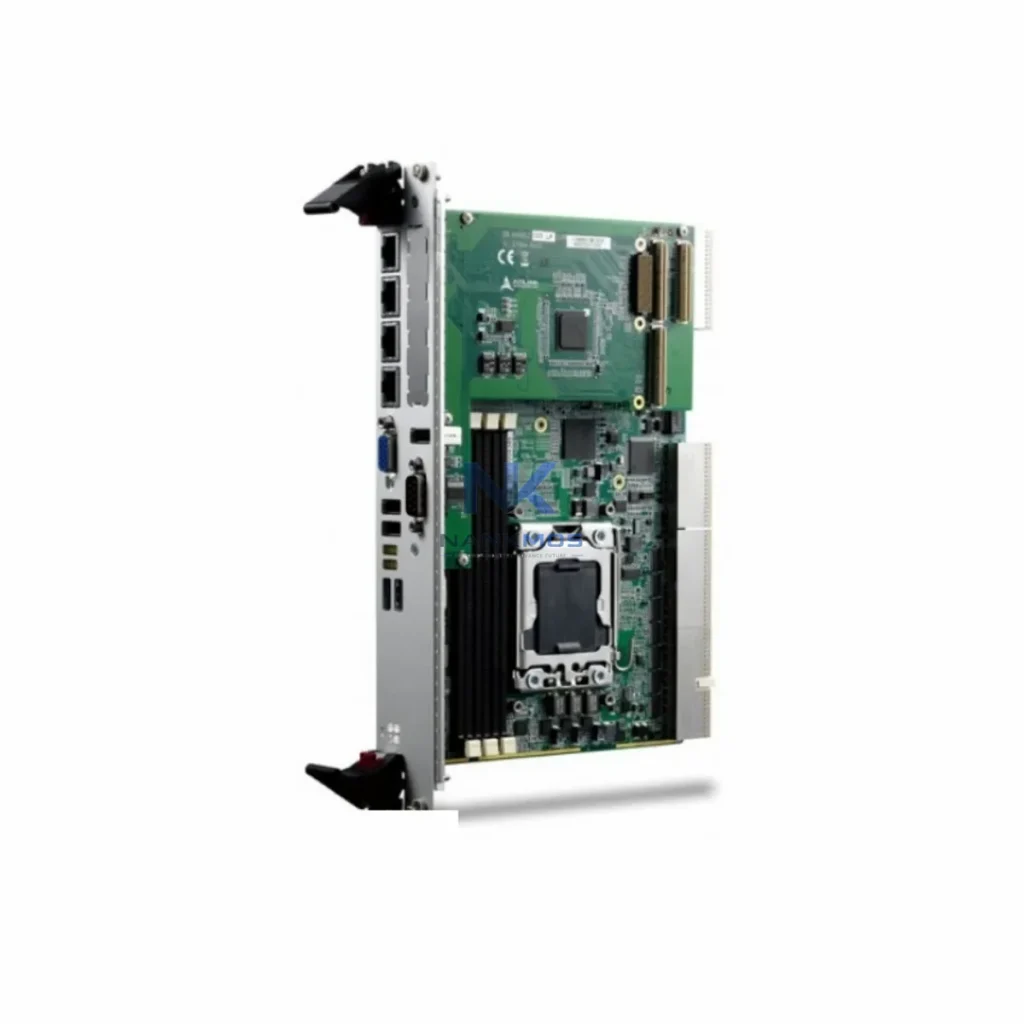

ADLINK Technology cPCI-6930D cPCI-6930D/2418/M6G

Product Details

cPCI-6930D cPCI-6930D/2418/M6G Product Description

The ADLINK cPCI-6930D (model variant cPCI-6930D/2418/M6G) is a high-performance CompactPCI Single Board Computer engineered for the demanding data-link requirements of modern smart factories. Designed to serve as the computational backbone within cPCI chassis-based control architectures, this SBC bridges the gap between field-level devices and upper-layer supervisory systems — enabling seamless, real-time data flow across every tier of the industrial network stack. From signal acquisition at the sensor layer to visualization on SCADA dashboards, the cPCI-6930D delivers the processing power, communication bandwidth, and protocol flexibility that Industry 4.0 connectivity demands.

In a connected factory environment, data integrity and transmission latency are mission-critical. The cPCI-6930D integrates directly into cPCI backplane architectures, providing deterministic communication between PLCs, remote I/O modules, HMI panels, and edge gateways. Its robust design supports continuous operation in harsh industrial environments — vibration, wide temperature ranges, and EMI-dense production floors — making it a trusted platform for process industries, energy utilities, and discrete manufacturing alike.

The cPCI-6930D/2418/M6G is purpose-built to anchor the data flow architecture of a connected factory. At the field level, sensors and actuators — including pressure transmitters, flow meters, and proximity switches — feed raw signals into remote I/O modules such as the ADLINK cPCI-3510 or third-party Modbus RTU I/O blocks. These signals are aggregated and passed upward through the cPCI backplane to the cPCI-6930D, which acts as the central processing node for protocol translation and data normalization.

On the network side, the dual Gigabit Ethernet ports allow the cPCI-6930D to simultaneously maintain a connection to the plant-floor Ethernet ring — often managed by industrial switches such as the Moxa EDS-510A or Hirschmann MACH104 — while also communicating upstream to the SCADA server or DCS historian. This dual-port topology eliminates single points of network failure and supports ring redundancy protocols such as RSTP and MRP, ensuring that a cable fault does not interrupt production data flow.

For PLC integration, the cPCI-6930D runs OPC-UA server software or acts as a Modbus TCP master, polling data from controllers such as the Siemens S7-300, ABB AC500, or Omron CJ2M series. This data is then formatted and forwarded to HMI panels — including Weintek MT8000 or Siemens TP1200 Comfort — where operators monitor real-time process variables, alarm states, and trend charts. The SBC's processing headroom allows it to simultaneously serve multiple HMI clients over Ethernet without degrading scan cycle performance.

In SCADA-integrated deployments, the cPCI-6930D functions as a front-end processor or data concentrator, collecting tag data from distributed field devices and forwarding structured datasets to platforms such as Ignition by Inductive Automation or Wonderware System Platform. Edge analytics can be performed locally on the SBC before data is pushed to cloud historians or MES systems, reducing upstream bandwidth consumption and enabling local alarm logic to execute even during WAN outages.

For drive and motion control integration, the cPCI-6930D communicates with variable frequency drives — such as the ABB ACS880 or Yaskawa GA700 — via Modbus RTU over RS-485 or EtherNet/IP over the plant LAN. Drive status, fault codes, speed references, and energy consumption data are all captured and logged, supporting predictive maintenance workflows and energy efficiency reporting. This data chain extends naturally to edge gateways such as the Advantech ECU-1251, which can aggregate cPCI-6930D outputs alongside data from other field nodes and push consolidated payloads to cloud platforms via MQTT or REST APIs.

Every unit shipped undergoes pre-shipment functional testing covering backplane communication, Ethernet link integrity, memory validation, and storage I/O verification — ensuring that the cPCI-6930D arrives ready for immediate integration into your control cabinet or test bench.

Protocol Fragmentation: Many brownfield automation sites run a mix of legacy serial protocols (Modbus RTU, RS-485) alongside modern Ethernet-based standards (PROFINET, EtherNet/IP, OPC-UA). The cPCI-6930D, running protocol gateway middleware, unifies these communication layers into a single normalized data stream — eliminating the data silos that prevent cross-system visibility.

Remote Monitoring Gaps: Without a capable edge computing node, remote diagnostics are limited to on-site visits. The cPCI-6930D enables remote access to PLC registers, I/O states, and alarm logs via secure Ethernet connections, allowing engineers to diagnose faults, adjust setpoints, and validate process conditions from any location on the corporate WAN or VPN.

Production Line Transparency: Real-time OEE (Overall Equipment Effectiveness) tracking requires continuous data collection from every machine on the line. The cPCI-6930D's multi-port Ethernet and serial interfaces allow it to simultaneously poll multiple PLCs, drives, and sensors — aggregating production counts, downtime events, and quality metrics into a unified dataset for MES or ERP consumption.

Alarm Traceability and System Expansion: As production lines grow, alarm management becomes increasingly complex. The cPCI-6930D supports scalable alarm routing — forwarding structured alarm records to SCADA alarm servers with timestamps, severity levels, and device identifiers. Its CompactPCI form factor also allows straightforward system expansion: additional cPCI I/O cards or communication modules can be inserted into the same chassis without redesigning the control architecture.

Q1: What communication protocols does the cPCI-6930D/2418/M6G support for SCADA integration? The cPCI-6930D supports Modbus TCP/RTU, EtherNet/IP, and OPC-UA via compatible software stacks running on its embedded OS. It connects natively to SCADA platforms including Ignition, Wonderware, WinCC, and iFIX through standard Ethernet interfaces, with typical polling cycles well under 100 ms for most tag configurations.

Q2: How does the cPCI-6930D handle network redundancy and communication stability? The dual Gigabit Ethernet ports support active-standby or dual-homed network configurations. When paired with managed industrial switches supporting RSTP or MRP ring protocols, the cPCI-6930D maintains network connectivity even in the event of a single link failure — with failover times typically under 50 ms, well within the tolerance of most SCADA polling intervals.

Q3: Can the cPCI-6930D be used for remote diagnostics and firmware updates? Yes. The cPCI-6930D supports remote desktop access (RDP/VNC) and SSH over Ethernet, enabling engineers to perform remote diagnostics, configuration changes, and software updates without physical access to the control cabinet. This capability is particularly valuable for geographically distributed sites or unmanned substations.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the cPCI-6930D? Every cPCI-6930D unit supplied by NANKMOS carries a 12-month warranty covering hardware defects and communication interface failures. Prior to shipment, each unit undergoes a structured pre-shipment test protocol including backplane bus verification, dual Ethernet link testing, memory stress testing, and storage I/O validation — ensuring full operational readiness upon delivery.
