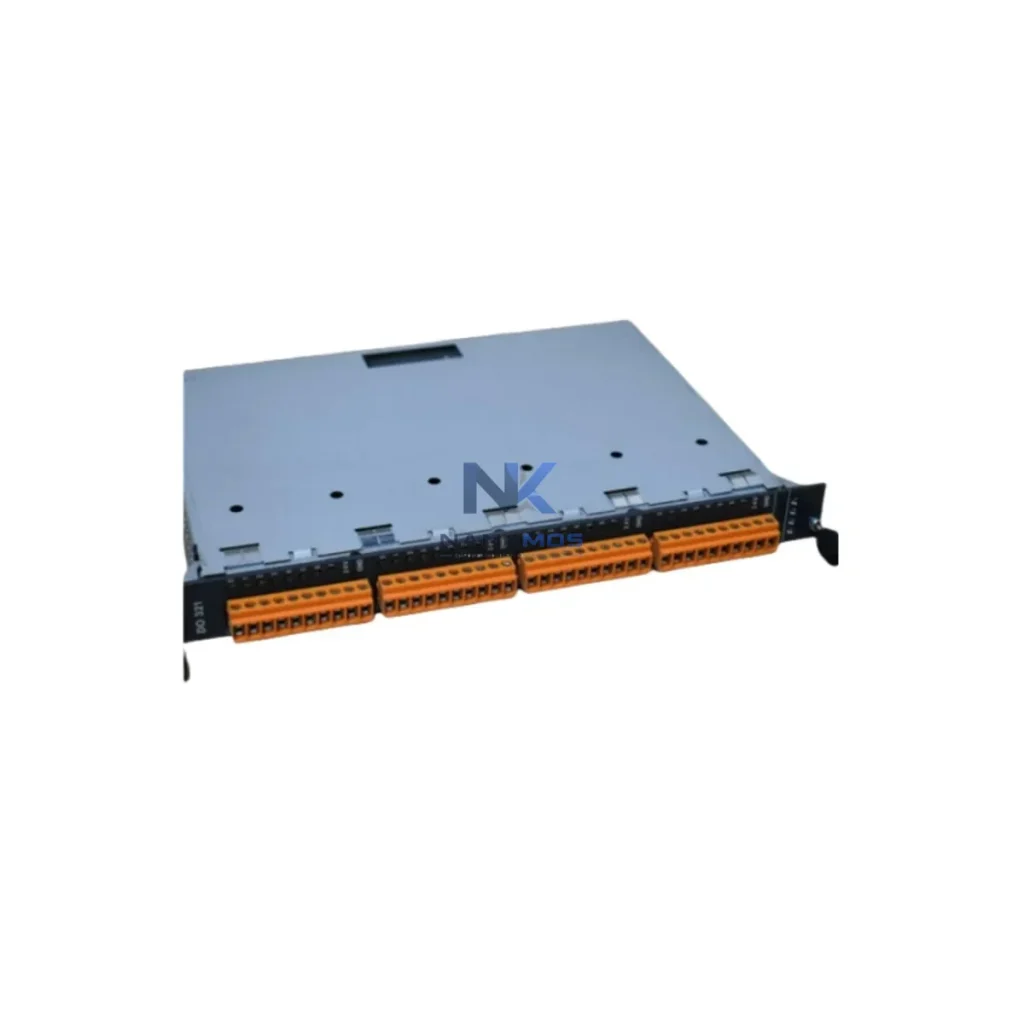

Triconex DO3201 Digital Output Module

Product Details

DO3201 Product Description

The Triconex DO3201 is a high-reliability digital output module engineered for the Tricon Triple Modular Redundant (TMR) Safety Instrumented System. Designed to meet the rigorous demands of energy-intensive industrial environments, the DO3201 delivers deterministic output switching with minimal power dissipation — making it a cornerstone component for facilities pursuing measurable reductions in operational energy consumption and thermal load across critical process control infrastructure.

In modern smart production lines, every output channel carries energy implications. The DO3201's architecture supports precise load switching that eliminates unnecessary energization cycles, reduces inrush current events, and enables tighter coordination between the safety layer and the energy management system. When integrated with a Triconex Tricon MP3008 Main Processor, the DO3201 participates in a fully redundant control loop that maintains output integrity without sacrificing efficiency — ensuring that actuators, solenoid valves, and motor starters receive commands only when process logic demands, not due to spurious transitions or controller faults.

The Triconex DO3201 does not operate in isolation — its energy efficiency contribution is realized through tight integration with the broader automation and safety architecture. In a typical energy-optimized plant configuration, the DO3201 interfaces with the Triconex AI3351 Analog Input Module to receive real-time process variable feedback, enabling the safety controller to make output decisions based on actual load conditions rather than conservative fixed-state assumptions. This dynamic response capability directly reduces the duration and frequency of full-load energization events.

On the drive side, the DO3201's output channels are commonly wired to motor starter contactors and variable frequency drive (VFD) enable circuits. When paired with a Schneider Electric Altivar ATV320 series VFD or similar drive platform, the DO3201 provides the discrete enable/disable signal that governs drive run permission — ensuring that motors are only energized when process demand is confirmed, eliminating idle-run energy waste. The Triconex DI3201 Digital Input Module completes the feedback loop by monitoring drive status, fault signals, and field device confirmation back into the TMR controller.

For facilities operating SCADA or plant-level energy management systems, the DO3201's outputs are visible and auditable through the Triconex TCM 4351B Tricon Communication Module, which bridges the Tricon safety layer to OPC-DA/UA historians and SCADA platforms via Modbus TCP or TSAA protocol. This integration allows energy managers to correlate output switching events with power consumption data captured by PowerLogic ION7650 power monitoring units or equivalent metering infrastructure — enabling root-cause analysis of energy spikes and supporting demand-response load shedding strategies.

The Triconex DO3201 also works in conjunction with Tricon Termination Assemblies (TCAs) such as the TCA3201, which provide field wiring termination and channel-level fusing. Proper TCA selection ensures that field wiring resistance and contact losses are minimized, contributing to overall system efficiency. In rack configurations alongside the Triconex DO3201, modules such as the Triconex AO3481 Analog Output Module handle proportional control of control valves and dampers — enabling coordinated energy flow management across both discrete and continuous output domains within the same Tricon chassis.

Industrial production lines face compounding energy challenges: motors that run beyond demand, actuators held energized during idle periods, and safety shutdowns that trigger full-load restarts rather than staged recovery. The Triconex DO3201 addresses each of these inefficiencies through its role as the authoritative output authority in a SIL 3 safety loop.

By enforcing output state only when validated by all three TMR processor legs, the DO3201 eliminates the risk of spurious energization — a common source of unnecessary energy consumption and mechanical wear in solenoid-driven systems. In process plants where hundreds of solenoid valves may be under SIS control, eliminating even a small percentage of spurious trips translates to measurable reductions in compressed air consumption, hydraulic pump cycling, and electrical demand peaks.

The module's solid-state output design also contributes to thermal load reduction at the panel level. Unlike relay-based output modules that generate significant heat through coil resistance, the DO3201's solid-state switching architecture maintains a lower thermal footprint per rack — reducing HVAC load in control rooms and equipment enclosures, and extending the service life of adjacent modules and backplane components.

For production lines implementing predictive maintenance programs, the DO3201's output channel diagnostics — accessible through the Triconex TriStation 1131 programming environment — provide channel-level health data that can be trended over time. Degrading output channels can be identified before failure, allowing planned replacement during scheduled maintenance windows rather than unplanned shutdowns. This capability directly supports OEE (Overall Equipment Effectiveness) improvement initiatives by reducing unplanned downtime and the associated energy costs of emergency restart sequences.

NANKMOS maintains ready stock of the Triconex DO3201 with full pre-shipment functional testing completed prior to dispatch. Each unit is verified against Triconex factory test specifications and ships with a 12-month warranty, providing procurement teams and maintenance engineers with the confidence needed for critical spares management and planned replacement programs.

Q1: How does the Triconex DO3201 contribute to energy savings in a SIS-controlled process plant? The DO3201 enforces output switching only upon validated TMR consensus, eliminating spurious energization of field devices such as solenoid valves, motor starters, and actuators. This reduces unnecessary electrical load, compressed air consumption, and mechanical cycling — delivering measurable energy savings in high-output-count SIS applications. Integration with plant SCADA and power monitoring systems via the Triconex TCM module enables quantification of these savings over time.

Q2: Is the DO3201 compatible with current Tricon chassis and processor versions? Yes. The DO3201 is compatible with Tricon v9, v10, and v11 TMR chassis configurations and operates with MP3008 and MP3100 main processors. It is backward-compatible within the Tricon I/O module family and can be installed alongside existing DI, AI, and AO modules without chassis modification. Always verify chassis slot assignments and TCA termination assembly compatibility during engineering review.

Q3: What is the recommended replacement and testing process for a DO3201 in a live SIS environment? Triconex TMR architecture supports online module replacement (hot-swap) without process shutdown, provided the remaining two processor legs maintain SIL 3 voting integrity during the swap window. NANKMOS supplies pre-tested DO3201 units with functional verification completed prior to shipment. Each replacement unit is recommended to undergo site acceptance testing (SAT) per the plant's SIS management of change (MOC) procedure before being placed in service.

Q4: What warranty and supply assurance does NANKMOS provide for the Triconex DO3201? All Triconex DO3201 modules supplied by NANKMOS carry a 12-month warranty covering functional defects under normal operating conditions. Units are drawn from maintained inventory, pre-shipment tested, and available for rapid dispatch to support both planned maintenance schedules and emergency replacement requirements. Contact our technical team to confirm current stock availability and lead times for your project.
