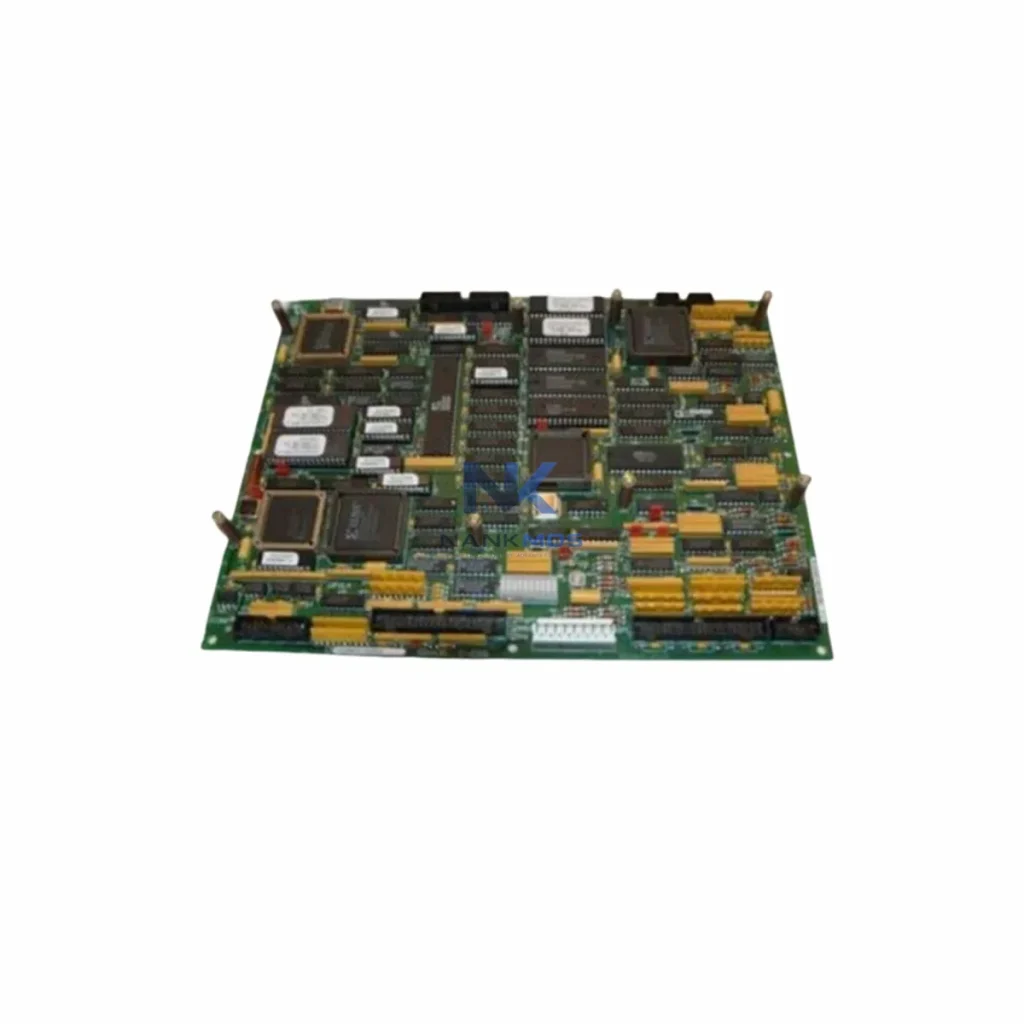

GE (General Electric) DS200SDCCG1AHD Drive Control Card

Product Details

DS200SDCCG1AHD Product Description

The GE DS200SDCCG1AHD is a precision-engineered Drive Control Card designed for the GE Mark V Speedtronic turbine control platform. As industrial facilities push toward leaner energy profiles and smarter production rhythms, this card plays a central role in regulating drive output, managing load transitions, and sustaining optimal turbine efficiency across continuous-duty cycles. Whether deployed in power generation, oil and gas compression, or heavy process industries, the DS200SDCCG1AHD delivers the signal fidelity and control authority that modern energy-aware automation demands.

In a fully integrated Mark V Speedtronic panel, the DS200SDCCG1AHD does not operate in isolation — it is the nerve centre of a coordinated drive and energy management architecture. The card interfaces directly with the DS200TCQCG1A Turbine Control Card, which governs sequencing logic and trip protection, ensuring that drive commands from the SDCC are always within safe operating envelopes. Upstream, the DS200SDCIG1A I/O Interface Card feeds real-time sensor data — shaft speed pulses, vibration signals, and temperature readings — into the control loop, allowing the DS200SDCCG1AHD to make millisecond-level corrections to drive output without operator intervention.

On the power conditioning side, the DS200PCCAG1A Power Supply Card maintains stable DC bus voltages across the Mark V chassis, directly affecting the quality of control signals the SDCC generates. Voltage ripple or transient spikes at the supply level translate into drive instability and unnecessary energy dissipation; a healthy PCCAG1A is therefore a prerequisite for efficient SDCC operation. Similarly, the DS200TCDAG1A Analog I/O Card provides the analogue feedback channels — 4–20 mA current loops from flow transmitters, pressure transducers, and load cells — that the DS200SDCCG1AHD uses to trim drive speed in response to actual process demand rather than fixed setpoints, a key mechanism for reducing part-load energy waste.

For facilities running GE Frame 5 or Frame 7 gas turbines, the DS200SDCCG1AHD works alongside the DS200EXPSG1ADA Expansion I/O Card to extend the control panel's I/O capacity without adding a second controller chassis. This is particularly valuable in combined-cycle plants where a single Mark V panel must simultaneously manage the gas turbine, the heat recovery steam generator bypass damper actuators, and auxiliary cooling fan drives — all of which draw on the SDCC's speed reference outputs. Integrating an IS200EACFG1A Exciter and Auxiliary Control Card into the same panel further consolidates generator excitation control with turbine drive management, reducing the number of independent control loops and the associated idle-state power draw of redundant processors.

At the SCADA and HMI layer, the Mark V panel communicates turbine speed, load, and drive status data to plant-level energy management systems via the IS200TRESG1A Serial Communication Card, which supports MODBUS RTU and proprietary GE IONET protocols. This data stream feeds historian databases and real-time dashboards, enabling energy managers to correlate drive efficiency trends with fuel consumption KPIs and identify opportunities for load-shedding or speed optimisation during off-peak production windows. The DS200TCCAG1A Turbine Control Card complements this by providing the protective relay logic that prevents the drive from operating in thermally inefficient regions — automatically ramping down speed when exhaust temperature margins tighten, rather than waiting for a manual operator response.

The primary energy benefit of the GE DS200SDCCG1AHD lies in its ability to eliminate the two most common sources of drive-related energy waste in turbine-driven production lines: speed hunting and reactive load overshoot. Speed hunting — the oscillation of turbine speed around a setpoint — generates repeated acceleration and deceleration cycles that consume fuel without producing useful work. The DS200SDCCG1AHD's closed-loop PID architecture, tuned specifically for the inertia characteristics of GE heavy-duty turbines, suppresses hunting to within ±0.1% of rated speed under steady-state conditions, translating directly into measurable fuel savings over a full operating year.

Reactive load overshoot occurs when a turbine drive responds to a sudden load increase — such as a large motor starting on the same bus — by momentarily over-fuelling before the governor corrects. The DS200SDCCG1AHD's feed-forward compensation logic anticipates load transients by monitoring the rate of change of speed error rather than the error magnitude alone, pre-positioning the fuel valve actuator to intercept the disturbance before it propagates into a full overshoot event. This not only reduces fuel consumption during transients but also lowers the thermal stress on combustion liners and transition pieces, extending hot-section maintenance intervals and reducing the energy embedded in replacement parts.

From a production line rhythm perspective, stable turbine speed translates into stable generator frequency, which in turn stabilises the speed of all variable-frequency drives (VFDs) and synchronous motors connected to the plant bus. Conveyor systems, compressor trains, and pump arrays that rely on consistent supply frequency operate more efficiently and with lower vibration signatures when the upstream turbine drive is well-regulated. Predictive maintenance programmes benefit equally: the consistent, low-noise speed signal produced by a properly functioning DS200SDCCG1AHD provides a clean baseline against which vibration analysis algorithms can detect early-stage bearing wear, rotor imbalance, or coupling misalignment — faults that, if left undetected, result in unplanned downtime and the energy penalty of emergency restart cycles.

Every DS200SDCCG1AHD unit shipped by NANKMOS undergoes a full functional test on a live Mark V panel simulator, verifying speed reference tracking, analogue I/O calibration, and protective trip response before dispatch. Units are supplied with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock inventory ensures lead times of 1–3 business days for most destinations, minimising production downtime for facilities operating under urgent replacement schedules.

Q1: How does the DS200SDCCG1AHD reduce energy consumption compared to a degraded or faulty drive control card?A degraded SDCC card typically exhibits increased speed error variance, causing the turbine governor to make larger and more frequent fuel valve corrections. This raises average fuel consumption by 2–5% and increases combustion temperature variability, accelerating hot-section wear. A fully functional DS200SDCCG1AHD restores tight speed regulation, eliminating these parasitic fuel losses and stabilising thermal loading across the combustion system.

Q2: Is the DS200SDCCG1AHD compatible with both Mark V and Mark VI Speedtronic panels?The DS200SDCCG1AHD is natively designed for the GE Mark V Speedtronic platform. While the Mark VI uses a different backplane architecture (VME-based versus the Mark V's proprietary bus), the DS200SDCCG1AHD can serve as a direct replacement within any Mark V chassis variant, including simplex, TMR (Triple Modular Redundant), and dual configurations. For Mark VI applications, please consult our technical team to identify the appropriate IS200-series equivalent.

Q3: What is the recommended replacement procedure to minimise production downtime?For planned replacements, the card should be swapped during a scheduled maintenance window with the turbine at rest and the Mark V panel de-energised. The replacement DS200SDCCG1AHD from NANKMOS is pre-tested and ships with calibration data; no field calibration is required beyond the standard Mark V configuration tool verification. For emergency replacements, the card can be hot-swapped in TMR configurations without a full panel shutdown, provided the remaining two control paths are healthy.

Q4: What does the 12-Month Warranty cover, and what is the stock availability?The 12-Month Warranty covers all functional failures attributable to manufacturing defects, component degradation, or workmanship issues under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. NANKMOS maintains a standing inventory of DS200SDCCG1AHD units with typical dispatch within 1–3 business days. Expedited shipping options are available for critical plant outage situations.
