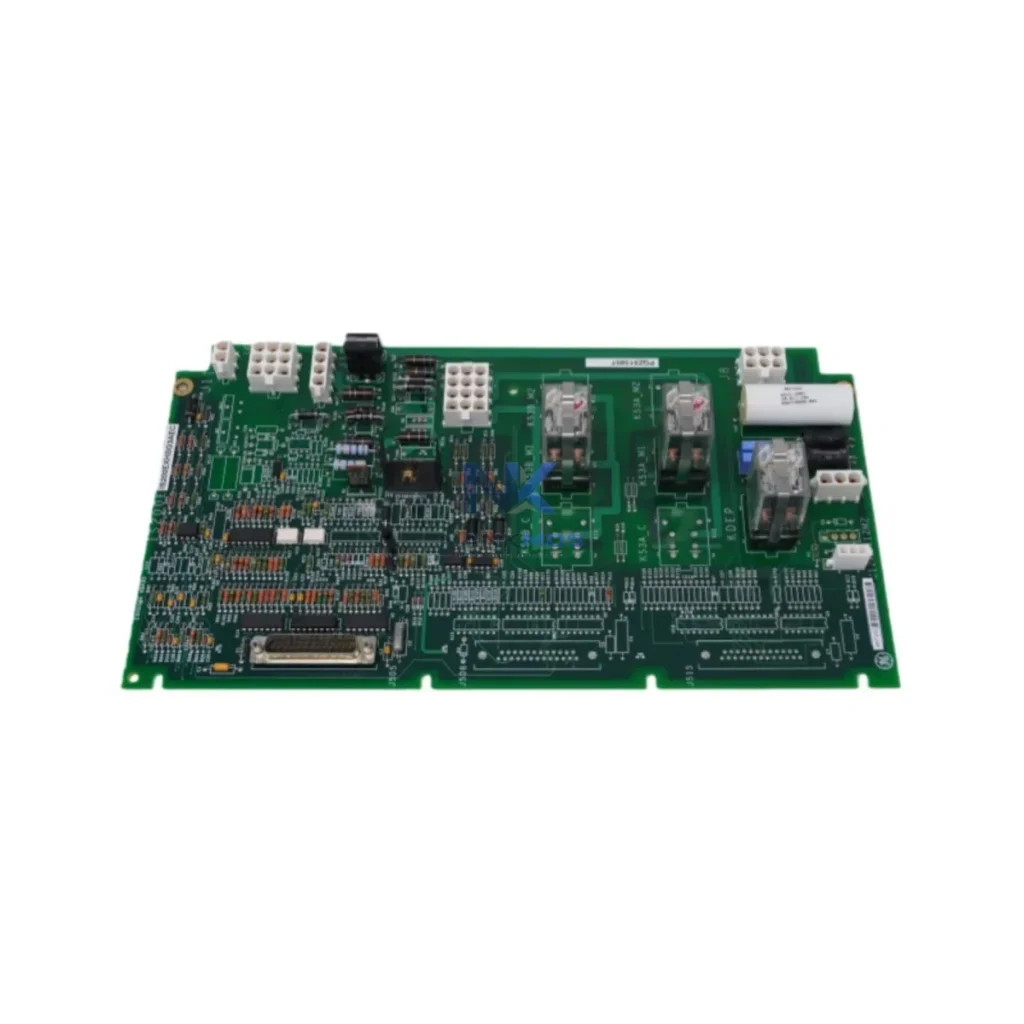

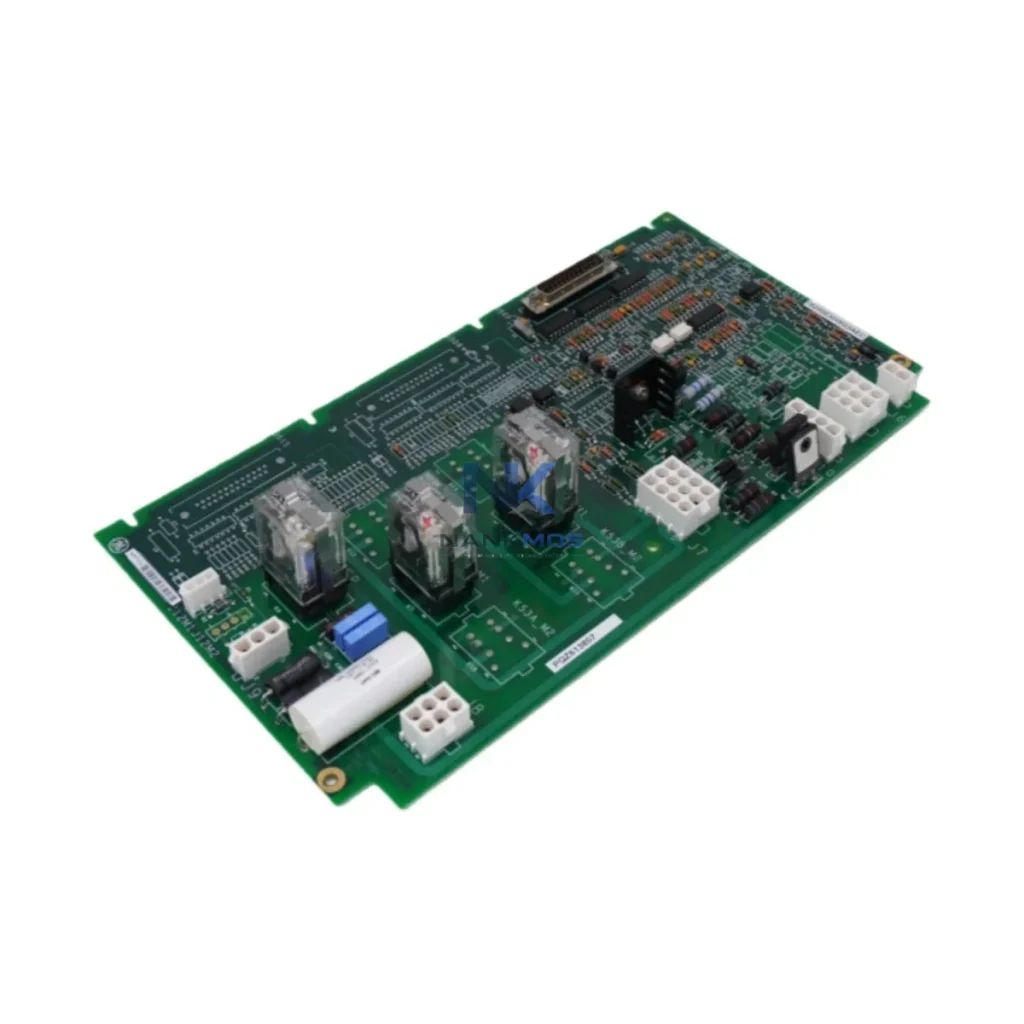

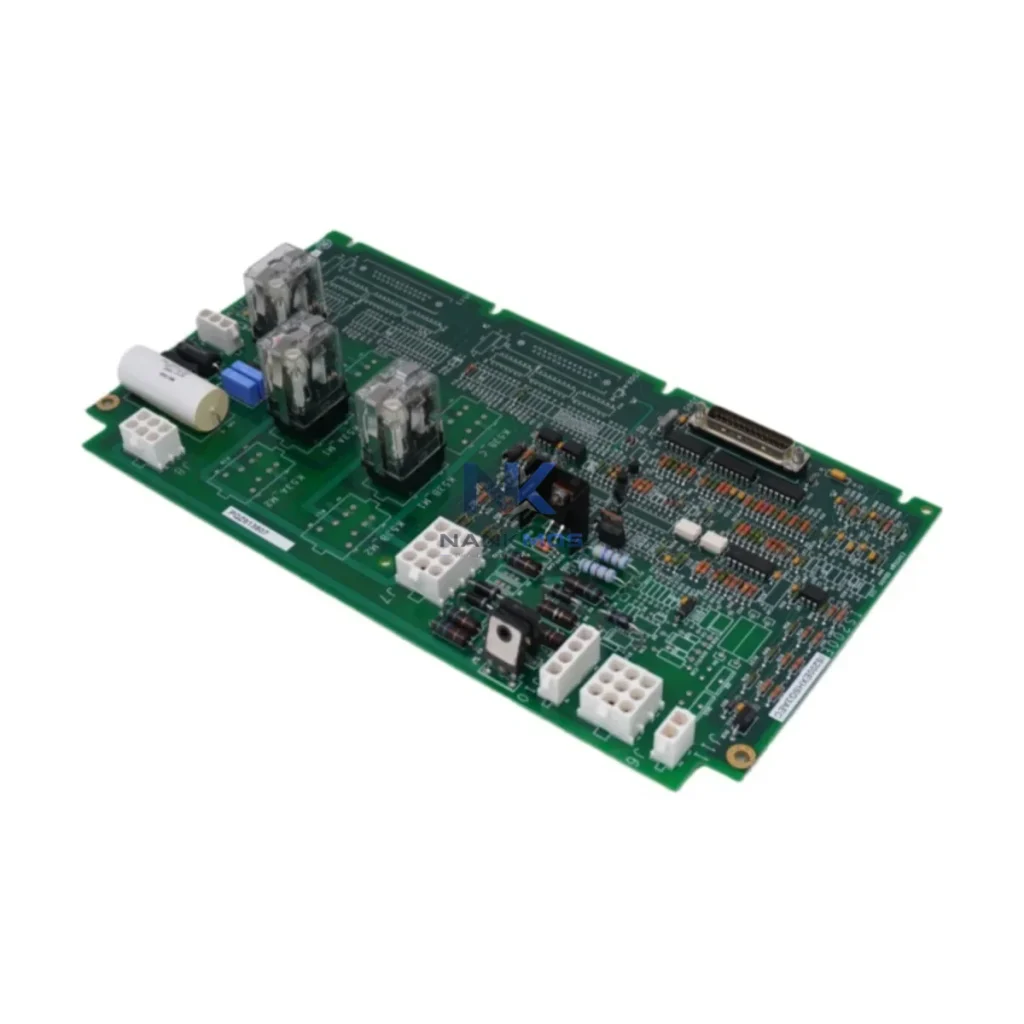

GE (General Electric) IS200EXHSG3AEC Relay Driver Board

Product Details

IS200EXHSG3AEC Product Description

The GE IS200EXHSG3AEC is a high-performance relay driver board engineered for the GE EX2100 excitation control system, purpose-built to deliver precise energy control in demanding industrial environments. Designed for turbine generators, large synchronous motors, and energy-intensive rotating machinery, this board plays a critical role in regulating excitation current, stabilizing voltage output, and minimizing reactive power losses — all of which directly contribute to measurable reductions in energy consumption across production lines.

In modern smart manufacturing facilities, energy efficiency is no longer optional. The IS200EXHSG3AEC addresses this need by providing reliable relay switching logic that governs field excitation sequences, fault isolation, and load transfer operations. Its integration into the EX2100 platform ensures that excitation events are executed with millisecond-level precision, preventing energy spikes, reducing thermal stress on connected equipment, and extending the operational lifespan of downstream components.

The GE IS200EXHSG3AEC does not operate in isolation — its true value is realized when it functions as part of a coordinated, power-aware automation architecture. Within the GE EX2100 excitation system, this relay driver board interfaces directly with the IS200EACFG1A AVR (Automatic Voltage Regulator) board, which continuously calculates the optimal field current setpoint based on real-time load demand. Together, they ensure that the generator or synchronous motor operates at peak efficiency without over-excitation, which is a leading cause of unnecessary energy waste and transformer thermal stress.

On the control side, the IS200EXHSG3AEC receives switching commands from the IS200EPSCG1A power supply board, which manages the internal DC bus voltage that drives relay coil actuation. Stable coil voltage is essential for consistent relay response times — any fluctuation can cause delayed switching, arcing, or contact wear that degrades energy efficiency over time. The EPSCG1A's regulated output ensures that the relay driver board operates within its designed switching envelope at all times.

For facilities running GE Mark VIe turbine control systems, the IS200EXHSG3AEC integrates seamlessly with the IS200IOCFG1A I/O controller board, which aggregates discrete relay status signals and transmits them upstream to the plant DCS or SCADA platform. This closed-loop feedback allows energy management software to monitor excitation state in real time, enabling predictive load shedding strategies that reduce peak demand charges and improve overall plant power factor.

In production environments where variable-speed drives are deployed alongside synchronous generators, the IS200EXHSG3AEC works in coordination with GE AF-600 FP variable frequency drives (VFDs) to balance reactive power between driven loads and the generator bus. When the VFD modulates motor speed to match production throughput, the excitation system — governed by this relay driver board — adjusts field current accordingly, preventing reactive power mismatches that would otherwise increase line losses and elevate transformer temperatures.

Communication between the EX2100 system and plant-level SCADA or Profibus DP networks is facilitated through the IS200EPDMG1A communication module, which translates excitation control data into standard industrial protocol formats. This enables the IS200EXHSG3AEC's relay status, fault codes, and switching history to be logged by energy management systems (EMS), supporting ISO 50001 energy audits and continuous improvement programs. HMI panels running on GE Cimplicity SCADA software can display real-time excitation status, relay cycle counts, and energy efficiency KPIs derived from the board's operational data.

For motor protection and load management, the IS200EXHSG3AEC operates alongside GE Multilin 469 motor protection relays, which monitor stator current, rotor temperature, and power factor in real time. When the Multilin 469 detects an overload condition, it signals the EX2100 system to reduce field excitation — a command executed through the IS200EXHSG3AEC relay driver board — thereby protecting the motor from thermal damage while simultaneously reducing energy draw during the fault recovery period.

Modern industrial production lines face increasing pressure to reduce energy costs, meet sustainability targets, and maintain continuous uptime. The GE IS200EXHSG3AEC relay driver board contributes to all three objectives through its role in excitation control — a function that directly determines how efficiently a generator or synchronous motor converts electrical input into mechanical output.

Reducing Unnecessary Energy Consumption: Over-excitation is one of the most common and overlooked sources of energy waste in facilities with large rotating machinery. When field current exceeds the optimal setpoint, the generator absorbs reactive power from the grid, increasing apparent power demand and utility charges. The IS200EXHSG3AEC, by executing precise relay switching commands from the EX2100 AVR, ensures that field current is always maintained at the minimum level required for stable voltage regulation — eliminating reactive power absorption and reducing energy bills.

Minimizing Thermal Load: Excessive excitation current generates heat in both the rotor winding and the excitation transformer. This heat must be removed by cooling systems — fans, heat exchangers, or liquid cooling circuits — all of which consume additional energy. By maintaining optimal excitation levels, the IS200EXHSG3AEC reduces rotor winding temperature, lowers cooling system duty cycles, and decreases the overall thermal load on the facility's electrical infrastructure.

Stabilizing Production Line Rhythm: Voltage instability caused by poor excitation control can trigger nuisance trips in sensitive production equipment — CNC machines, servo drives, robotic welding systems, and precision measurement instruments. Each unplanned trip disrupts production rhythm, wastes partially processed materials, and requires energy-intensive restart sequences. The IS200EXHSG3AEC's reliable relay switching ensures that excitation transitions — startup, load acceptance, load rejection, and shutdown — are executed smoothly, maintaining the stable voltage environment that production equipment requires for consistent throughput.

Supporting Predictive Maintenance Programs: The relay driver board's switching cycle data, accessible through the EX2100 system's diagnostic interface, provides valuable input for predictive maintenance algorithms. By tracking relay contact wear, coil actuation frequency, and response time trends, maintenance teams can schedule board replacements before failures occur — avoiding the energy waste and production losses associated with unplanned downtime. This data-driven approach to maintenance scheduling is a cornerstone of Industry 4.0 energy optimization strategies.

Inventory Availability and Shipment Readiness: NANKMOS maintains verified stock of the IS200EXHSG3AEC, with each unit subjected to a comprehensive functional test protocol before shipment. Testing includes relay coil continuity verification, contact resistance measurement, switching time validation, and insulation resistance testing — ensuring that every board delivered to the customer is ready for immediate installation and will perform to GE's original design specifications from day one.

Q1: How does the IS200EXHSG3AEC contribute to measurable energy savings in a power generation facility? By enabling precise, millisecond-level control of excitation relay switching within the GE EX2100 system, the IS200EXHSG3AEC ensures that field current is always optimized for the actual load condition. This eliminates reactive power absorption, reduces rotor winding heat generation, and lowers cooling system energy consumption — delivering measurable improvements in plant power factor and overall energy efficiency that are visible in monthly utility billing data.

Q2: Is the IS200EXHSG3AEC compatible with GE Mark VIe and other GE turbine control platforms? The IS200EXHSG3AEC is designed specifically for the GE EX2100 excitation control system, which is commonly deployed alongside GE Mark VI and Mark VIe turbine control platforms. While the board itself interfaces with the EX2100 backplane, its relay status outputs and fault signals are accessible to Mark VIe I/O modules and SCADA systems through the EX2100's communication architecture, making it fully compatible with integrated GE turbine control environments.

Q3: What is the recommended replacement procedure, and how quickly can a replacement unit be shipped? Replacement of the IS200EXHSG3AEC should follow GE's EX2100 maintenance procedures, which include de-energizing the excitation system, verifying zero voltage on the backplane, removing the faulty board, and installing the replacement with proper ESD precautions. NANKMOS ships verified, tested replacement units from in-stock inventory, with same-day or next-business-day dispatch available for urgent orders. Each unit is accompanied by a test report confirming functional verification prior to shipment.

Q4: What warranty coverage is provided, and what does the testing process include? Every IS200EXHSG3AEC supplied by NANKMOS is covered by a 12-month warranty against manufacturing defects and functional failures. Prior to shipment, each board undergoes a multi-stage test protocol including relay coil resistance measurement, contact switching verification, insulation resistance testing, and functional simulation within an EX2100-compatible test environment. This ensures that the board will perform to GE's original specifications upon installation, with no commissioning surprises or early-life failures.
