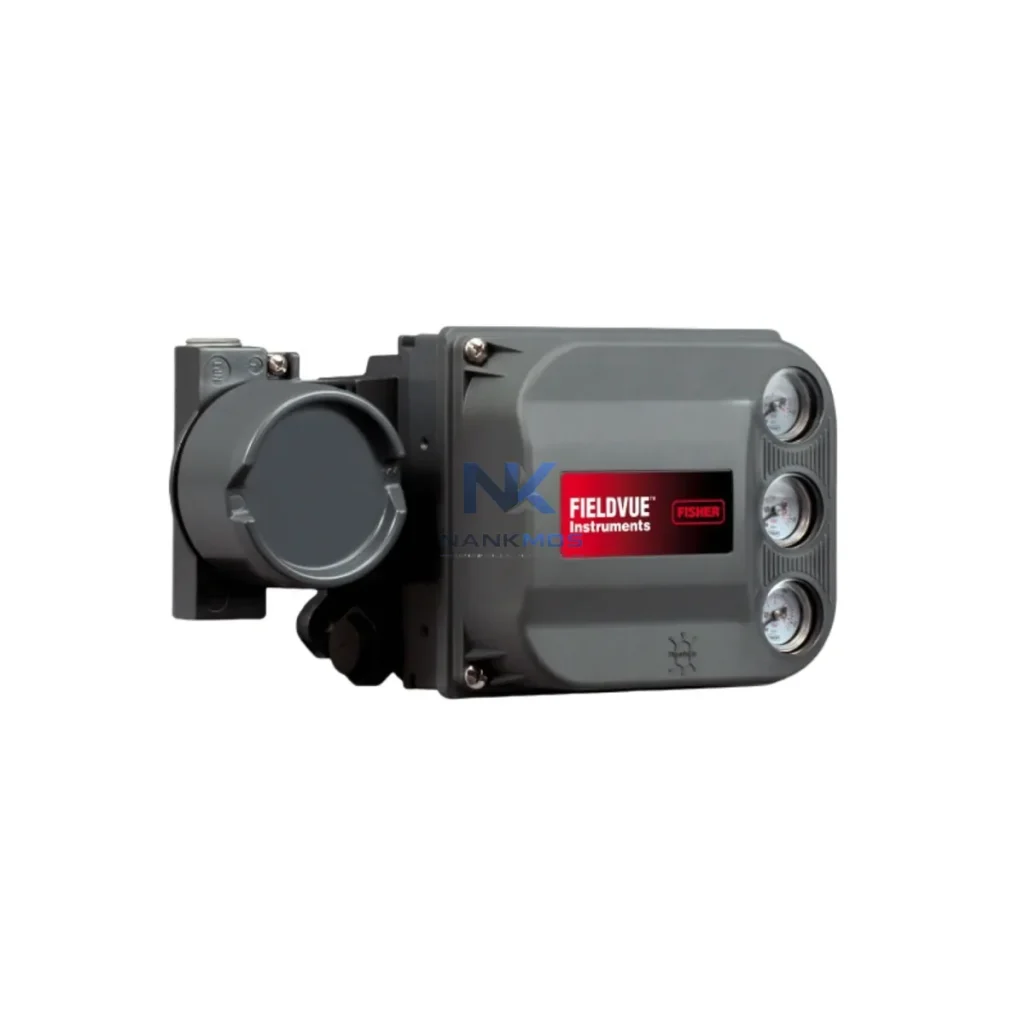

Emerson Fisher DVC6200 Digital Valve Controller

Product Details

DVC6200 Product Description

The Emerson Fisher DVC6200 is a HART-enabled digital valve controller from the FieldVue series, engineered to serve as a precision data node within modern industrial automation architectures. Designed for demanding process environments — including oil & gas, chemical processing, power generation, and water treatment — the DVC6200 bridges the gap between final control elements and upper-level supervisory systems, enabling seamless signal acquisition, real-time valve diagnostics, and bidirectional communication across the full automation data chain.

In a connected factory, every valve position, actuator response, and process deviation carries critical operational intelligence. The DVC6200 captures this intelligence at the source and transmits it upstream via the HART communication protocol, integrating directly with DCS platforms, SCADA systems, and asset management software such as Emerson AMS Device Manager. This makes the DVC6200 not merely a positioner, but a live data endpoint in your plant's digital infrastructure.

The DVC6200 occupies a critical position in the smart factory data flow — sitting at the intersection of the physical process layer and the digital control network. In a typical deployment, field sensors such as pressure transmitters and temperature sensors feed process variables into a Siemens S7-1500 PLC or Emerson DeltaV DCS via PROFIBUS PA or FOUNDATION Fieldbus segments. The DVC6200 receives its setpoint command from the DCS output card over the 4–20 mA HART loop, while simultaneously reporting valve travel, actuator pressure, and diagnostic status back upstream.

At the network layer, a Pepperl+Fuchs HART multiplexer or a Moxa NPort HART-to-Ethernet gateway aggregates HART data from multiple DVC6200 units across the valve manifold and forwards structured data packets to the plant SCADA server. This enables operators at the Wonderware InTouch HMI or Ignition SCADA workstation to monitor real-time valve position, output signal deviation, and actuator health — all without interrupting the live control loop.

For remote I/O architectures, the DVC6200 integrates cleanly with Emerson CHARM I/O or Rockwell Automation 1715 Redundant I/O modules, allowing distributed valve control across geographically separated process units. Edge computing nodes — such as the Advantech UNO-2484G Edge Gateway — can run local analytics on DVC6200 diagnostic data, flagging valve stiction, hysteresis drift, or actuator seal degradation before these conditions escalate into unplanned shutdowns.

In variable-speed drive applications, the DVC6200 works alongside ABB ACS880 variable frequency drives to coordinate flow control between throttling valves and pump speed, with both devices reporting to the same DCS loop for unified process optimization. Industrial Ethernet switches — such as the Hirschmann RSPE30 managed switch — provide the backbone network infrastructure that carries HART-over-IP and OPC-UA data streams from field devices to the control room, ensuring deterministic, low-latency data delivery across the automation hierarchy.

The complete data chain — from valve actuator through HART gateway, industrial switch, DCS, SCADA, and up to the MES/ERP layer — is designed for zero data gaps, giving plant engineers full visibility into every valve's operational state, maintenance history, and predictive health indicators.

Many industrial facilities operate with legacy valve positioners that provide no digital feedback, creating blind spots in process data coverage. The DVC6200 eliminates these gaps by replacing conventional pneumatic positioners with a fully communicating HART device that reports valve position, supply pressure, and actuator output in real time — without requiring new wiring infrastructure.

Protocol Fragmentation: In plants where PROFIBUS, Modbus RTU, and HART devices coexist, data integration is often manual and error-prone. The DVC6200's HART interface connects to HART-to-Modbus or HART-to-PROFIBUS converters, unifying valve data into the plant's existing protocol ecosystem without gateway conflicts.

Data Silos: Valve diagnostic data trapped in standalone handheld communicators (such as the Emerson 475 Field Communicator) can now be centralized through AMS Device Manager, making valve health records accessible to maintenance planners, reliability engineers, and operations teams from a single platform.

Remote Monitoring Gaps: For unmanned substations or remote pipeline stations, the DVC6200 paired with a WirelessHART adapter enables valve status reporting over ISA100 or WirelessHART mesh networks, eliminating the need for dedicated wired runs to remote valve clusters.

Production Line Transparency: Partial stroke testing (PST) capability allows safety-critical valves to be tested online during normal production, with test results logged automatically to the SIS historian — providing auditable proof of valve readiness without process interruption.

Alarm Tracking & System Expansion: The DVC6200 generates structured HART alerts for travel deviation, drive signal saturation, and sensor failure. These alerts propagate through the DCS alarm management system, enabling prioritized response and root-cause traceability. As plant capacity expands, additional DVC6200 units can be commissioned and integrated into the existing HART network without architectural changes.

Q1: What is the communication latency of the DVC6200 over a HART loop? HART communication operates at 1200 baud, with a typical command-response cycle of 250–500 ms per device. For time-critical control loops, the 4–20 mA analog signal provides continuous, real-time valve positioning independent of the HART digital channel, ensuring zero latency impact on the control loop itself.

Q2: Is the DVC6200 compatible with both HART 5 and HART 7 masters? Yes. The DVC6200 supports HART protocol revision 5 through 7, making it backward-compatible with legacy DCS HART I/O cards while also supporting HART 7 features such as enhanced diagnostics, burst mode communication, and multi-drop addressing for newer control platforms.

Q3: How does the DVC6200 support remote diagnostics and predictive maintenance? The DVC6200's ValveLink diagnostic suite — accessible via AMS Device Manager or HART-enabled DCS — performs automated valve signature tests, step response analysis, and friction quantification. Results are trended over time, enabling maintenance teams to schedule interventions based on actual valve condition rather than fixed time intervals, reducing both unplanned downtime and unnecessary maintenance costs.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the DVC6200? All DVC6200 units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification including HART communication check, travel calibration confirmation, and enclosure integrity inspection. RFQ responses are provided within 24 hours, with stock availability confirmed at time of inquiry.
