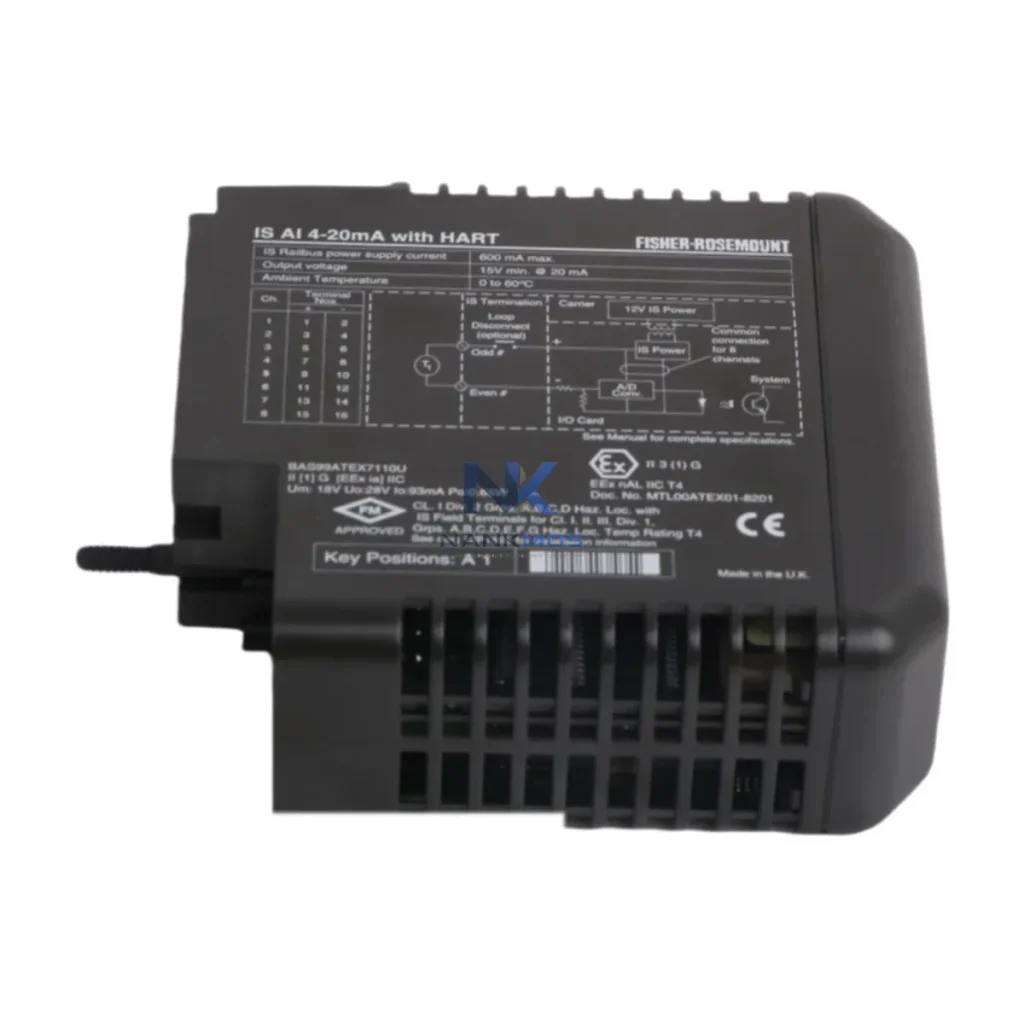

Emerson Fisher VE4012S2B2 KJ3102X1-BA1 12P1863X032

Product Details

VE4012S2B2 KJ3102X1-BA1 12P1863X032 Product Description

The Emerson 12P1863X032 (VE4012S2B2 / KJ3102X1-BA1) is not a standalone component — it is a precision execution-layer module engineered for seamless contextual integration within Emerson's broader DeltaV and Ovation distributed control ecosystems. Understanding its role requires examining the full automation stack from which it draws its operational context.

At the control layer, the 12P1863X032 receives setpoint commands from DeltaV M-Series or DeltaV S-Series controllers, which manage loop execution, PID tuning, and cascade control strategies. These controllers communicate via the DeltaV CHARM I/O architecture or traditional marshalled I/O panels, ensuring deterministic signal delivery to the actuator's positioner circuit. In Ovation-based power generation environments, the Ovation OCR400 controller card performs an equivalent role, issuing 4–20 mA or HART digital commands that the VE Series actuator translates into precise valve stem positioning.

At the I/O layer, the KJ3102X1-BA1 sub-assembly interfaces directly with DeltaV CHARM I/O modules — specifically the CHARMS Electronic Marshalling system — enabling flexible, software-defined signal routing without physical rewiring. This dramatically reduces commissioning time in brownfield upgrades where legacy wiring infrastructure must be preserved. The actuator's feedback signal (position, torque, temperature) is returned to the I/O layer via the same HART channel, enabling closed-loop diagnostics without additional wiring.

At the communication layer, HART 7 protocol support allows the 12P1863X032 to coexist with Emerson AMS Device Manager for continuous asset health monitoring. AMS Device Manager aggregates diagnostic data from the VE Series actuator alongside Fisher FIELDVUE DVC6200 digital valve controllers, Rosemount 3051 pressure transmitters, and Micro Motion Coriolis flow meters — creating a unified device health dashboard accessible from the DeltaV operator workstation. This multi-device diagnostic integration is central to the contextual integration value proposition of the VE Series platform.

At the power layer, the actuator's 24 VDC or 120/240 VAC power input is typically sourced from a dedicated instrument power distribution panel, often protected by Phoenix Contact or Weidmuller DIN-rail power supplies with redundant feed capability. In safety-critical applications, an uninterruptible power supply (UPS) module ensures actuator availability during grid disturbances — a requirement common in nuclear auxiliary systems and offshore platform control rooms.

At the HMI layer, DeltaV Operate or Emerson Syncade MES provides the operator interface through which the 12P1863X032's position, fault status, and diagnostic alerts are visualized. Operators can initiate partial stroke tests (PST) directly from the HMI without field intervention, validating actuator mechanical integrity while the process remains online. This capability is particularly valued in SIL 2/3 safety instrumented systems where proof-test intervals must be minimized.

At the protection layer, the VE Series actuator integrates with Emerson's SIS (Safety Instrumented System) architecture via the DeltaV SIS controller, which monitors actuator position feedback against safe-state logic defined in the Safety Requirements Specification (SRS). In the event of a process deviation, the SIS controller can command the 12P1863X032 to drive the valve to its fail-safe position — open, closed, or last position — within the required response time. This tight coupling between the execution layer and the protection layer is a defining characteristic of the VE Series' system-matched design philosophy.

At the maintenance layer, the actuator's embedded diagnostics — accessible via AMS Device Manager or a HART communicator such as the Emerson 475 Field Communicator — provide torque signature analysis, travel deviation alerts, and cycle count tracking. These data points feed into a predictive maintenance workflow that reduces unplanned downtime and extends actuator service life beyond the standard 12-Month Warranty baseline. All units supplied by NANKMOS are pre-shipment tested against Emerson factory acceptance criteria, with test records available upon request.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the 12P1863X032 controls feedwater control valves, steam bypass valves, and fuel gas shutoff valves within Ovation DCS loops. Its IP66 enclosure and wide operating temperature range make it suitable for turbine hall environments where ambient conditions are demanding. Partial stroke testing capability supports compliance with IEC 61511 proof-test requirements without process shutdown.

Petrochemical and Refining: In atmospheric distillation units, catalytic crackers, and hydrocracker fractionation columns, the VE Series actuator manages reflux control valves, overhead condenser bypass valves, and product rundown valves. HART diagnostics enable continuous valve health monitoring within Honeywell Experion or ABB 800xA DCS environments via HART multiplexers, ensuring cross-platform contextual integration even in non-Emerson control rooms.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the 12P1863X032 on filter backwash valves, chemical dosing control valves, and effluent discharge gates. The actuator's corrosion-resistant NEMA 4X enclosure withstands the humid, chemically aggressive environments typical of chlorination and ozonation systems. Remote diagnostics via AMS reduce the need for field technician visits in geographically dispersed water networks.

Mining and Mineral Processing: In flotation cell feed control, thickener underflow, and tailings pipeline applications, the VE Series actuator handles slurry control valves subject to high cycle rates and abrasive media. Torque monitoring diagnostics detect early signs of valve seat wear or stem packing degradation, enabling condition-based maintenance scheduling that reduces unplanned production stoppages.

Marine and Offshore: On FPSO vessels and offshore production platforms, the 12P1863X032 is deployed in cargo transfer valve control, ballast system automation, and gas compression bypass applications. Its compact form factor and vibration-resistant design meet DNV GL and ABS marine certification requirements, while HART communication enables integration with vessel automation systems (VAS) and integrated bridge systems (IBS).

Q1: Is the Emerson 12P1863X032 compatible with non-Emerson DCS platforms such as Siemens PCS 7 or Honeywell Experion? Yes. The 12P1863X032 accepts standard 4–20 mA analog control signals and supports HART 7 protocol, which is universally compatible with any DCS platform equipped with HART-capable I/O cards or HART multiplexers. In Siemens PCS 7 environments, the actuator integrates via SIMATIC PDM (Process Device Manager) using the Emerson EDDL device description. In Honeywell Experion systems, HART pass-through via the C300 controller's HART I/O module enables full diagnostic access. No proprietary fieldbus adapter is required for basic control loop integration.

Q2: What are the redundancy and fail-safe architecture options for the VE Series actuator in SIL-rated applications? The 12P1863X032 supports fail-safe positioning (fail-open, fail-closed, or fail-last) configurable via the KJ3102X1-BA1 positioner sub-assembly. For SIL 2 applications per IEC 61511, the actuator can be integrated into a 1oo2 (one-out-of-two) or 2oo3 voting architecture using the DeltaV SIS controller, with independent position feedback channels providing diagnostic coverage. Partial stroke testing (PST) is supported natively, enabling proof-test intervals to be extended without process shutdown — a critical requirement for continuous process industries where valve proof-testing traditionally requires unit isolation.

Q3: What does NANKMOS's 12-Month Warranty cover, and what is the typical lead time for the 12P1863X032? NANKMOS provides a 12-Month Warranty covering manufacturing defects, electrical component failures, and positioner calibration drift under normal operating conditions. All units undergo pre-shipment functional testing including stroke calibration, HART communication verification, torque output measurement, and enclosure integrity inspection before dispatch. In-stock units are typically available for same-week shipment. For project-volume procurement or expedited delivery requirements, contact NANKMOS directly at [email protected] or +86 18359268345 to confirm current inventory status and lead time commitments.
