Fuji EP-3959E-C EP-3959E-C2 Circuit Board

Product Details

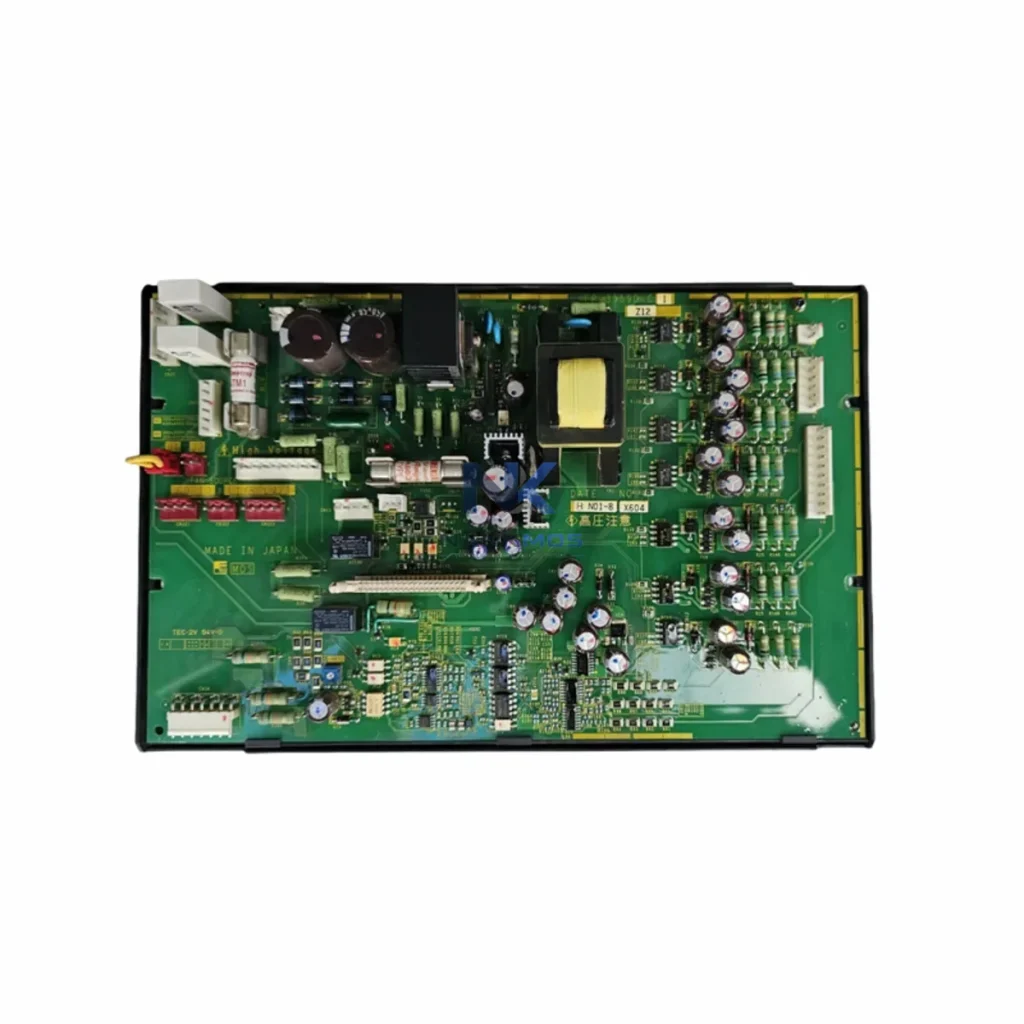

EP-3959E-C EP-3959E-C2 Product Description

The Fuji EP-3959E-C (also catalogued as EP-3959E-C2) is a precision energy-control circuit board engineered for the Fuji EP series of industrial drives and automation systems. Designed to operate within high-demand manufacturing environments, this board directly governs power distribution, switching logic, and load regulation within the drive's control architecture — making it a critical component for factories pursuing measurable reductions in energy consumption, thermal output, and unplanned downtime.

As industrial facilities face increasing pressure to reduce operational energy costs and meet sustainability benchmarks, the role of drive-level circuit boards like the EP-3959E-C has expanded beyond simple signal processing. This board actively participates in the energy management loop: regulating gate drive signals, managing DC bus feedback, and coordinating with the drive's internal power supply rails to ensure that only the energy required for the current load profile is drawn from the grid. The result is a leaner, more responsive drive system that adapts to production demand in real time.

Every unit supplied by NANKMOS is sourced from verified inventory channels, subjected to functional load testing prior to dispatch, and backed by a 12-Month Warranty — ensuring that your production line receives a component that performs to specification from day one.

The EP-3959E-C does not operate in isolation — its energy-control function is most effective when integrated within a coordinated automation architecture. In a typical EP series drive installation, this circuit board interfaces directly with the drive's Fuji EP series IGBT gate driver board, receiving switching commands and translating them into precise, low-loss power transitions. Upstream, the board communicates with the drive's main control PCB, which processes speed references and torque commands issued by a connected PLC — such as a Fuji MICREX-SX or equivalent programmable logic controller managing the production cell.

On the power input side, the EP-3959E-C works in concert with the drive's internal DC bus capacitor bank and rectifier module to stabilize the intermediate voltage rail. Any fluctuation in bus voltage — caused by regenerative braking events from a connected servo drive or sudden load changes on a variable frequency drive (VFD) controlling a pump or compressor — is absorbed and regulated before it can propagate to the control logic layer. This protects sensitive downstream components and prevents nuisance trips that would otherwise interrupt production rhythm.

For facilities running energy monitoring programs, the EP-3959E-C's stable switching behavior produces cleaner current waveforms that are easier to measure accurately with power monitoring modules or power quality analyzers installed at the MCC or panel level. When paired with an I/O expansion module feeding real-time status signals to a SCADA system or energy management platform, operators gain visibility into drive-level power consumption trends — enabling data-driven decisions about load scheduling and peak demand management.

In lines where HMI terminals display live drive parameters, the board's consistent performance ensures that the values shown — output frequency, motor current, DC bus voltage — accurately reflect actual operating conditions rather than artifacts of unstable switching. This reliability is equally important for communication gateway modules (such as PROFIBUS or Modbus RTU adapters) that relay drive status to higher-level control systems, where any data inconsistency can trigger false alarms or incorrect corrective actions.

The primary energy benefit of a well-functioning EP-3959E-C lies in its ability to maintain precise switching timing across the full speed range of the connected motor. When switching events are poorly timed — due to a degraded or failed circuit board — the drive compensates by drawing excess current, generating additional heat, and operating the motor at suboptimal efficiency points. Over a production shift, these inefficiencies accumulate into measurable increases in energy consumption and cooling load.

By restoring the drive's switching accuracy, the EP-3959E-C directly reduces the thermal burden on the drive enclosure. Lower operating temperatures extend the service life of adjacent components — including the drive cooling fan assembly, electrolytic capacitors, and thermistor sensors monitoring internal temperature — and reduce the frequency of thermal-triggered derating events that slow motor output and disrupt production takt time.

In multi-drive production lines — such as those found in textile, packaging, food processing, or material handling applications — the cumulative effect of optimized switching across several EP series drives can reduce total line energy consumption by a meaningful margin. When each drive in the line operates at its designed efficiency point, the aggregate demand presented to the facility's power infrastructure is lower and more predictable, reducing peak demand charges and improving power factor without additional correction equipment.

From a maintenance perspective, replacing a suspect EP-3959E-C before it causes a drive fault is a straightforward predictive maintenance action that avoids the far greater cost of an unplanned line stoppage. NANKMOS maintains ready inventory of this board specifically to support rapid-response maintenance scenarios, with same-day dispatch available for in-stock units. The included 12-Month Warranty provides additional assurance that the replacement component will perform reliably throughout the warranty period — and the pre-shipment functional test means the board arrives verified, not just visually inspected.

Q1: How does the EP-3959E-C contribute to energy savings in an EP series drive system? The board governs the gate switching signals that control the drive's IGBT power stage. Precise, correctly timed switching minimizes switching losses, reduces heat generation, and keeps the motor operating at its designed efficiency curve. A degraded board introduces timing errors that increase losses across every switching cycle — replacing it restores the drive's designed energy performance.

Q2: Is the EP-3959E-C compatible with both EP-3959E-C and EP-3959E-C2 designations? Yes. The EP-3959E-C and EP-3959E-C2 are functionally equivalent revisions within the same Fuji EP series board family. NANKMOS supplies units verified against both part numbers. If you are unsure which revision is installed in your drive, please contact us with your drive's full model number and we will confirm compatibility before shipment.

Q3: What testing is performed before shipment, and what does the 12-Month Warranty cover? Every EP-3959E-C unit undergoes a functional load test simulating normal drive operating conditions prior to dispatch. The 12-Month Warranty covers component failure under normal operating conditions from the date of receipt. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed directly through NANKMOS with priority turnaround.

Q4: How quickly can a replacement EP-3959E-C be dispatched for an urgent maintenance situation? NANKMOS maintains standing inventory of the EP-3959E-C to support unplanned maintenance scenarios. In-stock units are available for same-day dispatch on confirmed orders placed before the daily cut-off. Contact [email protected] or +86 18359268345 to confirm current stock status and arrange expedited shipment.
