Det-Tronics EQ2100LC Safety Logic Controller

Product Details

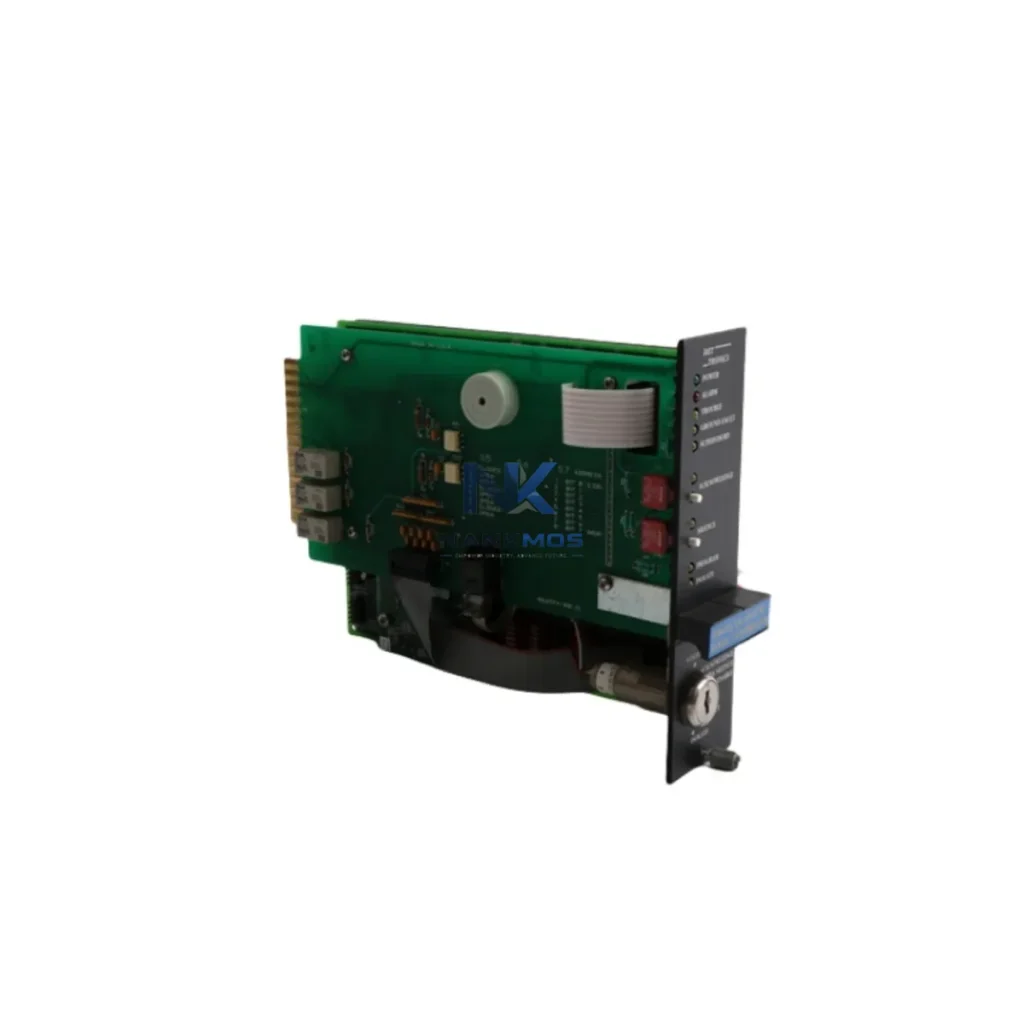

EQ2100LC Product Description

The Det-Tronics EQ2100LC is a SIL 2-rated Safety Logic Controller engineered as the central decision-making node within the Eagle Quantum Premier (EQP) fire and gas detection architecture. Designed for hazardous industrial environments, the EQ2100LC coordinates signal acquisition, logic execution, and alarm output across a fully distributed safety instrumented system (SIS). Its role extends beyond standalone detection — it functions as the architectural backbone that binds detector modules, I/O expansion cards, communication gateways, and operator interfaces into a coherent, validated safety platform.

In modern industrial control architecture, the EQ2100LC occupies the control layer, receiving conditioned signals from field-mounted detectors and transmitting validated alarm states to the execution and protection layers. Its deterministic scan cycle ensures that safety logic is executed within defined response times, meeting the functional safety requirements of IEC 61508 and IEC 61511 for process industries. The controller supports modular rack expansion, enabling engineers to scale the system from compact single-rack configurations to multi-rack distributed architectures without redesigning the core logic platform.

The EQ2100LC achieves its full architectural value when deployed within a coordinated Eagle Quantum Premier system. At the I/O layer, the EQ3700 Detector Interface Module and EQ3800 Analog Input Module provide conditioned field signals — including 4–20 mA toxic gas readings and discrete flame detector outputs — directly to the EQ2100LC's logic engine. These modules mount on the same EQP backplane, minimizing wiring complexity and ensuring signal integrity across the rack.

For power distribution, the EQ2200 System Power Supply delivers regulated 24 VDC to the controller and all associated I/O modules, with built-in redundancy support when paired with a secondary supply unit. This power architecture eliminates single points of failure at the supply layer, a critical requirement for SIL 2 system validation.

At the communication layer, the EQ5000 Gateway Module bridges the proprietary EQP bus to plant-level networks via Modbus TCP or OPC-DA, enabling the EQ2100LC's alarm states and diagnostic data to be visible on distributed control systems (DCS) such as Honeywell Experion PKS or Emerson DeltaV. This integration supports unified alarm management across heterogeneous control platforms without requiring additional protocol converters.

Operator interaction is handled through the EQ2400 Operator Interface Terminal, which provides a dedicated HMI layer for alarm acknowledgment, system status review, and manual override functions. When combined with the EQ2100LC's logic outputs, the operator interface enables rapid incident response without requiring access to the central DCS workstation — a significant advantage in remote or unmanned facilities.

For output and execution, the EQ2100LC drives relay output modules such as the EQ3600 Relay Output Module, which activates suppression systems, audible/visual alarms, and emergency shutdown (ESD) interlocks. The relay outputs are individually configurable for latching or non-latching behavior, supporting diverse process safety requirements across manufacturing, petrochemical, and offshore applications.

In redundant architecture deployments, the EQ2100LC can be paired with a secondary controller in a hot-standby configuration, with automatic failover managed at the backplane level. This redundancy design is particularly relevant for continuous process industries — including LNG terminals, offshore platforms, and chemical reactors — where controller downtime is not operationally acceptable. Signal isolation modules, such as the EQ3500 Signal Conditioner, further protect the controller's input circuits from field-side transients and ground loops, preserving measurement accuracy and extending module service life.

Industrial Ethernet switches compatible with EQP communication infrastructure — including managed switches supporting PROFINET or Modbus TCP — complete the network layer, ensuring deterministic communication latency between the EQ2100LC and supervisory systems. Together, these components form a validated, multi-layer safety architecture that supports modular expansion, long-term maintainability, and documented functional safety compliance.

The EQ2100LC is deployed across a broad range of high-consequence industrial environments where functional safety and system reliability are non-negotiable requirements:

Oil, Gas, and Petrochemical: In upstream and midstream facilities, the EQ2100LC manages fire and gas detection logic across compressor stations, wellhead control buildings, and pipeline metering skids. Its SIL 2 rating satisfies the safety requirements of IEC 61511 process safety management frameworks, and its modular I/O architecture accommodates the diverse detector types — catalytic bead, infrared, electrochemical, and UV/IR flame — common in hydrocarbon processing environments.

Power Generation and Utilities: Gas turbine enclosures, transformer substations, and battery energy storage systems (BESS) require continuous fire and gas monitoring with deterministic alarm response. The EQ2100LC's fast scan cycle and direct relay output capability enable sub-second response to combustible gas accumulation or flame events, protecting critical generation assets and grid infrastructure.

Marine and Offshore: Offshore platforms and LNG carriers operate in environments where space constraints, vibration, and salt-laden atmospheres challenge conventional control hardware. The EQ2100LC's compact rack form factor, wide operating temperature range, and hazardous area certification make it suitable for machinery spaces, pump rooms, and cargo monitoring systems aboard vessels and fixed offshore installations.

Mining and Metals: Underground mining operations and surface smelting facilities present combustible dust and toxic gas hazards that require continuous monitoring and rapid automated response. The EQ2100LC integrates with belt conveyor fire detection systems, crusher enclosure gas monitors, and ventilation control interlocks, providing a unified safety logic platform across the mine site.

Water and Wastewater Treatment: Chlorine gas handling, biogas generation from anaerobic digesters, and confined space entry monitoring in pump stations all benefit from the EQ2100LC's multi-channel detection logic and configurable alarm thresholds. Its ability to interface with SCADA systems via Modbus TCP supports centralized monitoring of distributed water infrastructure assets.

Q1: Is the EQ2100LC compatible with third-party detectors outside the Eagle Quantum Premier ecosystem?The EQ2100LC is optimized for use with Det-Tronics EQP-series detector and I/O modules, which communicate via the proprietary EQP bus protocol. Integration of third-party detectors is possible through analog (4–20 mA) or discrete input modules such as the EQ3800, provided the detector's output signal type is compatible. For full SIL 2 system validation, all field devices must be included in the safety function assessment, and third-party devices require independent SIL certification documentation. Consult the EQP System Design Guide for validated device compatibility lists.

Q2: What are the rack expansion limits for the EQ2100LC, and how does expansion affect system response time?The EQP architecture supports multiple I/O racks connected to a single EQ2100LC via the EQP communication bus. Each additional rack introduces a defined communication cycle increment; the EQ2100LC's logic scan cycle is deterministic and documented in the system engineering manual. For large-scale deployments requiring more than the single-controller I/O capacity, a multi-controller architecture with dedicated gateway modules is recommended to maintain response time compliance with the safety function's required response time (RRT) as defined in the SIL verification report.

Q3: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every EQ2100LC unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-up self-diagnostic confirmation, communication bus integrity check, and I/O channel response validation. Units are shipped in original or equivalent protective packaging with serialized documentation. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions as specified in the product datasheet. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
