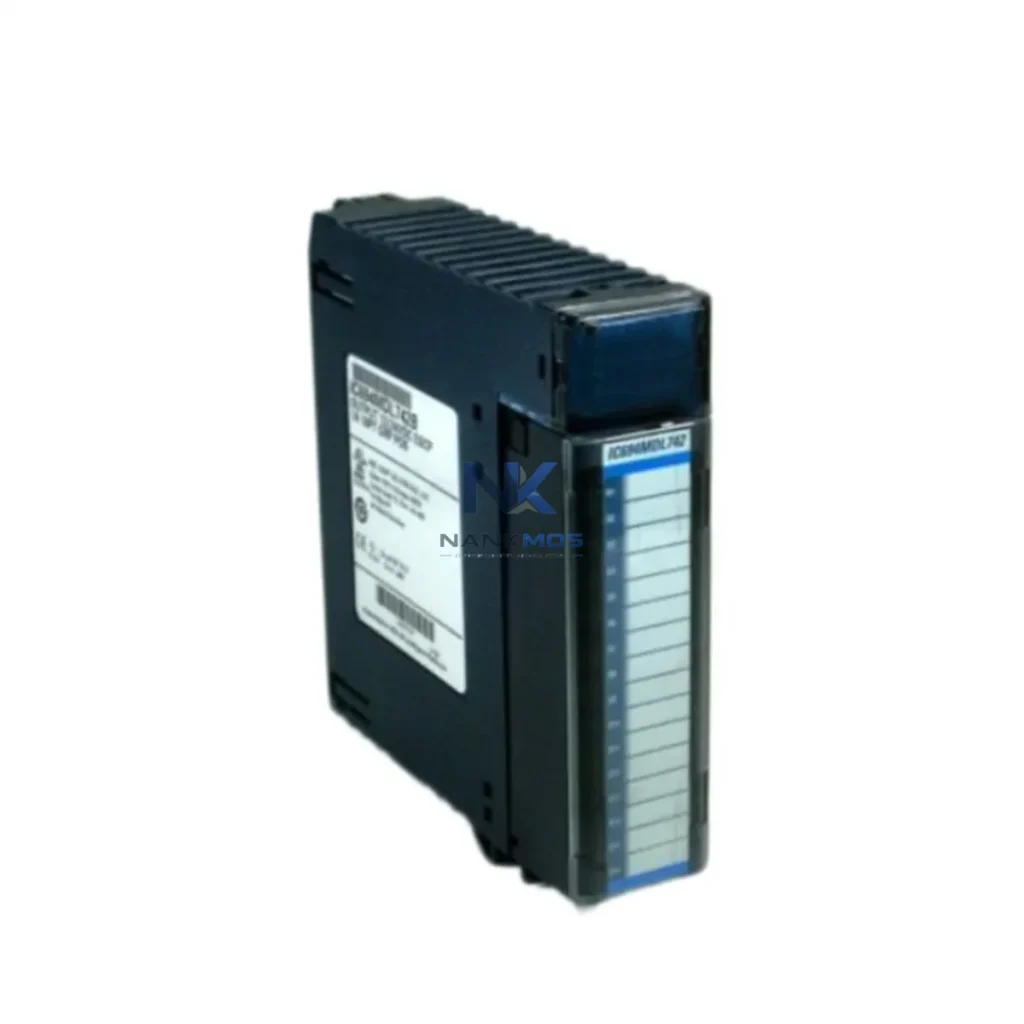

GE (General Electric) IC694MDL742 PLC Output Module

Product Details

IC694MDL742 Product Description

The GE IC694MDL742 is a high-density discrete output module engineered for the GE Series 90-30 PLC platform, delivering precise load switching, reduced energy waste, and reliable production-line control in demanding industrial environments. Designed for smart manufacturing, this module enables deterministic output control that directly supports energy optimization strategies across motor-driven systems, conveyor lines, valve actuators, and process equipment. With 32 relay-compatible discrete output channels, the IC694MDL742 integrates seamlessly into energy-aware automation architectures where every switching cycle contributes to measurable efficiency gains.

In a fully integrated energy-control architecture, the IC694MDL742 operates as the command execution layer for load management decisions made upstream by the GE Series 90-30 CPU — typically an IC694CPU374 or IC694CPU378 — which processes real-time energy data and issues output commands based on programmed efficiency logic. When paired with a GE IC694ALG222 analog input module monitoring current draw from motor starters or heating elements, the CPU can dynamically adjust which output channels remain energized, reducing idle-state power consumption across the production floor.

For motor control applications, the IC694MDL742 works in tandem with variable frequency drives (VFDs) such as the ABB ACS580 or Yaskawa GA700 series, where the PLC output triggers drive enable/disable signals based on production demand — eliminating full-speed motor operation during low-throughput periods. This load-shedding strategy, coordinated through the IC694MDL742's 32 output channels, can reduce motor energy consumption by 20–40% in conveyor and pump applications.

The module also interfaces with GE IC694MDL654 discrete input modules to create closed-loop feedback circuits: output states are confirmed by field-level sensors, and any mismatch triggers an alarm routed to the HMI — typically a GE QuickPanel+ or Weintek cMT series — ensuring operators have real-time visibility into load status without manual inspection. For power monitoring, integration with a Carlo Gavazzi EM24 or Schneider Electric PowerLogic PM5000 power meter via Modbus RTU (bridged through a GE IC694CMM002 communications module) allows the PLC to log energy consumption per output zone, feeding data into a SCADA system such as GE Proficy iFIX or Ignition for trend analysis and energy reporting.

In safety-critical zones, the IC694MDL742 output channels can be mapped to GE IC694MDL940 relay output modules for high-current switching, while the IC694MDL742 handles the majority of standard 24VDC and 120VAC loads — distributing thermal load across the panel and preventing localized overheating that degrades component lifespan and increases cooling energy demand.

Factory energy optimization begins with granular control over every load on the production line, and the IC694MDL742 provides exactly that. By replacing legacy relay panels with this high-density PLC output module, manufacturers eliminate the parasitic draw of coil-energized relays, reduce panel wiring complexity, and gain software-configurable output logic that can be updated without hardware changes. This flexibility is critical for implementing demand-response strategies — where non-essential loads are shed during peak tariff periods — without halting production.

The IC694MDL742 supports production-line rhythm optimization by enabling precise sequencing of actuators, conveyors, and auxiliary equipment. Rather than running all systems simultaneously, the PLC can stagger start sequences to reduce inrush current peaks, protecting upstream power distribution equipment and lowering peak demand charges. Combined with predictive maintenance data from vibration sensors and thermal cameras integrated via the GE Series 90-30 I/O bus, the system can pre-emptively reduce load on equipment showing early signs of degradation — preventing unplanned downtime that disrupts production schedules and wastes energy on restart cycles.

All units are tested under load prior to shipment to verify output switching accuracy, leakage current compliance, and thermal performance. Stock is maintained for immediate dispatch, with lead times clearly communicated at the time of order. The included 12-Month Warranty covers all manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence to standardize on the IC694MDL742 across multi-line facilities.

Q1: How does the IC694MDL742 contribute to measurable energy savings on the production line?By replacing discrete relay banks with software-controlled outputs, the IC694MDL742 eliminates coil power draw and enables demand-based load scheduling through the Series 90-30 CPU. When integrated with power monitoring modules and VFDs, the system can reduce non-productive energy consumption by selectively de-energizing outputs during idle periods — delivering quantifiable kWh reductions per shift.

Q2: Is the IC694MDL742 compatible with existing GE Series 90-30 racks and CPUs?Yes. The IC694MDL742 is fully compatible with all standard GE Series 90-30 5-slot, 10-slot, and expansion racks. It operates with IC693 and IC694 series CPUs and is configurable via GE Proficy Machine Edition without hardware modification. For RX3i migration projects, an IC694ACC300 adapter enables backward-compatible installation.

Q3: What is the recommended replacement or upgrade path for aging IC694MDL742 units?For direct replacement, the IC694MDL742 is a drop-in substitute for earlier IC693MDL742 units. For system upgrades targeting higher channel density or faster scan times, the GE IC694MDL754 (32-point transistor output) offers solid-state switching with lower thermal output — suitable for high-cycle applications where relay wear is a concern.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every IC694MDL742 unit undergoes functional output testing, insulation resistance verification, and backplane communication checks before dispatch. The 12-Month Warranty covers all defects in materials and workmanship under standard industrial operating conditions. Replacement or repair is provided at no charge within the warranty period, with expedited processing available for production-critical applications.
