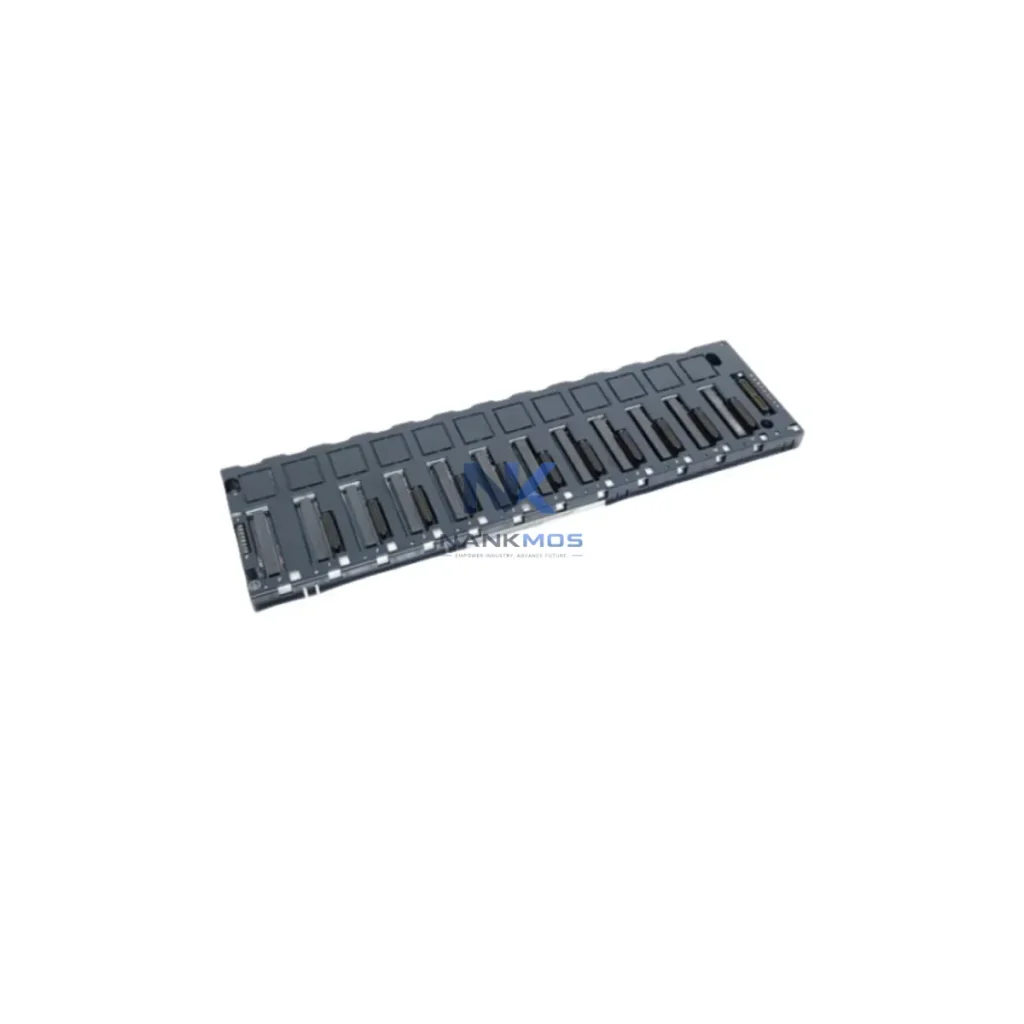

IC695CHS012-BA Product Description

The GE IC695CHS012-BA is a 12-slot universal backplane engineered for the PACSystems RX3i control platform, designed to serve as the structural and electrical backbone of energy-aware industrial automation systems. In modern manufacturing environments where energy cost, thermal load, and equipment uptime are tightly linked, the IC695CHS012-BA delivers a low-impedance, high-efficiency bus architecture that minimizes resistive losses across all installed modules — directly reducing unnecessary power draw at the rack level.

By providing stable, regulated power distribution to every slot, this backplane ensures that CPU modules such as the IC695CPE330 and IC695CPE302 operate within their optimal thermal envelope, avoiding the performance throttling and increased cooling demand that result from voltage instability. Consistent bus voltage also extends the service life of co-installed I/O modules, communication adapters, and specialty function cards, reducing the frequency of unplanned replacements and the associated production downtime.

The IC695CHS012-BA is the integration point for a complete energy-aware control architecture. When paired with the IC695PSA040 or IC695PSD040 power supply modules, the backplane delivers clean, regulated power rails that prevent voltage sag under dynamic load conditions — a critical factor in systems where servo drives and variable-frequency drives (VFDs) create rapid current transients on the shared power bus.

In a typical RX3i energy management deployment, the backplane hosts a combination of the IC695CPE330 CPU, IC695ETM001 Ethernet communication module, and IC695ALG626 analog input modules used for real-time power quality monitoring. The analog inputs receive 4–20 mA signals from current transformers and power transducers installed on motor feeders, enabling the PLC to calculate instantaneous kW demand and compare it against production-cycle setpoints. When demand exceeds threshold, the CPU can issue load-shedding commands to non-critical actuators via IC694MDL754 discrete output modules, reducing peak demand charges without interrupting the primary production sequence.

For motion-intensive lines, the backplane accommodates IC695CMX128 motion control modules that coordinate multi-axis servo systems. By synchronizing axis motion profiles with energy demand windows — accelerating during low-tariff periods and decelerating regeneratively during peak periods — the system converts kinetic energy back into usable bus power rather than dissipating it as heat through braking resistors. This regenerative strategy, managed through the RX3i CPU logic, can measurably reduce net energy consumption on high-cycle assembly lines.

Communication modules such as the IC695PBM300 PROFIBUS master or IC695ETM001 EtherNet/IP adapter installed in the backplane slots enable the RX3i to exchange real-time energy data with SCADA systems and MES platforms. This bidirectional data flow allows plant-level energy management systems to issue demand-response commands directly to the PLC, adjusting motor speed references on connected VFDs and optimizing compressor staging based on live production schedules.

Factory energy waste most commonly originates from three sources: motors running at fixed speed under variable load, equipment idling between production cycles, and thermal losses from undersized or degraded power infrastructure. The IC695CHS012-BA addresses all three by providing a stable, high-integrity platform for the control logic that manages each of these conditions.

When the RX3i CPU hosted on this backplane is programmed with energy-aware ladder or structured text logic, it can implement automatic speed reduction on conveyor drives during gap periods between product batches, stage compressor and chiller starts to avoid simultaneous inrush currents, and monitor motor current signatures through analog input modules to detect bearing wear or rotor imbalance before they cause thermal runaway. Early fault detection through current signature analysis reduces unplanned downtime and prevents the energy spike associated with emergency restarts of large induction motors.

The backplane's 12-slot capacity allows engineers to consolidate control functions that would otherwise require multiple smaller racks with separate power supplies — each carrying its own standby power overhead. Consolidation onto a single IC695CHS012-BA rack reduces total standby consumption, simplifies cabinet thermal management, and lowers the cooling load on the enclosure's HVAC system. In high-ambient-temperature environments, this reduction in internal heat generation directly extends the MTBF of all installed modules.

For facilities operating under ISO 50001 energy management frameworks or pursuing carbon reduction targets, the RX3i system built around the IC695CHS012-BA provides the data acquisition and control authority needed to implement measurable energy KPIs at the machine level — feeding real-time consumption data upward to plant historians and energy dashboards without requiring additional metering hardware.

Every IC695CHS012-BA unit supplied by NANKMOS is drawn from verified inventory, subjected to pre-shipment functional testing under load, and dispatched with full documentation. Stock is maintained for immediate availability to support both planned maintenance schedules and emergency replacement scenarios where production continuity depends on rapid component sourcing.

Q1: How does the IC695CHS012-BA contribute to measurable energy savings on a production line? The backplane itself reduces resistive bus losses compared to older-generation chassis designs, but its primary energy contribution is as the platform for RX3i control logic that manages motor speed, load scheduling, and demand response. When programmed with energy-aware sequences, the hosted CPU can reduce net site energy consumption by eliminating idle-speed waste, staggering motor starts, and enabling regenerative braking on servo axes.

Q2: Is the IC695CHS012-BA compatible with existing RX3i modules and power supplies already installed in our facility? Yes. The IC695CHS012-BA is fully compatible with the PACSystems RX3i module ecosystem, including IC695-series CPU, communication, analog, and motion modules, as well as IC695PSA040 and IC695PSD040 power supplies. It is backward-compatible with IC694-series I/O modules when used with the appropriate adapter, making it suitable for system expansions without requiring a full platform migration.

Q3: What is the recommended replacement and testing process when substituting a failed backplane in a live production environment? NANKMOS recommends a cold-swap procedure: power down the rack, document module slot positions, transfer modules to the replacement IC695CHS012-BA, restore power, and verify CPU startup and I/O scan cycle times before returning the line to automatic mode. Each unit supplied by NANKMOS has been pre-tested under load prior to shipment, reducing the risk of commissioning delays during emergency replacements.

Q4: What warranty and supply continuity does NANKMOS provide for the IC695CHS012-BA? All IC695CHS012-BA units are covered by a 12-month warranty from the date of shipment. NANKMOS maintains dedicated inventory of this part to support both scheduled maintenance and unplanned replacement requirements. Orders are processed for fast dispatch, and technical support is available to assist with compatibility verification and installation guidance.
