GE Automation & Controls IC697MDL250

Product Details

IC697MDL250 Product Description

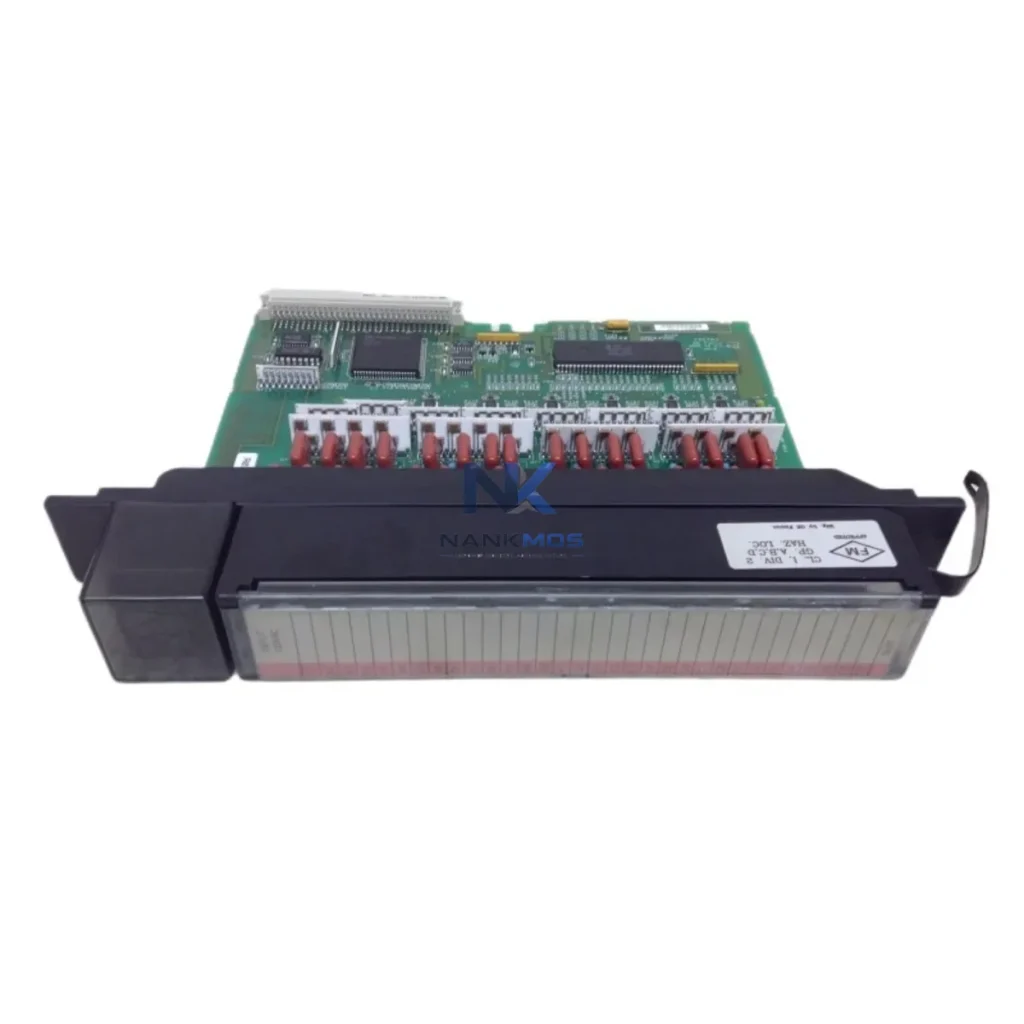

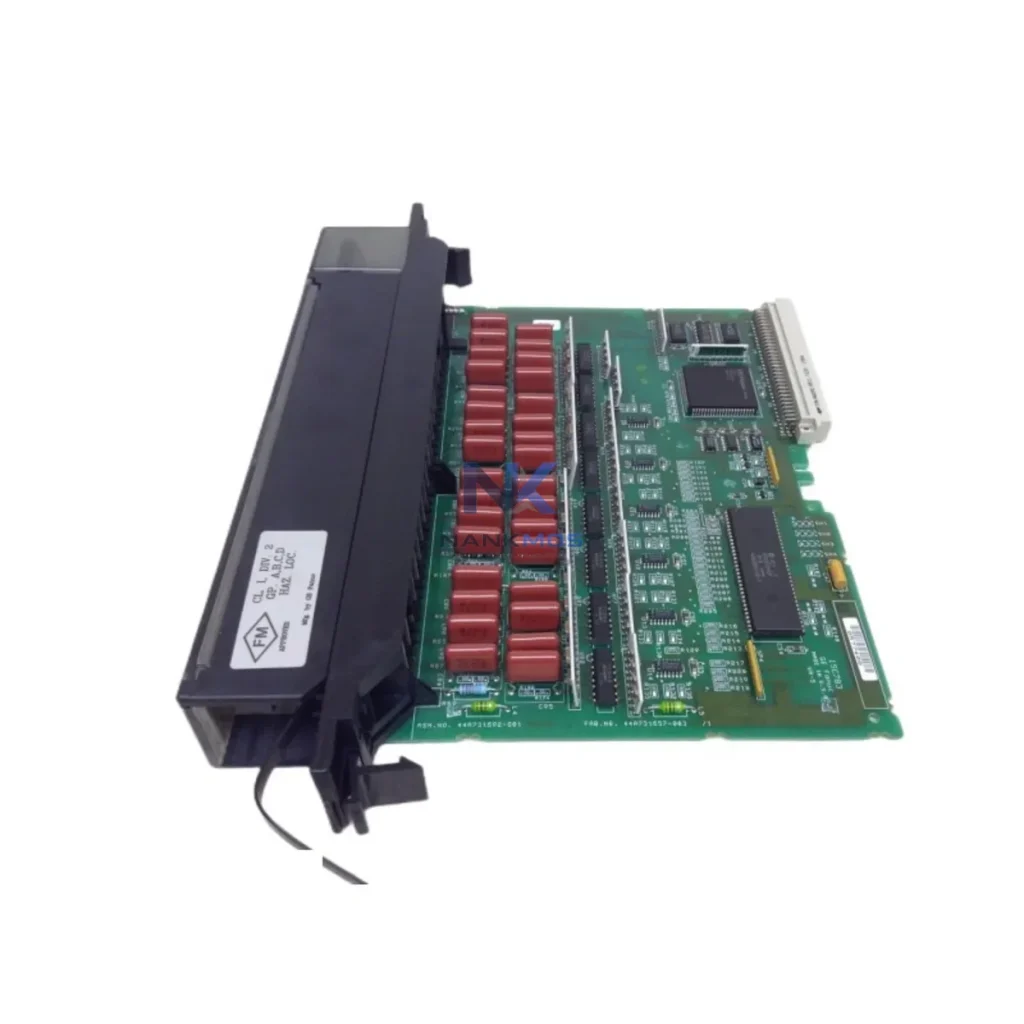

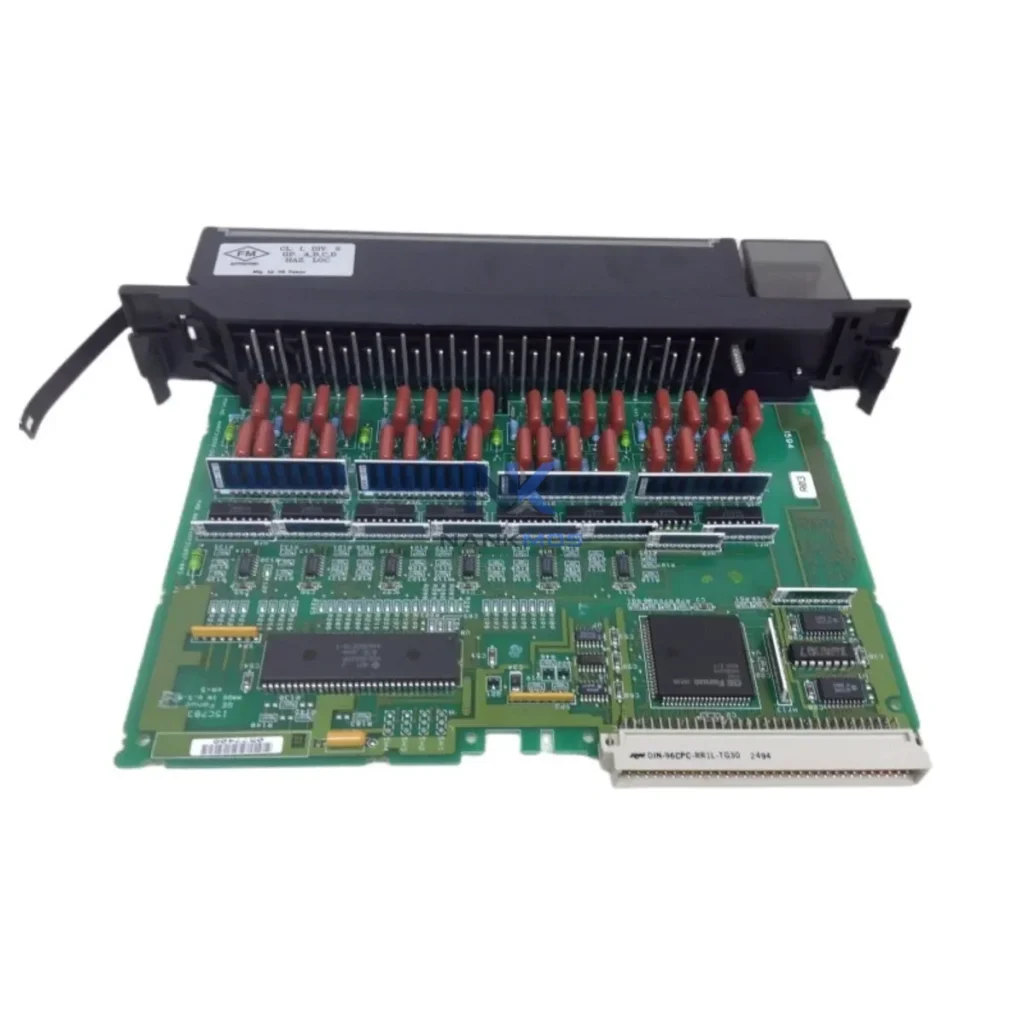

The GE IC697MDL250 is a 32-channel, 24VDC discrete input module engineered for the GE Series 90-70 programmable logic controller platform. Designed as a direct drop-in replacement for existing Series 90-70 rack installations, the IC697MDL250 delivers deterministic signal acquisition, high-density I/O consolidation, and seamless integration within multi-rack, multi-CPU control architectures. Whether deployed in a greenfield automation project or as a field-replacement component in a legacy production line, this module maintains full electrical and firmware compatibility with the Series 90-70 ecosystem, ensuring zero-compromise system continuity and long-term maintainability.

In modern industrial control environments, discrete input modules are not isolated components — they are the sensory layer of the entire control hierarchy. The IC697MDL250 interfaces directly with the Series 90-70 VME backplane, communicating field-level digital signals to the CPU module (such as the IC697CPU772 or IC697CPU781) through the rack bus with minimal scan-cycle latency. This tight integration between the I/O layer and the control layer is fundamental to achieving deterministic process response times in high-speed manufacturing, power distribution, and process control applications.

Each of the 32 input channels is optically isolated, providing robust protection against ground loops, transient voltage spikes, and common-mode noise — conditions routinely encountered in heavy industrial environments such as steel mills, chemical processing plants, and offshore platforms. The module's input circuitry is rated for 24VDC nominal field signals, compatible with the vast majority of proximity sensors, limit switches, pushbuttons, and relay contacts used across discrete manufacturing and process industries.

The IC697MDL250 achieves its full operational value when deployed as part of a cohesive Series 90-70 control platform. At the control layer, the IC697CPU772 or IC697CPU781 CPU module executes the ladder logic or function block programs that process the digital states reported by the IC697MDL250. The CPU communicates with all I/O modules — including the IC697MDL250 — through the IC697CHS750 or IC697CHS790 rack chassis, which provides the VME backplane interconnect and physical slot allocation for the entire I/O assembly.

Power integrity is foundational to reliable discrete input acquisition. The IC697PWR710 or IC697PWR724 power supply module provides regulated 5VDC and 24VDC rails to the rack, ensuring that the IC697MDL250's input circuitry and optical isolators operate within their specified voltage windows at all times. In redundant power architectures, dual power supply configurations using IC697PWR724 units can be deployed to eliminate single points of failure in critical process lines.

For applications requiring discrete output control in the same rack, the IC697MDL240 (32-channel 24VDC discrete output module) or IC697MDL340 (relay output module) can be installed alongside the IC697MDL250, creating a balanced I/O assembly within a single chassis. This co-location of input and output modules minimizes wiring runs between the control cabinet and field devices, reducing installation labor and improving signal integrity.

In distributed control architectures, the IC697BEM711 Bus Expansion Module or IC697CMM742 communications module enables the Series 90-70 rack to participate in Genius Bus or Ethernet-based supervisory networks, allowing the IC697MDL250's field data to be aggregated at a SCADA or DCS level. Integration with GE's Proficy HMI/SCADA platform or third-party SCADA systems via the IC697CMM742 Ethernet module provides operators with real-time visibility into discrete field states, alarm management, and historical trending — all sourced from the IC697MDL250's 32 input channels.

For applications requiring analog signal acquisition alongside discrete inputs, the IC697ALG220 or IC697ALG230 analog input modules can be installed in adjacent rack slots, enabling mixed I/O architectures that handle both digital and analog process variables within a single Series 90-70 rack. This modularity is a defining characteristic of the Series 90-70 platform and a key reason for its continued deployment in long-lifecycle industrial facilities.

Discrete Manufacturing & Assembly Lines: In automotive body-in-white welding lines, the IC697MDL250 monitors proximity sensor arrays, part-present detectors, and safety interlock switches across multi-station transfer lines. Its 32-channel density allows a single module to cover an entire workstation's discrete input requirements, reducing rack slot consumption and simplifying PLC program organization.

Power Generation & Electrical Substations: In thermal power plants and HV/MV substation automation panels, the IC697MDL250 acquires breaker status, isolator position feedback, and protection relay trip signals. The module's optical isolation is critical in these environments, where ground potential differences between field devices and the control panel can reach tens of volts.

Petrochemical & Refinery Process Control: In distillation column control systems and compressor train monitoring applications, the IC697MDL250 interfaces with vibration switches, high-level switches, and emergency shutdown (ESD) pushbuttons. Its deterministic scan-cycle behavior ensures that ESD signals are processed within the CPU's guaranteed response time, supporting SIL-rated safety architectures when combined with appropriate safety-rated CPUs and I/O modules.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the IC697MDL250 to monitor pump run/fail status, valve open/closed feedback, and flow switch states across lift stations and filtration trains. The module's wide operating temperature range supports installation in outdoor control enclosures subject to seasonal temperature variation.

Mining & Mineral Processing: In conveyor belt control systems and crusher automation panels, the IC697MDL250 monitors belt alignment switches, pull-cord emergency stops, and motor thermal overload contacts. Its robust optical isolation protects the PLC backplane from the high levels of electrical noise generated by large variable-frequency drives and motor starters common in mining environments.

Packaging & Material Handling: High-speed packaging lines use the IC697MDL250 to track product presence, reject gate positions, and accumulation conveyor states. The module's fast input response time supports the high-cycle-rate sensing requirements of modern packaging machinery operating at hundreds of cycles per minute.

Q1: Is the IC697MDL250 compatible with all Series 90-70 rack chassis and CPU modules? Yes. The IC697MDL250 is fully compatible with all standard Series 90-70 rack chassis, including the IC697CHS750 (5-slot), IC697CHS782 (9-slot), and IC697CHS790 (9-slot with expanded I/O capacity), as well as all Series 90-70 CPU modules including the IC697CPU772, IC697CPU781, and IC697CPU788. No firmware upgrades or configuration changes are required when replacing an existing IC697MDL250 in a running system — the module is recognized automatically by the CPU during the rack scan cycle, ensuring zero-downtime replacement in maintenance scenarios.

Q2: Can the IC697MDL250 be used in a redundant CPU architecture, and how does it behave during CPU switchover? The IC697MDL250 is fully compatible with Series 90-70 redundant CPU configurations using the IC697CPU788 or IC697RCM711 redundancy control module. In a redundant architecture, both the primary and secondary CPUs continuously scan the I/O rack, including the IC697MDL250's input channels. During a CPU switchover event, the secondary CPU assumes control with the last-known input states already resident in its memory, ensuring bumpless transfer and uninterrupted process monitoring. The IC697MDL250's backplane interface does not require any special configuration for redundant operation — compatibility is inherent to the Series 90-70 platform design.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or advance replacement? All IC697MDL250 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance to GE's published specifications. In the event of a warranty claim, NANKMOS provides advance replacement service — a replacement unit is dispatched before the defective module is returned, minimizing production downtime. Each module undergoes pre-shipment functional testing, including backplane communication verification and per-channel input state testing, with test records available upon request. For warranty claims or technical support, contact [email protected] or +86 18359268345.
