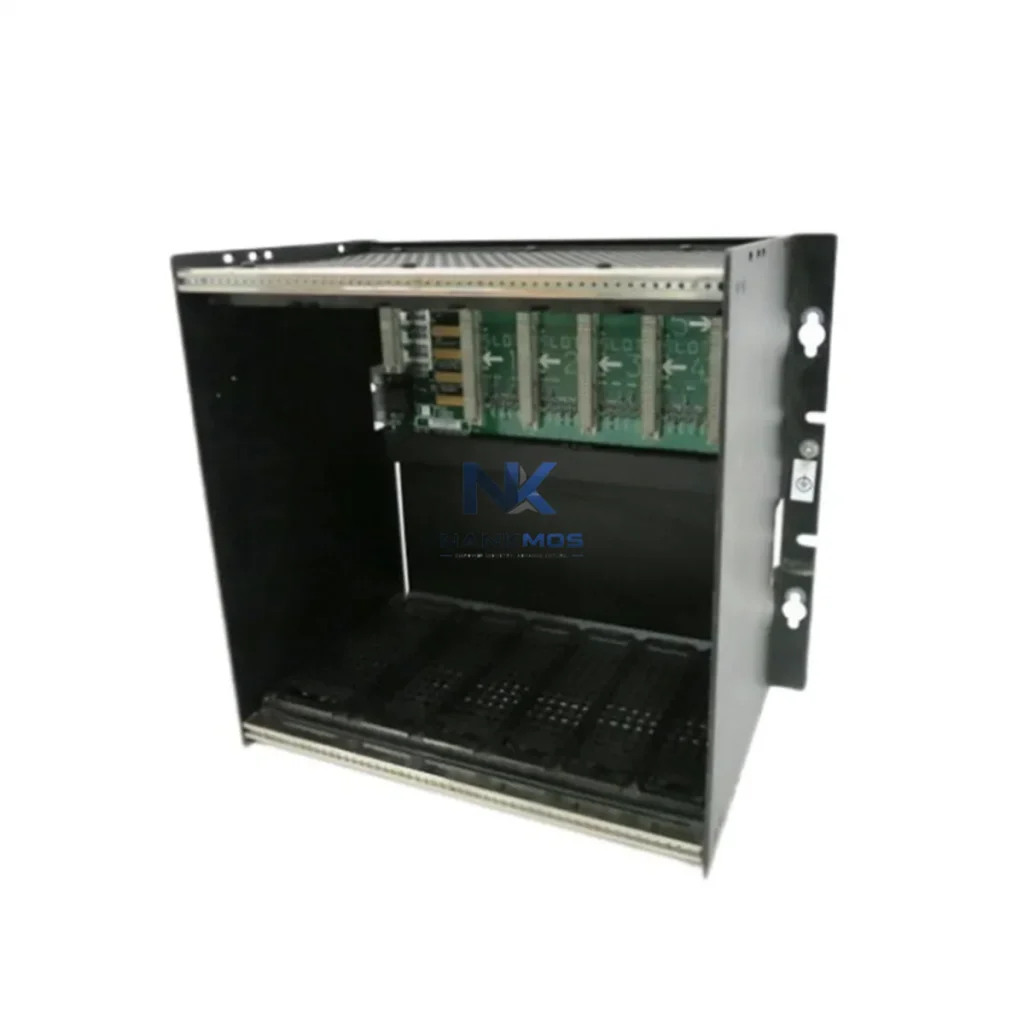

GE Automation IC697CHS750 PLC Rack

Product Details

IC697CHS750 Product Description

The GE IC697CHS750 is a 5-slot modular backplane rack engineered for the GE Series 90-70 programmable logic controller platform. Designed to anchor energy-aware automation architectures, this rack provides the structural and electrical backbone that connects CPU modules, I/O modules, power supply units, and communication modules into a unified, high-efficiency control node. In smart production environments where every watt of consumed energy must be justified by measurable output, the IC697CHS750 delivers the slot density, signal integrity, and thermal stability required to sustain continuous, low-loss operation across demanding industrial cycles.

In a fully integrated Series 90-70 control architecture, the IC697CHS750 rack serves as the central integration point for all energy-critical modules. The GE IC697CPU772 or IC697CPU781 CPU module, seated in the rack's primary slot, executes the ladder logic and structured text programs that govern load scheduling, motor start sequencing, and demand-response routines. By coordinating with the GE IC697MDL671 discrete output module and the IC697MDL653 discrete input module, the CPU can implement intelligent load-shedding strategies that prevent simultaneous motor starts — a leading cause of peak-demand spikes and unnecessary energy billing surcharges in manufacturing facilities.

Power distribution within the rack is managed by a dedicated GE IC697PWR711 power supply module, which converts incoming AC supply to regulated 5 VDC and 24 VDC rails with high conversion efficiency. This eliminates the need for external DIN-rail power supplies scattered across the panel, reducing resistive losses in long cable runs. The IC697CHS750's passive backplane architecture ensures that power is delivered directly to each module's connector with minimal impedance, supporting stable operation even under variable load conditions typical of multi-axis servo systems.

For facilities integrating variable-frequency drives (VFDs) such as the GE AF-600 FP or third-party drives communicating over Modbus RTU or Profibus DP, the IC697CMM742 communication module — installed in one of the rack's available slots — provides the serial and fieldbus interface layer. This allows the Series 90-70 CPU to issue speed reference commands, read actual motor current feedback, and dynamically adjust drive output frequency based on real-time production demand. The result is a closed-loop energy management strategy where motor speed tracks actual load rather than running at fixed rated speed, delivering measurable kWh reductions per production shift.

Analog process variables — including temperature, pressure, flow rate, and power factor — are captured by the GE IC697ALG320 analog input module and fed directly into the CPU's control loop. This data stream enables the PLC to detect thermal drift in motor windings, identify inefficient operating points on pump and fan curves, and trigger corrective actions before energy waste escalates into equipment damage. When paired with a GE IC697ALG390 analog output module, the system can issue 4–20 mA trim signals to proportional control valves and variable-speed pump drives, maintaining process setpoints with minimal overshoot and reduced actuator cycling.

The IC697CHS750 rack enables a centralized energy optimization strategy that addresses the three primary sources of industrial energy waste: idle-state overconsumption, uncoordinated motor starts, and thermal runaway in control enclosures.

By consolidating the Series 90-70 control system into a single 5-slot rack, facilities eliminate the distributed panel architecture that requires multiple standalone PLCs, each with its own power supply, CPU, and communication interface. This consolidation directly reduces standby power consumption — a factor that accounts for 8–15% of total panel energy draw in legacy distributed architectures. The IC697CHS750's compact form factor also reduces enclosure volume, lowering the thermal load that HVAC and cooling systems must manage, which translates to secondary energy savings in climate-controlled production environments.

Production line throughput optimization is achieved through the rack's support for high-speed I/O scanning. The Series 90-70 CPU, operating within the IC697CHS750 chassis, can execute scan cycles in the sub-millisecond range, enabling precise synchronization of conveyor drives, robotic pick-and-place systems, and packaging line actuators. Tight synchronization eliminates the mechanical dwell time and false-start energy expenditure that occur when control latency forces operators to run lines at reduced speed as a safety margin.

For predictive maintenance integration, the rack supports co-processor modules such as the IC697CGR772, which can run condition-monitoring algorithms in parallel with the main CPU's control program. Vibration signatures from motor-mounted accelerometers, processed through the co-processor, can identify bearing wear, rotor imbalance, and coupling misalignment weeks before failure — preventing unplanned downtime events that force production lines into energy-intensive restart sequences. Each unplanned restart of a large induction motor system can consume 6–8 times the motor's rated current for several seconds, representing a significant energy and demand-charge event that predictive maintenance directly prevents.

SCADA integration is supported through the IC697CMM742 Ethernet or serial communication module, which publishes real-time rack status, module health, and I/O state data to supervisory systems such as GE iFIX, Wonderware, or open-standard OPC-UA servers. This visibility layer allows energy managers to correlate PLC cycle data with utility meter readings, identify production segments with disproportionate energy intensity, and implement targeted efficiency improvements without disrupting ongoing production schedules.

All IC697CHS750 units supplied by NANKMOS are sourced from verified industrial channels, subjected to full functional testing under load conditions, and shipped with a 12-month warranty. In-stock availability supports rapid deployment for both new installations and drop-in replacements of aging Series 90-70 racks, minimizing the production downtime associated with control system upgrades.

Q1: How does the IC697CHS750 contribute to energy savings compared to a distributed PLC architecture? By consolidating CPU, I/O, power supply, and communication modules into a single 5-slot rack, the IC697CHS750 eliminates redundant power conversion stages and reduces inter-panel cabling losses. Facilities typically report a 10–20% reduction in control panel standby power draw when migrating from distributed single-slot controllers to a centralized Series 90-70 rack architecture.

Q2: Is the IC697CHS750 compatible with modern VFDs and servo drives communicating over Profibus or Modbus? Yes. With the IC697CMM742 communication module installed in an available rack slot, the Series 90-70 CPU can communicate with Profibus DP slaves and Modbus RTU devices, including most major VFD and servo drive brands. This enables closed-loop speed and torque control from the PLC, supporting energy-optimized motor management strategies.

Q3: What is the recommended replacement process for an existing IC697CHS750 rack in a live production environment? NANKMOS recommends a hot-swap preparation procedure: back up the CPU program and I/O configuration using GE Proficy Machine Edition or the legacy Logicmaster 90 software, power down the rack in a planned maintenance window, transfer all modules to the replacement IC697CHS750 in slot order, restore power, and verify I/O scan integrity before resuming production. All NANKMOS-supplied racks are pre-tested to confirm backplane continuity and slot connector integrity, reducing commissioning time.

Q4: What warranty and testing standards apply to NANKMOS-supplied IC697CHS750 units? Every IC697CHS750 unit is functionally tested prior to shipment, including backplane bus integrity verification, slot connector inspection, and power rail continuity checks. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. NANKMOS maintains in-stock inventory to support same-week dispatch for urgent replacement requirements.
