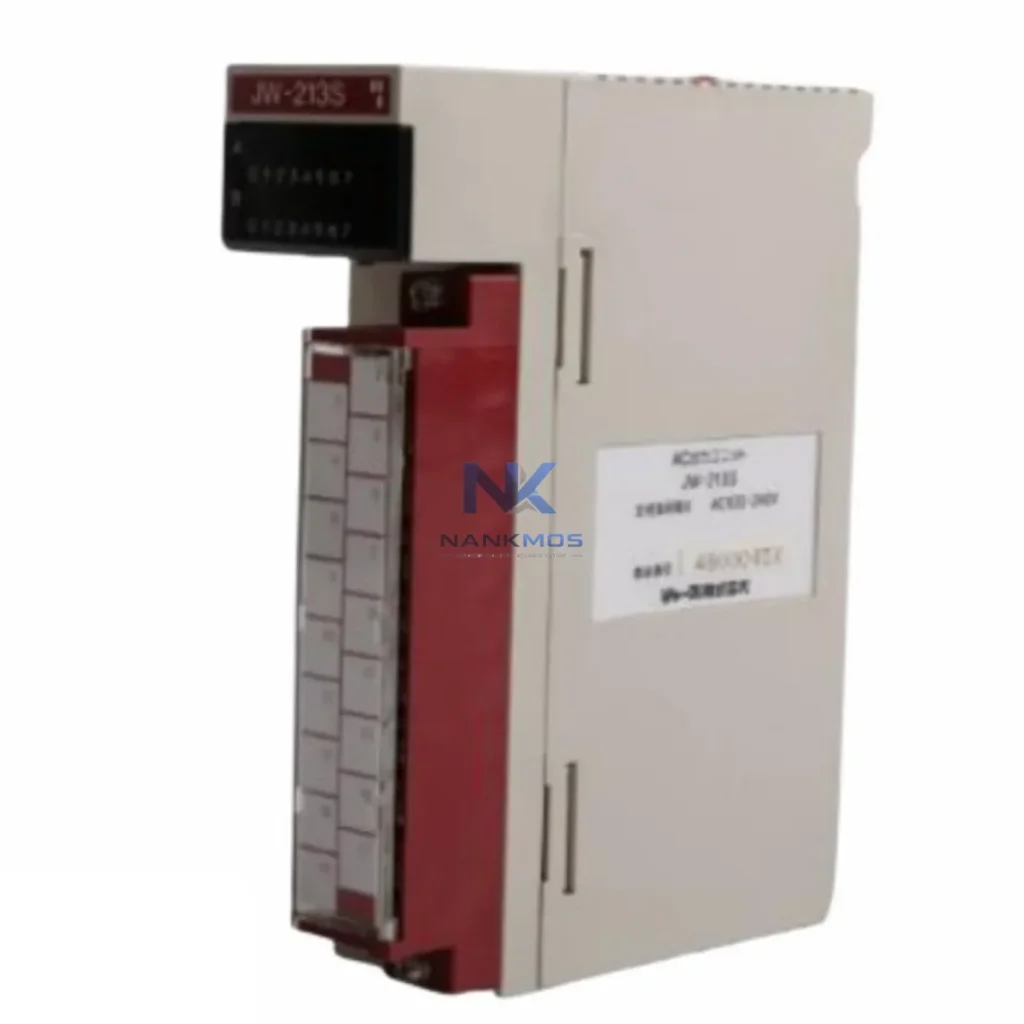

Sharp JW-213S AC Output Module

Product Details

JW-213S Product Description

The Sharp JW-213S is a precision-engineered AC output module designed for the JW Series programmable logic controller platform. In modern smart factory environments, reliable AC output expansion is not simply a matter of switching loads — it is the foundation of a coherent, data-driven automation architecture. The JW-213S bridges field-level actuators and the PLC control layer, enabling deterministic signal delivery, real-time status feedback, and seamless integration into plant-wide SCADA and HMI systems. Whether deployed in discrete manufacturing, process control, or hybrid automation lines, the JW-213S delivers the output density and electrical reliability that industrial engineers demand.

In a fully connected smart factory, the JW-213S operates as a critical node in the output layer of the JW Series control architecture. The data flow begins upstream at the sensor and field device level, where proximity switches, photoelectric sensors, and pressure transmitters feed real-time process values into the JW Series CPU — such as the JW-32CUH3 or JW-22CU — via digital and analog input modules. The CPU processes ladder logic and issues output commands that travel down the backplane bus to the JW-213S, which then switches AC loads including motor starters, solenoid valves, indicator lamps, and conveyor actuators.

For facilities requiring remote visibility, the JW Series supports communication expansion through dedicated link modules such as the JW-21CM RS-232C communication module or the JW-22CM RS-485 multi-drop interface. These modules allow the JW CPU — and by extension the output status of the JW-213S — to be polled by SCADA platforms including Wonderware InTouch, Ignition by Inductive Automation, and Citect SCADA. HMI panels from Proface (GP4000 series) and Weintek (cMT series) can display live output states, alarm conditions, and cycle counts sourced directly from the JW CPU data registers that map to JW-213S channel status bits.

In multi-rack or distributed I/O configurations, the JW Series remote I/O master module — such as the JW-10RMT — extends the backplane bus across the production floor, allowing JW-213S modules installed in satellite racks to remain under centralized PLC control while feeding status data back to the master CPU. This architecture supports production line transparency: every AC output event is timestamped in the CPU scan cycle, logged via the SCADA historian, and available for alarm management and OEE dashboards.

Edge connectivity is further enhanced when the JW Series network is bridged to Ethernet-based plant networks using protocol gateways such as the Moxa MGate MB3170 or equivalent Modbus TCP/RTU gateways. This allows legacy JW Series installations to participate in IIoT data pipelines, forwarding output module status to cloud-based analytics platforms, MES systems, and enterprise ERP layers without requiring a full PLC replacement. Variable frequency drives (VFDs) controlling motors switched by JW-213S outputs can simultaneously report speed, current, and fault data via their own Modbus or PROFIBUS interfaces, creating a unified data layer across the drive, the output module, and the supervisory system.

Power integrity for the JW-213S and its associated rack is maintained by industrial DIN-rail power supplies — such as the MEAN WELL SDR-120-24 or equivalent 24VDC rack supply — ensuring stable backplane voltage even under high-density I/O loading. The complete data chain — from field sensor through PLC CPU, AC output module, communication link, SCADA server, and enterprise dashboard — represents the backbone of a transparent, remotely diagnosable smart factory line.

Many industrial sites operating Sharp JW Series PLCs face a common set of integration challenges as they modernize toward smart factory standards. The JW-213S addresses several of these directly:

Protocol Fragmentation: Older JW Series installations may use proprietary JW link protocols that are not natively visible to modern SCADA or MES platforms. By pairing the JW-213S with a JW communication CPU module and a Modbus gateway, engineers can expose output channel states to any OPC-UA or Modbus TCP-capable supervisory system, eliminating the data silo between the PLC layer and the plant network.

Remote Monitoring Gaps: Without remote output status visibility, maintenance teams must physically inspect field panels to confirm actuator states after alarms. The JW-213S, when integrated with a JW CPU and SCADA link, allows remote engineers to confirm output states, force diagnostic test cycles, and verify load switching from a control room or mobile HMI — reducing unplanned downtime and travel costs.

Production Line Transparency: Output modules that lack status feedback create blind spots in OEE calculations. The JW-213S channel status bits, mapped to SCADA tags, enable real-time tracking of actuator cycle counts, output fault detection, and shift-level production reporting — giving operations managers the data they need to optimize throughput.

System Expansion: As production lines grow, additional JW-213S modules can be added to existing JW Series racks or remote I/O stations without reprogramming the CPU address map from scratch. The modular JW architecture supports incremental expansion, protecting the original control system investment while scaling output capacity to meet new process requirements.

Alarm Traceability: When an AC output fails to switch, root cause analysis requires timestamped event logs. SCADA integration with the JW-213S output status enables alarm historians to capture the exact scan cycle in which an output state changed, supporting rapid fault isolation and regulatory compliance documentation.

Q1: What communication protocols does the Sharp JW-213S support for SCADA integration?The JW-213S is a backplane I/O module and does not carry its own communication port. SCADA integration is achieved through the JW Series CPU's communication modules (RS-232C or RS-485 link modules), which expose PLC data — including JW-213S output status bits — to Modbus RTU, proprietary JW link, or gateway-bridged Modbus TCP protocols. This allows standard SCADA and HMI platforms to read and monitor output states in real time.

Q2: Can the JW-213S be used in a remote I/O configuration away from the main CPU rack?Yes. Using a JW Series remote I/O master and slave rack system, the JW-213S can be installed in distributed satellite racks located away from the main CPU. The remote I/O bus maintains deterministic scan-cycle communication between the CPU and remote output modules, supporting distributed machine architectures without sacrificing control responsiveness.

Q3: How is network stability ensured when the JW-213S is part of a multi-drop RS-485 network?RS-485 multi-drop networks using JW communication modules are designed for industrial noise immunity with proper termination resistors and shielded cable. For installations requiring higher network reliability or Ethernet backbone integration, protocol gateways can bridge the RS-485 JW link to Ethernet/IP or Modbus TCP, providing redundant path options and network-level diagnostics.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?Every Sharp JW-213S unit shipped by NANKMOS undergoes functional verification testing prior to dispatch. The 12-month warranty covers manufacturing defects and operational failures under normal industrial use conditions. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination to minimize production impact. Contact [email protected] for warranty service inquiries.
