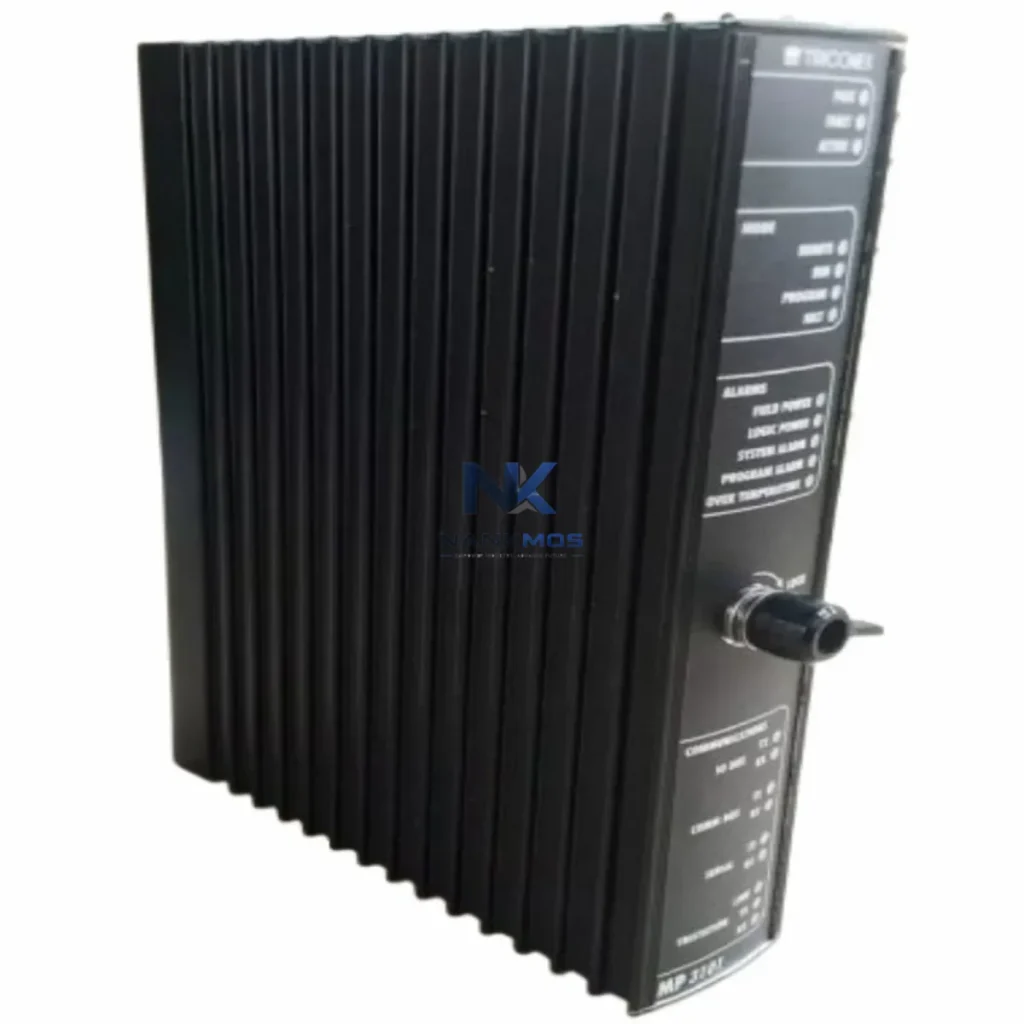

TRICONEX MP 3101 Processor Module

Product Details

MP 3101 Product Description

The TRICONEX MP 3101 is the central processing unit of the Tricon 3000 Triple Modular Redundant (TMR) safety system, engineered to deliver uninterrupted control logic execution across the most demanding industrial environments. As the architectural backbone of the Tricon 3000 platform, the MP 3101 coordinates all control, diagnostic, and communication functions across three independent processing legs, ensuring that any single-point failure is isolated, voted out, and corrected without process interruption. Its role within the control hierarchy spans from real-time scan cycle management to cross-leg synchronization, making it indispensable for SIL 3-rated safety instrumented systems in high-consequence industries.

Designed for seamless integration within the Tricon 3000 chassis architecture, the MP 3101 operates in concert with the system's I/O modules, communication interfaces, and power supply assemblies to maintain deterministic control performance. Its internal diagnostics continuously monitor processor health, memory integrity, and inter-leg communication status, providing operators with real-time fault visibility through the TriStation 1131 programming environment. This level of embedded diagnostics reduces unplanned downtime and supports predictive maintenance strategies across long operational lifecycles.

The MP 3101 supports a broad range of industrial communication protocols and integrates natively with Modbus, HART pass-through, and proprietary Triconex peer-to-peer networks, enabling coherent data exchange across distributed control architectures. Its deterministic scan cycle and high-speed logic execution make it suitable for both safety shutdown systems and continuous process control applications where response time and reliability are non-negotiable.

The MP 3101 achieves its full architectural potential when deployed within a complete Tricon 3000 system stack. At the power layer, the Tricon 3000 Power Supply Module (PS 3101) provides triple-redundant DC power to the main chassis, ensuring that processor operation is never compromised by a single power rail failure. The Tricon 3000 Main Chassis (MC 3101) serves as the physical integration platform, housing the MP 3101 alongside digital and analog I/O modules in a unified backplane architecture.

On the I/O layer, the Tricon Digital Input Module (DI 3401) and Digital Output Module (DO 3601) interface directly with field instruments and final control elements, with all signal data routed through the MP 3101's TMR voting logic before any control action is executed. For analog process variables, the Analog Input Module (AI 3351) delivers high-resolution 4–20 mA signal acquisition with per-channel diagnostics, supporting precise process measurement in refinery, chemical, and power generation applications.

At the communication layer, the Tricon Communication Module (TCM 3351) extends the MP 3101's connectivity to DCS platforms, historian servers, and SCADA systems via Modbus TCP and OPC DA/UA, enabling seamless integration into plant-wide control architectures. For peer-to-peer safety network applications, the Tricon Enhanced Intelligent Communication Module (EICM) supports high-speed inter-controller messaging, critical for geographically distributed safety systems in pipeline and offshore installations.

The TriStation 1131 Engineering Workstation provides the programming, configuration, and online diagnostic interface for the MP 3101, supporting IEC 61131-3 function block, ladder, and structured text programming. For HMI integration, the MP 3101 communicates natively with Wonderware InTouch and Aveva System Platform via OPC, delivering real-time process visualization and alarm management to control room operators.

In redundant network architectures, the Hirschmann Industrial Ethernet Switch (RS20) provides fault-tolerant ring topology connectivity between MP 3101 nodes and DCS gateways, while Phoenix Contact signal isolators protect analog input channels from ground loops and electrical noise in high-interference environments such as motor control centers and variable frequency drive panels.

The TRICONEX MP 3101 is deployed across a wide spectrum of high-consequence industrial applications where safety system integrity is a regulatory and operational imperative. In oil and gas processing, the MP 3101 serves as the primary safety controller for emergency shutdown (ESD) systems, fire and gas detection networks, and high-integrity pressure protection systems (HIPPS), where SIL 3 certification is mandated by IEC 61511 and local regulatory bodies.

In petrochemical and refinery environments, the MP 3101 manages burner management systems (BMS), compressor protection logic, and reactor safety interlocks, operating continuously in harsh ambient conditions with high electromagnetic interference and wide temperature cycling. Its TMR architecture ensures that no single hardware fault can cause a spurious trip or a failure to trip, directly supporting process availability and personnel safety objectives.

For power generation applications — including gas turbine control, steam turbine protection, and nuclear auxiliary systems — the MP 3101 provides the deterministic response times and diagnostic transparency required by IEC 61513 and NERC CIP compliance frameworks. Its ability to perform online module replacement without process shutdown is particularly valued in baseload generation facilities where planned outage windows are strictly limited.

In water and wastewater treatment infrastructure, the MP 3101 controls critical pump protection, chemical dosing interlocks, and overflow prevention systems, where uninterrupted operation directly impacts public health and environmental compliance. Mining and metals processing facilities deploy the MP 3101 for conveyor protection, crusher interlock, and ventilation safety systems, leveraging its robust chassis design and wide operating temperature range for underground and surface installations.

LNG terminals and pipeline transmission operators rely on the MP 3101 for compressor station ESD, leak detection logic, and block valve control, where the combination of SIL 3 integrity and Modbus TCP communication enables tight integration with SCADA supervisory systems across geographically dispersed assets.

Q1: Is the TRICONEX MP 3101 compatible with existing Tricon 3000 chassis and I/O modules already installed in the field? Yes. The MP 3101 is fully backward compatible with the Tricon 3000 main chassis and all standard Tricon 3000 series I/O modules, including digital input, digital output, analog input, and analog output variants. No chassis modification or I/O rewiring is required for a direct processor replacement. Configuration migration from an existing MP 3101 or compatible processor is supported via TriStation 1131, and online download capability allows logic updates without process shutdown in most configurations. All units supplied by NANKMOS are tested for backplane communication integrity prior to shipment.

Q2: What is the recommended approach for maintaining SIL 3 integrity during a processor replacement or system expansion? Triconex TMR architecture supports online replacement of individual processor modules without requiring a full system shutdown, provided the replacement is performed according to Triconex field replacement procedures. During the replacement window, the remaining two legs maintain 2-out-of-2 voting, preserving safety function availability. For system expansions involving additional I/O chassis or communication modules, the MP 3101 supports hot-standby configuration updates through TriStation 1131. NANKMOS recommends conducting a functional safety assessment (FSA) review prior to any architectural modification to confirm continued SIL 3 compliance under IEC 61511.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for MP 3101 supply? All TRICONEX MP 3101 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Warranty service includes technical diagnosis support, unit replacement, and shipping coordination. Units are maintained in stock and are available for immediate dispatch, with standard international lead times of 3–7 business days depending on destination. Expedited shipping options are available for critical plant maintenance requirements. For volume procurement, long-term supply agreements, and technical pre-sales consultation, contact NANKMOS directly at [email protected] or +86 18359268345.
