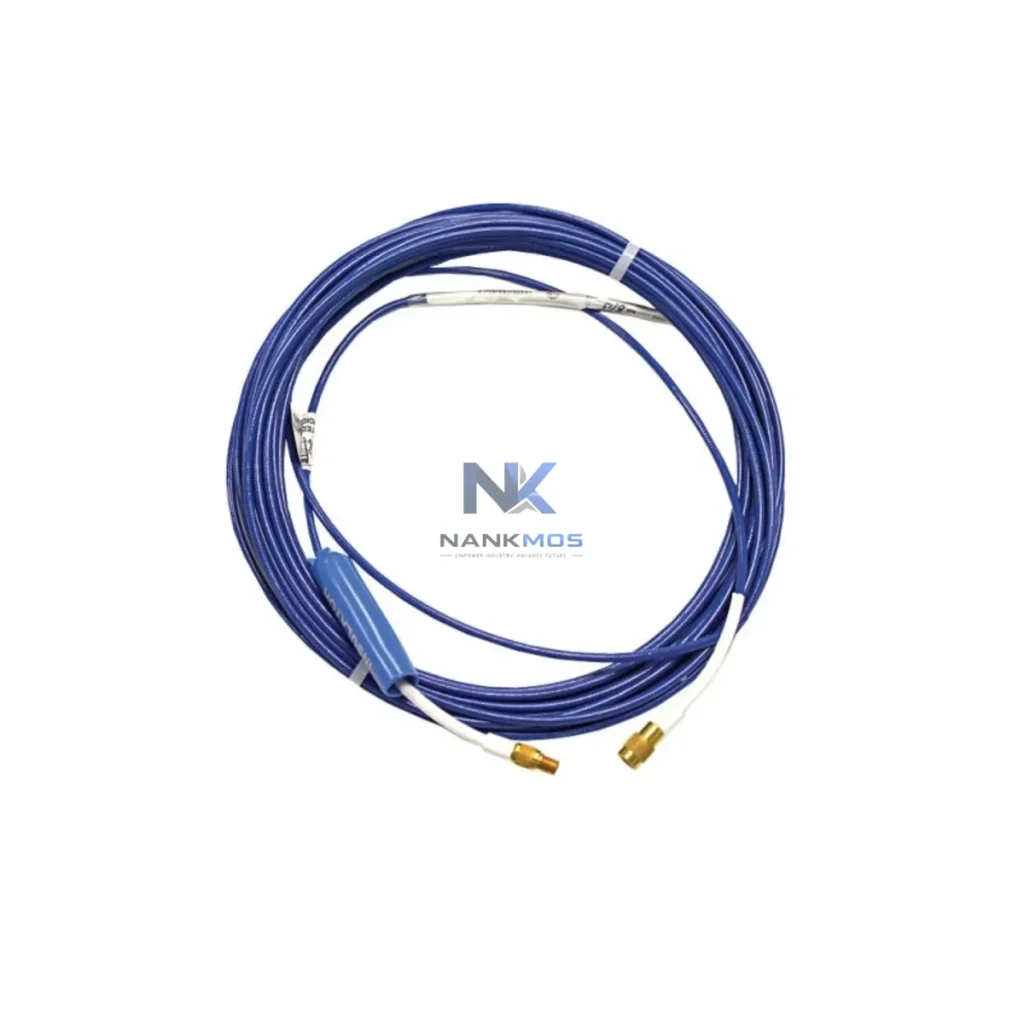

Metrix MX8030-080-00-05/MX8031-080-00-05 Extension Cable

Product Details

MX8030-080-00-05/MX8031-080-00-05 Product Description

The Metrix MX8031-080-00-05 is a precision-engineered extension cable designed to bridge the MX8030 proximity probe transducer with its companion signal conditioning electronics in rotating machinery protection and vibration monitoring architectures. With a nominal cable length of 8 meters (080 designation) and a low-noise, shielded coaxial construction, this extension cable sustains the integrity of the eddy-current signal chain from the probe tip through to the monitor input — a critical requirement in high-speed turbomachinery, compressor trains, and generator protection systems where signal attenuation or impedance mismatch can trigger false trips or mask genuine fault conditions. In modern industrial control architectures, the extension cable is not a passive accessory — it is a calibrated system component. The MX8031-080-00-05 is factory-matched to the MX8030 probe and its associated driver/oscillator to form a three-component transducer system. This matched-set approach ensures that the total system scale factor, linearity, and temperature compensation remain within API 670 specification across the full operating range, eliminating the field calibration errors that arise when cables are substituted with non-OEM alternatives.

The MX8031-080-00-05 extension cable operates as the signal conduit within a layered machinery protection and process control architecture. Understanding its role across each system layer clarifies why matched-set integrity is non-negotiable in critical rotating equipment applications.

Transducer Layer (Sensing): The Metrix MX8030 proximity probe is the sensing element, converting shaft displacement into a proportional voltage signal via eddy-current effect. The MX8031-080-00-05 extension cable carries this raw signal from the probe tip — mounted at the bearing journal — to the driver/oscillator electronics, typically located outside the bearing housing in a junction box or marshalling panel. Any impedance discontinuity in this cable run directly degrades measurement accuracy.

Signal Conditioning Layer: The matched driver/oscillator — such as the Metrix MX8032 driver or equivalent Metrix 5500 series driver — receives the probe signal via the MX8031 extension and converts it to a calibrated output (typically –24 VDC bias with AC vibration component). The factory-matched system ensures the oscillator's tuning is optimized for the specific probe-cable combination, maintaining scale factor accuracy across temperature gradients common in turbine halls and compressor buildings.

Monitor / Protection Layer: The conditioned signal feeds into a machinery protection monitor such as the Metrix MX2033, Metrix MX2034, or a Bently Nevada 3500 series rack-mounted monitor. These monitors interpret the displacement signal for radial vibration, axial position, or differential expansion — triggering alarm and trip relays when API 670 thresholds are exceeded. The MX8031-080-00-05 ensures the signal arrives at the monitor input with the correct impedance and noise floor for reliable threshold discrimination.

Control Layer (DCS/PLC Integration): Monitor outputs — 4–20 mA or relay contacts — integrate with plant-level DCS platforms such as Emerson DeltaV, Honeywell Experion PKS, or ABB System 800xA, as well as safety PLCs including Rockwell Automation GuardLogix or Siemens S7-300F. The MX8031 cable's signal integrity directly influences the quality of the process variable presented to the DCS historian and the reliability of the safety function executed by the SIS layer. A degraded cable introduces noise that can cause nuisance trips or, worse, mask a genuine shaft excursion event.

Power Layer: The eddy-current transducer system requires a stable –24 VDC supply, typically sourced from a dedicated instrument power supply or the monitor rack's internal power module. Stable power delivery — often provided by redundant power supplies within the protection rack — ensures the oscillator maintains consistent carrier frequency, which is the foundation of accurate gap measurement through the MX8031 cable.

Redundancy and Diagnostic Layer: In API 670-compliant installations, dual-probe configurations are common for critical machines. A primary MX8030/MX8031 channel and a redundant channel — each with its own extension cable routed via separate conduit paths — provide voting logic (1oo2 or 2oo3) in the protection monitor. The MX8031-080-00-05's consistent electrical characteristics simplify channel-to-channel comparison during commissioning and periodic proof testing, reducing diagnostic uncertainty.

Maintenance and Calibration Layer: Periodic system verification per API 670 requires end-to-end calibration of the probe-cable-driver system. The MX8031-080-00-05, as a factory-matched component, eliminates the need for field re-calibration when replacing a like-for-like cable, reducing planned maintenance downtime. Metrix's matched-set traceability documentation supports ISO 55000 asset management requirements and simplifies audit trails for machinery protection system records.

The MX8031-080-00-05 extension cable is deployed across a broad spectrum of rotating machinery protection applications in capital-intensive industries:

Oil & Gas / Petrochemical: Centrifugal compressors, gas turbines, and steam turbines in LNG trains, refinery charge pumps, and ethylene crackers rely on API 670-compliant proximity probe systems. The MX8031-080-00-05 is specified in these applications for its temperature stability across the wide ambient ranges found in outdoor compressor stations and hot-section turbine enclosures.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants require continuous shaft vibration and axial position monitoring. The MX8031 extension cable routes from probes mounted at journal bearings through cable trays to the turbine supervisory instrumentation (TSI) panel, where Metrix or equivalent monitors process the signals for operator display and automatic trip logic.

Petrochemical & Chemical Processing: Reactor agitators, large centrifugal pumps, and blower trains in chemical plants operate in corrosive atmospheres. The MX8031-080-00-05's cable jacket and connector materials are selected for chemical resistance, ensuring long service life in environments where standard instrumentation cables degrade rapidly.

Water & Wastewater: Large vertical turbine pumps and blower units in water treatment facilities increasingly adopt API 670-style monitoring for critical assets. The MX8031 extension cable enables cost-effective condition monitoring integration without requiring full custom cable assemblies.

Mining & Minerals Processing: SAG mills, ball mills, and large slurry pumps in mining operations generate significant vibration signatures. Proximity probe systems using MX8030/MX8031 matched sets provide early warning of bearing wear and shaft misalignment, supporting predictive maintenance programs that reduce unplanned downtime in remote, high-cost operating environments.

Marine & Offshore: Shipboard propulsion turbines and offshore platform gas compression trains require vibration monitoring systems certified for marine environments. The MX8031-080-00-05's robust construction supports installation in high-vibration, high-humidity marine machinery spaces.

Q1: Can the MX8031-080-00-05 be used with proximity probes or drivers from other manufacturers? The MX8031-080-00-05 is factory-calibrated as part of a matched three-component system with the Metrix MX8030 probe and its designated driver/oscillator. Substituting a non-Metrix probe or driver will invalidate the system scale factor and linearity, potentially causing the total system to fall outside API 670 accuracy requirements. For cross-manufacturer compatibility, a full system recalibration with the substitute components is mandatory before the system can be considered API 670-compliant. NANKMOS recommends maintaining matched-set integrity and stocks complete MX8030/MX8031 system sets to support like-for-like replacement.

Q2: What are the installation and routing requirements for the MX8031-080-00-05 in a turbomachinery protection architecture? The MX8031-080-00-05 should be routed in dedicated metallic conduit or cable tray, physically separated from power cables and high-frequency drive output cables to minimize electromagnetic interference. Minimum bend radius must be observed per Metrix installation guidelines to prevent coaxial geometry distortion that would alter cable capacitance and degrade signal quality. In dual-probe redundant configurations, the two extension cables must be routed via independent paths to prevent a single conduit failure from disabling both measurement channels simultaneously. All connector terminations should be inspected and torqued to specification during commissioning and at each planned maintenance interval.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory availability for the MX8031-080-00-05? NANKMOS provides a 12-Month Warranty on the MX8031-080-00-05 covering manufacturing defects, connector integrity, and signal performance within the specified matched-set parameters. Warranty claims are supported by pre-shipment functional testing documentation. For long-term asset management, NANKMOS maintains strategic inventory of MX8030/MX8031 matched sets and associated Metrix driver/oscillator modules, enabling rapid dispatch to minimize machinery protection system downtime. Customers operating large fleets of turbomachinery are encouraged to discuss consignment stock arrangements to ensure critical spare availability without capital-intensive on-site stockpiling.
