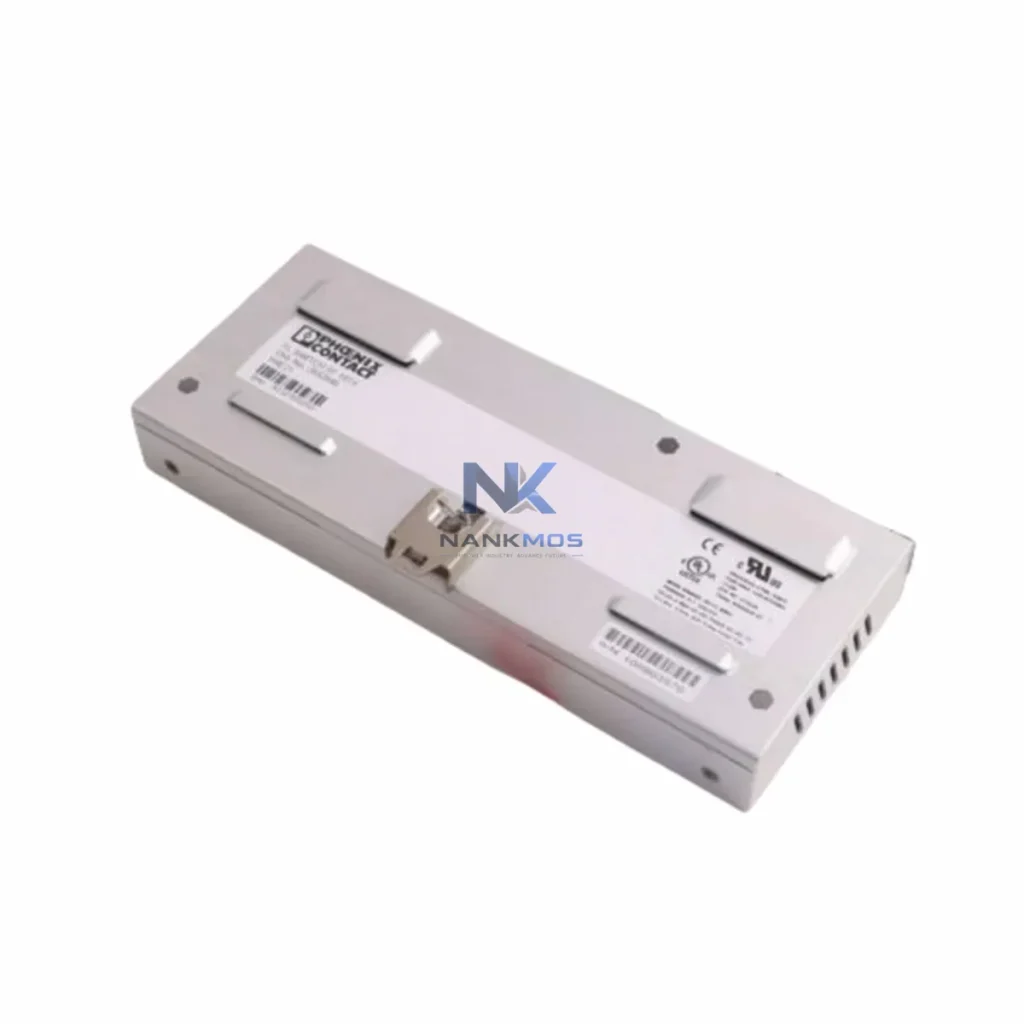

OCX-CTN-85-R-D-ST-24V Product Description

The Phoenix Digital OCX-CTN-85-R-D-ST-24V is a high-performance fiber optic communication module engineered for energy-conscious industrial automation environments. Operating at 24VDC with an 85Mbps data throughput and ST-type optical connectors, this module delivers deterministic, noise-immune signal transmission across PLC networks, drive systems, and distributed I/O architectures — all while contributing directly to measurable reductions in energy waste and thermal load on the production floor.

Designed for integration into smart factory topologies, the OCX-CTN-85-R-D-ST-24V eliminates the electromagnetic interference (EMI) that copper-based fieldbus wiring introduces in high-density motor and drive environments. By replacing conventional copper links with optical fiber, facilities reduce ground loop currents, suppress induced noise from variable frequency drives (VFDs) and servo amplifiers, and achieve cleaner signal integrity — translating into fewer retransmissions, lower CPU overhead on the host PLC, and ultimately a more energy-efficient control loop.

In a fully integrated smart production line, the OCX-CTN-85-R-D-ST-24V serves as the optical backbone connecting energy-intensive subsystems with the supervisory control layer. Consider a typical motor-drive topology: a Siemens S7-1500 PLC issues speed reference commands to a Siemens SINAMICS G120 variable frequency drive, which in turn regulates a 37kW induction motor driving a conveyor system. Without optical isolation, the high-frequency switching noise from the VFD's IGBT stage couples back into the fieldbus cable, causing communication errors that force the PLC to re-poll the drive — wasting CPU cycles and extending motor run-up time unnecessarily.

By inserting the OCX-CTN-85-R-D-ST-24V between the PLC's PROFIBUS DP port and the drive's communication interface, the optical link breaks the ground path entirely. The result is a clean, deterministic 85Mbps channel that sustains precise torque and speed commands even in environments with multiple Allen-Bradley PowerFlex 755 servo drives operating simultaneously. This directly reduces the number of aborted motion sequences, which in energy terms means fewer motor restarts — one of the highest energy-consumption events in any production cycle.

The module also integrates cleanly with Beckhoff EtherCAT I/O terminals and distributed Phoenix Contact Axioline F I/O modules deployed along the production line. When power monitoring data from a Janitza UMG 96RM-E power quality analyser is fed back to the SCADA layer via OPC-UA, the OCX-CTN-85-R-D-ST-24V ensures that the high-frequency energy telemetry arrives without packet loss — giving the energy management system an accurate, real-time picture of load distribution across all motor zones.

For HMI integration, operators using a Siemens SIMATIC HMI TP1200 Comfort panel can monitor fiber link status, optical signal strength, and communication cycle times directly from the process visualisation screen. This visibility allows maintenance teams to detect degrading optical connectors before they cause communication faults — a form of predictive maintenance that prevents unplanned downtime and the associated energy spikes from emergency restarts. Pairing the OCX-CTN-85-R-D-ST-24V with a Moxa NPort 5150A serial device server further extends legacy RS-485 sensor networks into the optical domain, preserving investment in existing Endress+Hauser Promag flow sensors and temperature transmitters without requiring full rewiring.

Energy optimisation in modern manufacturing is not solely a function of motor efficiency ratings or inverter topology — it is equally dependent on the reliability and latency of the control communication layer. When fieldbus communication degrades due to EMI, the control system compensates by widening dead-bands, increasing polling intervals, or defaulting to conservative speed setpoints. Each of these compensations represents wasted energy: motors running slower than necessary, drives operating in open-loop mode, and compressors cycling more frequently than the process demands.

The OCX-CTN-85-R-D-ST-24V addresses this at the physical layer. Its optical transmission path is inherently immune to the radiated emissions produced by high-power switching equipment, welding stations, and large transformer installations — all common in heavy industrial facilities. By maintaining a stable, low-latency communication channel, the module allows the PLC to execute tighter closed-loop control algorithms, enabling variable speed drives to track load demand curves more accurately and reducing average motor current draw by keeping the drive in its highest-efficiency operating region.

From a thermal management perspective, reducing communication errors also reduces the frequency of fault-recovery sequences. Each fault recovery event — whether a drive trip, a PLC watchdog reset, or an I/O module timeout — generates a transient current surge as motors restart under load. These surges contribute to peak demand charges on industrial electricity tariffs and accelerate thermal ageing of switchgear and cable insulation. The OCX-CTN-85-R-D-ST-24V, by sustaining communication integrity, directly suppresses the frequency of these events.

Production line throughput is equally improved. With deterministic 85Mbps optical communication, cycle time jitter in coordinated multi-axis motion systems is minimised. Robotic welding cells, palletising systems, and CNC machining centres that depend on synchronised PLC-to-drive communication achieve more consistent inter-cycle timing — reducing idle time between production beats and improving overall equipment effectiveness (OEE). Higher OEE means more output per unit of energy consumed: the fundamental metric of industrial energy efficiency.

All units supplied by NANKMOS are sourced from authorised distribution channels, subjected to outgoing functional testing prior to dispatch, and covered by a 12-Month Warranty. Stock is maintained for immediate shipment, minimising lead times for maintenance replacements and planned upgrades.

Q1: What measurable energy savings can I expect from deploying the OCX-CTN-85-R-D-ST-24V on my production line? Direct energy savings depend on your existing communication error rate and motor restart frequency. In environments with significant VFD-induced EMI, replacing copper fieldbus segments with optical links via the OCX-CTN-85-R-D-ST-24V typically reduces communication fault events by over 90%, which translates to fewer motor restarts, tighter drive control, and reduced peak demand. Facilities with multiple high-power drives on a shared fieldbus segment report the most significant improvements in both energy consumption and process stability.

Q2: Is the OCX-CTN-85-R-D-ST-24V compatible with my existing PROFIBUS DP or PROFINET network? Yes. The OCX-CTN-85-R-D-ST-24V operates as a transparent optical repeater at the physical layer, making it protocol-agnostic. It is compatible with PROFIBUS DP, PROFINET, Modbus RTU/TCP, and other fieldbus protocols that operate within its 85Mbps bandwidth envelope. No changes to PLC programming, drive parameterisation, or network addressing are required — the module simply replaces the copper segment with an optical equivalent.

Q3: Can this module replace an existing Phoenix Digital OCX unit, and what is the testing procedure before installation? The OCX-CTN-85-R-D-ST-24V is a direct form-fit-function replacement for compatible OCX Series modules. Before installation, NANKMOS recommends verifying optical power budget using an optical power meter at both the transmit and receive ST connectors, confirming 24VDC supply voltage within ±10% tolerance, and performing a loopback communication test at the target data rate. All NANKMOS-supplied units undergo outgoing functional testing prior to dispatch, with test records available on request.

Q4: What does the 12-Month Warranty cover, and what is the stock availability? The 12-Month Warranty covers manufacturing defects, optical transceiver failure, and electrical component faults under normal operating conditions. It does not cover physical damage from improper installation or operation outside specified environmental limits. NANKMOS maintains in-stock inventory of the OCX-CTN-85-R-D-ST-24V for immediate shipment. For volume orders or scheduled maintenance contracts, contact our team to confirm lead times and reserve allocation.
