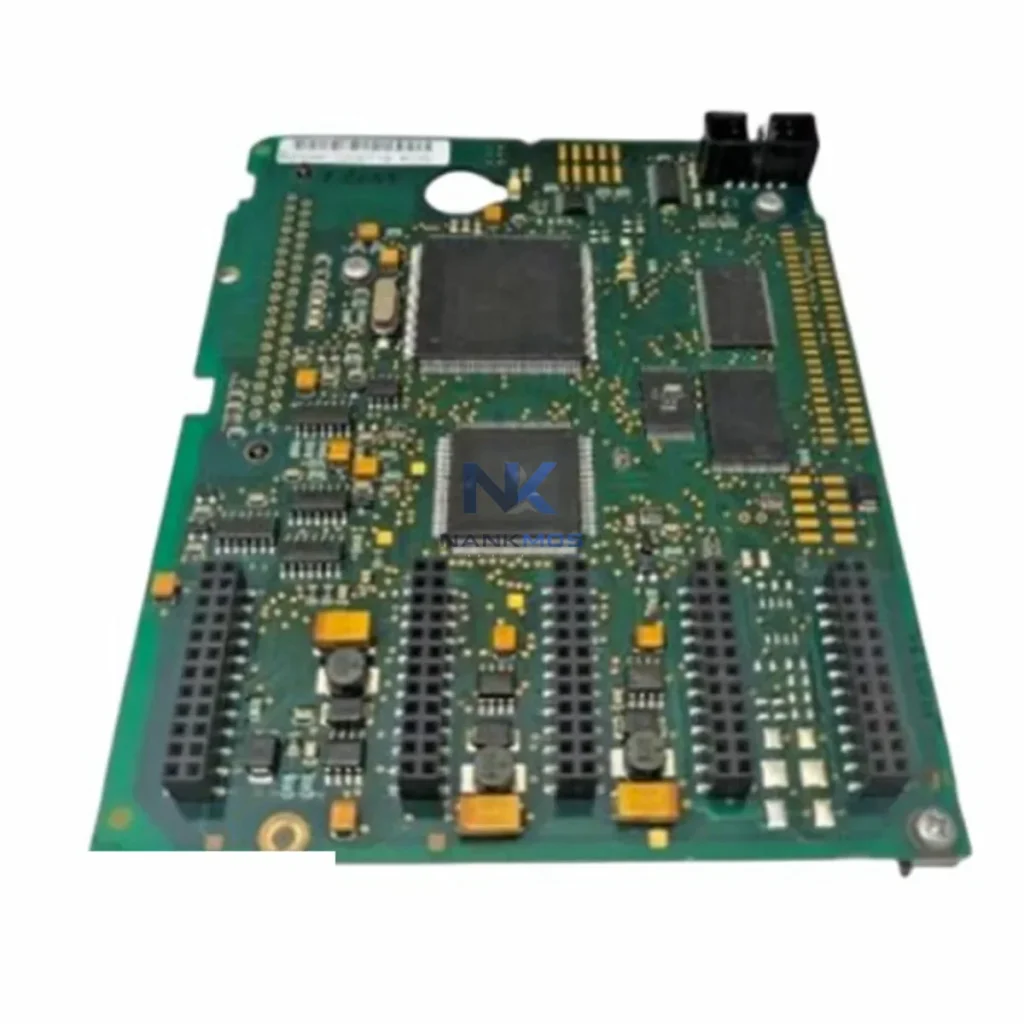

Vacon PC00252 Control Board

Product Details

PC00252 Product Description

The Vacon PC00252 is a factory-engineered control board designed for seamless integration within the Vacon NX Series variable frequency drive platform. As a core component of the NX drive's internal control architecture, the PC00252 governs signal processing, parameter management, and real-time communication between the drive's power stage and the supervisory control layer. Its role in the automation hierarchy spans the control layer and the communication layer, making it indispensable for engineers who demand consistent, deterministic drive behavior across multi-axis and multi-drive installations.

In modern industrial control architectures, the control board is not a peripheral — it is the intelligence layer of the drive. The PC00252 interfaces directly with the NX drive's I/O expansion slots, enabling engineers to extend analog and digital signal capacity without introducing external signal conditioning hardware. This reduces panel footprint, simplifies wiring, and improves signal integrity across long cable runs in large-scale automation cabinets. When paired with Vacon NX option boards such as the OPTB1 or OPTC1 fieldbus adapters, the PC00252 enables deterministic PROFIBUS DP or CANopen communication, ensuring that the drive responds to PLC commands within the cycle time constraints of the supervisory controller.

System architects integrating the PC00252 into a Vacon NX-based automation platform will find that the board's firmware architecture supports multi-parameter application programming, allowing the drive to execute application-specific logic locally — reducing the processing burden on the main PLC CPU. This is particularly valuable in distributed control architectures where a Siemens S7-300 or Allen-Bradley ControlLogix PLC manages dozens of drive nodes across a PROFIBUS or DeviceNet network. The PC00252's onboard application memory retains parameter sets and application programs through power cycles, ensuring rapid restart capability after planned or unplanned shutdowns.

From a signal flow perspective, the PC00252 manages the reference signal chain from the fieldbus interface through to the PWM modulator, maintaining signal fidelity across the full speed and torque range of the NX drive. Engineers commissioning multi-drive systems — such as those found in conveyor lines, pump stations, compressor arrays, or crane systems — benefit from the PC00252's consistent parameter structure, which mirrors across all NX drive frame sizes. This uniformity accelerates commissioning, reduces the risk of parameter mismatch errors, and simplifies long-term maintenance by allowing a single spare board to serve multiple drive frames.

The PC00252 also plays a critical role in the diagnostic layer of the NX architecture. Its onboard fault logging captures drive events with millisecond-resolution timestamps, enabling maintenance engineers to reconstruct fault sequences and identify root causes without requiring external data loggers. When integrated with a Vacon NX panel display or a remote HMI such as the Vacon NCDrive PC tool, the PC00252 provides real-time visibility into drive status, active faults, and parameter values — supporting both reactive maintenance and predictive maintenance strategies.

For installations requiring redundancy, the PC00252 supports hot-swap replacement procedures that minimize drive downtime. Maintenance teams can pre-configure a replacement board using the Vacon NCDrive software, upload the parameter set via the drive's RS-232 or USB interface, and complete the board swap within a planned maintenance window. This capability is essential in continuous-process industries such as petrochemical refining, water treatment, pulp and paper, and metal processing, where unplanned drive downtime carries significant production cost penalties.

All Vacon PC00252 units supplied by NANKMOS are sourced from certified industrial channels, subjected to functional verification testing prior to dispatch, and covered by a 12-Month Warranty. Stock is maintained ready-to-ship to support urgent project timelines and emergency replacement requirements across global destinations.

The Vacon PC00252 achieves its full value when deployed within a coherent, layered automation architecture. At the control layer, a Siemens S7-400 or Schneider Electric Modicon M340 PLC issues speed and torque references to the NX drive via a PROFIBUS DP network, with the PC00252 managing the fieldbus interface through an OPTB1 option board. At the I/O layer, the NX drive's analog input terminals — managed by the PC00252 — accept 4–20 mA process feedback signals from field transmitters, enabling closed-loop PID control without requiring a separate PLC analog input module.

At the communication layer, the PC00252 coordinates with Vacon NX option boards including the OPTC1 CANopen adapter and the OPTD1 DeviceNet adapter, providing protocol flexibility for installations that span multiple fieldbus standards. At the power layer, the NX drive's OPTE3 or OPTE5 power supply option boards work in conjunction with the PC00252 to manage DC bus voltage monitoring and power loss ride-through functions. At the HMI layer, the Vacon NCDrive PC tool and the NX keypad panel communicate with the PC00252 via the drive's RS-232 or USB port, providing parameter upload/download and real-time monitoring capability.

At the execution layer, the PC00252 generates the PWM control signals that drive the NX inverter's IGBT gate drivers, translating speed and torque references into precise motor shaft output. At the protection layer, the PC00252 monitors motor current, DC bus voltage, heatsink temperature, and output frequency in real time, triggering protective shutdowns and logging fault events when operating limits are exceeded. At the maintenance layer, the PC00252's parameter clone function — accessible via the NX keypad or NCDrive software — enables rapid board replacement and parameter restoration, minimizing mean time to repair (MTTR) in production environments.

Manufacturing & Conveyor Systems: In automotive assembly and general manufacturing lines, the PC00252 enables precise speed synchronization across multiple NX drives controlling conveyor sections, ensuring product spacing and throughput consistency. Its deterministic fieldbus response supports tight integration with line PLC controllers managing production sequencing.

Water & Wastewater Treatment: Pump station automation systems rely on the PC00252's closed-loop PID capability to maintain constant pressure or flow setpoints across variable demand conditions. The board's non-volatile parameter retention ensures that pump drives restart with correct operating parameters following power interruptions — a critical requirement for unattended remote pump stations.

Petrochemical & Process Industries: In compressor and blower applications within petrochemical plants, the PC00252's real-time fault logging and protective shutdown functions support process safety requirements. Its compatibility with PROFIBUS DP networks enables integration with Siemens PCS 7 or Honeywell Experion DCS platforms.

Mining & Metals Processing: Hoist, conveyor, and crusher drive systems in mining operations demand high reliability and rapid fault diagnosis. The PC00252's onboard diagnostics and hot-swap replacement capability reduce unplanned downtime in remote or harsh-environment installations.

Marine & Offshore: Thruster and auxiliary drive systems on vessels and offshore platforms benefit from the PC00252's robust parameter management and fieldbus communication, supporting integration with vessel automation systems operating under DNV or ABS classification requirements.

Q1: Is the Vacon PC00252 compatible with all NX Series drive frame sizes?The PC00252 is designed for the Vacon NX Series platform and shares a common parameter and application architecture across NX drive frame sizes. Engineers should verify the specific frame size and hardware revision compatibility using the Vacon NX hardware manual or by contacting NANKMOS technical support prior to ordering, particularly for older NX drive generations.

Q2: Can the PC00252 be pre-configured before installation to minimize commissioning time?Yes. Using the Vacon NCDrive PC tool connected via RS-232 or USB, engineers can upload a complete parameter set and application program to a replacement PC00252 before installation. This pre-configuration approach is standard practice for planned maintenance shutdowns and significantly reduces drive recommissioning time in multi-drive installations.

Q3: What warranty and supply assurance does NANKMOS provide for the PC00252?All PC00252 units supplied by NANKMOS carry a 12-Month Warranty covering functional defects under normal operating conditions. Units are functionally tested prior to dispatch and shipped from maintained stock to support urgent project and emergency replacement requirements. For volume orders or long-term supply agreements, contact NANKMOS at [email protected] or +86 18359268345.
