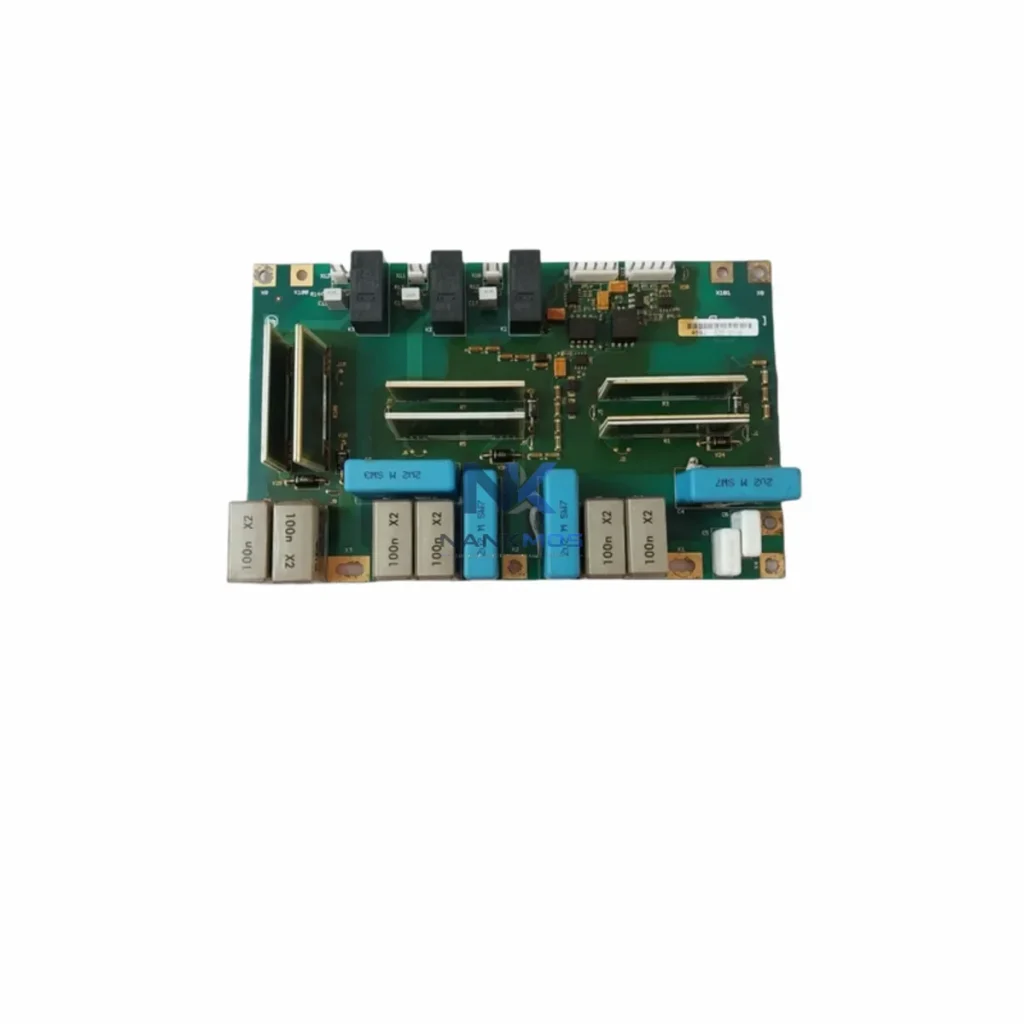

Vacon PC00459G Drive Control Board

Product Details

PC00459G Product Description

The Vacon PC00459G is a factory-tested main control board engineered for the Vacon NXP series variable frequency drive platform. Designed to serve as the central processing and signal coordination layer within a complete drive control architecture, the PC00459G manages PWM generation, motor control algorithms, fieldbus communication arbitration, and real-time fault diagnostics. Its role extends beyond a simple replacement component — it is the architectural backbone that determines how the drive interacts with every upstream and downstream system element in an industrial automation environment.

In modern industrial control architectures, the drive control board occupies a critical position between the control layer and the power conversion layer. The PC00459G interfaces directly with the Vacon NXP power unit, gate driver boards, and IGBT modules to ensure precise switching sequences and thermal protection coordination. At the same time, it communicates upward to PLCs, DCS systems, and SCADA platforms via supported fieldbus protocols, making it a key node in the overall signal flow from the control room to the motor shaft.

Contextual Integration is central to the PC00459G's design philosophy. The board is engineered to operate within the full Vacon NXP ecosystem, including the NXOPTA1 and NXOPTA2 option board slots for fieldbus expansion, the NXOPTB5 I/O extension board for additional digital and analog signal channels, and the NXOPTC3 encoder feedback interface for closed-loop vector control applications. When combined with the Vacon NXP power unit and the NXOPTF1 brake chopper option, the PC00459G enables a fully integrated drive solution capable of handling demanding regenerative braking and dynamic load control scenarios in heavy industrial applications.

From a system architecture perspective, the PC00459G supports multi-drive coordination in applications where several Vacon NXP drives share a common DC bus or operate in master-follower configurations. In these architectures, the control board's communication stack — supporting PROFIBUS DP, Modbus RTU, CANopen, and DeviceNet via option boards — allows the drive to participate in synchronized motion sequences, load-sharing schemes, and process interlocks managed by a Siemens S7-300/400 PLC or an ABB AC500 controller. The board's parameter memory and application software storage ensure that drive configurations are retained across power cycles, reducing commissioning time during maintenance or board replacement events.

The PC00459G also plays a direct role in the power supply and protection layer of the control cabinet. It monitors DC bus voltage, output current, motor temperature via PTC/PT100 inputs, and drive heatsink temperature, feeding these signals into the fault management system. When integrated with an external Vacon NXP brake resistor assembly and a properly rated input line reactor, the control board's protection algorithms prevent nuisance tripping while maintaining safe operating margins under transient load conditions. This level of diagnostic integration reduces unplanned downtime and supports predictive maintenance strategies in continuous process industries.

For HMI and operator interface integration, the PC00459G supports the Vacon NXP keypad panel and remote panel cable assemblies, allowing operators to monitor drive status, adjust parameters, and acknowledge faults from the control cabinet door or a remote panel location. In distributed control architectures, the drive's fieldbus interface — enabled through the PC00459G's option board slots — allows parameter read/write and status monitoring to be handled entirely from the SCADA or DCS level, eliminating the need for local panel interaction during normal operation.

In terms of installation and commissioning, the PC00459G is designed for direct replacement within the Vacon NXP drive frame sizes NX_0025 through NX_0300, covering the most common power ranges deployed in pump, fan, compressor, conveyor, and mixer applications across manufacturing, water treatment, oil and gas, and power generation sectors. The board's firmware is field-upgradeable via the Vacon PC tool, allowing engineering teams to apply software updates, load application macros, and perform parameter backup and restore operations without removing the drive from service.

Long-term maintenance efficiency is a defining advantage of the PC00459G within a standardized Vacon NXP fleet. Because the board is common across multiple frame sizes and power ratings, maintenance teams can carry a single spare to cover a wide range of installed drives, reducing spare parts inventory costs and simplifying logistics. Combined with NANKMOS's in-stock availability and pre-shipment functional testing, the PC00459G supports rapid fault recovery with minimal production impact.

The Vacon PC00459G achieves its full performance potential when deployed as part of a coordinated automation platform. In a typical NXP drive cabinet, the PC00459G works alongside the Vacon NXP Power Unit for DC bus management and IGBT switching, the NXOPTB5 I/O Extension Board for additional analog and digital signal channels, and the NXOPTC3 Encoder Interface for closed-loop speed and torque control. Fieldbus connectivity is extended through the NXOPTA1 PROFIBUS DP Option Board or the NXOPTA2 CANopen/DeviceNet Option Board, enabling seamless integration with plant-level control networks.

At the control layer, the PC00459G-equipped drive typically receives setpoints and commands from a Siemens S7-300 or S7-400 PLC via PROFIBUS DP, or from an ABB AC500 controller via Modbus RTU. In multi-drive systems, a Vacon NXP Brake Chopper and Resistor Assembly is added to manage regenerative energy, while an input line reactor protects the drive from supply-side harmonics and voltage transients. For operator interaction, the Vacon NXP Remote Keypad Panel provides local parameter access and fault acknowledgment, while the Vacon PC Tool software enables full parameter management, firmware updates, and diagnostic logging from an engineering workstation. Together, these components form a cohesive, scalable drive architecture that supports modular expansion, redundancy planning, and long-term maintainability across the full lifecycle of the installation.

The Vacon PC00459G is deployed across a broad range of industrial sectors where precise motor control, system reliability, and fieldbus integration are non-negotiable requirements. In water and wastewater treatment facilities, the PC00459G-equipped NXP drive controls high-power pump and blower motors, with PID process control managed directly by the drive's application software and monitored via SCADA through PROFIBUS DP. In oil and gas processing plants, the board's robust fault management and PTC motor protection functions ensure safe operation in environments where motor failures carry significant safety and production consequences.

In power generation and energy distribution applications, the PC00459G supports fan and pump drives in cooling and auxiliary systems, with the drive's fieldbus interface providing real-time status data to the plant DCS. In mining and mineral processing, the board's compatibility with closed-loop vector control enables precise torque management on conveyor and crusher drives, reducing mechanical stress and extending equipment service life. In marine and offshore applications, the NXP drive's compact architecture and the PC00459G's robust protection stack meet the demanding environmental and reliability standards required for shipboard auxiliary systems. Across all these sectors, the PC00459G's role as the central control and diagnostic node makes it the most critical spare part to maintain in any Vacon NXP-based installation.

Q1: Is the Vacon PC00459G compatible with all Vacon NXP frame sizes, and can it be used as a direct replacement without parameter reprogramming?The PC00459G is compatible with Vacon NXP frame sizes NX_0025 through NX_0300. In most replacement scenarios, the existing parameter set can be restored from a backup file using the Vacon PC Tool, eliminating the need for full recommissioning. However, if the original parameters were not backed up, the drive will require parameter configuration before returning to service. NANKMOS recommends maintaining a parameter backup for all installed NXP drives as part of standard maintenance practice.

Q2: What fieldbus protocols does the PC00459G support, and how does it integrate with existing PLC and DCS architectures?The PC00459G itself provides the hardware platform for fieldbus communication, with protocol support determined by the option board installed in the NXOPTA1 or NXOPTA2 slot. Supported protocols include PROFIBUS DP, Modbus RTU, CANopen, and DeviceNet. This allows the NXP drive to integrate directly with Siemens, ABB, Rockwell, and Schneider control platforms without protocol converters or additional gateways, simplifying cabinet wiring and reducing potential communication failure points in the architecture.

Q3: What does the 12-Month Warranty cover, and what is NANKMOS's lead time for PC00459G supply?The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. NANKMOS maintains in-stock inventory of the PC00459G and conducts pre-shipment functional testing on all control boards before dispatch. Standard lead time is 3–7 business days for international shipments. For urgent requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 for availability confirmation and order processing.
