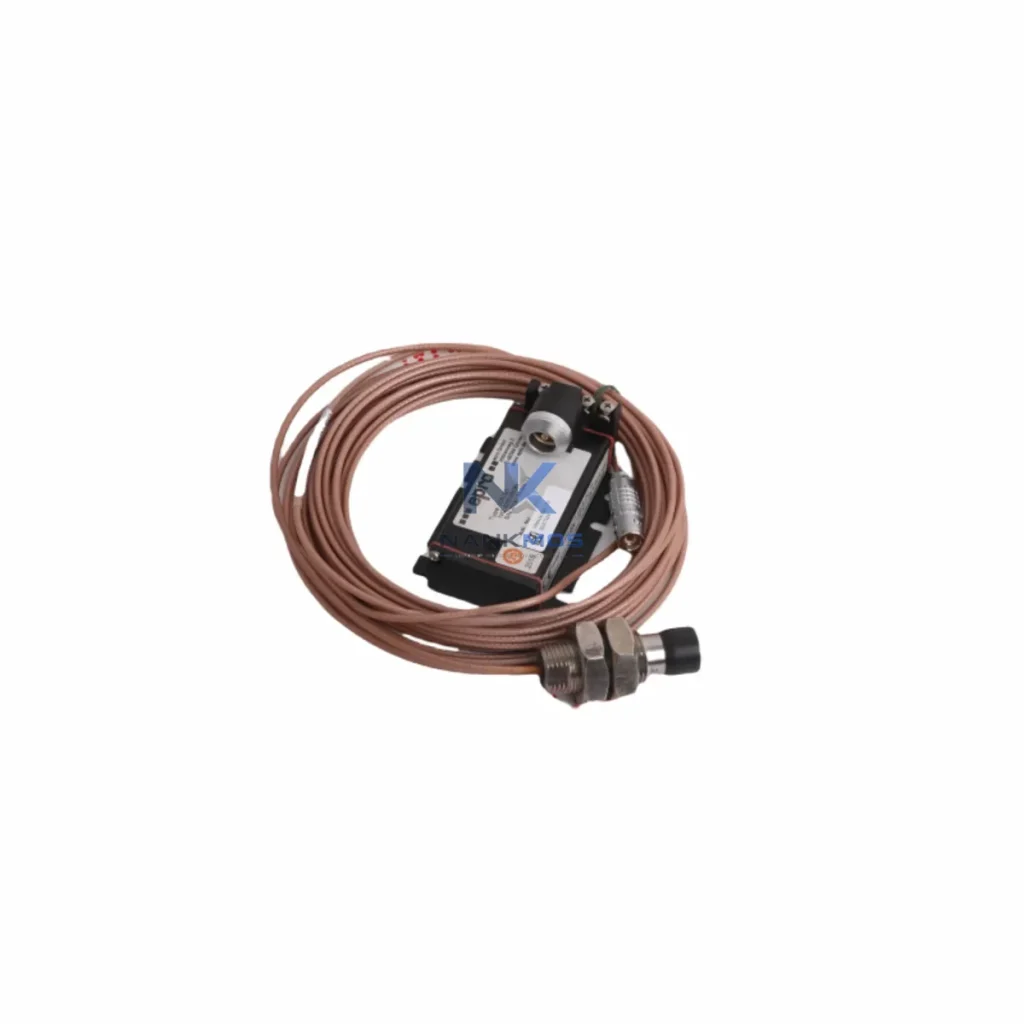

EPRO PR6424/000-130 CON021 Signal Converter

Product Details

PR6424/000-130 CON021 Product Description

The EPRO PR6424/000-130 CON021 is not a standalone instrument — it is a precision signal conditioning node embedded within a layered industrial control architecture. In rotating machinery protection and condition monitoring systems, signal integrity at the sensor-to-controller interface is the foundation of system reliability. The PR6424/000-130 CON021 fulfills this role by converting raw eddy-current proximity probe signals into clean, calibrated analog outputs that feed directly into the control and monitoring layers of the automation platform.

At the control layer, the conditioned 4–20 mA or 0–10 V DC output from the PR6424/000-130 CON021 integrates seamlessly with DCS controllers, safety PLCs, and machinery protection racks. In a typical PR6400 architecture, the CON021 converter works in concert with the EPRO PR6423 proximity probe and the EPRO PR6422 extension cable to form a complete eddy-current measurement chain. The signal chain is designed for minimal phase shift and high linearity, ensuring that shaft displacement and vibration data arriving at the control layer accurately reflects real-time machine behavior.

At the I/O layer, the analog output of the PR6424/000-130 CON021 connects to standard analog input modules on distributed control systems. In Emerson DeltaV or Honeywell Experion architectures, for example, the 4–20 mA signal is received by AI modules and processed through the historian and alarm management subsystems. The CON021's stable output eliminates the need for additional signal isolators in most standard installations, reducing panel wiring complexity and potential failure points.

At the communication layer, the PR6424/000-130 CON021 supports integration with EPRO's CON021 rack-based monitoring chassis, which can interface with higher-level PROFIBUS DP or Modbus RTU gateways — such as the EPRO MMS6000 series machinery monitoring system — enabling centralized data aggregation across multiple measurement points. This architecture supports condition-based maintenance strategies by feeding vibration trend data into plant-wide asset management platforms.

At the power layer, the PR6424/000-130 CON021 operates on a 24 V DC supply, compatible with standard DIN rail power supplies such as the Phoenix Contact QUINT series or Siemens SITOP PSU100S. Redundant power supply configurations can be implemented using diode ORing modules to ensure uninterrupted signal conditioning during power source switchover events — a critical requirement in continuous process industries.

At the HMI layer, vibration and displacement data processed through the PR6424/000-130 CON021 is visualized on operator workstations via SCADA platforms or dedicated machinery protection HMIs. Integration with EPRO MMS6823 or MMS6312 display modules allows operators to monitor shaft position, vibration amplitude, and alarm thresholds in real time, supporting rapid fault diagnosis and informed shutdown decisions.

At the protection layer, the PR6424/000-130 CON021 feeds into trip amplifier modules and safety relay systems. In turbine protection architectures, the conditioned signal is routed to EPRO PR9268 series trip amplifiers or equivalent safety relay modules, where configurable high/high-high alarm thresholds trigger protective actions — including emergency shutdown sequences — when vibration or displacement exceeds safe operating limits.

At the maintenance layer, the modular design of the PR6424/000-130 CON021 within the PR6400 rack system enables hot-swap replacement without full system shutdown in supported configurations. Paired with EPRO CON021 rack extenders and standard DIN rail terminal blocks, field engineers can isolate, test, and replace individual signal converter modules during scheduled maintenance windows, minimizing mean time to repair (MTTR) and supporting long-term system availability targets.

The EPRO PR6424/000-130 CON021 is deployed across a broad spectrum of heavy industrial environments where rotating machinery protection is mission-critical:

Power Generation: In steam turbine and gas turbine protection systems, the PR6424/000-130 CON021 provides shaft radial vibration and axial displacement monitoring. The conditioned analog output feeds into turbine supervisory instrumentation (TSI) racks, enabling continuous monitoring of rotor dynamics and bearing condition. Plants operating under IEC 61511 functional safety requirements rely on the signal integrity of the CON021 converter to maintain SIL-rated protection loops.

Petrochemical & Refining: In compressor trains and pump systems within refineries and petrochemical complexes, the PR6424/000-130 CON021 monitors shaft orbit, eccentricity, and vibration amplitude. The 4–20 mA output integrates with DCS analog input cards, feeding process historians and advanced process control (APC) systems. Hazardous area installations are supported through appropriate barrier and isolator configurations upstream of the converter.

Steel & Metallurgy: Rolling mill drives, blast furnace blowers, and continuous casting equipment generate high mechanical loads that demand precise vibration monitoring. The PR6424/000-130 CON021 provides the signal conditioning backbone for eddy-current measurement chains in these applications, where signal stability under high electromagnetic interference (EMI) environments is essential.

Water & Wastewater Treatment: Large pump stations and aeration blowers in municipal water treatment facilities use the PR6424/000-130 CON021 to monitor bearing condition and shaft alignment. The low-power 24 V DC operation and DIN rail form factor make it well-suited for compact MCC panel installations in water infrastructure projects.

Marine & Offshore: Propulsion system monitoring on vessels and offshore platform machinery protection systems deploy the PR6424/000-130 CON021 in vibration measurement chains for main engines, gearboxes, and auxiliary machinery. The wide operating temperature range (-40 °C to +85 °C) ensures reliable performance in marine environments subject to extreme thermal cycling.

Packaging & Process Lines: High-speed packaging machinery and continuous process lines benefit from the PR6424/000-130 CON021's fast signal response and stable analog output, enabling integration with machine condition monitoring systems that trigger predictive maintenance alerts before mechanical failures cause unplanned downtime.

Q1: Is the EPRO PR6424/000-130 CON021 compatible with third-party DCS analog input modules, and what signal conditioning is required at the DCS interface? The PR6424/000-130 CON021 outputs a standard 4–20 mA or 0–10 V DC signal, which is universally compatible with analog input modules from major DCS platforms including Emerson DeltaV, Honeywell Experion, ABB 800xA, and Siemens PCS 7. No additional signal conditioning is required at the DCS interface under standard installation conditions. For installations in hazardous areas (Zone 1/Zone 2), a certified Zener barrier or galvanic isolator should be installed between the CON021 output and the DCS AI module to maintain intrinsic safety compliance. The 12-Month Warranty covers the converter unit itself; interface components should be selected and warranted separately per project specifications.

Q2: Can the PR6424/000-130 CON021 be used in a redundant monitoring architecture, and how is switchover managed? Yes. In redundant machinery protection architectures, two PR6424/000-130 CON021 converters can be deployed in parallel on independent measurement channels, each feeding a separate analog input on a redundant DCS or safety system controller. Switchover logic is managed at the controller level using 1oo2 or 2oo3 voting schemes, depending on the safety integrity level (SIL) requirement of the protection loop. The CON021's stable analog output and low drift characteristics ensure that both channels maintain consistent readings under normal operating conditions, minimizing spurious trip risk during switchover events. EPRO's PR6400 rack system supports channel-level isolation, allowing one converter to be serviced without interrupting the redundant channel.

Q3: What is the lead time and warranty coverage for the EPRO PR6424/000-130 CON021, and how is long-term spare parts availability managed? The EPRO PR6424/000-130 CON021 is maintained in stock for fast global dispatch, with standard lead times of 3–7 business days for in-stock units. Each unit ships with a 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions. For long-term spare parts planning, we recommend maintaining a minimum of one spare CON021 converter per critical measurement chain, particularly in continuous process applications where unplanned downtime carries significant production cost. All units undergo pre-shipment functional testing against EPRO factory specifications before dispatch. For volume procurement or long-term supply agreements, contact our technical sales team to discuss framework contracts and extended warranty options.
