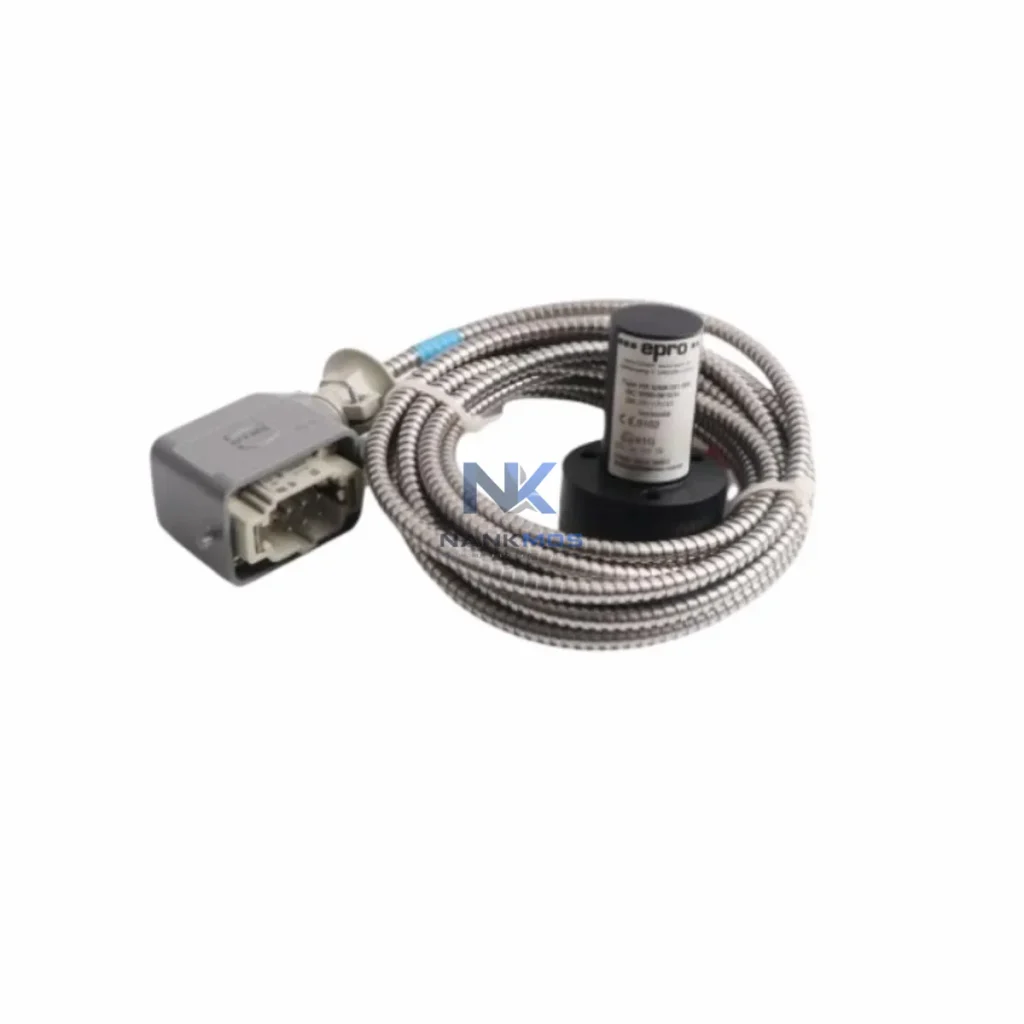

Epro PR9268/301-000 Proximity Monitor

Product Details

PR9268/301-000 Product Description

The Epro PR9268/301-000 is a precision proximity monitor engineered for continuous vibration and displacement measurement in rotating machinery environments. Designed to operate within the Epro PR9268 series architecture, this unit delivers real-time shaft proximity data across the full industrial data chain — from field sensor signal acquisition through protocol conversion, network transmission, SCADA visualization, and remote diagnostic feedback. In smart factory deployments where machine health directly impacts production continuity, the PR9268/301-000 serves as a critical node in the connected automation ecosystem, bridging raw mechanical signals with digital plant intelligence.

In a modern smart factory, the Epro PR9268/301-000 anchors the vibration and proximity monitoring layer of the machine health data chain. The signal journey begins at the eddy current probe tip — typically an Epro PR6423 or PR6424 series proximity probe — where shaft displacement is converted into a continuous analog voltage signal. This raw signal feeds directly into the PR9268/301-000 monitor, which conditions, scales, and outputs a clean 4–20 mA or voltage representation of shaft position and vibration amplitude.

From the PR9268/301-000 output terminals, the analog signal enters the plant's I/O infrastructure. In Siemens-based control architectures, this typically connects to a Siemens ET 200SP or ET 200M remote I/O station, where the analog input module digitizes the signal and forwards it over PROFINET to the main S7-300 or S7-1500 PLC. In ABB or Emerson DCS environments, the signal routes through equivalent remote I/O marshalling panels before reaching the controller. At the PLC or DCS level, the digitized proximity value is processed against alarm setpoints — gap voltage thresholds, vibration limits, and differential expansion limits — triggering protective relay outputs or operator alerts as required by API 670 machinery protection standards.

For facilities deploying Modbus RTU or PROFIBUS DP communication backbones, a protocol gateway such as the Moxa MGate MB3170 or HMS Anybus Communicator bridges the analog PR9268/301-000 output into the digital fieldbus network. This gateway integration enables the proximity data to flow seamlessly into Wonderware InTouch, Ignition SCADA, or Siemens WinCC HMI platforms, where operators monitor real-time shaft centerline plots, vibration trend charts, and alarm histories on unified dashboards. The same data stream feeds historian databases — such as OSIsoft PI — enabling long-term trend analysis, predictive maintenance scheduling, and compliance reporting.

Remote diagnostic capability is a key value of integrating the PR9268/301-000 into a networked architecture. Through the SCADA gateway layer, maintenance engineers can access live proximity gap values, vibration spectra, and alarm event logs from remote workstations or mobile devices without entering hazardous machinery areas. When combined with edge computing nodes — such as an Advantech WISE-5000 series edge gateway — the PR9268/301-000 data can be processed locally for anomaly detection algorithms, reducing latency between fault detection and protective shutdown commands. This edge-to-cloud architecture supports IIoT platforms including Azure IoT Hub and AWS IoT Greengrass, enabling enterprise-level asset performance management across multi-site operations.

Power supply reliability for the PR9268/301-000 and its associated probe driver circuitry is typically provided by a dedicated 24 VDC industrial DIN rail power supply — such as a Phoenix Contact QUINT or MEAN WELL DR series unit — ensuring stable bias voltage for the eddy current measurement loop even during plant power fluctuations. The complete measurement chain — probe, monitor, I/O module, gateway, PLC, SCADA, and historian — forms a closed-loop machine protection and data visibility system that is the backbone of smart factory rotating equipment management.

Protocol Fragmentation: Many industrial sites operate mixed-protocol environments where legacy 4–20 mA vibration monitors cannot communicate directly with modern PROFINET or EtherNet/IP control networks. The PR9268/301-000, when paired with a Modbus or PROFIBUS gateway, resolves this fragmentation by converting analog proximity data into structured digital packets readable by any modern PLC or DCS — eliminating the data island created by standalone analog instrumentation.

Data Silos and Production Transparency: Without network integration, proximity monitor readings remain local to the panel — invisible to plant-level SCADA and MES systems. Connecting the PR9268/301-000 output through remote I/O and gateway infrastructure brings shaft health data into the unified plant data model, enabling production managers to correlate machine vibration trends with output quality metrics, downtime events, and maintenance work orders in real time.

Remote Monitoring and Alarm Traceability: In unmanned or remotely operated facilities, the inability to physically inspect proximity monitor readings creates blind spots in machinery protection. Network-integrated PR9268/301-000 deployments push alarm events — high vibration, probe fault, gap out-of-range — directly to SCADA alarm management systems and mobile notification platforms, ensuring that no critical machinery event goes undetected regardless of operator location.

System Scalability: As production lines expand, adding new monitoring points to a networked PR9268 architecture requires only additional probe-monitor pairs connected to existing remote I/O infrastructure — no new communication wiring or protocol engineering. This modular scalability protects the initial network investment while supporting phased smart factory expansion programs.

Q1: Can the Epro PR9268/301-000 communicate directly over Modbus or PROFIBUS? The PR9268/301-000 outputs a standard analog signal (4–20 mA or voltage). Direct digital fieldbus communication requires a protocol gateway — such as a Modbus RTU or PROFIBUS DP analog input gateway — to convert the analog output into a digital network packet. This is standard practice in mixed-protocol smart factory architectures and does not limit the monitor's integration capability.

Q2: What is the typical communication latency when integrating PR9268/301-000 data into a SCADA system? End-to-end latency from analog signal output to SCADA display update is typically 100–500 ms depending on the gateway polling rate, PLC scan cycle, and SCADA server refresh interval. For machinery protection applications requiring faster response, the analog output can be wired directly to a dedicated protection relay or safety PLC input in parallel with the SCADA data path.

Q3: Is the PR9268/301-000 compatible with both Siemens and ABB control platforms? Yes. The analog output of the PR9268/301-000 is platform-agnostic and compatible with any PLC, DCS, or remote I/O system that accepts standard 4–20 mA or voltage analog inputs — including Siemens S7 series, ABB AC500, Rockwell ControlLogix, Emerson DeltaV, and Honeywell Experion platforms. Gateway selection determines the digital protocol layer above the analog signal.

Q4: What pre-shipment testing and warranty coverage applies to the PR9268/301-000? Every PR9268/301-000 unit supplied by NANKMOS undergoes pre-shipment functional verification including signal output calibration check and continuity testing. All units are covered by a 12-Month Warranty against manufacturing defects. In-stock units are available for immediate dispatch with full traceability documentation upon request.
