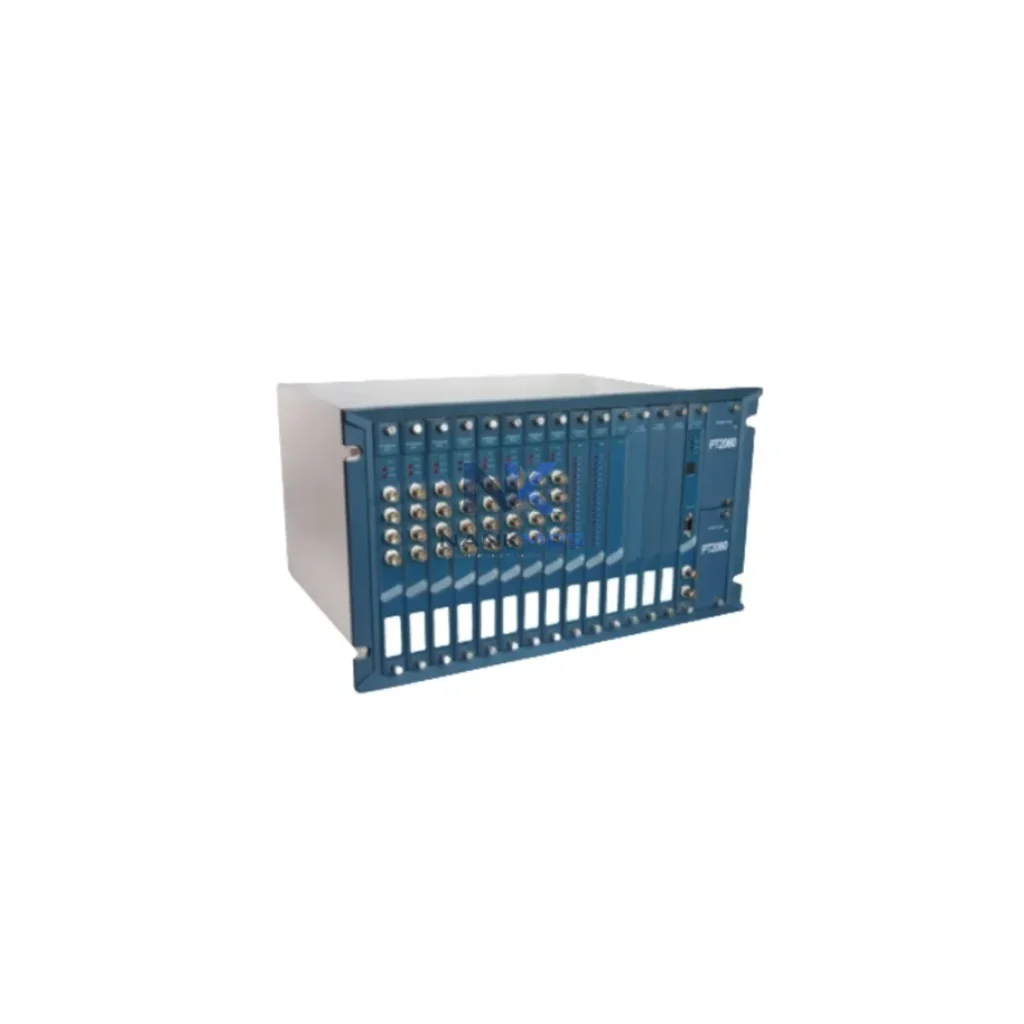

ProvibTech PT2060/40 Vibration Monitor

Product Details

PT2060/40 Product Description

The ProvibTech PT2060/40 is a precision vibration monitoring module engineered for seamless integration within the PT2060 machinery protection platform. Designed to operate as a core component of a layered industrial control architecture, the PT2060/40 delivers continuous, real-time vibration signal acquisition and processing across rotating machinery assets — including compressors, turbines, pumps, fans, and gearboxes — in demanding industrial environments.

Unlike standalone instruments, the PT2060/40 is conceived as a system-level component. Its value is fully realized when deployed within a coordinated automation architecture that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Each layer contributes to a unified operational picture, and the PT2060/40 anchors the protection layer by providing the vibration data that feeds upstream logic, alarming, and shutdown sequences.

At NANKMOS, every PT2060/40 unit is sourced directly, pre-shipment tested, and backed by a 12-Month Warranty — ensuring that your machinery protection architecture remains reliable from commissioning through long-term operation.

The PT2060/40 does not operate in isolation. Its full capability emerges when it is deployed as part of a coherent, multi-layer automation platform. The following describes how the PT2060/40 integrates with complementary components across the control architecture:

Control Layer: The PT2060/40 feeds processed vibration data — overall vibration levels, gap voltage, 1X/2X amplitude and phase — to the plant DCS or PLC via Modbus RTU over RS-485. In Siemens-based architectures, this data is consumed by S7-300 or S7-400 series CPUs through CP 341 or CP 343 communication processors. In Rockwell environments, ControlLogix or CompactLogix controllers receive the data via gateway modules, enabling integrated alarming and interlock logic within the main control program.

I/O Layer: The 4–20 mA analog outputs from the PT2060/40 connect directly to analog input modules — such as the Siemens SM 331 or equivalent Rockwell 1756-IF16 — allowing the DCS/PLC to log, trend, and act on vibration data alongside process variables such as temperature, pressure, and flow.

Communication Layer: Where fieldbus integration is required, the PT2060/40 rack can be paired with a ProvibTech PT2060 communication gateway module to bridge Modbus RTU data onto PROFIBUS DP or Industrial Ethernet (Modbus TCP). This enables the vibration protection system to participate in plant-wide SCADA architectures without requiring separate wiring infrastructure.

Power Layer: The PT2060/40 is powered through the PT2060 backplane, which in turn is supplied by a dedicated 24 VDC rail. Redundant power supply modules — such as the PT2060 PSU or equivalent Siemens SITOP PSU8600 — are recommended for critical machinery protection applications to eliminate single points of failure in the power architecture.

HMI Layer: Vibration trends and alarm states from the PT2060/40 are visualized on plant HMI systems — including Siemens SIMATIC TP or KTP series panels, or Weintek/Weinview HMI terminals — providing operators with real-time machinery health dashboards. Historian integration via OPC DA/UA enables long-term trend analysis and predictive maintenance workflows.

Protection Layer: The PT2060/40 relay outputs connect directly to the machinery shutdown circuit, enabling autonomous trip actions independent of the DCS/PLC scan cycle. This hardwired protection path ensures that vibration-based shutdowns occur within the module's own response time, meeting API 670 requirements for independent protection.

Maintenance Layer: The PT2060/40 supports in-rack replacement without full system shutdown in hot-swap capable configurations. Combined with ProvibTech PT2060 spare channel modules and a structured spare parts inventory strategy, maintenance teams can achieve rapid mean-time-to-repair (MTTR) targets and sustain continuous protection coverage during planned and unplanned maintenance windows.

Oil & Gas / Petrochemical: In compressor trains and turbine-driven pumps, the PT2060/40 provides the vibration protection backbone required by API 670 and IEC 61511 functional safety frameworks. Deployed alongside process controllers and emergency shutdown systems (ESD), it ensures that machinery excursions trigger coordinated protective responses across the control architecture.

Power Generation: Steam turbines, gas turbines, and large motor-driven auxiliaries in power plants rely on continuous vibration monitoring for both protection and condition-based maintenance. The PT2060/40 integrates with plant DCS platforms to deliver vibration data to the control room, enabling operators to correlate machinery health with generation output and grid stability requirements.

Water & Wastewater Treatment: Pump stations and blower systems in water treatment facilities benefit from the PT2060/40's ability to detect early-stage bearing degradation and imbalance conditions. Integration with SCADA systems via Modbus TCP allows remote monitoring of distributed pump assets across large treatment plant footprints.

Mining & Metallurgy: Crushers, mills, conveyors, and hoists in mining operations are subject to high vibration loads and harsh environmental conditions. The PT2060/40's robust signal processing and relay-based protection outputs make it suitable for deployment in control cabinets serving these high-consequence rotating assets.

Marine & Offshore: Shipboard propulsion systems, diesel generators, and auxiliary machinery require vibration monitoring solutions that meet marine classification society requirements. The PT2060/40's compact rack-based form factor and wide operating temperature range support installation in engine room control panels on offshore platforms and vessels.

Packaging & Process Manufacturing: High-speed packaging lines and continuous process plants use the PT2060/40 to monitor critical drive-end and non-drive-end bearing conditions on motors and gearboxes, reducing unplanned downtime and supporting OEE improvement programs.

Q1: Is the PT2060/40 compatible with third-party DCS and PLC platforms, or is it limited to ProvibTech ecosystems?The PT2060/40 communicates via Modbus RTU over RS-485 and provides standard 4–20 mA analog outputs, making it compatible with virtually any DCS or PLC platform that supports these industry-standard interfaces — including Siemens SIMATIC S7, Rockwell ControlLogix, ABB System 800xA, Honeywell Experion, and Yokogawa CENTUM. For PROFIBUS or Ethernet integration, a ProvibTech PT2060 communication gateway module is used to bridge the protocol, maintaining system-level compatibility without requiring custom engineering.

Q2: What is the recommended spare parts and inventory strategy for long-term PT2060/40 deployment?For critical machinery protection applications, NANKMOS recommends maintaining a minimum of one spare PT2060/40 module per rack configuration, along with spare PT2060 power supply modules and communication gateway cards. This inventory posture supports rapid module swap during unplanned failures and ensures that protection coverage is restored within the maintenance window. All NANKMOS-supplied PT2060/40 units are pre-shipment tested and covered by a 12-Month Warranty, providing a reliable baseline for spare parts lifecycle planning.

Q3: How is the PT2060/40 commissioned and validated within a new or expanded control architecture?Commissioning the PT2060/40 involves rack installation, probe wiring verification, channel configuration via the PT2060 configuration software, and setpoint calibration against machinery baseline vibration levels. NANKMOS provides pre-tested units with factory configuration documentation to accelerate site commissioning. Integration testing with the host DCS/PLC should include verification of Modbus register mapping, analog output scaling, and relay trip circuit continuity. For API 670-compliant installations, functional proof testing of the trip relay outputs is required prior to machinery startup.
