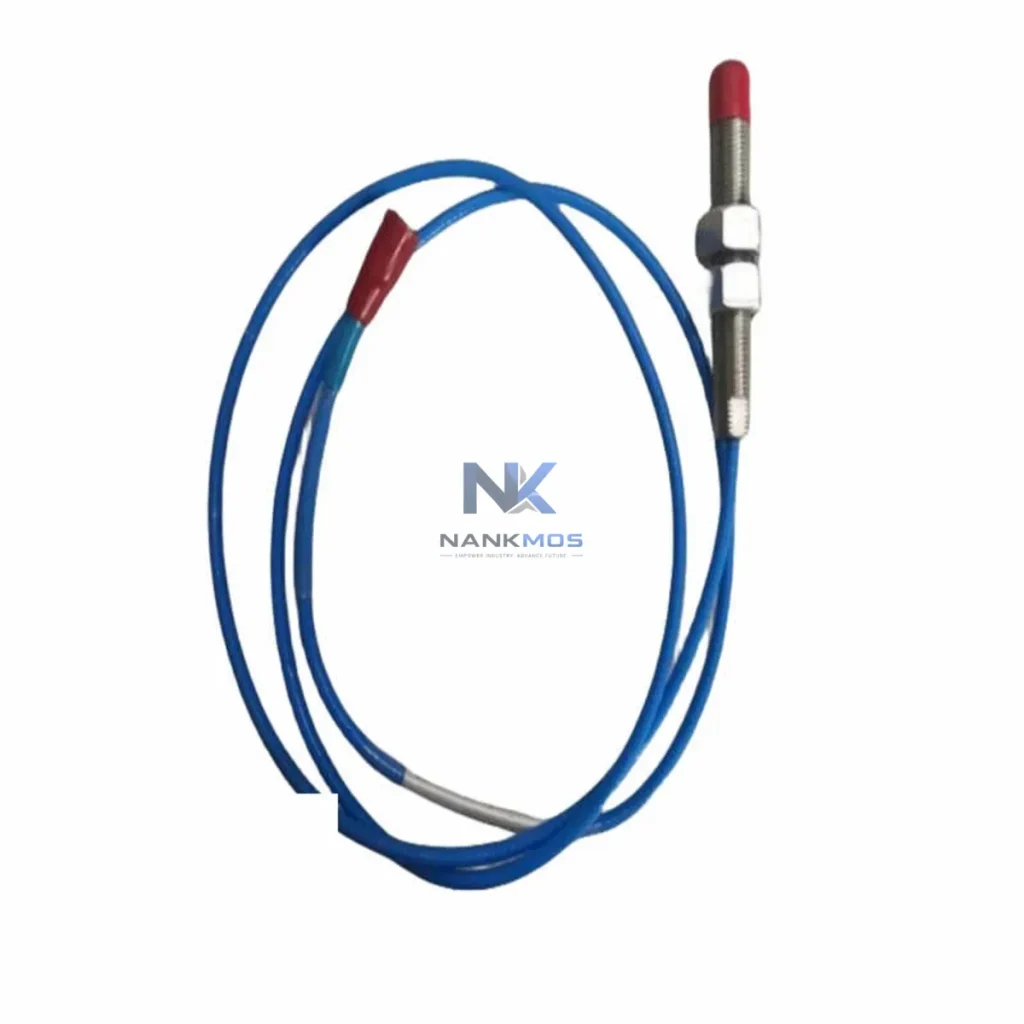

PROVIBTECH TM0180-A08-B13-C20-D10 Proximity Probe

Product Details

TM0180-A08-B13-C20-D10 Product Description

The PROVIBTECH TM0180-A08-B13-C20-D10 is an eddy current proximity probe engineered for precision shaft vibration and position measurement within industrial rotating machinery protection systems. Designed as a core sensing element in multi-layer control architectures, this probe integrates seamlessly with vibration monitoring systems, machinery protection platforms, and distributed control environments where signal fidelity, installation repeatability, and long-term measurement stability are non-negotiable requirements.

With an 8 mm probe tip diameter, 13 mm extension cable, 20 mm armored cable, and 10 mm target gap range, the TM0180-A08-B13-C20-D10 delivers consistent eddy current response across a broad range of conductive target materials. Its compact form factor and standardized connector interface support rapid field installation and replacement without recalibration of the monitoring system, reducing maintenance downtime in critical rotating equipment applications including steam turbines, compressors, pumps, fans, and gearboxes.

The TM0180-A08-B13-C20-D10 proximity probe functions as the primary sensing node within a layered machinery protection and condition monitoring architecture. Its role begins at the field sensing layer, where it converts mechanical shaft displacement into a calibrated analog voltage signal that feeds directly into the signal conditioning and monitoring layer.

In a complete PROVIBTECH-based protection system, the TM0180-A08-B13-C20-D10 pairs with the PROVIBTECH TM0700 series proximity driver/oscillator, which provides the required radio-frequency excitation and converts the probe impedance change into a linear DC output. This driver-probe combination is the foundation of the measurement chain and must be matched in sensitivity and gap range to ensure system accuracy. The TM0700 driver mounts in the junction box or terminal cabinet, maintaining signal integrity over long cable runs from the machine to the control room.

At the monitoring and protection layer, the conditioned signal from the TM0700 driver connects to a PROVIBTECH TM0424 or TM0428 vibration monitor module, which performs real-time signal processing, alarm threshold comparison, and relay output for machinery trip functions. These monitors are rack-mounted in 19-inch instrument cabinets and communicate with the plant DCS or safety system via analog 4–20 mA outputs or digital fieldbus protocols including Modbus RTU and PROFIBUS DP.

For plants operating on the Bently Nevada 3500 machinery protection platform, the TM0180-A08-B13-C20-D10 is fully compatible when paired with the appropriate Bently Nevada 3500/25 proximity transducer I/O module, enabling cross-platform deployment in facilities that operate mixed-vendor protection architectures. Similarly, integration with Emerson CSI 6500 or SKF Multilog IMx online monitoring systems is achievable through standard analog input cards.

At the control layer, the machinery protection relay outputs connect to the plant's ABB AC800M or Siemens S7-400H redundant process controller, where trip logic, permissive interlocks, and alarm management are executed within the main control program. The proximity probe signal can also be routed to a Yokogawa CENTUM VP or Honeywell Experion PKS DCS for integration into the broader process control and historian architecture, enabling long-term trend analysis and predictive maintenance workflows.

Power supply stability is critical for eddy current measurement accuracy. The TM0180-A08-B13-C20-D10 system requires a regulated -24 VDC supply, typically sourced from a dedicated Phoenix Contact QUINT or Weidmüller PRO ECO DIN-rail power supply module with redundant input capability. Signal isolation between the field loop and the control system is provided by MTL Instruments or Pepperl+Fuchs galvanic isolators, which prevent ground loop interference and protect the monitoring system from field-side transients.

For HMI and operator visualization, the proximity probe data is displayed on Siemens SIMATIC TP1200 or Weintek MT8000 panel PCs configured with real-time vibration trend screens, alarm annunciation, and historical waveform replay. This enables operators to monitor shaft centerline position, dynamic eccentricity, and slow-roll runout directly from the control room or local panel without requiring specialized vibration analysis software.

Power Generation: In steam turbine and gas turbine protection systems, the TM0180-A08-B13-C20-D10 monitors radial shaft vibration and axial position at journal bearings and thrust bearings. The probe's fast frequency response (DC to 10 kHz) captures both synchronous and sub-synchronous vibration components critical for turbine health assessment. Trip relay outputs from the connected TM0424 monitor integrate with the turbine emergency trip system (ETS), providing automatic shutdown on high-high vibration events.

Petrochemical and Refinery: Centrifugal compressors and process pumps in hydrocarbon service require continuous shaft monitoring to detect surge precursors, rotor instability, and bearing wear. The TM0180-A08-B13-C20-D10 installed at compressor journal bearings provides the real-time displacement data required by API 670-compliant protection systems. Its IP67-rated cable assembly withstands the hydrocarbon-laden, high-humidity environments typical of compressor trains in ethylene, ammonia, and LNG facilities.

Water and Wastewater Treatment: Large vertical turbine pumps and horizontal split-case pumps in water treatment plants benefit from non-contact proximity monitoring to detect shaft bow, bearing clearance changes, and impeller imbalance. The TM0180-A08-B13-C20-D10 provides continuous monitoring without the wear associated with contact-type displacement sensors, reducing maintenance intervals and extending pump overhaul cycles.

Mining and Minerals Processing: Ball mills, SAG mills, and large fan drives in mining operations subject rotating shafts to high radial loads and shock excitation. The TM0180-A08-B13-C20-D10's robust construction and wide operating temperature range make it suitable for the harsh environments of mineral processing plants, where dust, vibration, and temperature extremes challenge conventional instrumentation.

Marine and Offshore: Propulsion shaft monitoring on vessels and offshore platform compressor trains requires instrumentation that meets classification society requirements (DNV, ABS, Lloyd's Register). The TM0180-A08-B13-C20-D10, when integrated with a certified machinery protection system, supports compliance with these standards while providing the continuous shaft monitoring required for unmanned machinery space (UMS) operation.

Q1: Is the TM0180-A08-B13-C20-D10 directly interchangeable with Bently Nevada 3300 XL 8 mm proximity probes in existing installations? The TM0180-A08-B13-C20-D10 uses the same 8 mm tip diameter and standard -24 VDC supply as the Bently Nevada 3300 XL series, and its sensitivity of 7.87 V/mm (200 mV/mil) matches the industry-standard scale factor. In most installations, it can serve as a functional replacement when paired with the PROVIBTECH TM0700 driver. However, system recalibration and gap verification are always recommended when substituting probes in API 670-compliant protection systems to confirm alarm and trip setpoints remain valid.

Q2: What cable routing and grounding practices are required to maintain signal integrity over long cable runs? For cable runs exceeding 9 meters, the TM0180-A08-B13-C20-D10 must be used with the matched extension cable specified in the TM0180 series documentation. The armored cable shield must be grounded at a single point — typically at the driver/oscillator junction box — to prevent ground loops. Cable routing should avoid parallel runs with high-voltage power cables; a minimum separation of 300 mm is recommended. In environments with high electromagnetic interference (VFD cabinets, large motors), additional shielded conduit or signal isolators from MTL or Pepperl+Fuchs should be used.

Q3: What does the 12-Month Warranty cover, and what is the recommended spare parts strategy for critical machinery protection applications? The 12-Month Warranty covers manufacturing defects in materials and workmanship under normal operating conditions. For critical rotating machinery where unplanned downtime carries significant production cost, a minimum of one spare probe-driver pair per monitored machine train is recommended. NANKMOS maintains verified stock of TM0180-A08-B13-C20-D10 units with pre-shipment functional testing, enabling rapid dispatch to minimize exposure between failure detection and replacement. All units are shipped with test documentation confirming sensitivity, linearity, and connector integrity.
