SANYO DENKI PV2A015WN31A00 2MC-H500-N 4022.436.1575 G-50S

Product Details

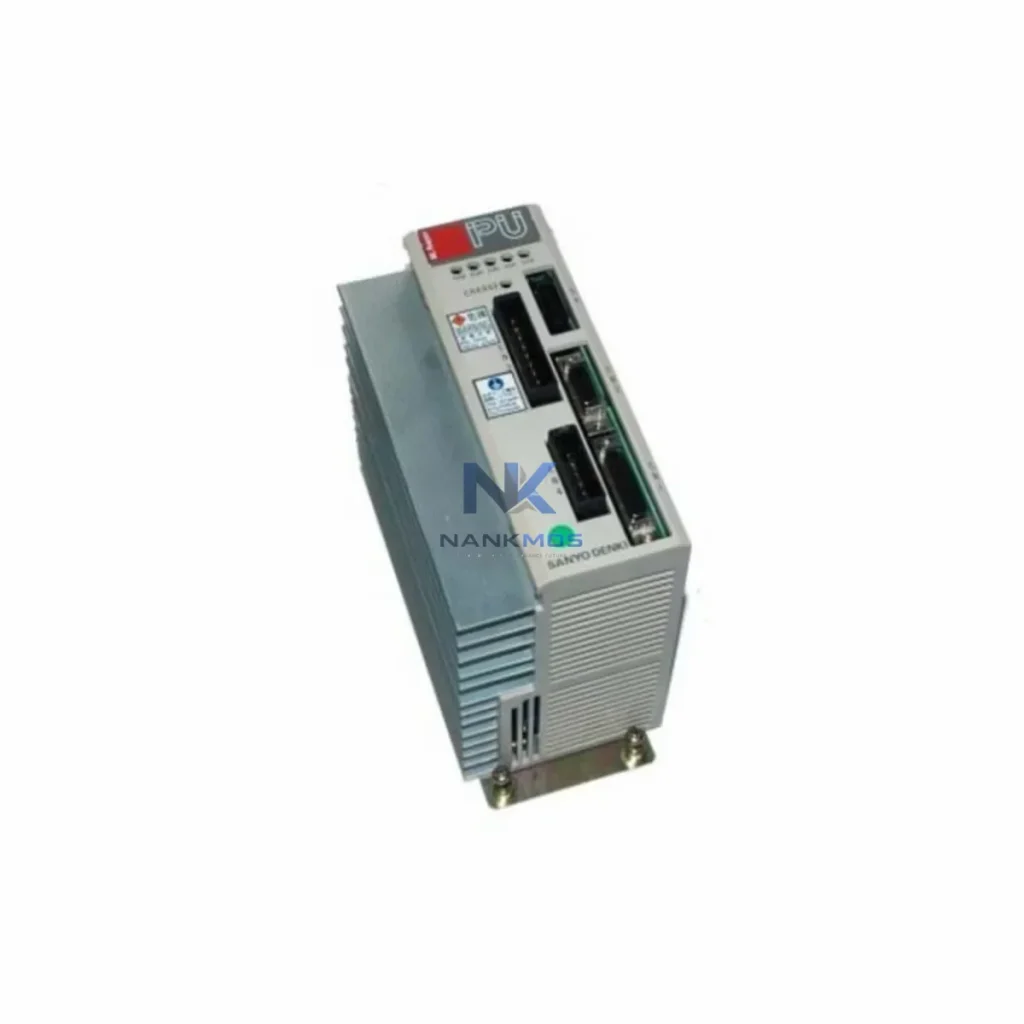

PV2A015WN31A00 2MC-H500-N 4022.436.1575 G-50S Product Description

The Sanyo Denki PV2A015WN31A00 is a high-performance EtherCAT-enabled servo amplifier designed for seamless integration within the SANMOTION G servo system platform. As a network-linked motion controller and protocol gateway, it bridges field-level servo drives with upper-layer control architectures — including PLC controllers, SCADA systems, HMI panels, and edge computing nodes — delivering deterministic, real-time data across the full automation data chain.

In modern smart factory deployments, the PV2A015WN31A00 functions as a critical node in the industrial data flow: from encoder signal acquisition and torque/speed feedback at the servo motor level, through EtherCAT cyclic PDO communication to the motion controller, and onward to supervisory systems for real-time monitoring, alarm management, and remote diagnostics. Its sub-millisecond cycle time and distributed clock synchronization make it suitable for high-speed, multi-axis coordinated motion applications where data integrity and network stability are non-negotiable.

In a fully connected smart factory, the PV2A015WN31A00 sits at the intersection of motion control and industrial networking. At the field level, it receives encoder pulses and analog feedback from SANMOTION G servo motors, converting physical motion data into digital process variables. These variables are transmitted via EtherCAT to an upstream motion controller — such as a Beckhoff CX series IPC running TwinCAT 3, or an Omron NJ/NX series machine controller operating on the Sysmac platform — where multi-axis trajectory planning and interpolation are executed in real time.

The EtherCAT network backbone connects the PV2A015WN31A00 alongside other distributed nodes: remote I/O modules such as the Beckhoff EL series or Phoenix Contact Axioline F, digital I/O terminals, and safety modules. An EtherCAT junction or managed industrial Ethernet switch — for example, a Hirschmann MICE series or Moxa EDS-400 series — provides the physical layer infrastructure, ensuring deterministic packet delivery with minimal jitter across the production floor network.

At the supervisory layer, SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC OA collect real-time servo status data — including torque utilization, velocity feedback, alarm codes, and thermal status — via OPC UA gateways or direct EtherCAT master interfaces. HMI panels, such as Proface GP4000 series or Weintek cMT series, display live axis position and fault diagnostics to operators on the production line. This closed-loop data architecture enables predictive maintenance alerts, cycle time optimization, and remote diagnostics without requiring physical access to the drive cabinet.

For multi-axis systems, the PV2A015WN31A00 operates in coordination with other SANMOTION G amplifiers — including the PV2A030WN31A00 (3.0 A) and PV2A050WN31A00 (5.0 A) variants — sharing a common EtherCAT segment and synchronized via distributed clock (DC) to achieve sub-microsecond axis-to-axis timing accuracy. Power supply units such as the SANYO DENKI BL Super series or compatible 24 VDC DIN-rail PSUs provide stable bus voltage, while regenerative resistor modules handle energy recovery during deceleration cycles.

Edge gateway devices — such as the Moxa UC-8100 series or Advantech WISE-5000 series — can be deployed alongside the EtherCAT master to aggregate servo data, apply local analytics, and forward structured JSON or MQTT payloads to cloud-based MES or ERP platforms. This edge-to-cloud data pipeline supports production KPI dashboards, OEE tracking, and remote engineering access, completing the smart factory data chain from servo encoder to enterprise system.

Many automation sites face persistent challenges: protocol fragmentation between legacy fieldbus devices and modern Ethernet-based controllers, data silos that prevent cross-system visibility, and limited remote monitoring capability that forces costly on-site service visits. The PV2A015WN31A00 addresses these gaps directly.

Its native EtherCAT protocol eliminates the need for external protocol converters between the servo drive and EtherCAT-based PLCs or motion controllers, reducing network latency and configuration complexity. For sites migrating from older MECHATROLINK or PROFIBUS-based servo systems, the SANMOTION G platform's standardized EtherCAT interface provides a clear upgrade path without rewiring the entire control cabinet.

Real-time alarm feedback — including overcurrent, encoder error, overheat, and position deviation faults — is transmitted cyclically over EtherCAT and surfaced in SCADA alarm management systems, enabling operators to respond to faults within seconds rather than discovering them during manual inspections. Remote diagnostics via the EtherCAT master's diagnostic tools allow engineering teams to read drive parameters, adjust gain settings, and review fault history logs without traveling to the site.

For production line transparency, the PV2A015WN31A00's process data objects (PDOs) expose torque, velocity, position, and status word data to the SCADA historian, enabling trend analysis and capacity planning. As production demands grow, additional SANMOTION G axes can be added to the EtherCAT ring without disrupting existing network segments, providing a scalable architecture that supports phased factory expansion.

Q1: What is the communication latency of the PV2A015WN31A00 on an EtherCAT network?The PV2A015WN31A00 supports EtherCAT cycle times as low as 125 µs with distributed clock synchronization, delivering deterministic, sub-millisecond latency suitable for high-speed multi-axis motion control. Network jitter is typically below 1 µs under normal operating conditions.

Q2: Is the PV2A015WN31A00 compatible with third-party EtherCAT masters such as TwinCAT or CODESYS?Yes. As a standard EtherCAT slave device compliant with IEC 61158, the PV2A015WN31A00 is compatible with any conformant EtherCAT master, including Beckhoff TwinCAT 3, CODESYS SoftMotion, Omron Sysmac Studio, and other certified platforms. ESI (EtherCAT Slave Information) files are available for master configuration.

Q3: How does the unit support remote diagnostics and network stability monitoring?The PV2A015WN31A00 exposes drive status, fault codes, and process variables via EtherCAT PDOs, which can be read by the EtherCAT master and forwarded to SCADA or HMI systems for real-time monitoring. Network stability is maintained through EtherCAT's built-in error detection and hot-connect capability, allowing segment recovery without full network restart.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the PV2A015WN31A00?Every PV2A015WN31A00 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional testing prior to shipment to verify communication integrity, power stage operation, and encoder interface performance. In-stock units are available for immediate dispatch. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
