YOKOGAWA PW481-10 S2 DCS Power Supply Module

Product Details

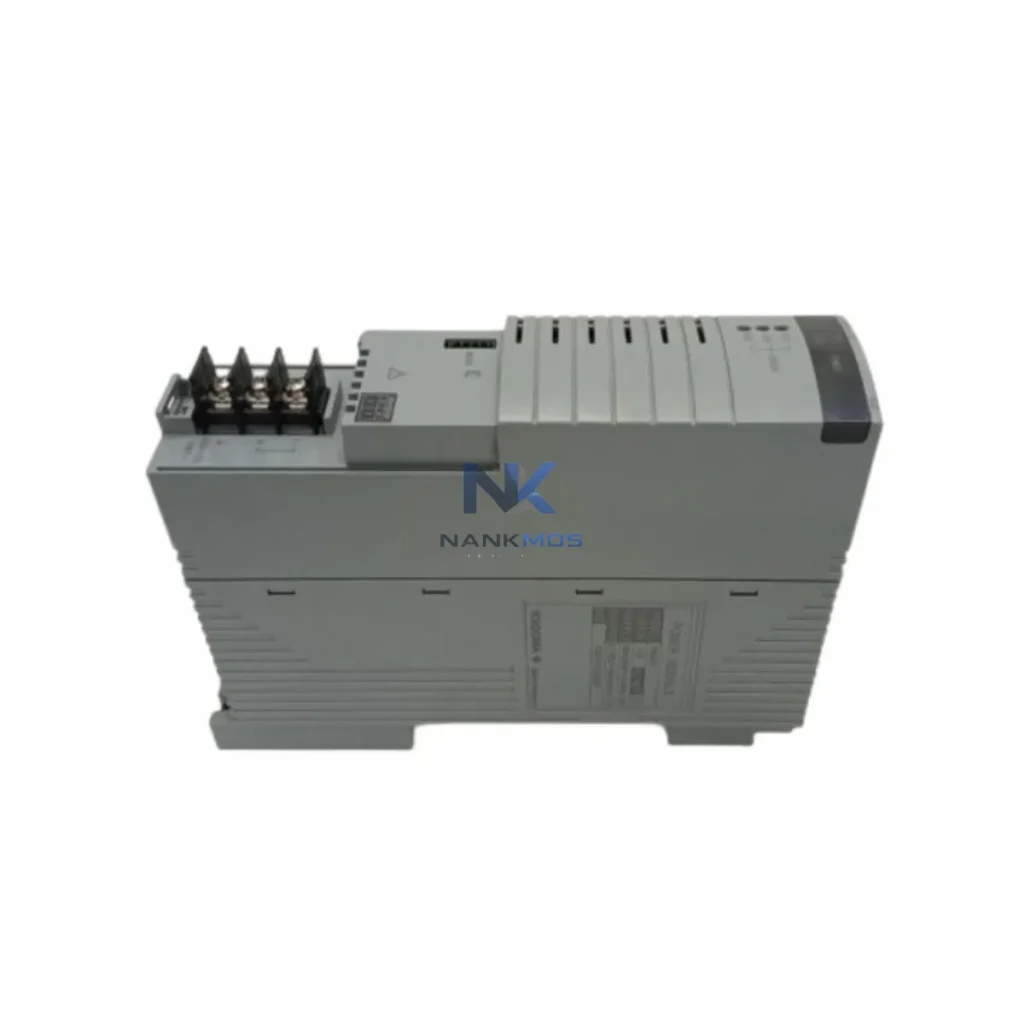

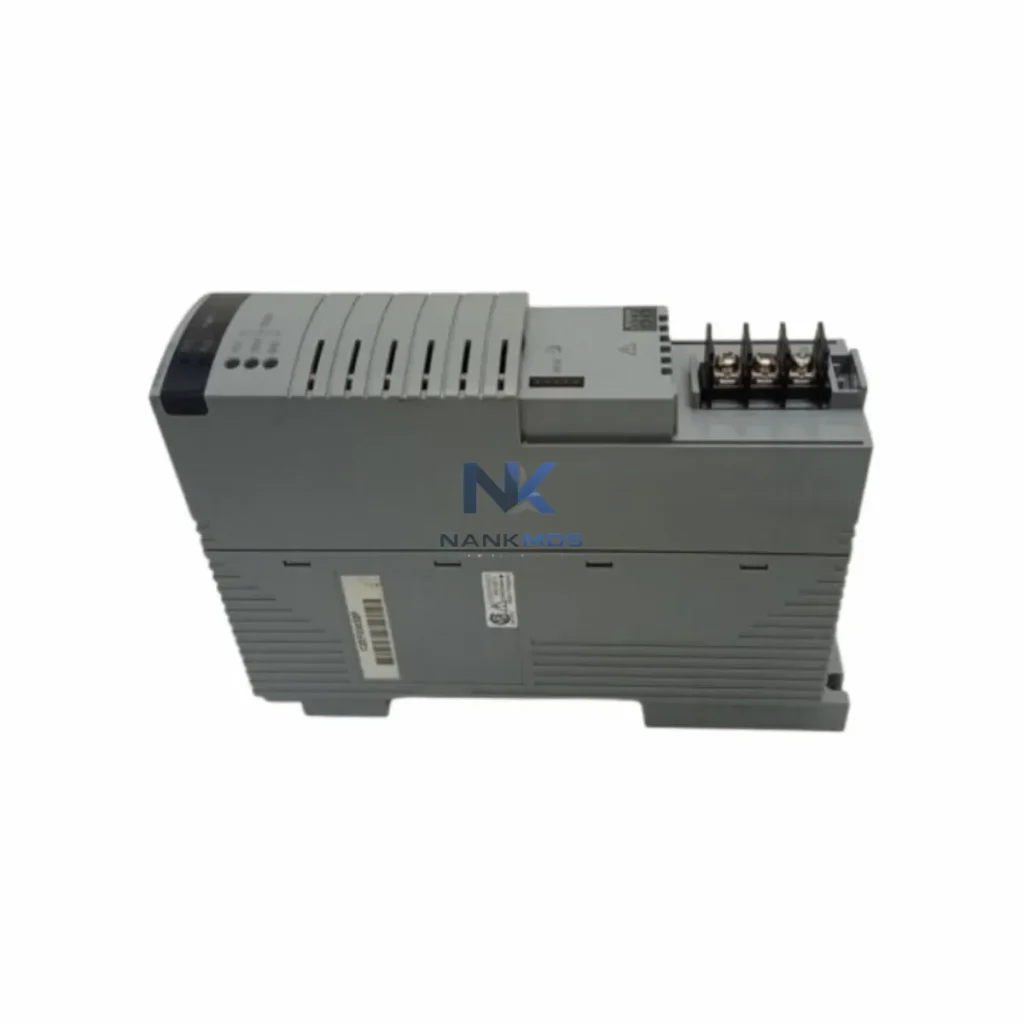

PW481-10 S2 Product Description

The Yokogawa PW481-10 S2 is a precision DCS power supply module engineered for the CENTUM CS3000 distributed control system, delivering stable, conditioned power across the field bus backbone while serving as a critical node in the industrial data link chain. In smart factory environments where every millisecond of uptime and every byte of process data carries operational weight, the PW481-10 S2 provides the power integrity that keeps field devices, I/O modules, and communication gateways continuously online and synchronized with the supervisory layer.

Modern industrial automation sites demand more than raw power delivery. They require power infrastructure that is transparent to the network, monitorable in real time, and capable of supporting the dense communication traffic generated by SCADA systems, HMI terminals, remote I/O racks, and edge gateways. The PW481-10 S2 is designed to meet these demands within the CS3000 architecture, where it supports the Vnet/IP communication backbone — Yokogawa's proprietary high-speed industrial Ethernet protocol — ensuring that power events are immediately reflected in the control network and that diagnostic data flows uninterrupted to the engineering station.

Within a CS3000-based smart factory, the PW481-10 S2 anchors the power layer of the Field Control Station (FCS) cabinet, where it works in concert with a full ecosystem of Yokogawa automation components. Signal acquisition begins at the field level, where instruments such as EJA-series differential pressure transmitters and YTA-series temperature transmitters feed analog and digital signals into Yokogawa's AAI141 and ADV151 I/O modules mounted in the same FCS rack. These I/O modules depend on the stable DC bus maintained by the PW481-10 S2 to ensure accurate signal conditioning and zero-dropout data capture.

From the I/O layer, process values are passed through the FCS processor — typically an FCU (Field Control Unit) such as the AFV10D or AFV30D — where control logic executes in real time. The FCU communicates upstream via the Vnet/IP backbone, transmitting live process data to the CENTUM HIS (Human Interface Station) operator consoles and to the Exaopc OPC server, which bridges the CS3000 network to third-party SCADA platforms and MES systems. Throughout this data path, the PW481-10 S2 ensures that the FCS cabinet remains energized and that no power transient interrupts the continuous flow of process variables, alarm states, and control outputs.

For sites integrating Yokogawa's STARDOM FCN/FCJ remote controllers or Modbus-connected field devices such as variable frequency drives and smart motor controllers, the CS3000 system relies on protocol conversion modules and serial communication cards — all of which draw from the same power infrastructure that the PW481-10 S2 supports. Edge gateway devices that aggregate data from Profibus DP segments, HART-enabled transmitters, and Foundation Fieldbus H1 segments also depend on the power stability delivered by modules in this class. When the PW481-10 S2 is operating correctly, the entire data chain — from sensor to SCADA dashboard — remains coherent, latency-stable, and diagnostically transparent.

In redundant CS3000 configurations, dual PW481-10 S2 modules operate in parallel, with automatic switchover logic ensuring that a single power module failure does not interrupt FCS operation or cause data loss at the supervisory layer. This redundancy architecture is essential for continuous process industries such as oil and gas, petrochemical, and power generation, where even a momentary control system interruption can trigger costly process upsets or safety system activations.

One of the most persistent challenges in legacy DCS environments is the fragmentation of process data caused by aging power infrastructure. When power supply modules degrade, the first symptoms are often subtle: intermittent I/O errors, unexplained communication timeouts on the Vnet/IP segment, or spurious alarm activations that cannot be traced to a process event. These symptoms create data gaps — periods where the SCADA historian loses continuity, where HMI trend displays show flatlines, and where remote diagnostic tools report communication faults rather than process values.

The PW481-10 S2 directly addresses these failure modes by providing clean, regulated DC power to the FCS backplane, eliminating the voltage ripple and transient spikes that corrupt I/O module readings and destabilize communication timing. Sites that replace aging or counterfeit power modules with genuine Yokogawa PW481-10 S2 units consistently report a reduction in nuisance alarms, improved data continuity in the process historian, and restored confidence in remote monitoring dashboards.

For automation engineers managing multi-site SCADA networks, the ability to remotely diagnose power module status through the CS3000 engineering station — without dispatching field technicians — represents a significant operational efficiency gain. The PW481-10 S2 supports this capability by maintaining the FCS communication link even under load fluctuations, ensuring that the engineering station always has an accurate view of cabinet health. This transparency is foundational to predictive maintenance programs, where early detection of power anomalies prevents unplanned shutdowns and extends the service life of the entire FCS cabinet.

System expansion is another area where the PW481-10 S2 delivers value. As production lines grow and additional I/O modules, communication cards, and gateway devices are added to the FCS rack, the power budget of the cabinet increases. The PW481-10 S2's capacity and compatibility with CS3000 expansion hardware make it the correct choice for sites planning phased automation upgrades, ensuring that the power layer scales with the control architecture without requiring a cabinet redesign.

Q: Is the Yokogawa PW481-10 S2 compatible with both CS3000 and CENTUM VP systems?A: The PW481-10 S2 is designed for the CENTUM CS3000 platform. Compatibility with CENTUM VP depends on the specific FCS hardware revision and cabinet configuration. We recommend verifying the target system's hardware compatibility list or consulting the Yokogawa engineering documentation before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: How does the PW481-10 S2 support remote diagnostics and network monitoring?A: Within the CS3000 architecture, power module status is reported through the FCS self-diagnostic system, which communicates module health data to the CS3000 engineering station via the Vnet/IP network. This allows operators and maintenance engineers to monitor power module status remotely without physical access to the FCS cabinet, supporting predictive maintenance workflows and reducing unplanned downtime.

Q: What is the warranty coverage and what does it include?A: Every Yokogawa PW481-10 S2 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output voltage, load regulation, and communication interface integrity before dispatch.

Q: Can the PW481-10 S2 operate in a redundant power configuration, and how does switchover affect network communication?A: Yes. The CS3000 FCS supports dual power supply configurations using two PW481-10 S2 modules in parallel. In the event of a single module failure, the redundant module assumes full load without interrupting FCS operation or the Vnet/IP communication link. Switchover is automatic and transparent to the SCADA and HMI layers, ensuring continuous data flow and alarm monitoring throughout the transition.
