Yokogawa S9400UK Battery Pack

Product Details

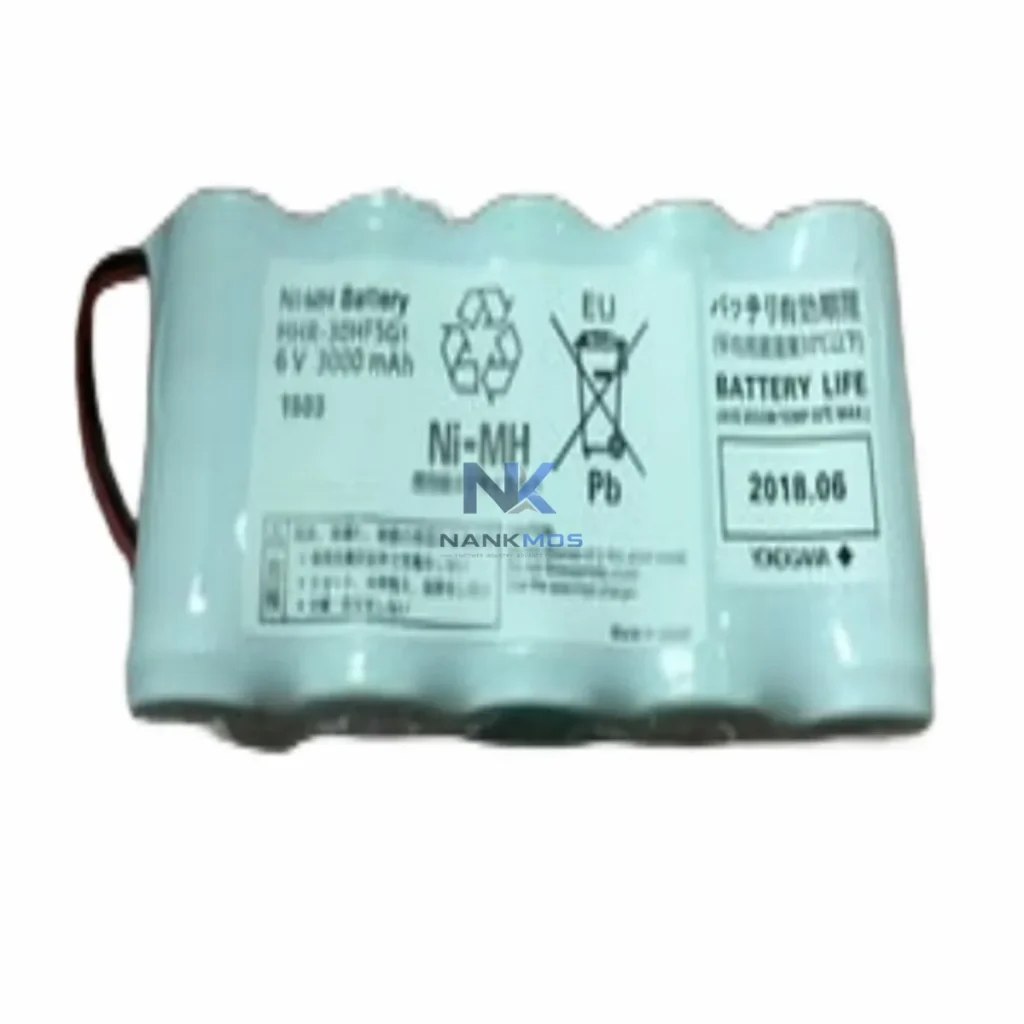

S9400UK Product Description

The Yokogawa S9400UK is a dedicated backup battery pack engineered for Field Control Stations (FCS) within the CENTUM VP and CS 3000 distributed control system platforms. In mission-critical process automation environments — spanning petroleum refining, chemical processing, power generation, water treatment, and advanced manufacturing — uninterrupted controller operation is non-negotiable. The S9400UK addresses this requirement by providing a reliable, system-validated power backup layer that sustains FCS memory retention and orderly shutdown sequencing during primary power interruptions, protecting both process integrity and personnel safety.

Designed as a direct replacement and system-matched component within the Yokogawa CENTUM VP architecture, the S9400UK integrates seamlessly into the existing power supply framework without requiring additional interface modules or configuration changes. Its plug-and-play compatibility with the CENTUM VP FCS cabinet power subsystem ensures that engineering teams can execute battery replacement or commissioning tasks efficiently, minimizing planned maintenance windows and reducing the risk of inadvertent process disruption.

From a control architecture perspective, the S9400UK occupies a critical position in the power layer — one of the foundational strata in any robust industrial automation hierarchy. The power layer underpins every other functional layer: the control layer (FCS processors such as the AFV10D and AFV30D), the I/O layer (NFAI141, NFAO141, NFDV141 field I/O modules), the communication layer (ESB10D Vnet/IP bus coupler, EB401 Ethernet interface), the HMI layer (CENTUM VP HIS operator stations), the execution layer (field instruments and final control elements), and the protection layer (safety instrumented system interfaces). A failure in the power backup layer cascades across all of these, making the S9400UK a foundational reliability component rather than a peripheral accessory.

The S9400UK is fully tested prior to shipment under simulated load conditions representative of a populated FCS cabinet. Each unit undergoes charge-cycle verification, terminal integrity inspection, and capacity validation to confirm it meets Yokogawa's original equipment specifications. This pre-shipment testing protocol, combined with NANKMOS's 12-Month Warranty coverage, ensures that procurement teams and maintenance engineers can deploy the S9400UK with confidence in both immediate performance and long-term reliability.

In multi-FCS architectures — common in large-scale refinery, LNG terminal, or power plant DCS deployments — the S9400UK supports redundant power backup strategies. When paired with the Yokogawa PW481 or PW482 dual-redundant power supply modules, the S9400UK provides a tertiary backup layer that sustains controller RAM and I/O scan continuity during both planned switchovers and unplanned power events. This layered power architecture is consistent with IEC 61511 functional safety requirements for SIL-rated process control loops, where controller availability directly impacts safety function integrity.

For engineering teams managing CENTUM VP system lifecycle — including hardware refresh cycles, spare parts rationalization, and obsolescence management — the S9400UK represents a stocked, immediately available component. NANKMOS maintains inventory of the S9400UK alongside complementary CENTUM VP hardware including the AFV10D FCS processor module, the NFAI141 analog input module, the ESB10D Vnet/IP bus coupler, the EB401 Ethernet interface card, and the PW481 redundant power supply. This integrated spare parts availability enables single-source procurement for CENTUM VP maintenance projects, reducing lead times and simplifying vendor management.

The S9400UK operates as the power backup foundation for a fully integrated CENTUM VP automation platform. In a typical large-scale DCS deployment, the S9400UK supports the AFV10D or AFV30D FCS processor modules — the computational core of the control layer — by ensuring that controller RAM contents and active process values are preserved during power transitions. This is particularly critical in continuous process industries where a cold restart of the FCS would require manual re-initialization of thousands of control loops.

At the I/O layer, the NFAI141 analog input module, NFAO141 analog output module, and NFDV141 digital I/O module maintain their last-known output states during a power backup event, provided the FCS processor remains operational — a condition directly enabled by the S9400UK. At the communication layer, the ESB10D Vnet/IP bus coupler and EB401 Ethernet interface card continue to maintain network topology awareness, preventing spurious alarms and enabling graceful reconnection when primary power is restored.

The HMI layer — comprising CENTUM VP HIS operator stations — benefits indirectly from S9400UK reliability: when the FCS remains live during a power event, operators retain real-time process visibility and can execute manual interventions without transitioning to emergency operating procedures. At the execution layer, field instruments and control valves connected through HART or FOUNDATION Fieldbus interfaces maintain their last commanded positions, preserving process stability. At the protection layer, safety PLC interfaces and emergency shutdown system (ESD) inputs continue to receive valid process data from the FCS, maintaining SIL function integrity throughout the power event.

For system integrators designing CENTUM VP cabinets, the S9400UK is typically specified alongside the PW481 or PW482 redundant power supply modules, the RIO bus interface units, and the ESB10D bus coupler to form a complete, redundant power and communication backbone. This integrated approach is consistent with Yokogawa's system engineering guidelines for high-availability DCS architectures in refinery, petrochemical, and power generation applications.

The Yokogawa S9400UK finds application across a broad spectrum of process industries where CENTUM VP and CS 3000 DCS platforms are deployed. In petroleum refining, the S9400UK protects FCS controllers managing crude distillation units, hydrotreaters, and catalytic reformers — processes where an uncontrolled controller restart could trigger emergency shutdowns and significant production losses. In LNG terminals and gas processing facilities, the S9400UK supports FCS nodes controlling compressor trains, heat exchangers, and custody transfer metering systems, where data integrity during power events is both a safety and a commercial requirement.

In power generation — including coal-fired, gas turbine, and combined-cycle plants — the S9400UK is deployed in CENTUM VP systems managing boiler controls, turbine governor interfaces, and auxiliary systems. The battery backup capability ensures that control loop outputs remain stable during grid disturbances, preventing spurious trips and protecting turbine mechanical integrity. In water and wastewater treatment facilities, the S9400UK supports FCS controllers managing dosing systems, filtration controls, and SCADA integration points, where regulatory compliance requires continuous data logging and alarm management even during power interruptions.

In chemical and pharmaceutical manufacturing, the S9400UK protects batch control sequences managed by CENTUM VP FCS nodes, ensuring that in-progress batch records are preserved and that process parameters remain within validated ranges during power events. In mining and minerals processing, the S9400UK supports FCS controllers in grinding circuit automation, flotation cell control, and tailings management systems. In marine and offshore applications, the S9400UK is deployed in CENTUM VP systems managing ballast control, cargo handling automation, and engine room monitoring, where power quality is inherently variable and battery backup is a classification requirement.

Q1: Is the S9400UK compatible with both CENTUM VP and CENTUM CS 3000 FCS cabinets?Yes. The S9400UK is designed for use across the CENTUM VP and CS 3000 FCS platform families. It is dimensionally and electrically compatible with the standard FCS cabinet power subsystem in both generations. Engineering teams migrating from CS 3000 to CENTUM VP can continue to use S9400UK units during the transition period, simplifying spare parts management across mixed-generation installations.

Q2: What is the recommended replacement interval for the S9400UK, and does NANKMOS support planned maintenance procurement?Yokogawa recommends periodic battery replacement as part of the CENTUM VP preventive maintenance schedule, typically aligned with site-specific maintenance intervals and battery capacity test results. NANKMOS maintains in-stock inventory of the S9400UK to support planned maintenance procurement, with fast global shipping to minimize the gap between order placement and on-site availability. All units are covered by a 12-Month Warranty from the date of shipment, providing assurance for both immediate deployment and spare stock held in site warehouses.

Q3: How does the S9400UK integrate with Yokogawa's redundant power supply architecture, and what happens if the primary power supply fails?In a standard CENTUM VP FCS cabinet configured with PW481 or PW482 dual-redundant power supplies, the S9400UK provides a tertiary backup layer. If both primary and secondary power supply outputs fail simultaneously — an event typically caused by upstream power distribution failure rather than individual PSU faults — the S9400UK sustains the FCS processor and I/O bus for a defined backup duration, enabling orderly shutdown sequencing, alarm logging, and safe output state management. The transition to battery backup is automatic and requires no operator intervention, consistent with CENTUM VP's high-availability design philosophy.
