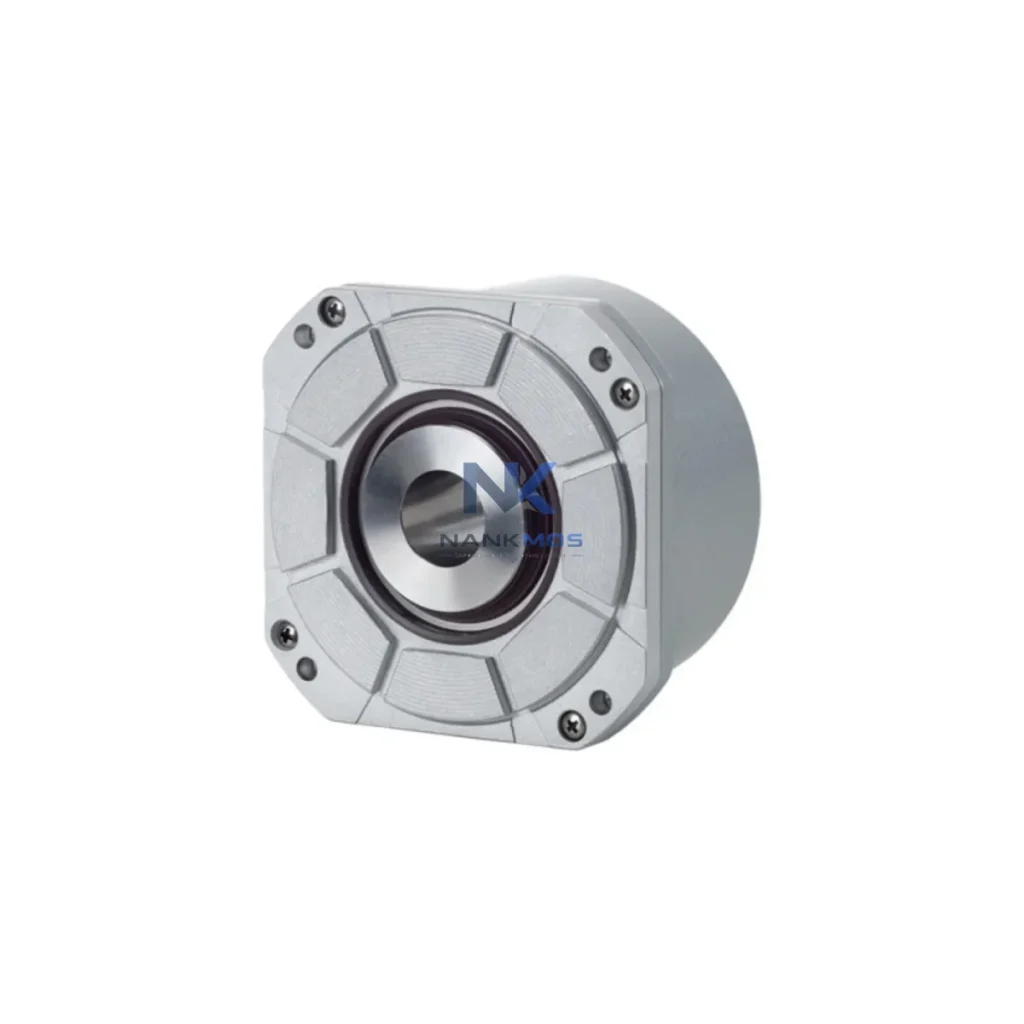

HEIDENHAIN RCN 223 16384 03S17-0D Absolute Angle Encoder

Product Details

RCN 223 16384 03S17-0D Product Description

The HEIDENHAIN RCN 223 16384 03S17-0D is a high-resolution absolute angle encoder engineered for precision position feedback in energy-conscious industrial automation environments. With 16,384 signal periods per revolution and a robust inductive scanning principle, this encoder delivers the closed-loop accuracy that modern servo drive systems and CNC machining centers demand — while actively contributing to reduced energy waste, lower thermal load, and optimized production line throughput.

Designed for integration into demanding factory environments, the RCN 223 16384 03S17-0D supports the kind of deterministic, low-latency position data that allows servo amplifiers and motion controllers to operate at peak efficiency. By eliminating position uncertainty and reducing unnecessary corrective motion cycles, this encoder directly reduces reactive power consumption and motor heating — two of the most significant contributors to energy loss in precision drive systems.

In a fully integrated smart factory architecture, the RCN 223 16384 03S17-0D functions as the precision sensing backbone for closed-loop energy management. Its EnDat 2.2 serial interface enables direct, high-speed communication with HEIDENHAIN TNC series CNC controllers and compatible third-party motion controllers, delivering absolute position values without the need for reference runs — eliminating the energy-intensive homing cycles that consume unnecessary drive power at startup.

When paired with SINAMICS S120 servo drive modules or equivalent multi-axis drive platforms, the RCN 223 provides the sub-micron angular resolution needed to keep torque ripple and current draw at minimum levels. The drive system can respond to load changes with precision, avoiding the energy spikes associated with position overshoot and correction. In multi-axis gantry or rotary table configurations, this translates directly into measurable reductions in peak power demand.

The encoder's inductive scanning principle makes it inherently robust against contamination — a critical advantage in environments where optical encoders would require frequent cleaning or replacement. This durability reduces unplanned downtime and the associated energy waste from emergency restarts and thermal cycling of drive systems. Alongside HEIDENHAIN ERN 1387 incremental encoders used on auxiliary axes, the RCN 223 forms a complementary position feedback layer that supports full-system energy profiling.

For power monitoring integration, the RCN 223 16384 03S17-0D works alongside power measurement modules such as the SENTRON PAC3200 or equivalent DIN-rail power analyzers connected via PROFIBUS or Modbus TCP. These modules capture real-time kWh consumption per axis or per machine cell, while the encoder's position data provides the motion context needed to correlate energy draw with specific production operations — enabling energy-per-part calculations and load scheduling optimization.

In PLC-based control architectures using SIMATIC S7-1500 or equivalent IEC 61131-3 controllers, the EnDat 2.2 interface of the RCN 223 integrates cleanly through drive-integrated encoder evaluation, reducing the need for separate encoder interface cards and associated I/O overhead. This simplifies the control cabinet layout, reduces heat generation from additional hardware, and lowers the overall system power budget. Distributed I/O modules such as ET 200SP remote I/O stations can then be dedicated to process signals rather than encoder management, improving overall cabinet thermal efficiency.

HMI systems connected via PROFINET or OPC UA — such as SIMATIC HMI TP1500 Comfort panels — can display real-time axis position, velocity, and energy consumption data sourced from the drive-encoder feedback loop. Operators gain immediate visibility into whether a machine cell is operating within its energy-efficient envelope, enabling manual or automated load shedding during peak tariff periods. When integrated with a SCADA platform such as WinCC or Ignition, this data feeds into plant-wide energy dashboards that support ISO 50001 energy management compliance.

The RCN 223 16384 03S17-0D contributes to production line energy optimization through several interconnected mechanisms. First, its absolute position output eliminates reference run requirements — a process that in high-cycle applications can consume significant drive energy and add seconds to each production cycle. In a line running 20 hours per day, eliminating even a 3-second homing cycle per shift can recover meaningful energy and throughput capacity.

Second, the encoder's high resolution — 16,384 signal periods per revolution — allows servo drives to operate with finer torque control granularity. This means the drive can apply exactly the torque required for a given load condition, rather than over-driving to compensate for position uncertainty. The result is lower average current draw, reduced motor winding temperature, and extended bearing life — all of which reduce both energy consumption and maintenance-related downtime.

Third, the RCN 223's robust mechanical design supports continuous operation in thermally demanding environments without performance degradation. In applications such as precision grinding, gear hobbing, or rotary indexing, where thermal stability of the feedback signal is critical to part quality, the encoder maintains accuracy without requiring active cooling — unlike some optical alternatives that need temperature-controlled enclosures. This eliminates the parasitic energy load of supplemental cooling systems.

From a predictive maintenance perspective, the EnDat 2.2 interface supports diagnostic data transmission alongside position values. Drive systems can monitor encoder signal quality parameters over time, flagging degradation trends before they cause positioning errors or unplanned stops. This capability supports condition-based maintenance scheduling, allowing maintenance teams to plan interventions during planned downtime windows rather than responding to failures — reducing the energy cost of emergency restarts and thermal recovery cycles.

For facilities pursuing energy intensity reduction targets, the RCN 223 16384 03S17-0D is a foundational component in the precision feedback layer of an energy-aware automation stack. Combined with variable frequency drives on auxiliary motors, smart pneumatic pressure regulators, and demand-response-capable industrial power supplies, it enables the kind of granular, axis-level energy visibility that supports both operational efficiency and sustainability reporting.

All units supplied by NANKMOS are sourced from verified inventory channels, pre-shipment tested for signal integrity and communication protocol compliance, and covered by a 12-month warranty. Stock is maintained to support short lead-time delivery for MRO replacement and new installation projects.

Q1: How does the RCN 223 16384 03S17-0D contribute to energy savings in a servo drive system? The RCN 223 provides absolute, high-resolution position feedback via EnDat 2.2, enabling servo drives to apply precise torque without overcorrection. This reduces reactive current draw, minimizes motor heating, and lowers overall drive energy consumption — particularly in high-cycle or multi-axis applications where cumulative efficiency gains are significant.

Q2: Is the RCN 223 16384 03S17-0D compatible with third-party CNC controllers and servo drives? Yes. The EnDat 2.2 interface is supported by a wide range of motion controllers and servo drive platforms beyond HEIDENHAIN's own TNC series, including drives from Siemens, Bosch Rexroth, and Fanuc (via interface adapters). Compatibility should be confirmed against the specific drive's encoder interface specification before installation.

Q3: What is the recommended replacement or upgrade path for aging RCN 200 series encoders? For direct replacement, the RCN 223 16384 03S17-0D is a drop-in compatible upgrade for earlier RCN 200 series variants with matching mechanical and electrical interfaces. For systems currently using TTL or 1 Vpp incremental encoders, migration to the EnDat 2.2 absolute interface requires drive firmware and cabling updates but delivers significant gains in startup efficiency and diagnostic capability.

Q4: What testing and warranty coverage is provided with each unit? Every RCN 223 16384 03S17-0D supplied by NANKMOS undergoes pre-shipment functional testing covering signal output verification, communication protocol handshake, and mechanical rotation check. Each unit is covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch to support urgent MRO and production continuity requirements.
