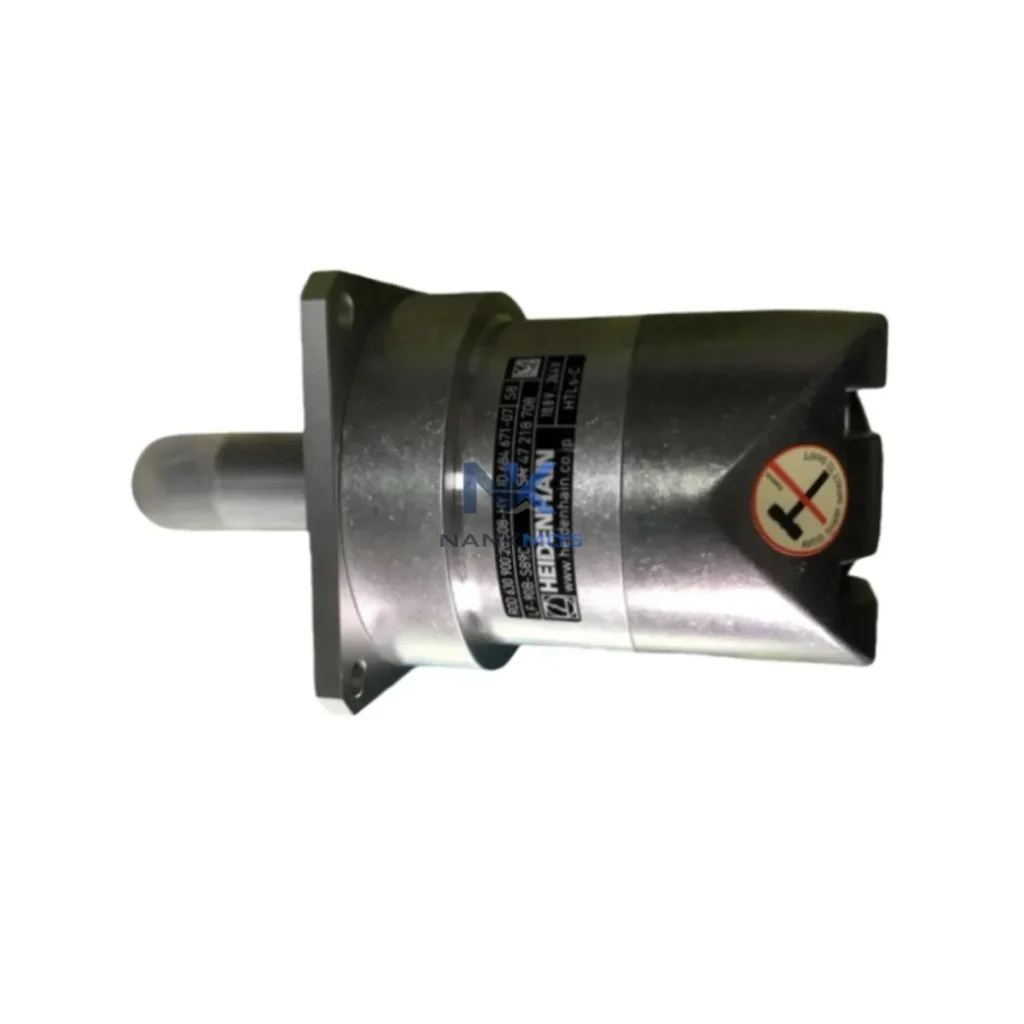

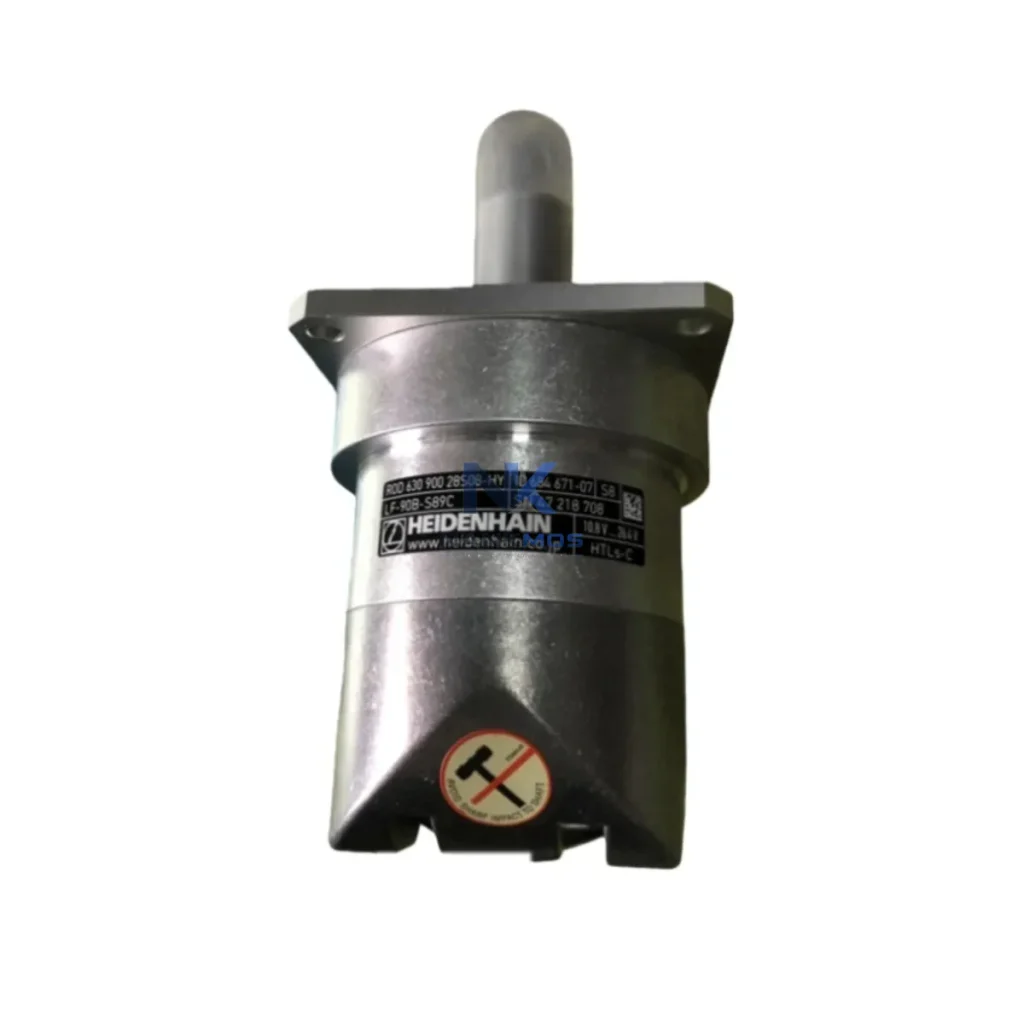

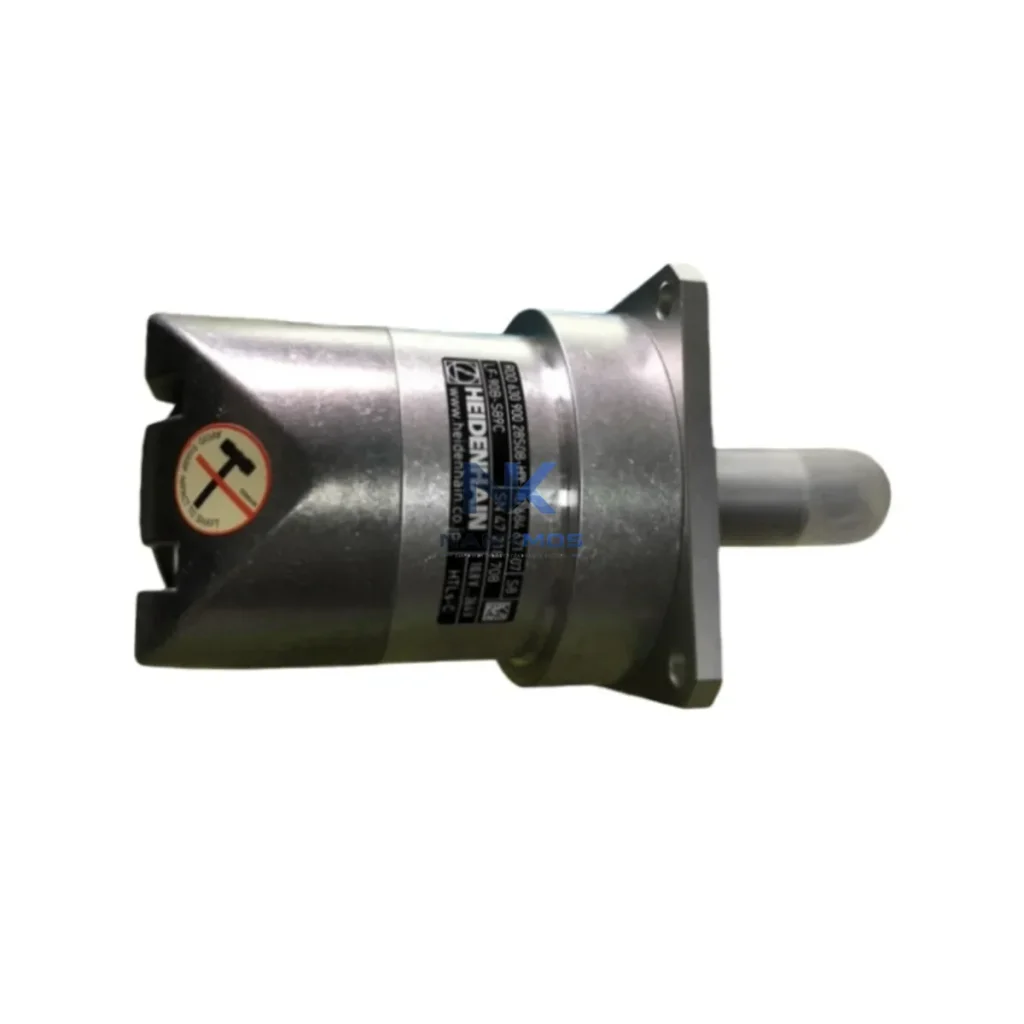

HEIDENHAIN ROD630 900 28S0 Incremental Rotary Encoder

Product Details

ROD630 900 28S0 Product Description

The HEIDENHAIN ROD630 900 28S0 is a high-resolution incremental rotary encoder from the proven ROD 600 series, engineered to deliver precise position and speed feedback in energy-intensive industrial environments. Designed for integration into CNC machine tools, servo-driven production lines, and automated manufacturing cells, this encoder plays a central role in reducing unnecessary energy consumption by enabling accurate closed-loop motor control — ensuring drives operate only at the power levels the process actually demands.

In modern smart factories, energy waste is often invisible: motors running at full load when partial load suffices, drives hunting for position due to poor feedback resolution, and thermal losses accumulating from imprecise speed regulation. The ROD630 900 28S0 addresses these inefficiencies at the source — the motor shaft — by providing clean, high-frequency incremental signals that allow the connected drive system to respond with minimal overshoot, reduced correction cycles, and lower average current draw across the production shift.

The ROD630 900 28S0 does not operate in isolation — its energy-control value is fully realized when integrated into a coordinated automation architecture. In a typical CNC or servo-driven production cell, this encoder mounts directly to the motor shaft and feeds position and velocity data back to the axis drive, such as a Siemens SINAMICS S120 servo drive module or a Fanuc αi-series servo amplifier. These drives use the encoder's incremental A/B/Z signals to execute precise torque and speed regulation, eliminating the excess current draw that results from open-loop or poorly resolved feedback.

At the controller level, a SINUMERIK 840D sl CNC or HEIDENHAIN TNC 640 interpolates the encoder pulses to generate smooth, energy-efficient motion profiles — reducing jerk, minimizing regenerative braking losses, and keeping the axis within its optimal efficiency band throughout the machining cycle. When paired with a Siemens SIMATIC S7-1500 PLC managing the broader production cell, the encoder's feedback contributes to coordinated multi-axis sequencing that avoids simultaneous peak-load events, flattening the facility's demand curve and reducing peak energy charges.

For energy monitoring and reporting, the ROD630 900 28S0 works alongside SENTRON PAC power monitoring devices or Janitza UMG power analyzers connected to the plant's SCADA system. While the encoder itself provides motion data, the power monitors capture real-time kW consumption per axis or per machine — together, these data streams allow the energy management system to correlate position accuracy with power draw, identifying inefficient operating zones and scheduling predictive maintenance before energy waste escalates into unplanned downtime.

In multi-axis gantry or robotic welding lines, the ROD630 900 28S0 may serve alongside HEIDENHAIN LC 400 series linear encoders on the linear axes, while rotary axes use the ROD 600 series — creating a unified HEIDENHAIN feedback ecosystem that simplifies drive tuning, reduces commissioning time, and ensures consistent signal quality across all axes. The HEIDENHAIN EXE 600 signal conditioning unit can further process encoder signals for long cable runs without signal degradation, maintaining feedback integrity in large-footprint production halls.

On the I/O and communication layer, encoder status and diagnostic signals integrate with Siemens ET 200SP distributed I/O modules or Beckhoff EtherCAT I/O terminals, feeding real-time device health data to the HMI — such as a Siemens TP1500 Comfort Panel — where operators can monitor encoder temperature, signal quality, and axis performance without interrupting production. This visibility supports condition-based maintenance strategies that replace time-based part swaps with data-driven interventions, reducing both spare parts consumption and unnecessary downtime.

Factory energy optimization begins with measurement and control at the actuator level. The ROD630 900 28S0 contributes to both. By providing 900 lines per revolution of high-fidelity incremental feedback, it enables the servo drive to maintain position accuracy within micrometers — which means the drive spends less time in correction mode, less time drawing peak current, and less time generating waste heat that must be removed by the cabinet cooling system. Across a production shift of 16 or 24 hours, these micro-efficiencies accumulate into measurable reductions in kWh consumption per part produced.

Thermal load management is a frequently overlooked dimension of production line energy optimization. Every watt of excess motor current that results from poor feedback resolution eventually becomes heat — in the motor windings, in the drive's IGBT modules, and in the control cabinet. The ROD630 900 28S0's low self-power consumption (typically under 1 W) and its ability to enable tight closed-loop control directly reduce the thermal burden on the drive system, extending the service life of power electronics and reducing the frequency of thermal-related faults that cause unplanned stops.

Production line takt time stability is another area where encoder precision translates to energy savings. When an axis consistently reaches its target position on the first move — without hunting, overshoot, or re-positioning — the cycle time per part remains predictable and the machine operates at its designed efficiency point. Inconsistent positioning, by contrast, forces the controller to insert dwell times or re-approach moves that consume energy without adding value. The ROD630 900 28S0's clean signal output, combined with HEIDENHAIN's proven interpolation electronics, ensures that takt time variability from the feedback system is effectively eliminated as a source of production inefficiency.

For facilities implementing ISO 50001 energy management systems or pursuing carbon reduction targets, the ROD630 900 28S0 represents a foundational investment in the measurement infrastructure that makes energy optimization possible. Accurate motion feedback enables accurate energy attribution — knowing which axis, which operation, and which product type consumes the most energy per cycle — and that knowledge drives the process improvements that reduce consumption at scale.

Every unit supplied by NANKMOS undergoes outgoing functional testing and signal verification before shipment, with a 12-month warranty covering defects in materials and workmanship. Stock is maintained for prompt dispatch, minimizing production line downtime during replacement or upgrade projects.

Q1: How does the ROD630 900 28S0 contribute to energy savings in a servo drive system? By providing 900-line incremental feedback with clean TTL/RS-422 differential signals, the ROD630 900 28S0 enables the servo drive to execute precise closed-loop control with minimal correction cycles. This reduces average motor current draw, lowers heat generation in the drive and motor, and decreases the energy consumed per production cycle — particularly in high-duty-cycle applications such as CNC machining, servo pressing, and automated assembly.

Q2: Which drive and controller systems is the ROD630 900 28S0 compatible with? The ROD630 900 28S0 is compatible with a wide range of industrial servo drives and CNC controllers that accept TTL/RS-422 incremental encoder input, including Siemens SINAMICS S120, Fanuc αi-series amplifiers, Mitsubishi MR-J4 servo drives, Bosch Rexroth IndraDrive, and controllers such as SINUMERIK 840D sl, Fanuc 0i-F, and HEIDENHAIN TNC 640. Please confirm your drive's encoder interface specification before ordering.

Q3: Can the ROD630 900 28S0 be used as a direct replacement for other ROD 600 series encoders? In many cases, yes — the ROD 600 series shares a common mechanical interface and signal standard across variants. However, the specific line count (900 lines), shaft dimensions, and connector type (28S0) must match your existing installation. NANKMOS recommends verifying the full part number against your machine documentation or contacting our technical team at [email protected] to confirm compatibility before replacement.

Q4: What testing and warranty coverage is provided with each unit? Every ROD630 900 28S0 supplied by NANKMOS undergoes outgoing inspection and functional signal testing prior to shipment. Each unit is covered by a 12-month warranty against manufacturing defects. Units are held in stock for prompt dispatch, and our team can provide documentation to support incoming inspection at your facility.
